Plan 62741DJ
3-Bed New American House Plan with Flex Room - 1947 Sq Ft
Heated S.F.
1,947
Beds
3
Baths
2.5
Stories
2
Cars
3
Floor Plan

Plan 62741DJ

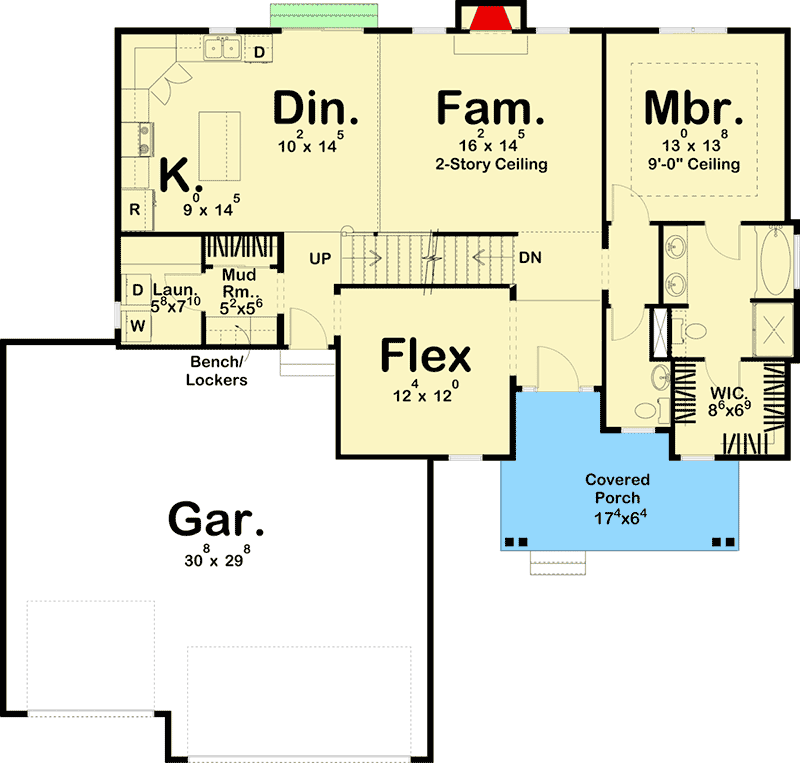

Main Level
slide image 0

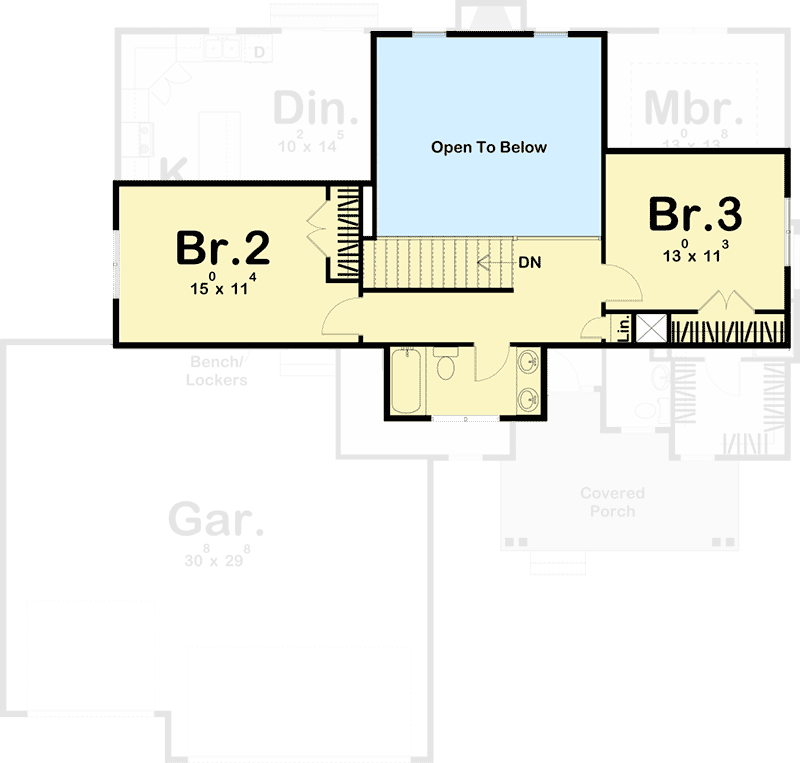

2nd Floor
slide image 1

Plan 62741DJ

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Exposed rafter tails, a shed dormer and covered entry porch give this 3-bed house plan great curb appeal..
  • Use the flex space as a formal dining room or as a study or playroom.
  • The main living area is one long open sweep of space that encompasses the kitchen, dining area and great room with its two-story ceiling.
  • A tray ceiling gives the quiet master suite its edge.
  • Two family bedrooms share a hall bathroom with two sinks on the second floor.
  • Related Plans: Get an alternate version with house plan 62538DJ.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,947 sq. ft.

1st Floor

1,373 sq. ft.

2nd Floor

574 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

58' 0"

Depth

56' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

850 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Architectural Style

Craftsman

Farmhouse

New American

Northwest

Special Features

Bedrooms - Split

Flex Room

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Two Story Great Room
