Plan 680129VR
752 Square Foot ADU with 2743 Square Foot Garage with RV Bay
Heated S.F.
752
Beds
1
Baths
1
Stories
1
Cars
7
Floor Plan

Plan 680129VR

Main Level
slide image 0

Plan 680129VR

1-800-854-7852

1-262-521-4596

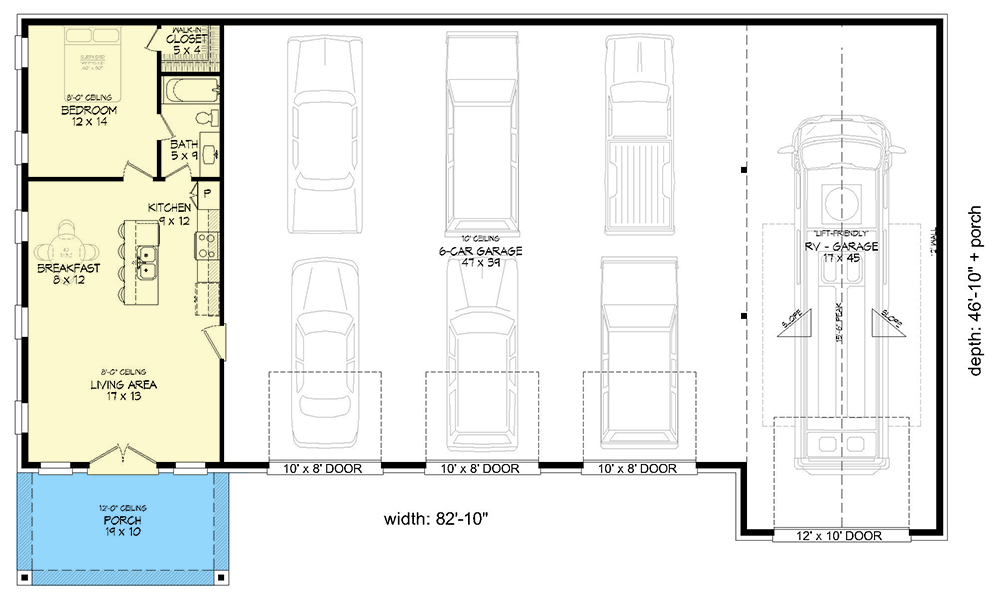

Main Level
floor plan image Main Level
Plan Details

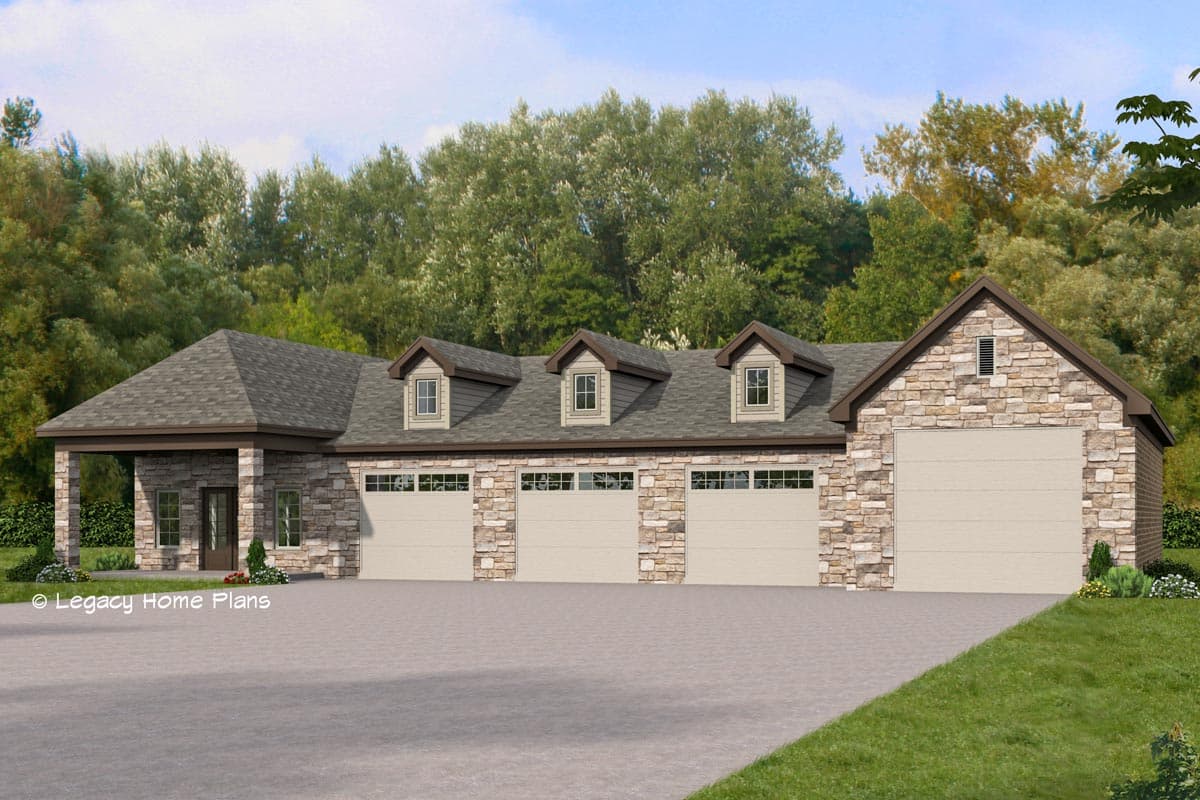

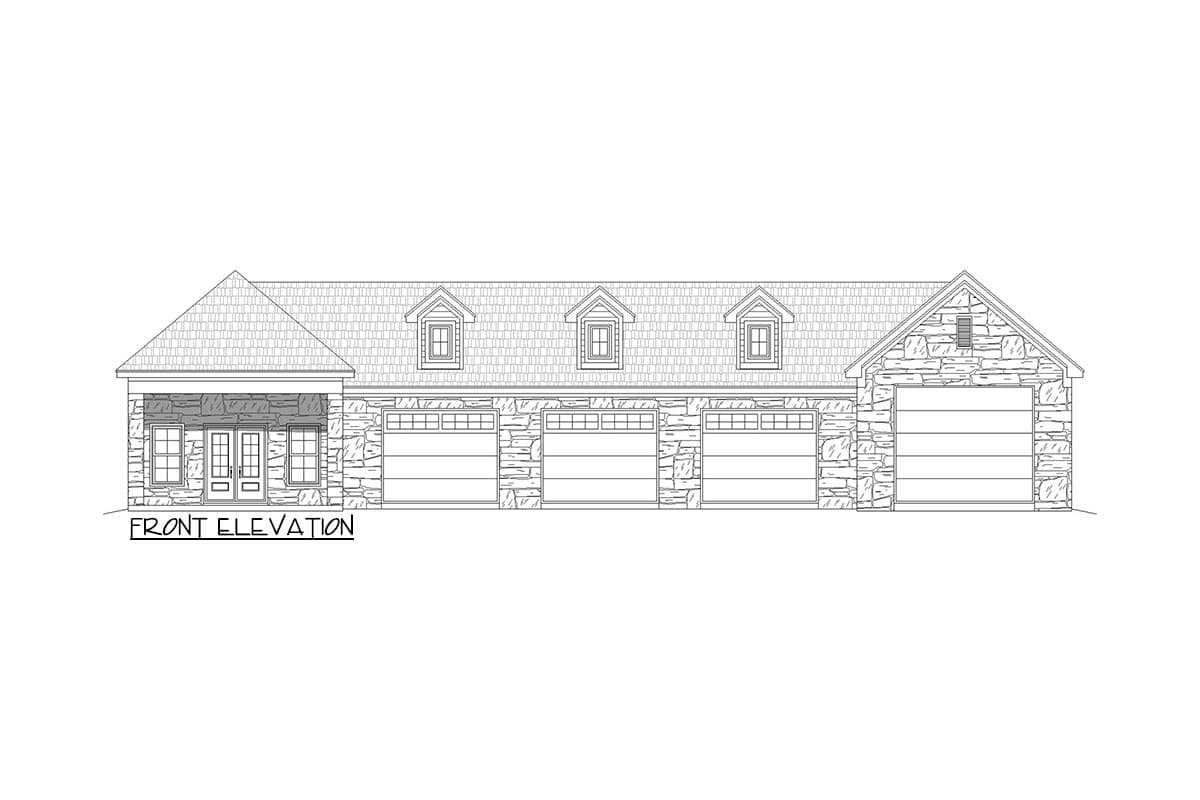

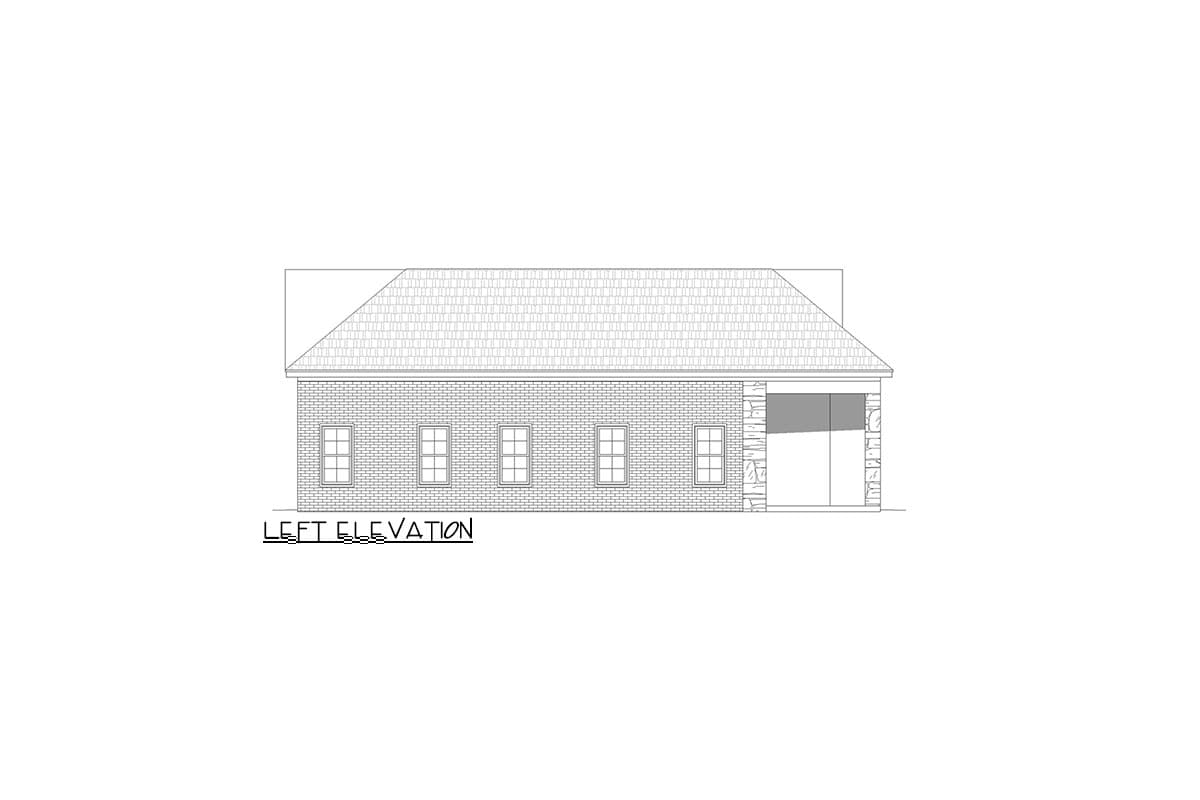

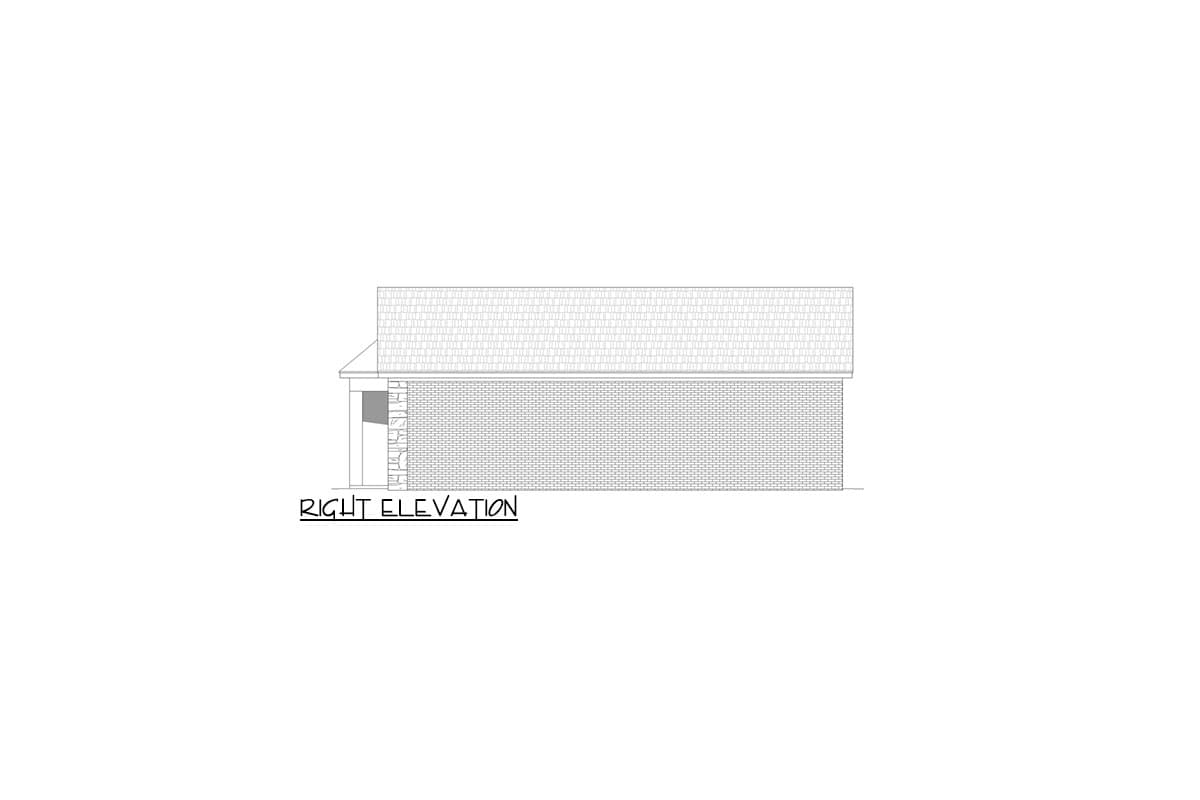

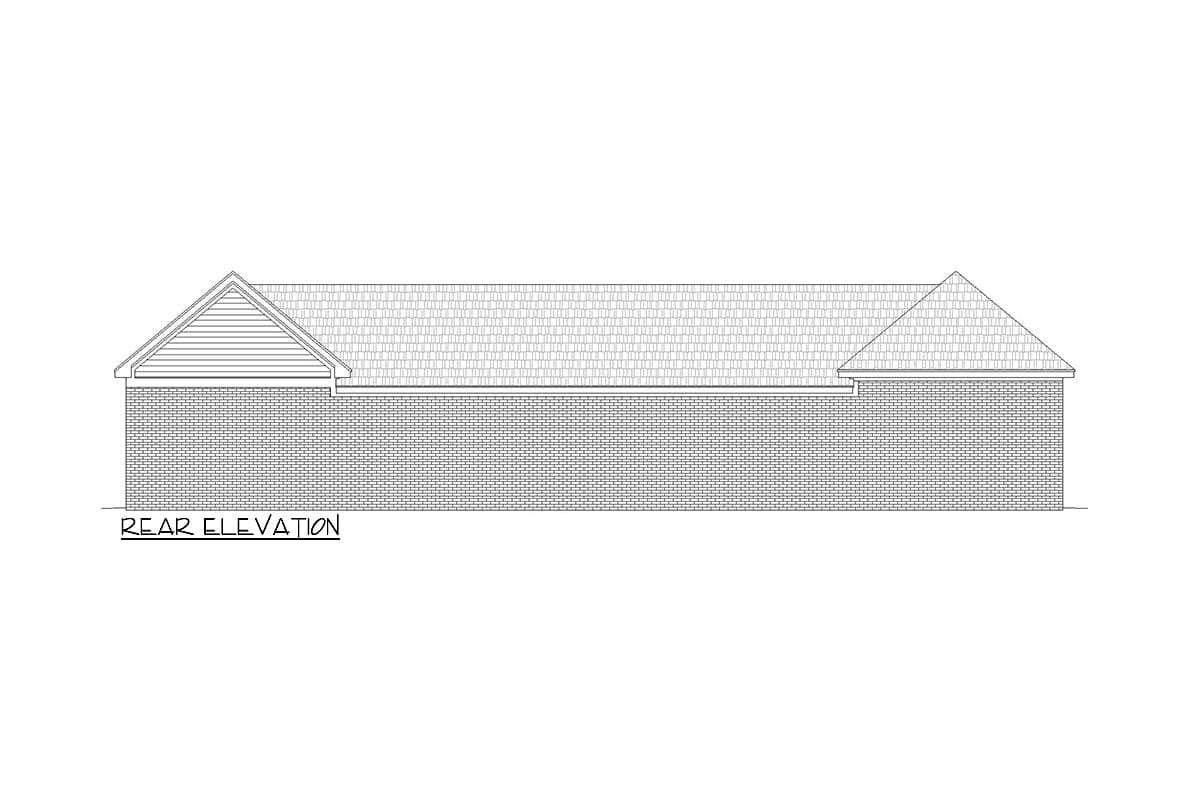

  • A stone facade and three dormer windows add character to the exterior of this ADU with 7-car garage (3 tandem bays and 1 vaulted RV bay).
  • The garage bays have 10' by 8' overhead doors and the RV bay has a 12' by 10' overhead door. The center portion has 10' ceilings and the RV bay ceiling goes from 12' to 15'6".
  • On the left, a 188 square foot covered porch with 12' ceiling welcomes you to the living quarters. The front portion gives you an open living area with a kitchen and breakfast area towards the back and the living room with access to the garage in front.
  • In back, the bedroom bath and walk-in closet complete the home.
  • Related Plan: Convert the living space to a workshop garage plans 68582VR and 68499VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

752 sq. ft.

1st Floor

752 sq. ft.

Porch, Front

188 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

82' 10"

Depth

46' 10"

Max Ridge Height

20' 3"

Garage

Type

Attached, RV Garage

Area

2743 sq. ft.

Count

7 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Garage

10' 0''

RV Garage

Vaulted

12' 0''

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Carriage

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Workshop

Plan Collections

ADU
