Plan 765011TWN
5-Bed Beach-y House Plan with Two Upstairs Options Included - 3287 Sq Ft
Heated S.F.
3,287
Beds
5
Baths
4.5
Stories
2
Cars
2
Floor Plan

Plan 765011TWN

Main Level
slide image 0
Second Level
slide image 1
Lower Level
slide image 2
Optional Second Level Layout
slide image 3

Plan 765011TWN

1-800-854-7852

1-262-521-4596

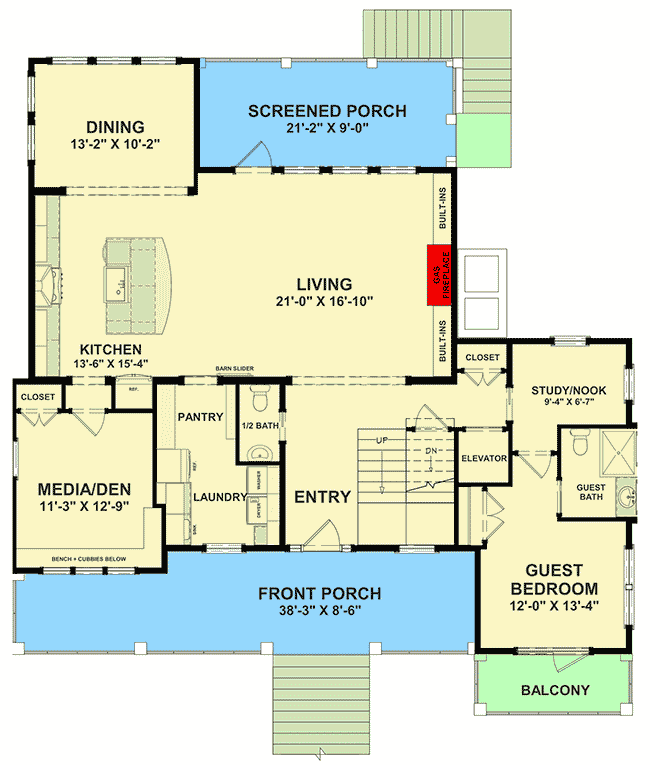

Main Level
floor plan image Main Level

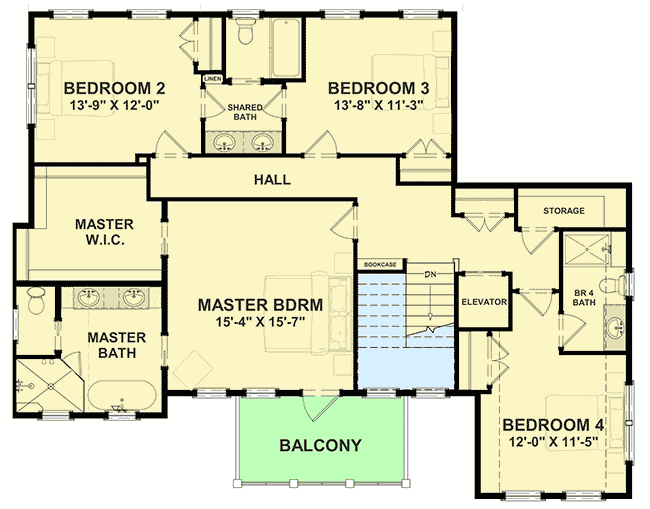

Second Level
floor plan image Second Level

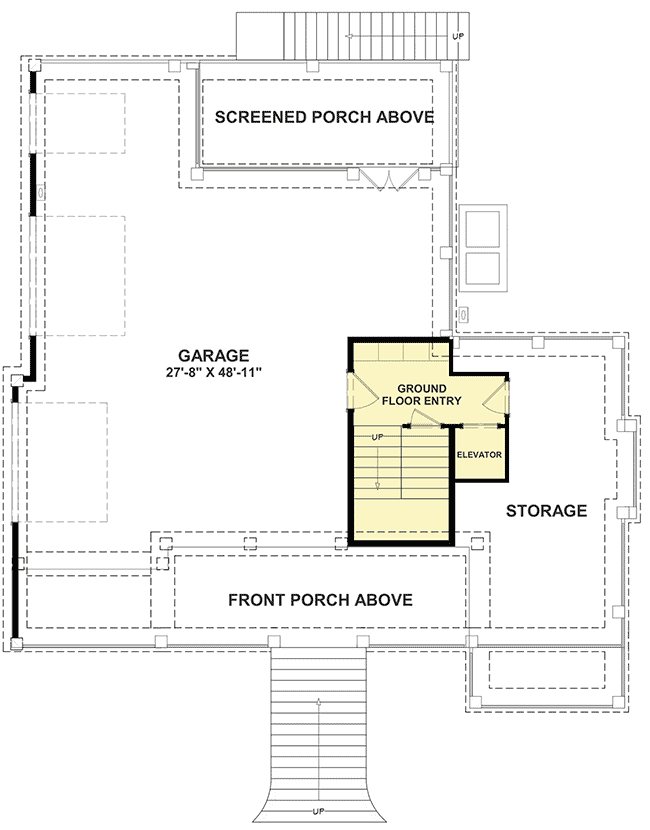

Lower Level
floor plan image Lower Level

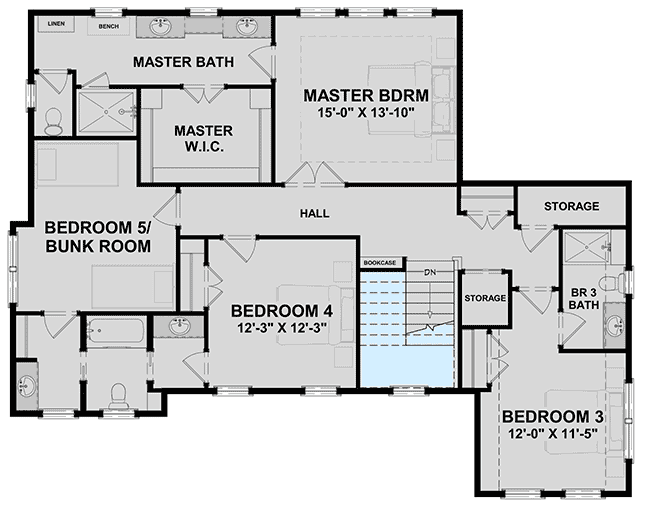

Optional Second Level Layout
floor plan image Optional Second Level Layout
Plan Details
  • This 5-bed house plan gets you up off the ground making this a beach-friendly home. Outdoor spaces on both floors help you enjoy your setting.
  • An open layout in the heart of the home offers a feeling of spaciousness, and transom windows contribute to the natural light provided throughout. Enjoy outdoor living on the screened porch, accessible through the living room.
  • The back of the main floor is wide open giving you great entertaining space indoors and out. For some privacy, retreat to the media/den and the study/nook.
  • The second floor comes with two layouts for you to choose from (both come with your purchase). One version gives you four bedrooms including the master suite with its own private outdoor balcony overlooking the front. The optional version removes the balcony and puts the master suite in back.
  • The ground level gives you parking and an entry with an elevator accessing both floors.
  • Related Plan: Get a non-elevated farmhouse version with house plan 765009TWN.
  • DELIVERY NOTE: Please allow 10 to 15 days for plan delivery.
What's Included
  • Cover Sheet with General Notes
  • Foundation Plan
  • Floor Plans with Dimensions
  • Exterior Elevations
  • Cross Section
  • Door & Window Schedules
  • Roof plan
  • Electrical Plans
  • Cabinetry Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,287 sq. ft.

1st Floor

1,681 sq. ft.

2nd Floor

1,407 sq. ft.

Porch, Combined

288 sq. ft.

Screened Porch

566 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Pier

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 6"

Depth

54' 6"

Max Ridge Height

39' 7"

Garage

Type

Drive Under, Attached

Area

1307 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Beach

Coastal

Coastal Contemporary

Country

Low Country

Vacation

Special Features

Breakfast Nook

Butler Walk-in Pantry

Den

Elevator

Flex Room

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 2nd Floor

Media Room

Plan Collections
