Plan 83142DC
8 Unit Apartment Complex with 1109 Sq Ft 2 Bed Units
Heated S.F.
8,072
Units
8
Width
Depth
Floor Plan

Plan 83142DC

Main Level
slide image 0

Plan 83142DC

1-800-854-7852

1-262-521-4596

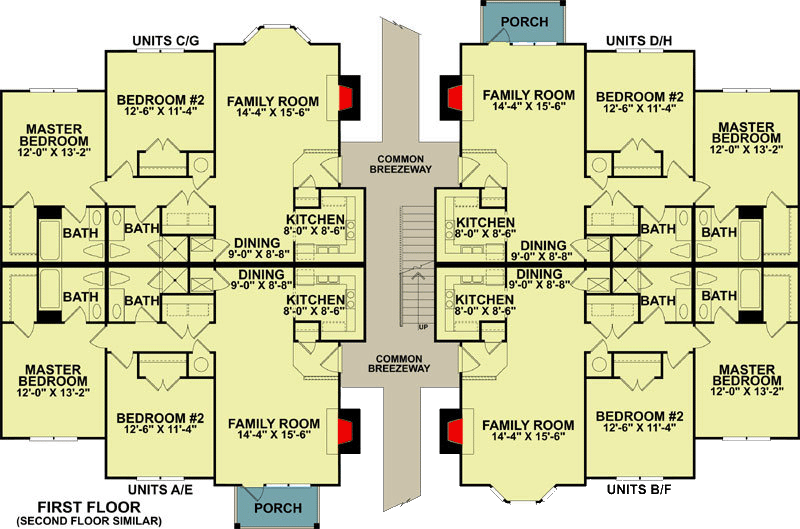

Main Level
floor plan image Main Level
Plan Details
  • This 8-unit apartment plan gives your four units on each of its two floors.
  • Unit A, the front-left unit, gives you 1,009 square feet with two bed and two baths.
  • Unit B, the front-right unit, gives you 1,009 square feet with two bed and two baths.
  • Unit C, the top-left unit, gives you 1,009 square feet and two bed and two baths.
  • Unit D, the top-right unit, gives you 1,009 square feet with two bed and two baths.
  • A central stairwell separates the left units from the right. Units A and D have porches off the family rooms.
  • The main roof pitch is 6:12.
What's Included
  • Foundation Plan- includes your choice of concrete slab, crawl space or basment (when available).
  • Detailed Floor Plans- includes the placement of interior walls, room dimensions, doors, windows, fireplace and stairway location (if applicable), and electrical outlet locations.
  • Exterior Elevations- includes the front, rear and sides of the house with detailed measurement and exterior material requirements.
  • Cabinet Details- includes details of all cabinets, fireplaces, built-in unites and other interior features.
  • Cross Sections- includes cross section details of the home, flooring, insulation and roofing construction.
  • Roof Plans- includes rafter, dormer, gable and other feature layouts.
  • Specifications- includes recommendations for materials and equipment such as structural specifications, masonry work, concrete work, wood specifications, excavating and grading, drywall, floor, caulking, glazing and sealants.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
