Plan 23203JD
A Bath for Every Bedroom
Heated S.F.
4,725
Beds
4
Baths
4.5
Stories
2
Cars
4
Photos
Floor Plan

Plan 23203JD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 23203JD

1-800-854-7852

1-262-521-4596

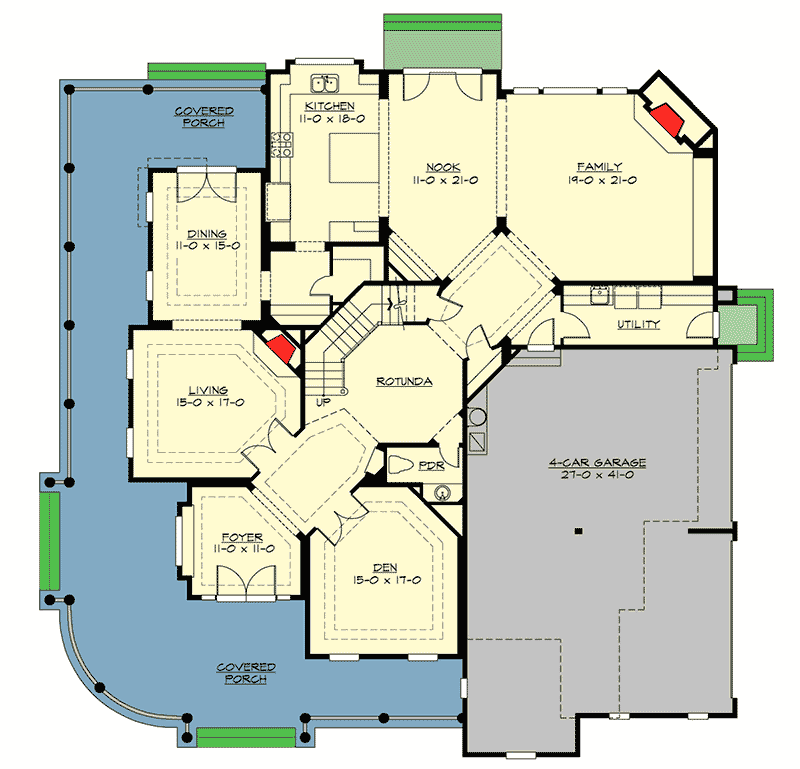

Main Level
floor plan image Main Level

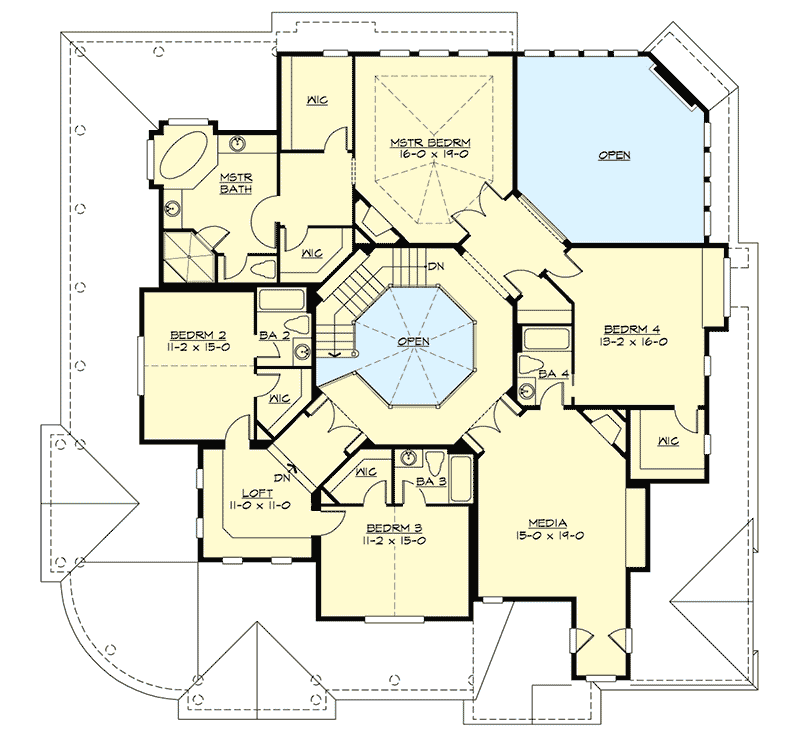

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Your family and guests will enjoy comfort and luxury with a bath and walk-in closet attached to each bedroom in this spectacular home.

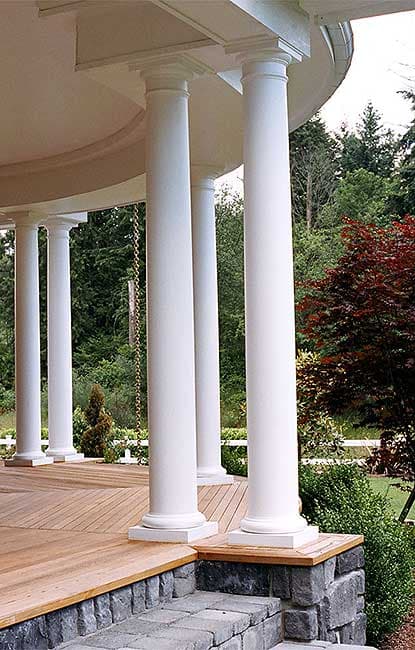

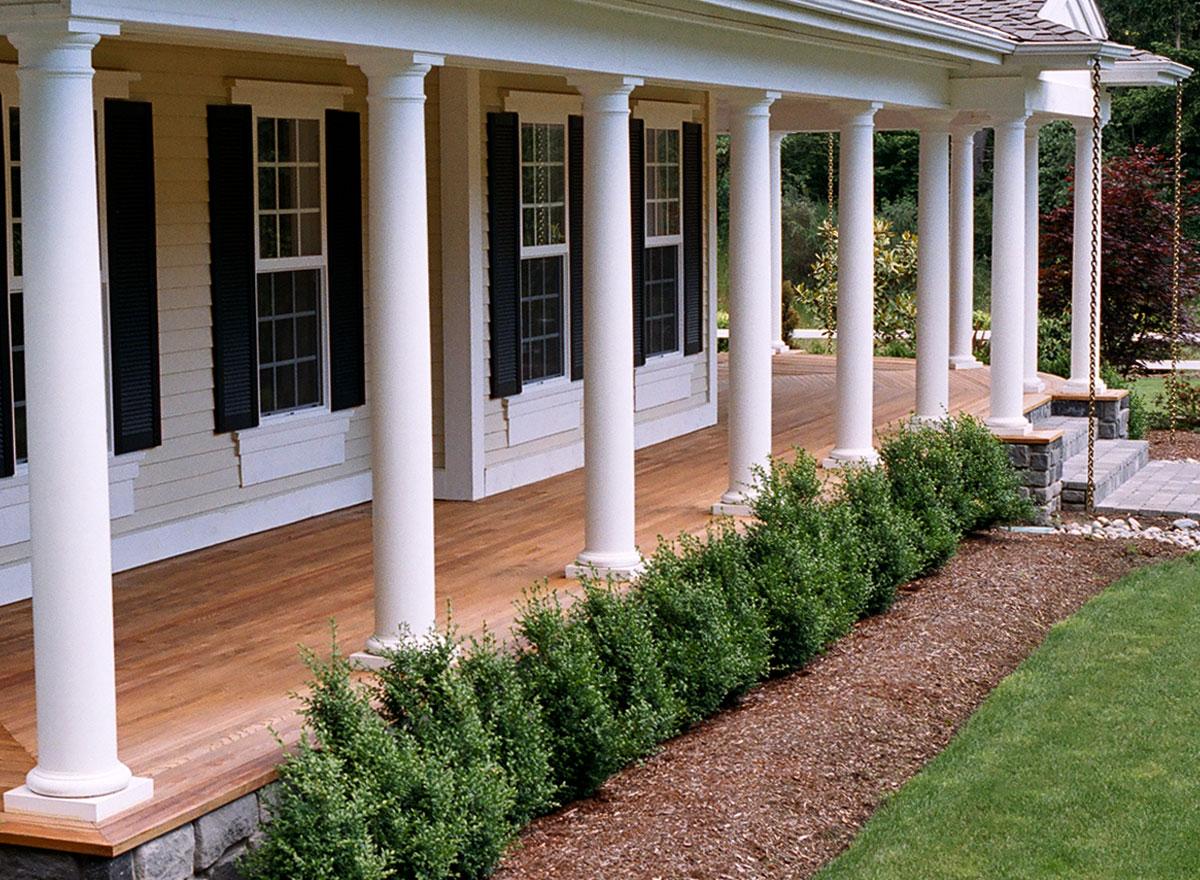

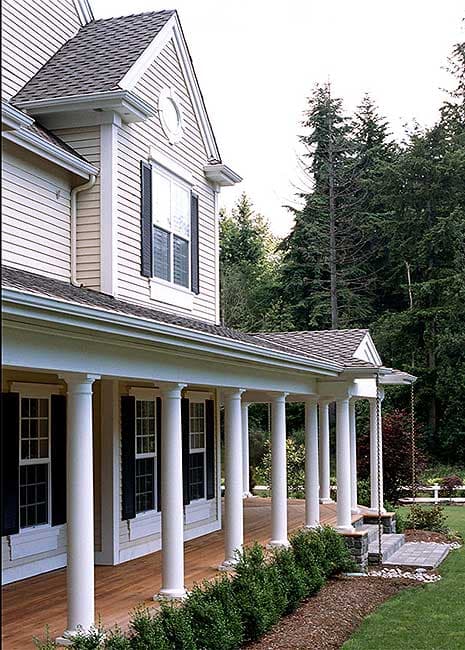

  • The covered porch wraps around three sides of the plan creating a great place to sit and relax.
  • Special ceiling treatments highlight almost every room and a central rotunda is the perfect location for holiday decorations.
  • Large, open spaces comprise the informal living area in the rear. The family chef working at the island has a clear view straight back to the fireplace and built-in cabinets.
  • On the second floor, the master suite is truly a retreat with its romantic fireplace,vaulted ceiling, two large walk-in closets and a spa bath second to none.
  • In addition to the three bedrooms, you can enjoy a media room and loft area with built-in cabinets.
  • The octagonal hall on this floor is open to the rotunda below, creating a dramatic impact that sets this home apart from others.

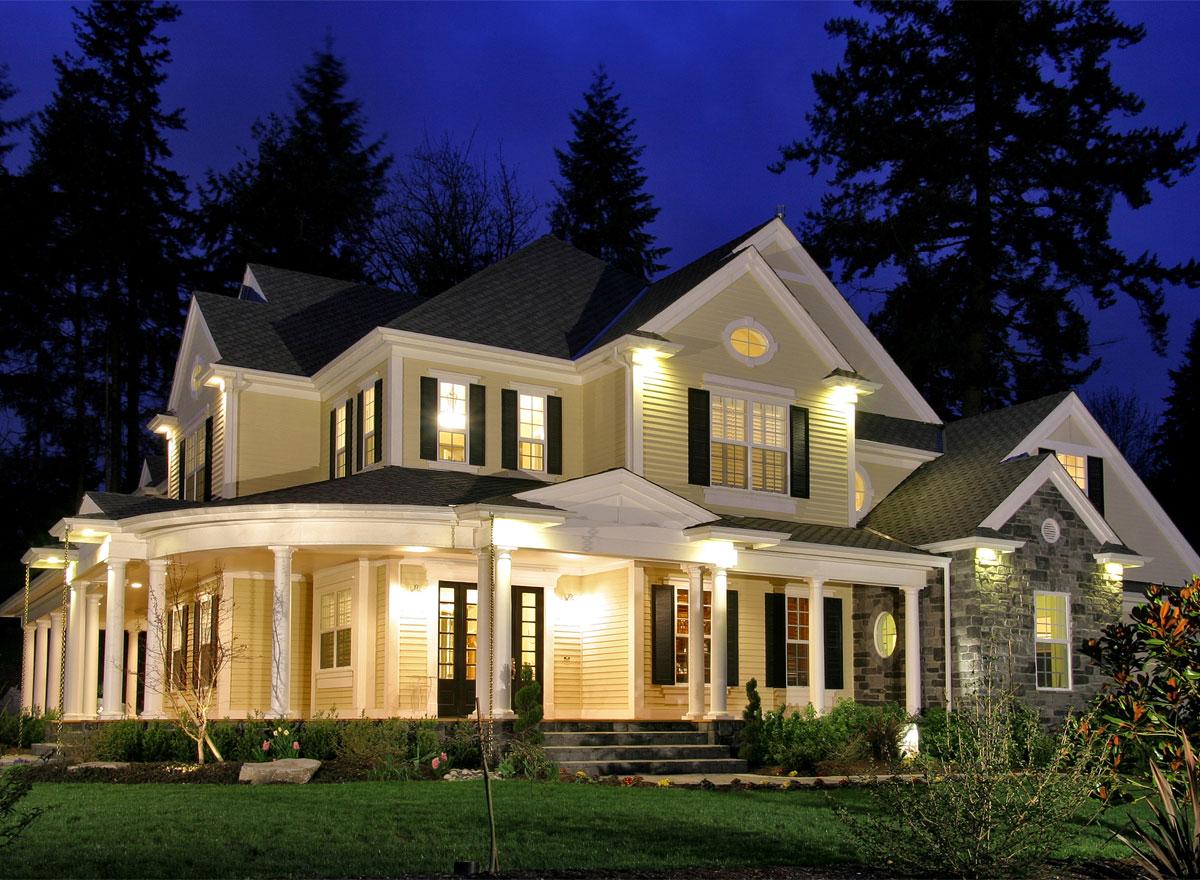

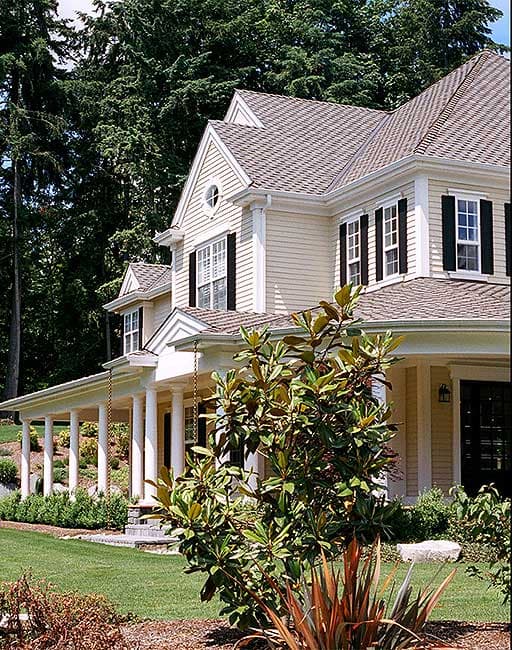

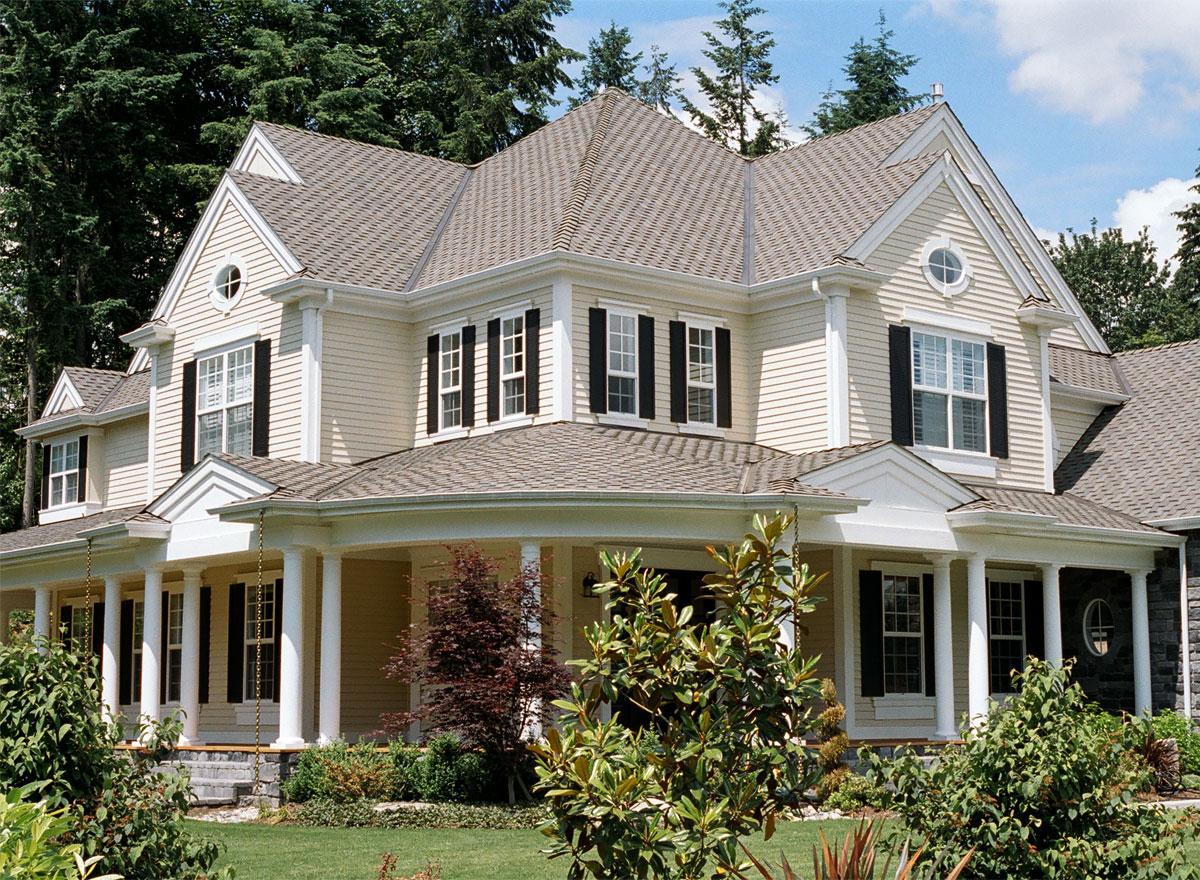

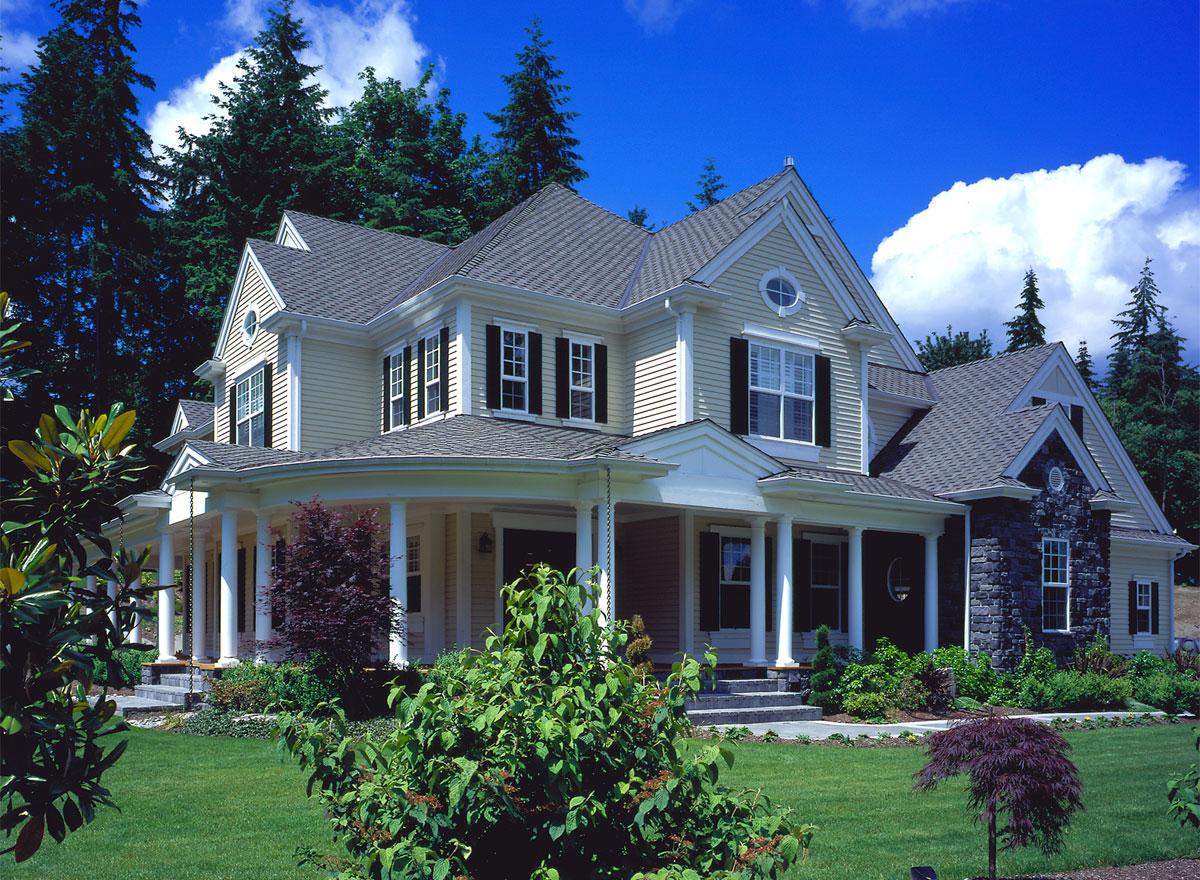

  • The build of this plan shown in the image gallery was completed by Parmenter Homes of Washington.
  • Related Plans: Gain a turret with house plan 2384JD and 23357JD. Get an octagonal rotunda with house plan 23187JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - Farmhouse Plan 23203JD comes to life in Ontario

Farmhouse Plan 23203JD comes to life in Ontario

59

Photos

What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

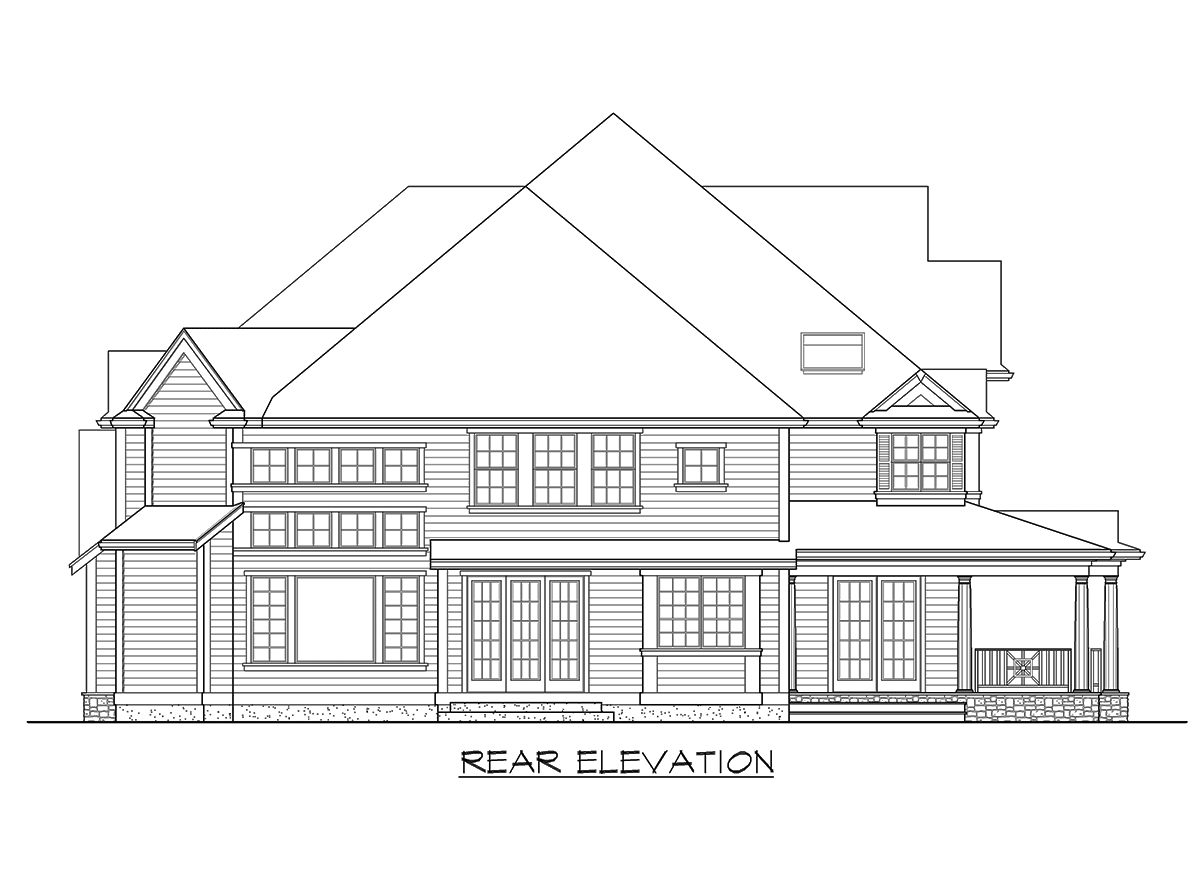

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,725 sq. ft.

1st Floor

2,335 sq. ft.

2nd Floor

2,390 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 0"

Depth

70' 0"

Max Ridge Height

39' 7"

Garage

Type

Attached

Area

1090 sq. ft.

Count

4 Cars

Entry Location

Side

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Square Footage Breakdown

Total Heated Area

4,725 sq. ft.

1st Floor

2,335 sq. ft.

2nd Floor

2,390 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 0"

Depth

70' 0"

Max Ridge Height

39' 7"

Garage

Type

Attached

Area

1090 sq. ft.

Count

4 Cars

Entry Location

Side

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style
