Plan 48071FM
A Touch of Class
Heated S.F.
2,590
Beds
4
Baths
3.5
Stories
1
Cars
3
Floor Plan

Plan 48071FM

Main Level
slide image 0
Optional
slide image 1

Plan 48071FM

1-800-854-7852

1-262-521-4596

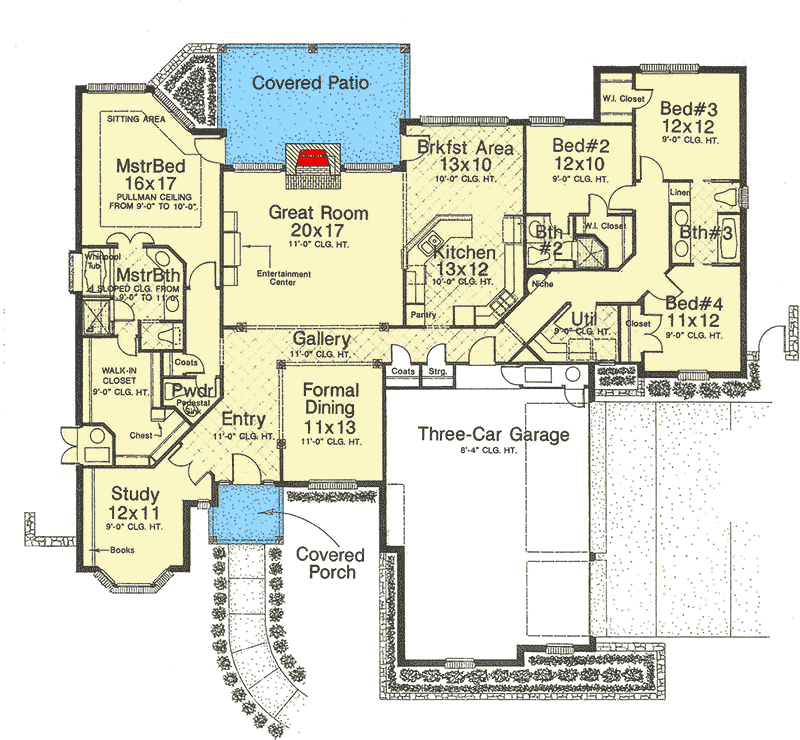

Main Level
floor plan image Main Level

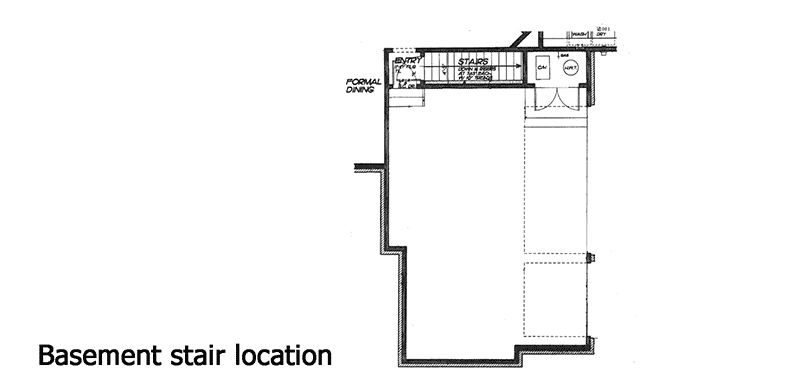

Optional
floor plan image Optional
Plan Details
  • An elegant stone exterior gives this elegant European style home plan with a split bedroom floor plan great curb appeal.
  • The study with box bay window makes a nice retreat off the foyer.
  • Relax in the spacious great room with built-in entertainment center, fireplace and views to the covered patio. The kitchen and breakfast area lie close by for a quick snack run.
  • Arched openings help define the dining room.
  • The master suite is private and the bedroom has a sitting area. The ceiling rises from 9' to 10'. Look at the large walk-in closet with built-ins.
  • Three bedrooms are located across the home.Two have walk-in closets.
  • A convenient utility room is tucked behind the garage.
  • Related Plan: For an alternate version with a family room and bonus room over the garage, see house plan 48023FM.
What's Included
  • Cover Sheet
  • Floor Plans
  • Electrical Plan
  • Foundation Plan
  • Front and Left Elevation

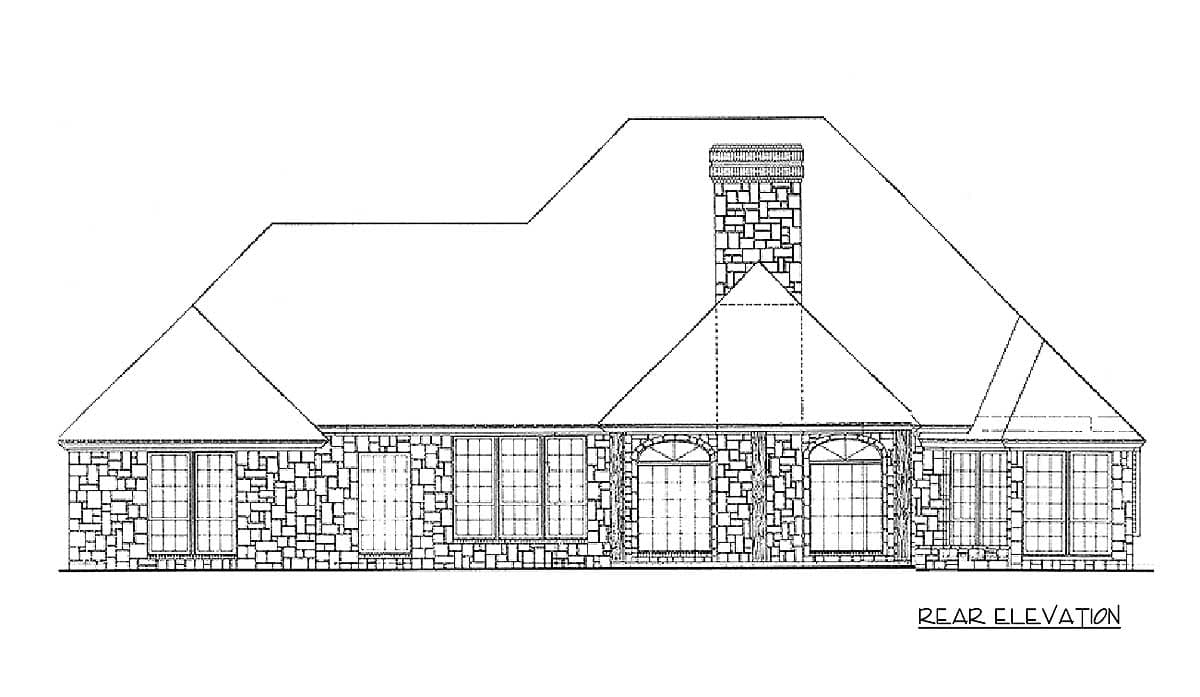

  • Rear and Right Elevation
  • Roof Plan
  • Cabinets and Section
  • Building Section

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,590 sq. ft.

1st Floor

2,590 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

73' 6"

Depth

64' 10"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

680 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

European

Special Features

Bedrooms - Split

Bonus Room

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Square Footage Breakdown

Total Heated Area

2,590 sq. ft.

1st Floor

2,590 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

73' 6"

Depth

64' 10"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

680 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

European

Special Features

Bedrooms - Split

Bonus Room

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area
