Plan 56464SM
Acadian House Plan with Bonus Over Garage - 2748 Sq Ft
Heated S.F.
2,748
Beds
3
Baths
2.5
Stories
1
Cars
2- 3
Floor Plan

Plan 56464SM

Main Level
slide image 0
Bonus Level
slide image 1

Plan 56464SM

1-800-854-7852

1-262-521-4596

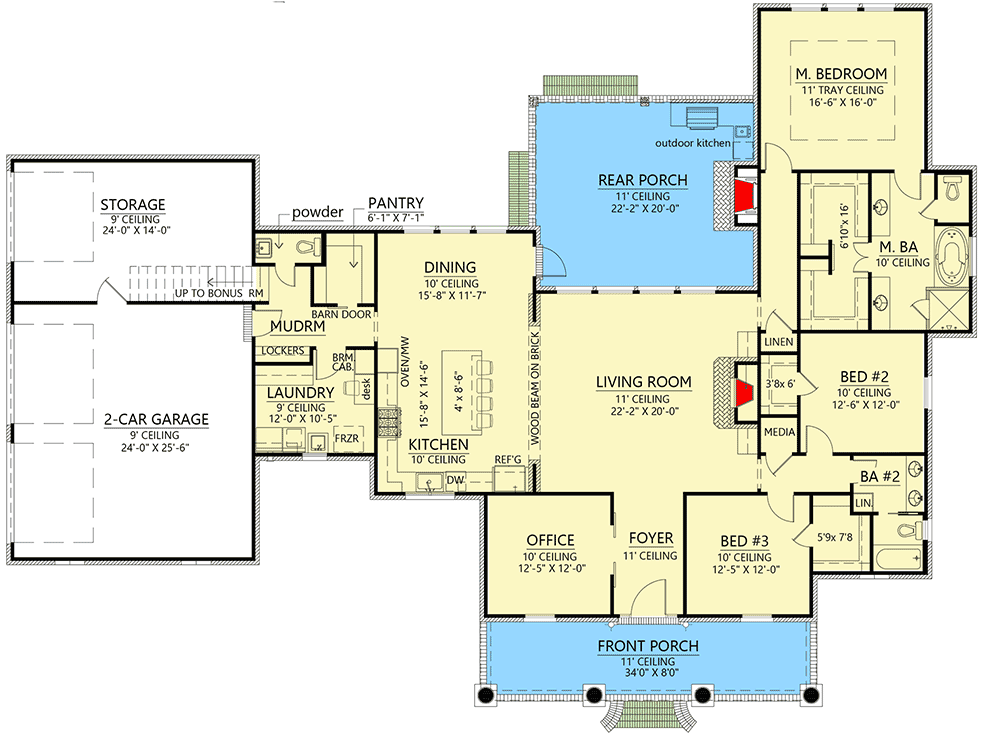

Main Level
floor plan image Main Level

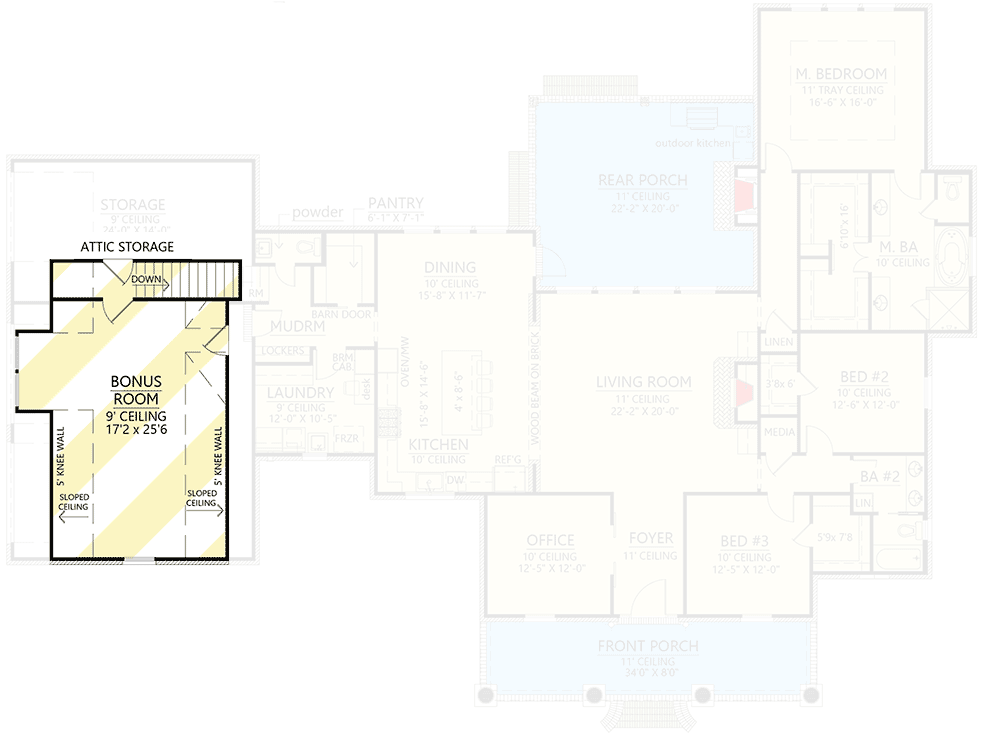

Bonus Level
floor plan image Bonus Level
Plan Details

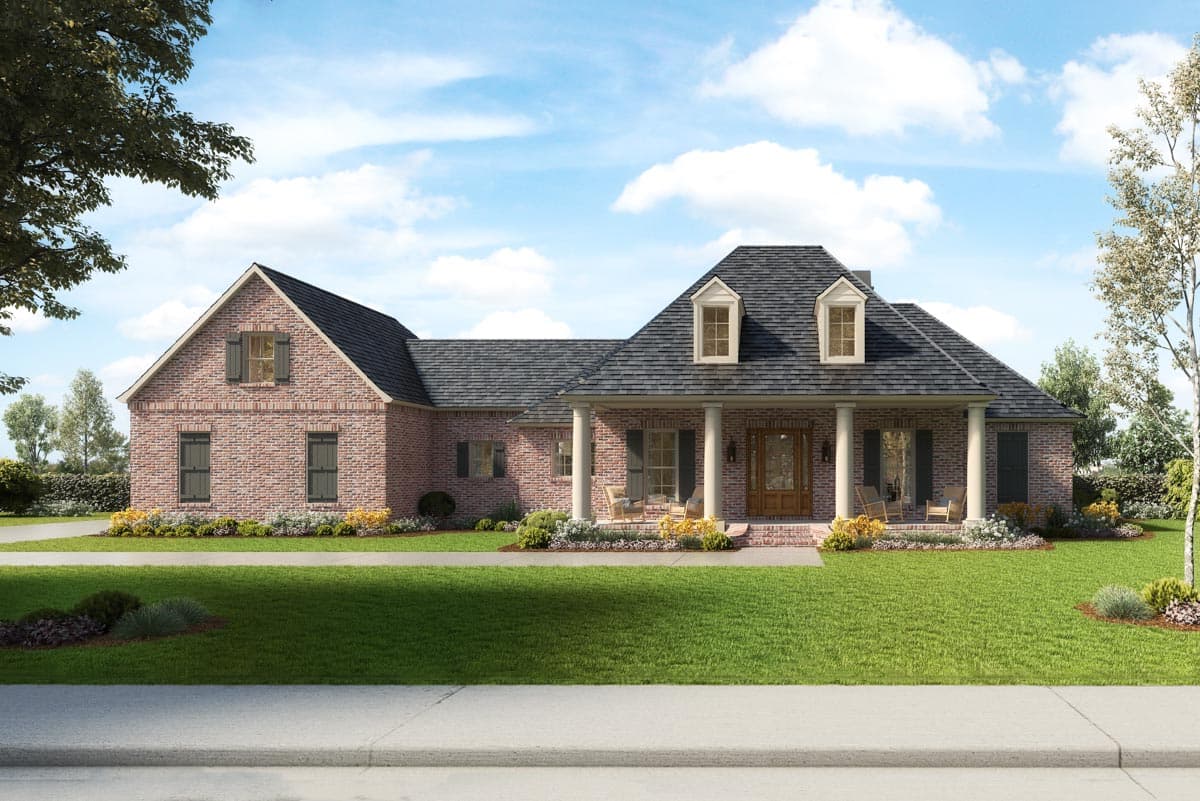

  • A hipped roof with two false dormers centered over the front porch welcome you to to this 3-bed Acadian house plan. An attractive brick exterior and a beautiful front door with side lights adds to the curb appeal.
  • The foyer has 11' ceilings and has barn doors that open to reveal the office to your left. Ahead, your views extend across the living to the wall of windows overlooking the back porch.
  • An open concept layout gives you clear views from the kitchen to the living room. A wood beam and a one-foot change in ceiling height is all that separates one functional area from the other. A roomy walk-in pantry is concealed behind a barn door and gives you ample storage. That, plus the fact that the garage entry is steps away makes unloading groceries a breeze.
  • The master bedroom has a tray ceiling, a five-fixture bath and walk-in closets for two. Two more bedrooms share a bath.
  • Stairs off the mud room take you to 536 sq. ft. of expansion space over the garage.
What's Included
  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.

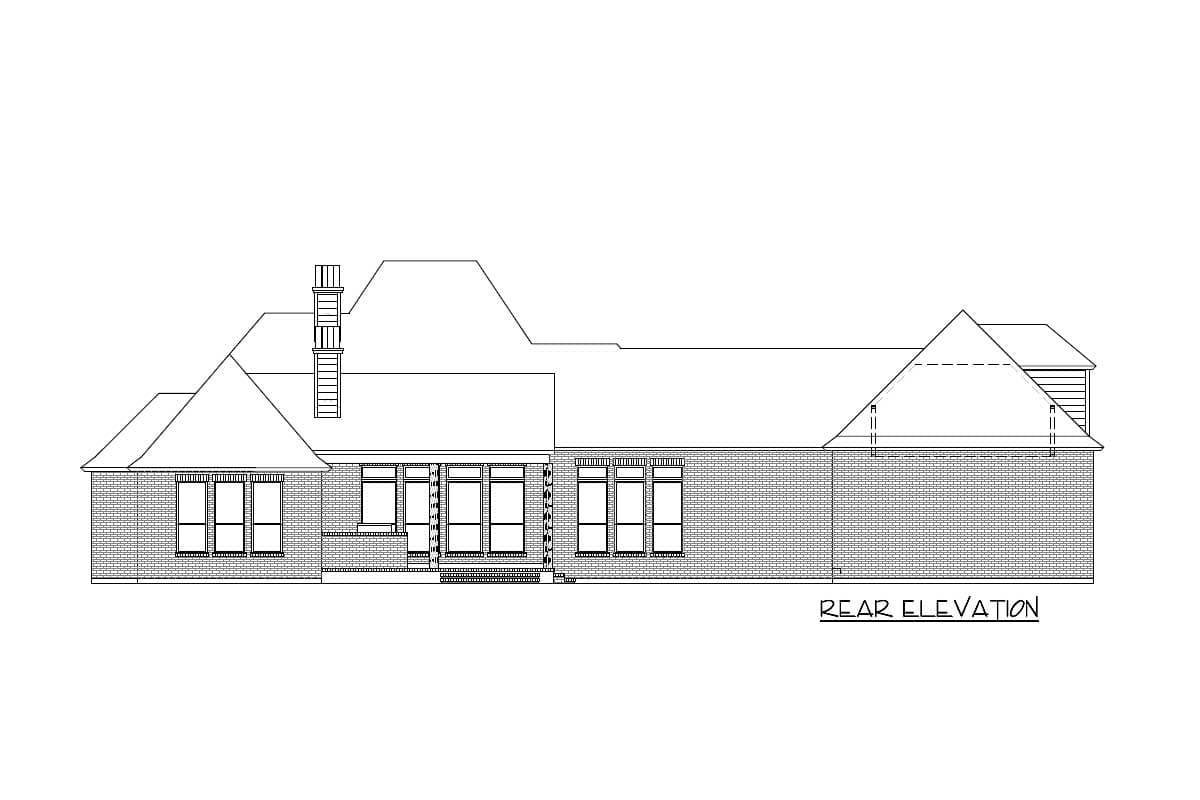

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,748 sq. ft.

1st Floor

2,748 sq. ft.

Bonus

536 sq. ft.

Porch, Front

272 sq. ft.

Porch, Rear

429 sq. ft.

Storage

336 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

97' 10"

Depth

70' 4"

Max Ridge Height

29' 6"

Garage

Type

Attached

Area

660 sq. ft.

Count

2 or 3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Framing Type

Stick

Architectural Style

Acadian
