Plan 83876JW

Acadian House Plan with Safe Room

Heated S.F.

2,265

Beds

Baths

Stories

Cars

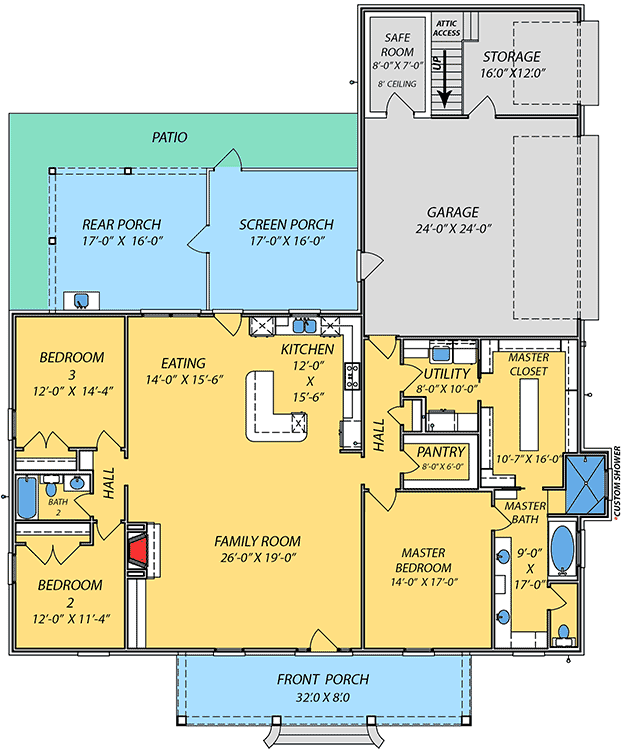

Floor Plan

Main Level

Plan Details

A lovely hip roof extends over the front porch of this Acadian house plan, giving you a gracious entry into the home.
A huge open living space combines the family room, kitchen and eating area, making the areae feel huge.
Extras include a walk-in pantry, a split bedroom layout and a porch, patio and screened porch out back.
There's even a sink on the porch to keep things clean.
The garage offers a separate reinforced safe room plus a huge storage area.
Note the giant master walk-in closet that opens directly into the laundry room.

What's Included

Elevations - Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan - Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc
Second Floor Plan (if any) - Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan - Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan - Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Section - Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan - A schematic layout of all lighting, switches and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
