Plan 56448SM

Acadian with Split Beds and Double Carport

Heated S.F.

1,778

Beds

Baths

Stories

Cars

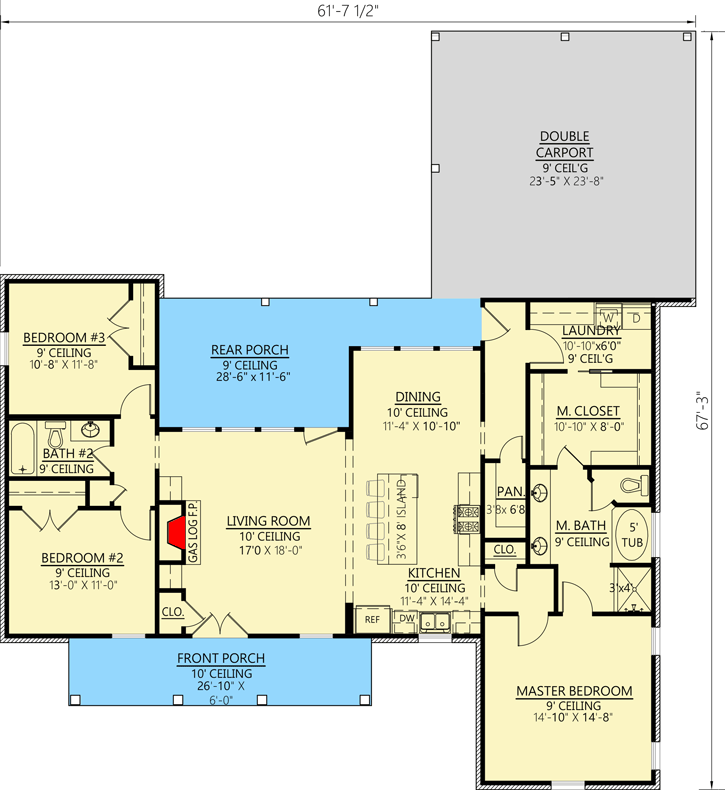

Floor Plan

Main Level

Plan Details

This exclusive, Acadian house plan boasts a charming front porch and matching rear porch for maximum outdoor enjoyment.
French doors lead into the heart of the home, with a combined living room and kitchen opening to the dining area. The gas log fireplace serves as the focal point and large windows allow natural light to permeate the interior.
The large kitchen island offers seating for four, and the nearby walk-in pantry offers quick and easy access.
The serene and private master bedroom occupies the right wing of the home, and features a spacious 5-fixture bath, with a pass-through closet leading to the laundry room.
Bedrooms 2 and 3 are located on the opposite side of the home, separated by a full bath. A double carport attaches to the back of the home, near the laundry / mudroom.
NOTE: Please allow a 5 to 10 day delay for 2x6 option to be completed.

What's Included

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.

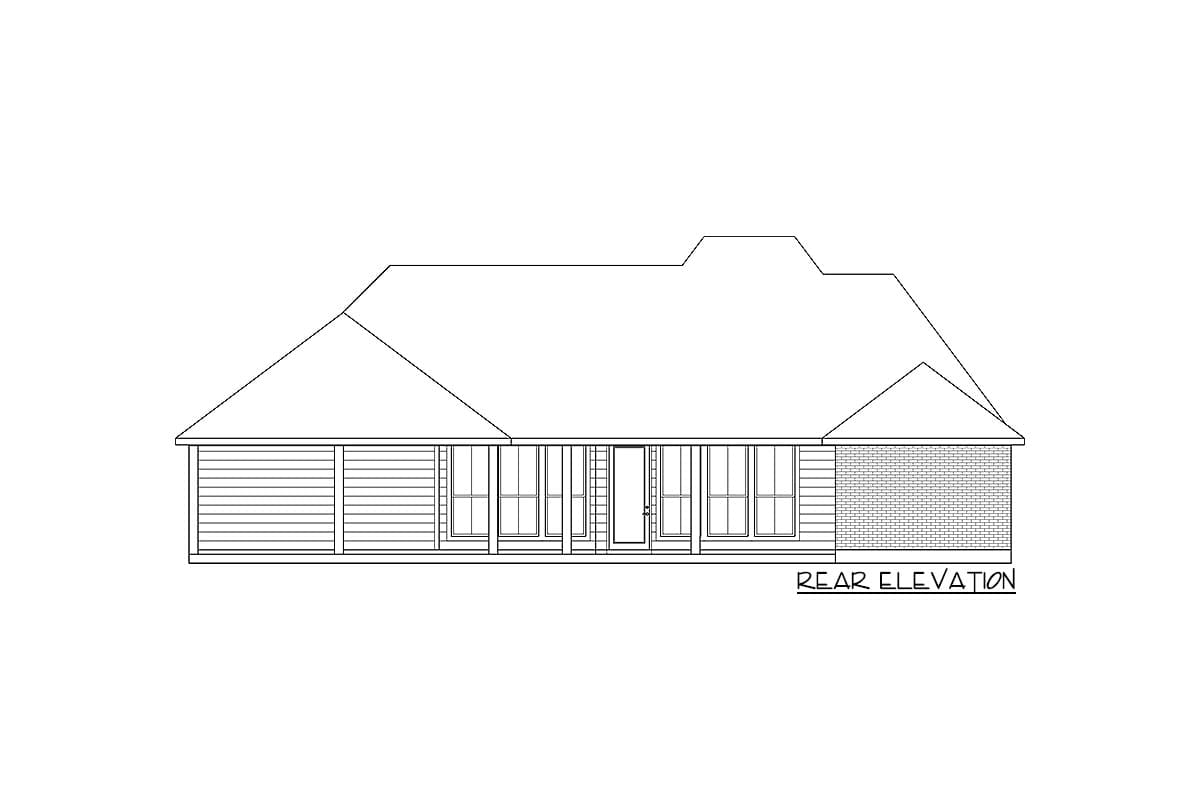

FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
