Plan 80962PM
Adorable Carriage House Plan with 1-Bed Apartment
Heated S.F.
610
Beds
1
Baths
1
Stories
2
Cars
2
Floor Plan

Plan 80962PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 80962PM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Shakes and horizontal siding adorn the facade of this adorable carriage house plan, complete with a cross-gable roof.
  • Utilize the second level apartment as an income property, or in-law suite for family and friends.

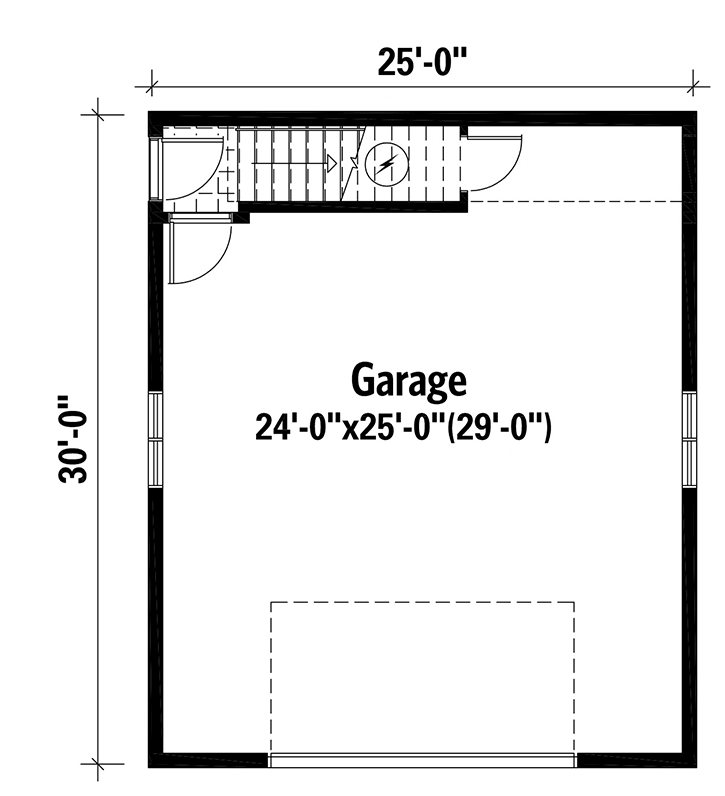

  • The main level consists of the 2-car garage, as well as a storage closet beneath the staircase.

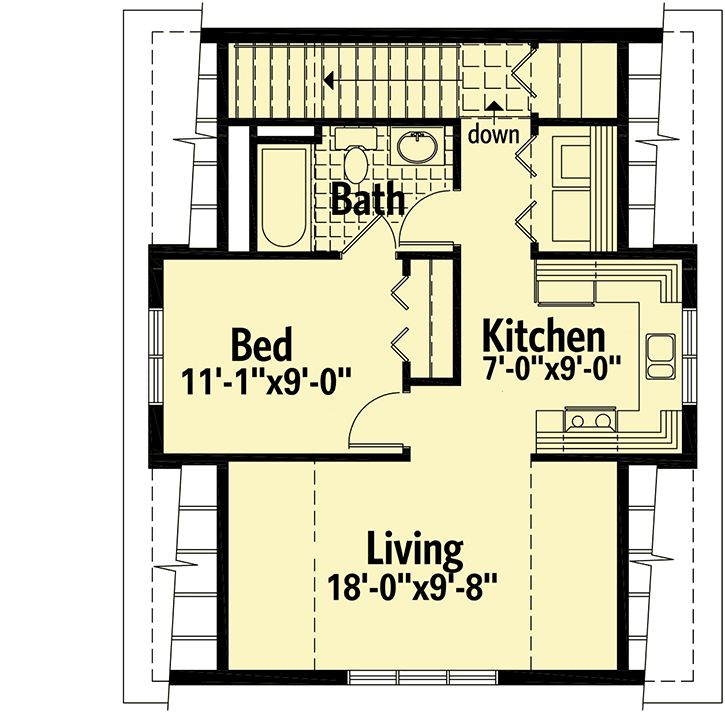

  • Upstairs, discover u-shaped counters in the kitchen, along with a living room and bedroom.
  • The full bath sits across the hall from the laundry closet.
What's Included
Please note this plan is designed to the National Building Code of Canada.

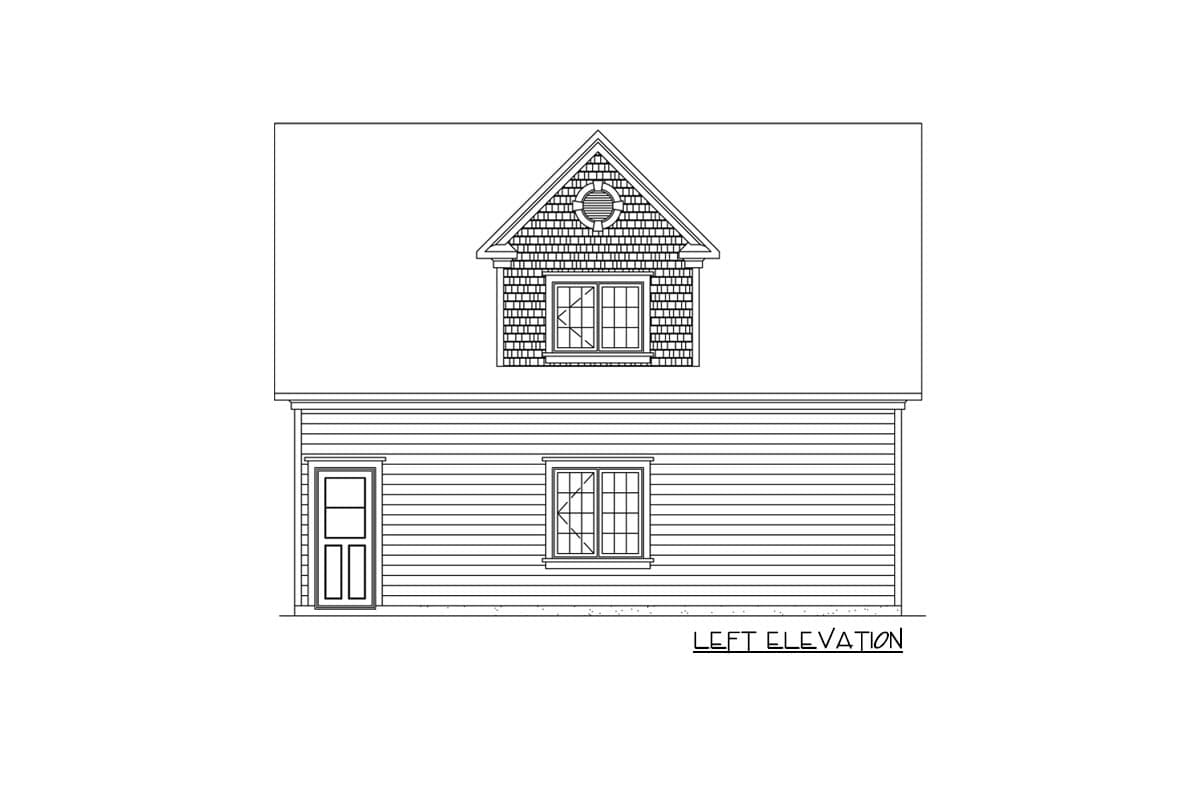

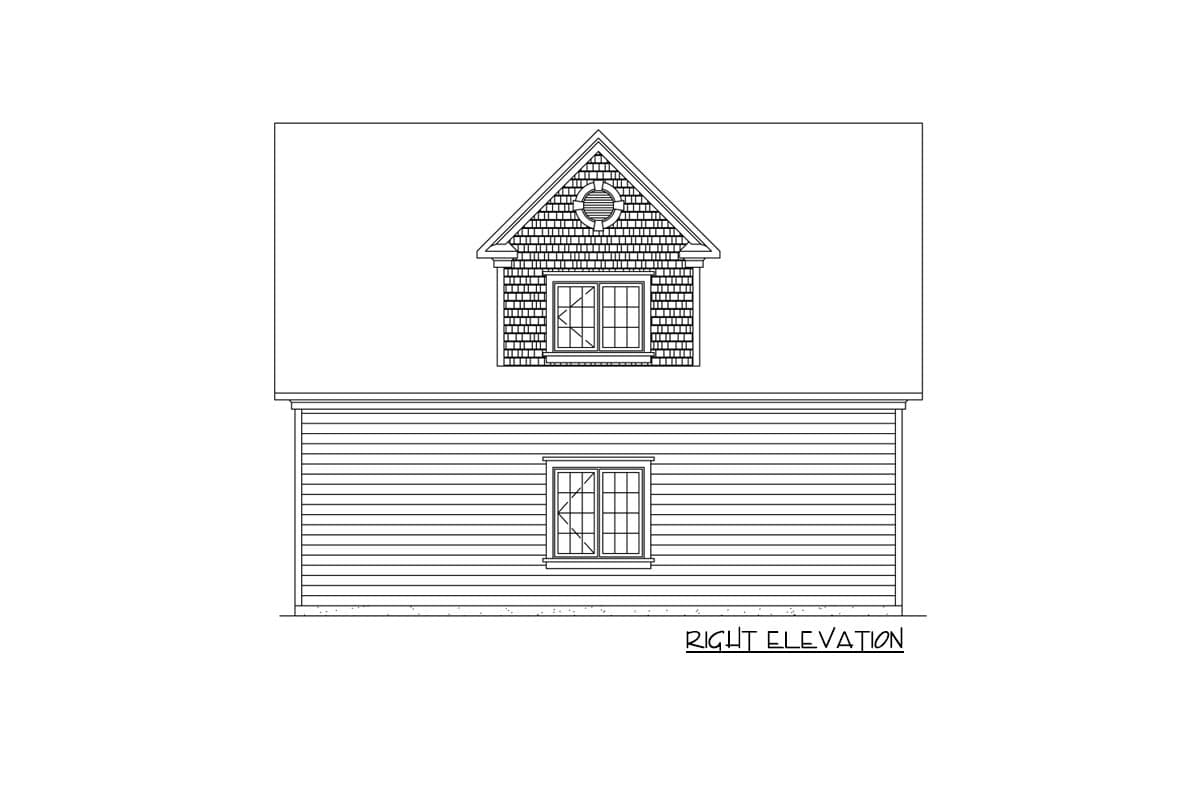

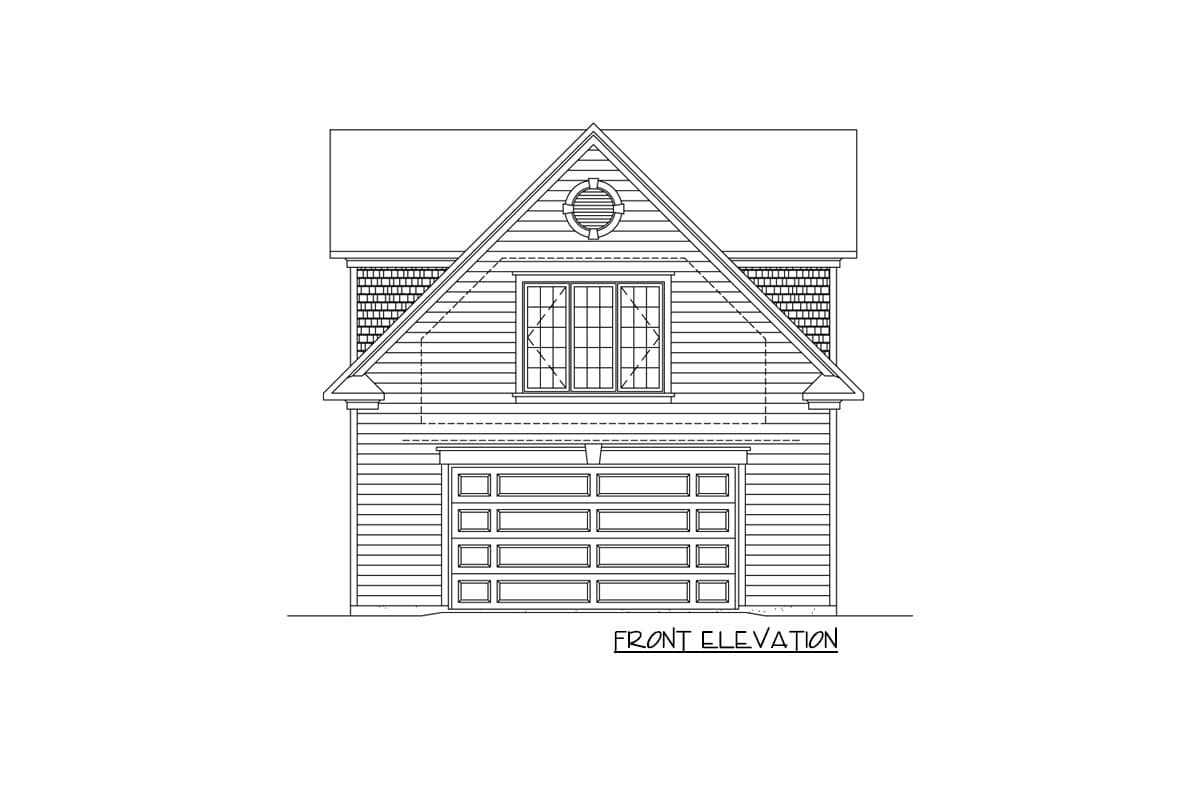

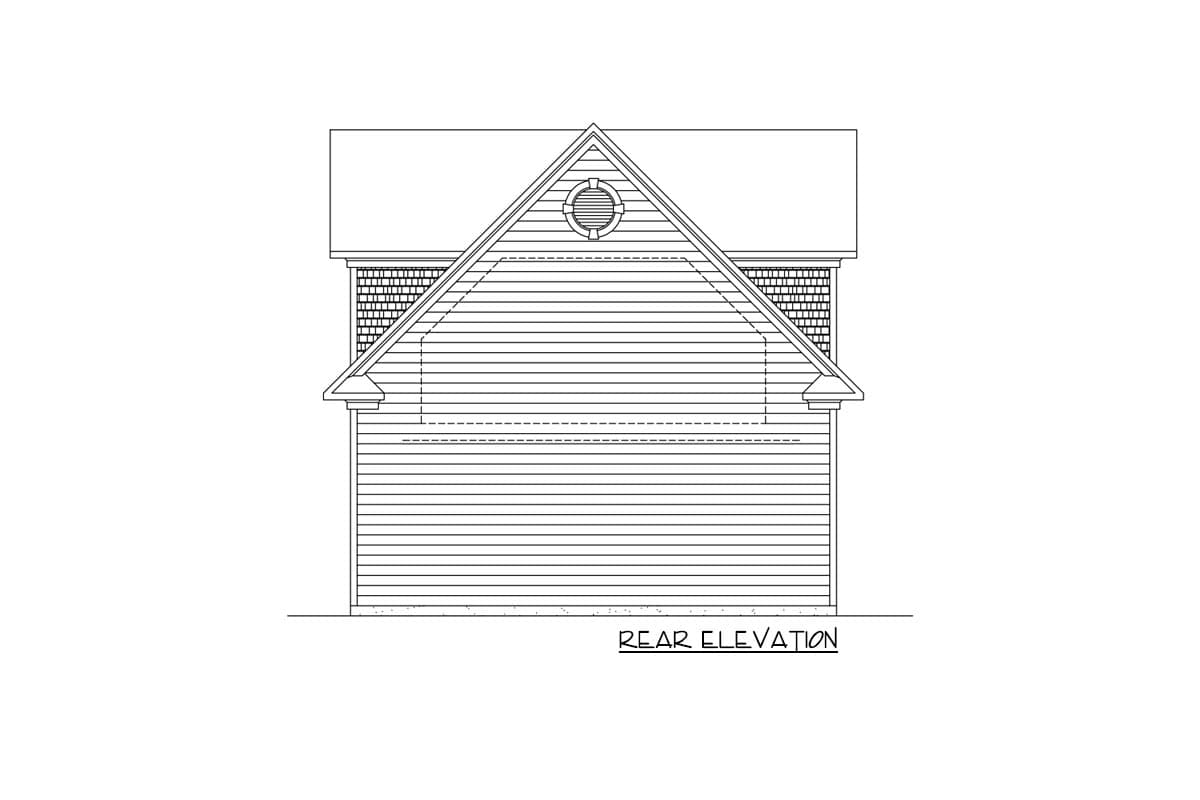

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

610 sq. ft.

2nd Floor

610 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

25' 0"

Depth

30' 0"

Max Ridge Height

25' 4"

Garage

Type

Detached

Area

750 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8' 2"

Second Floor

8' 2"

Roof Details

Primary Pitch

12 on 12

Architectural Style

Carriage

Cottage

Special Features

In-Law Suite

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

ADU

Canadian House Plans

Square Footage Breakdown

Total Heated Area

610 sq. ft.

2nd Floor

610 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

25' 0"

Depth

30' 0"

Max Ridge Height

25' 4"

Garage

Type

Detached

Area

750 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8' 2"

Second Floor

8' 2"

Roof Details

Primary Pitch

12 on 12

Architectural Style

Carriage

Cottage

Special Features

In-Law Suite

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

ADU

Canadian House Plans
