Plan 623457DJ
ADU Cottage House Plan with Open Concept Living Space - 602 Sq Ft
Heated S.F.
602
Beds
1
Baths
1
Stories
1
Tour
Floor Plan

Plan 623457DJ

Main Level
slide image 0

Plan 623457DJ

1-800-854-7852

1-262-521-4596

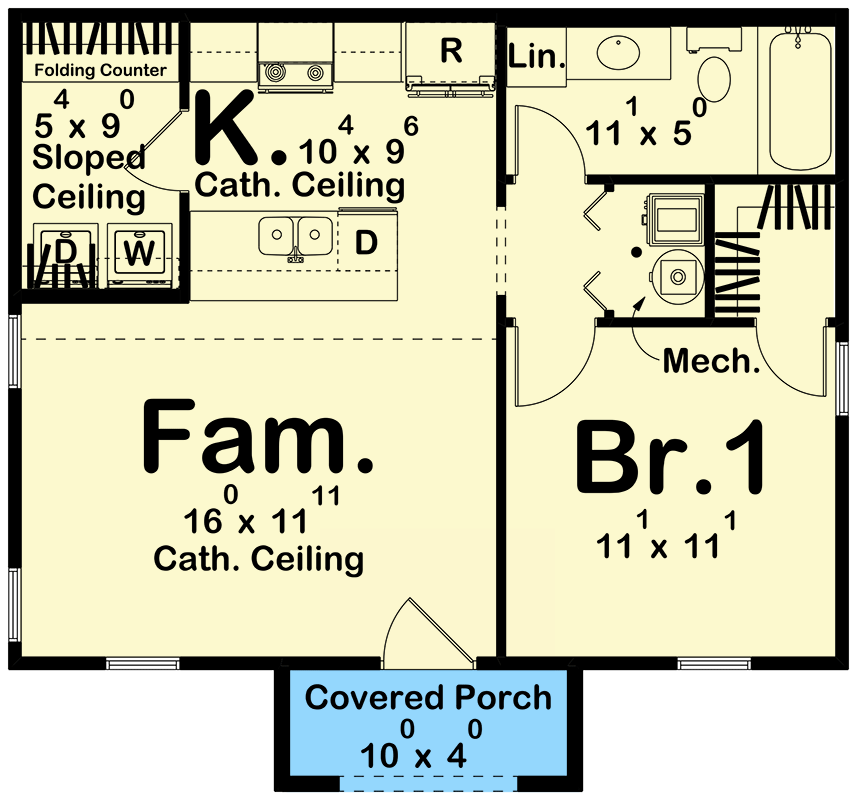

Main Level
floor plan image Main Level
Plan Details
  • This ADU Cottage is a 1-bedroom, 1-bathroom combines modern design with cottage charm.

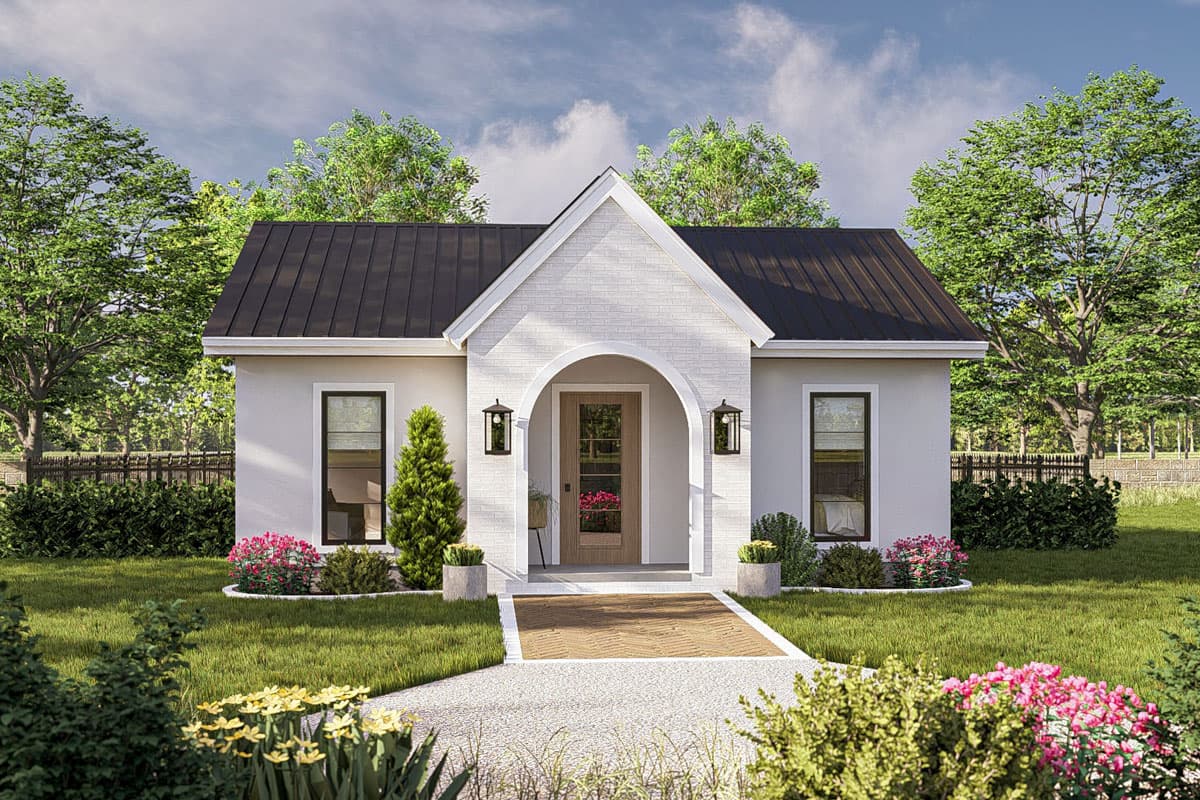

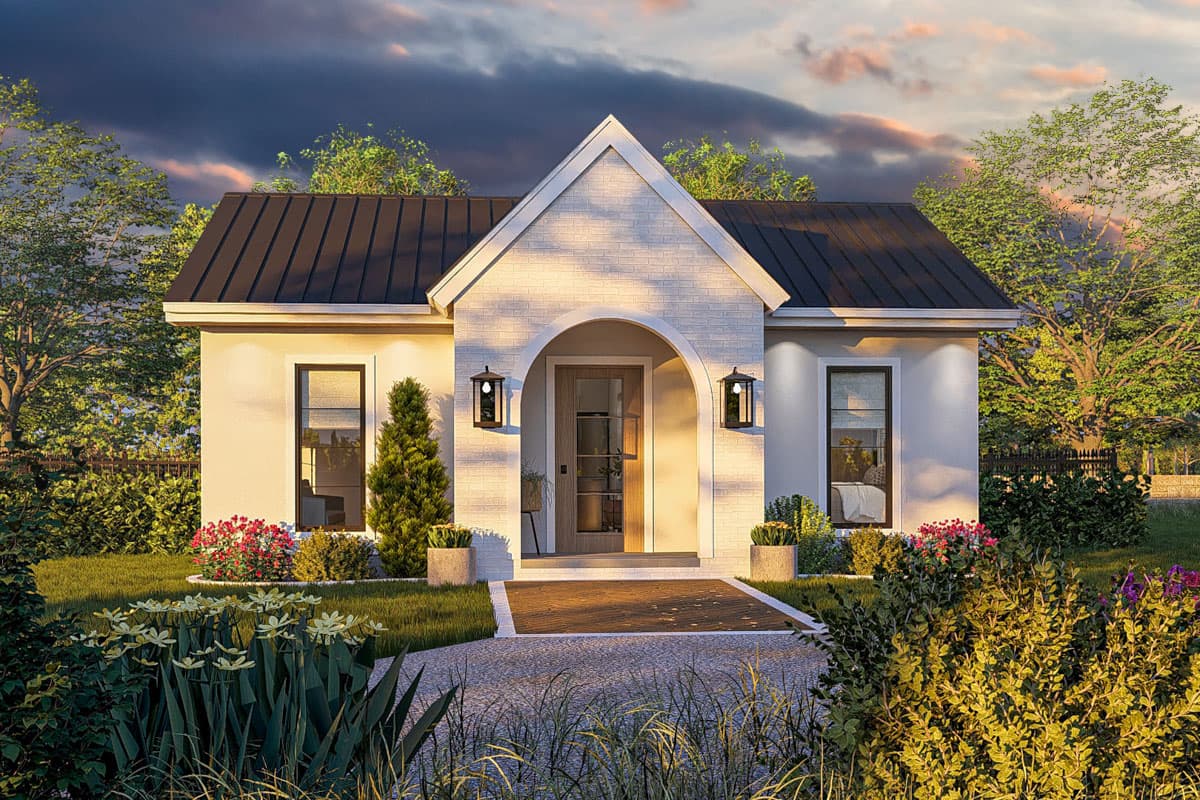

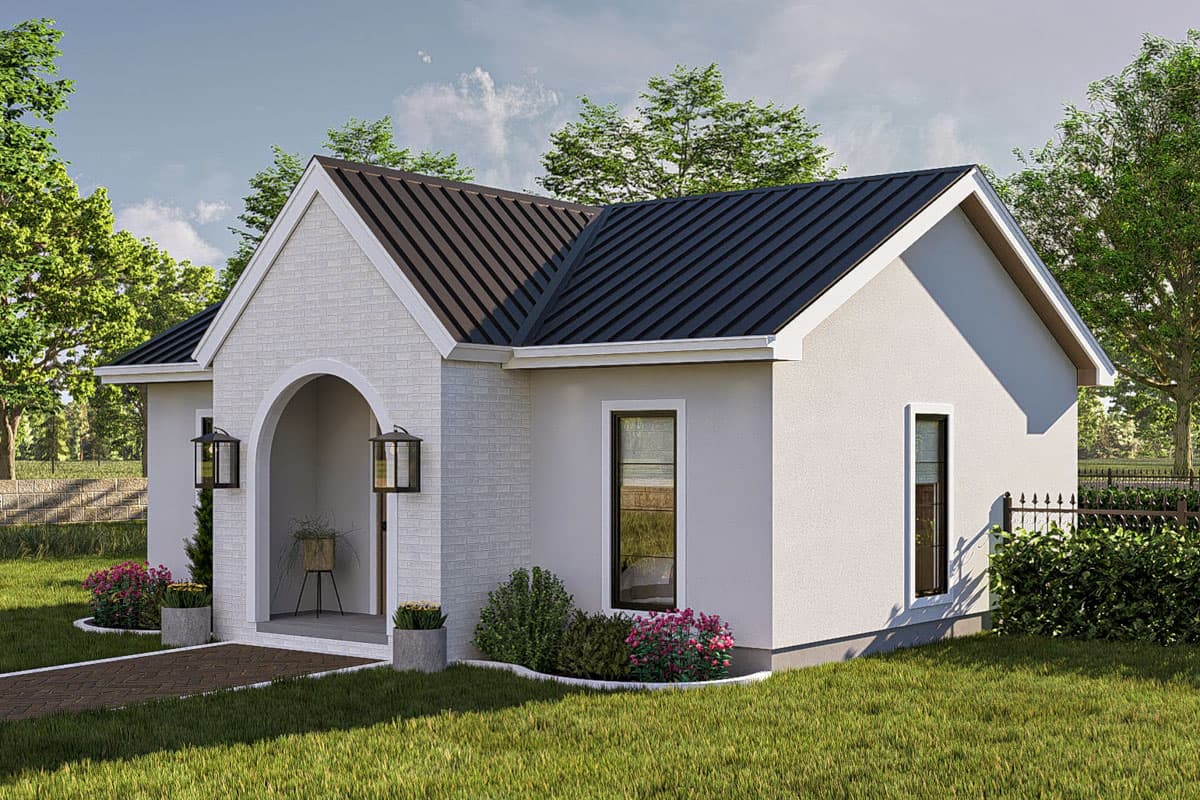

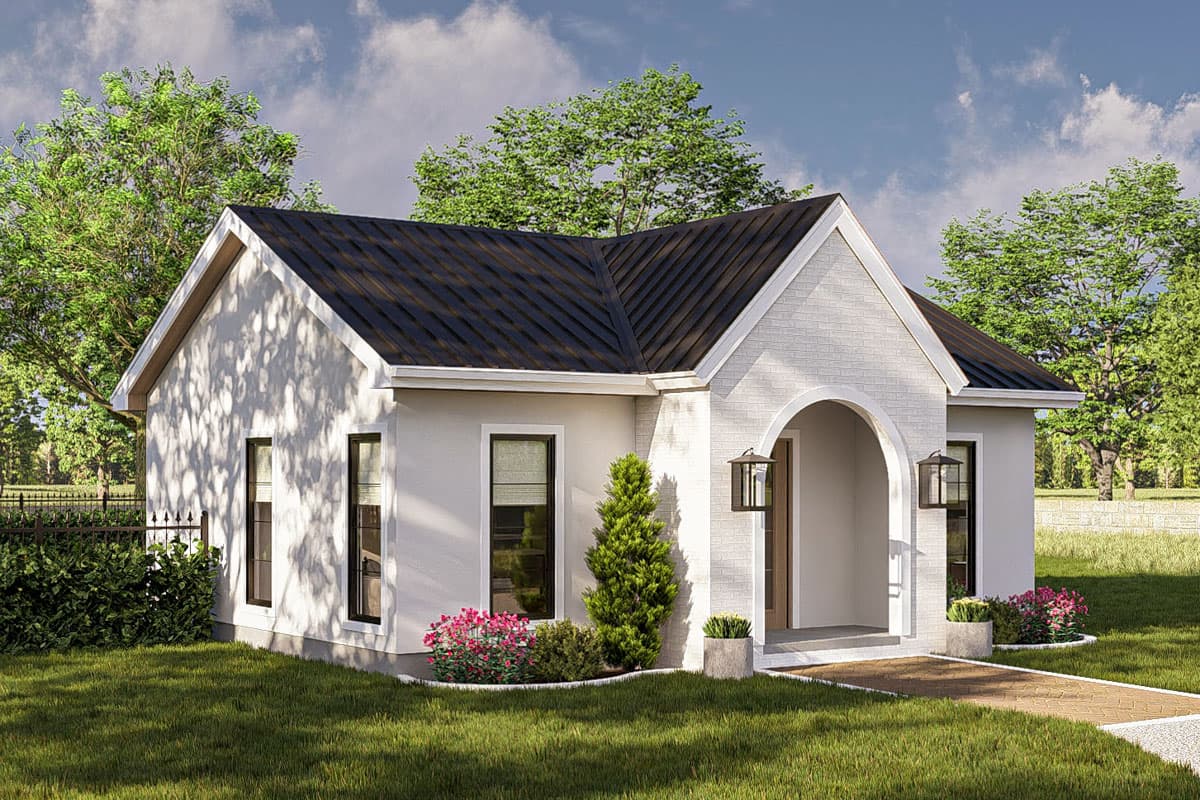

  • Its exterior features white stone and a covered front porch for year-round enjoyment.

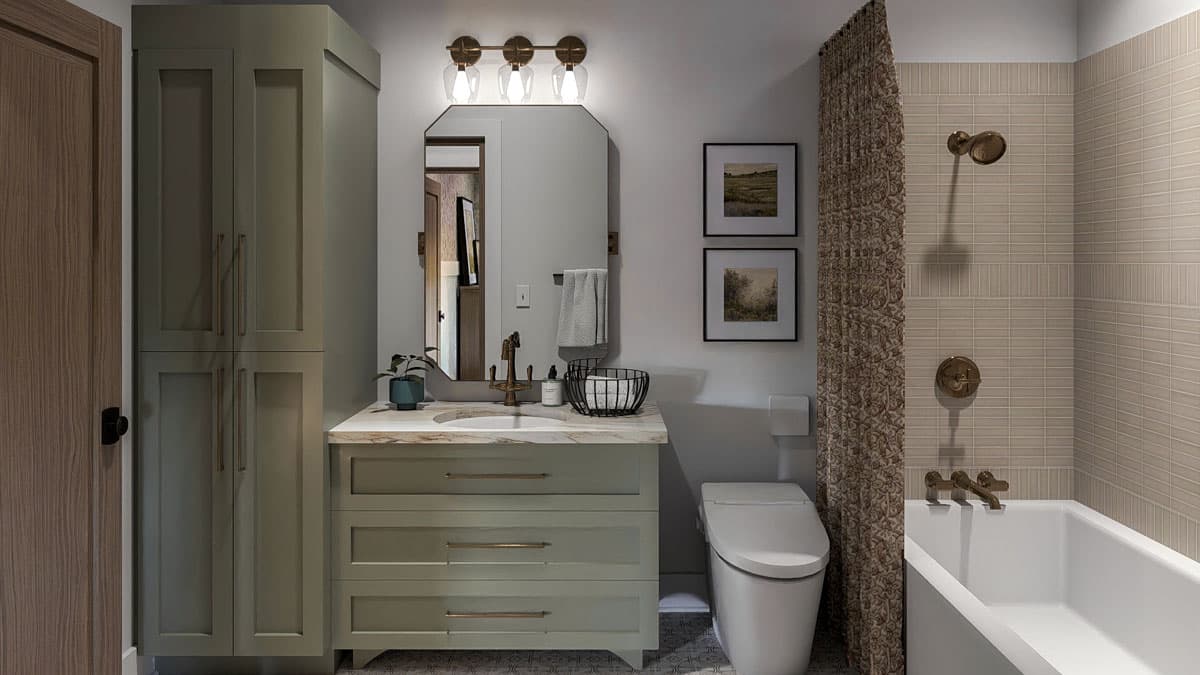

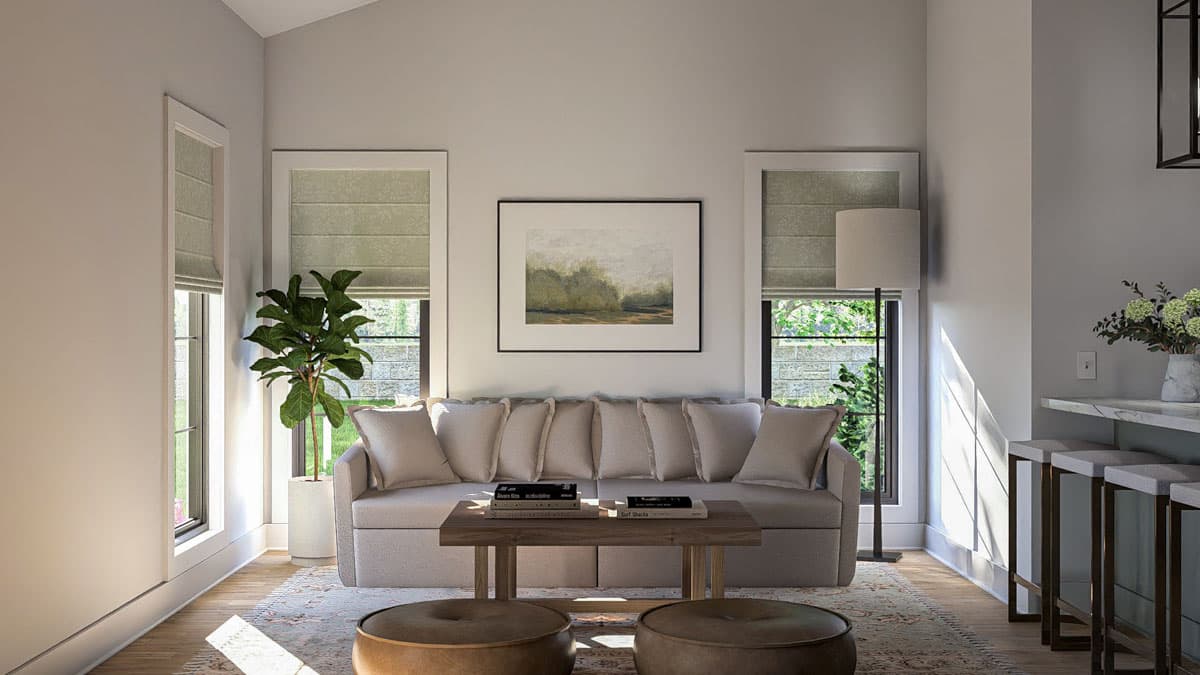

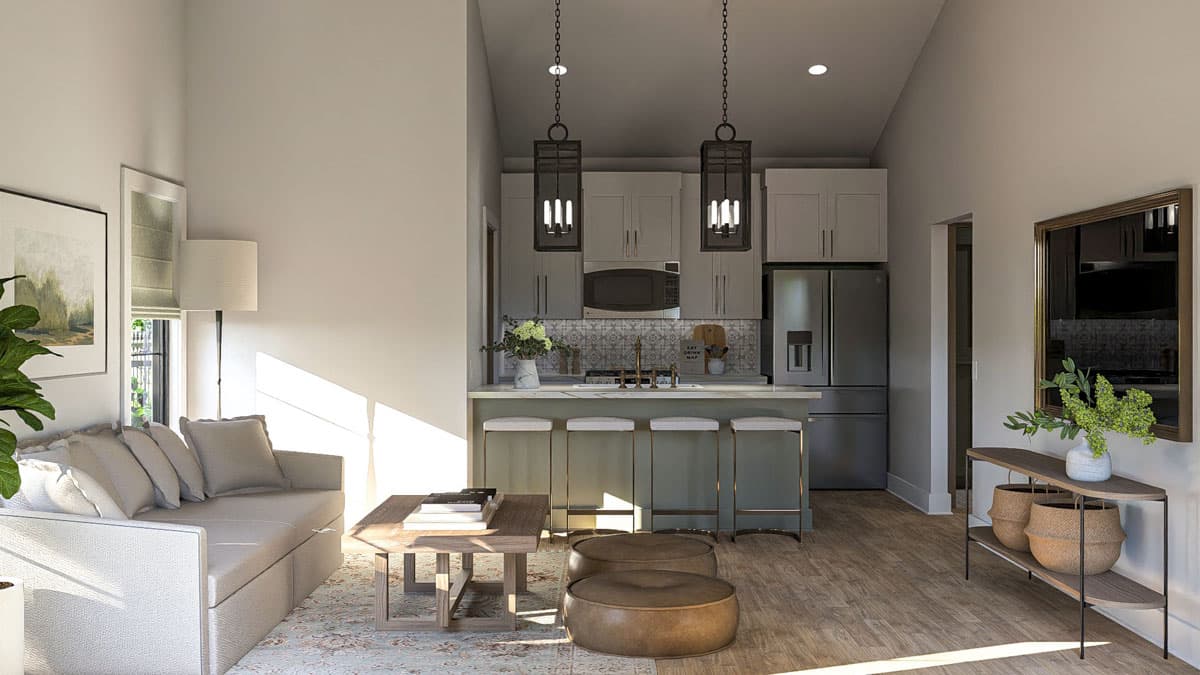

  • Inside, the open layout includes a kitchen with a central island, a family room, a bedroom with natural light, and a bathroom with timeless finishes.
  • A dedicated laundry area adds convenience, making it ideal as a guest house, rental, or personal retreat.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

602 sq. ft.

1st Floor

602 sq. ft.

Porch, Front

43 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 0"

Depth

26' 0"

Max Ridge Height

15' 9"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

12 on 12

Architectural Style

Cottage

Transitional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

602 sq. ft.

1st Floor

602 sq. ft.

Porch, Front

43 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 0"

Depth

26' 0"

Max Ridge Height

15' 9"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

12 on 12

Architectural Style

Cottage

Transitional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU
