Plan 510176WDY

Exclusive

ADU House Plan with 3-car Garage - 802 Sq Ft
Heated S.F.
802
Beds
2
Baths
1
Stories
2
Cars
3
Floor Plan

Plan 510176WDY

Main Level
slide image 0
2nd Floor
slide image 1

Plan 510176WDY

1-800-854-7852

1-262-521-4596

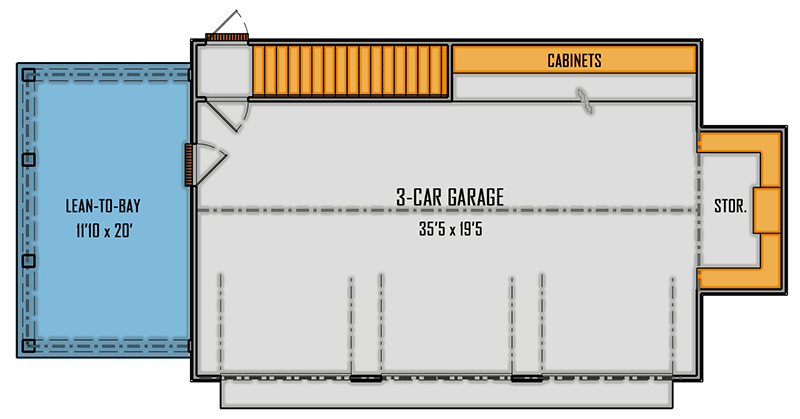

Main Level
floor plan image Main Level

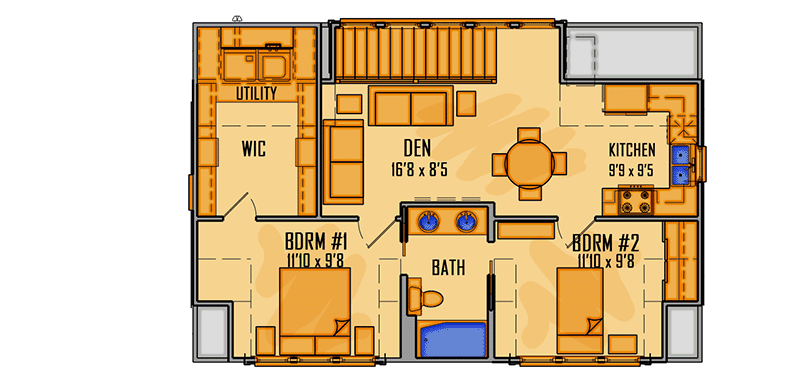

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This ADU house plan - or a carriage or guest house - has 3 garage bays and a dedicated storage area on the side and storage space in back.
  • Stairs in back - accessible from both in side and out - take you to the living level above where you'll find a space to relax in (the den) open to a kitchen.
  • 2 bedrooms share a Jack and Jill bath. Bed 1 has a massive walk-in closet and access to laundry.
  • Back on the ground level, a lean-to bay provides shade and a place to hang out or to store things sheltered from the rain.
  • Related Plan: Get a smaller 2-car version with plan 510177WDY.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

802 sq. ft.

2nd Floor

802 sq. ft.

Porch, Combined

256 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 0"

Depth

24' 0"

Max Ridge Height

26' 0"

Garage

Type

Detached

Area

856 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

12 on 12

Architectural Style

Carriage

Cottage

Craftsman

New American

Special Features

Den

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Exclusive
