Plan 55053BR
ADU House Plan with a Timeless Facade
Heated S.F.
848
Beds
1
Baths
1
Stories
1
Floor Plan

Plan 55053BR

Main Level
slide image 0

Plan 55053BR

1-800-854-7852

1-262-521-4596

Main Level

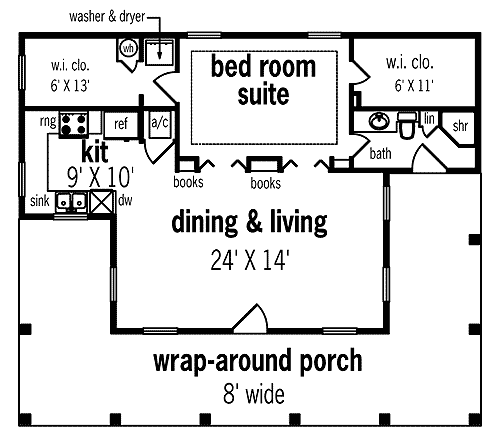

floor plan image Main Level

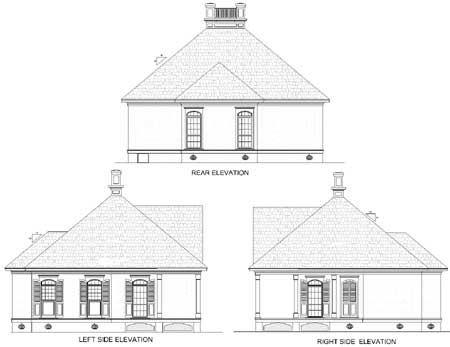

Plan Details
  • With a traditional Palladian window, an ornamental roof cap and an abundance of elegantly arched and shuttered windows, this home plan presents a timeless facade. The charming wraparound porch serves as an inviting treat.
  • Decorated with classic columns, the porch is the perfect outdoor spot for relaxing.
  • Surrounded by gorgeous windows, the versatile dining and living area accommodates guests and family.
  • With its clever location and ample counter space, the kitchen makes serving a breeze and ensures that the host will never be separated from the party.
  • The spacious master suite is flanked by roomy walk-in closets, while the efficient bath offers handy access to the wraparound porch.
  • Related Plan: Get an alternate exterior, see house plan 55052BR.
What's Included
  • Cover Sheet  - with general information
  • Foundation Plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation Footing - details
  • Fully Dimensioned Floor Plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Elevations - which call out exterior finish materials
  • Building Sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior Elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof Plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction Details - schedules for the interior finish, exterior finish, electrical schedule
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

848 sq. ft.

1st Floor

848 sq. ft.

Porch, Combined

512 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

40' 0"

Depth

34' 0"

Max Ridge Height

26' 0"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Southern

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Wrap Around Porch

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

848 sq. ft.

1st Floor

848 sq. ft.

Porch, Combined

512 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

40' 0"

Depth

34' 0"

Max Ridge Height

26' 0"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Southern

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Wrap Around Porch

Plan Collections

ADU
