Plan 420117WNT

Exclusive

ADU with Vaulted Living Room and Kitchen - 578 Sq Ft
Heated S.F.
578
Beds
1
Baths
1
Stories
1
Floor Plan

Plan 420117WNT

Main Level
slide image 0

Plan 420117WNT

1-800-854-7852

1-262-521-4596

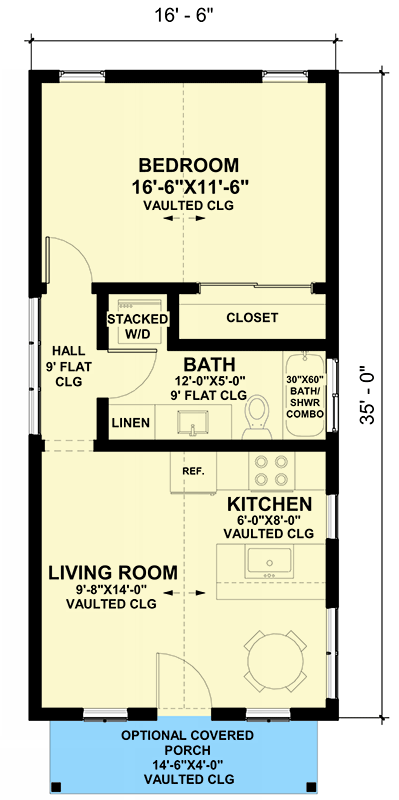

Main Level
floor plan image Main Level
Plan Details

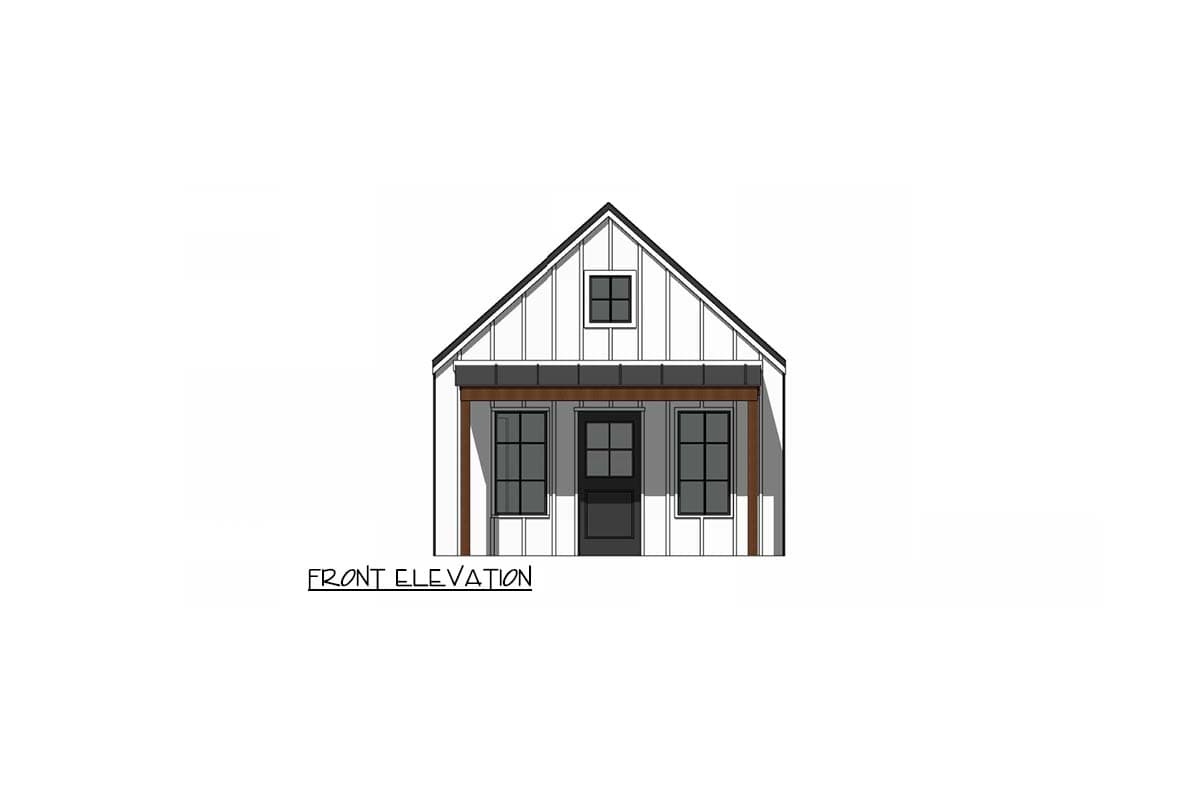

  • This 578 square foot ADU comes with an optional front porch with a standing seam metal roof. It gives you 58 square feet of covered space and can be added on at a later time or built right out of the chute.
  • The home has a small footprint - 16'6" wide and 35' deep - and can be built on an existing lot with a home on it or on a fresh piece of ground in the woods or the 'burbs.
  • Both of the big rooms have vaulted ceilings: the living room and kitchen in front and the bedroom in back.
  • A stackable laundry closet is located by the bedroom and just outside the bathroom.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

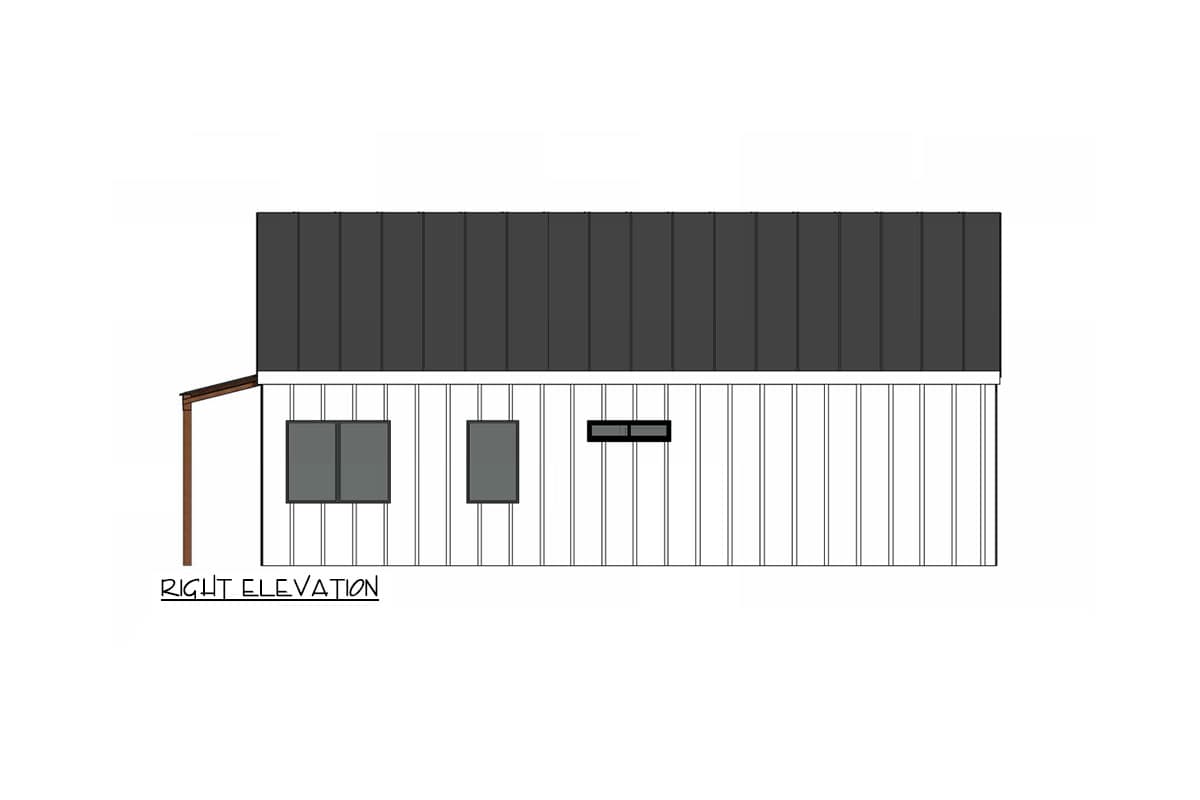

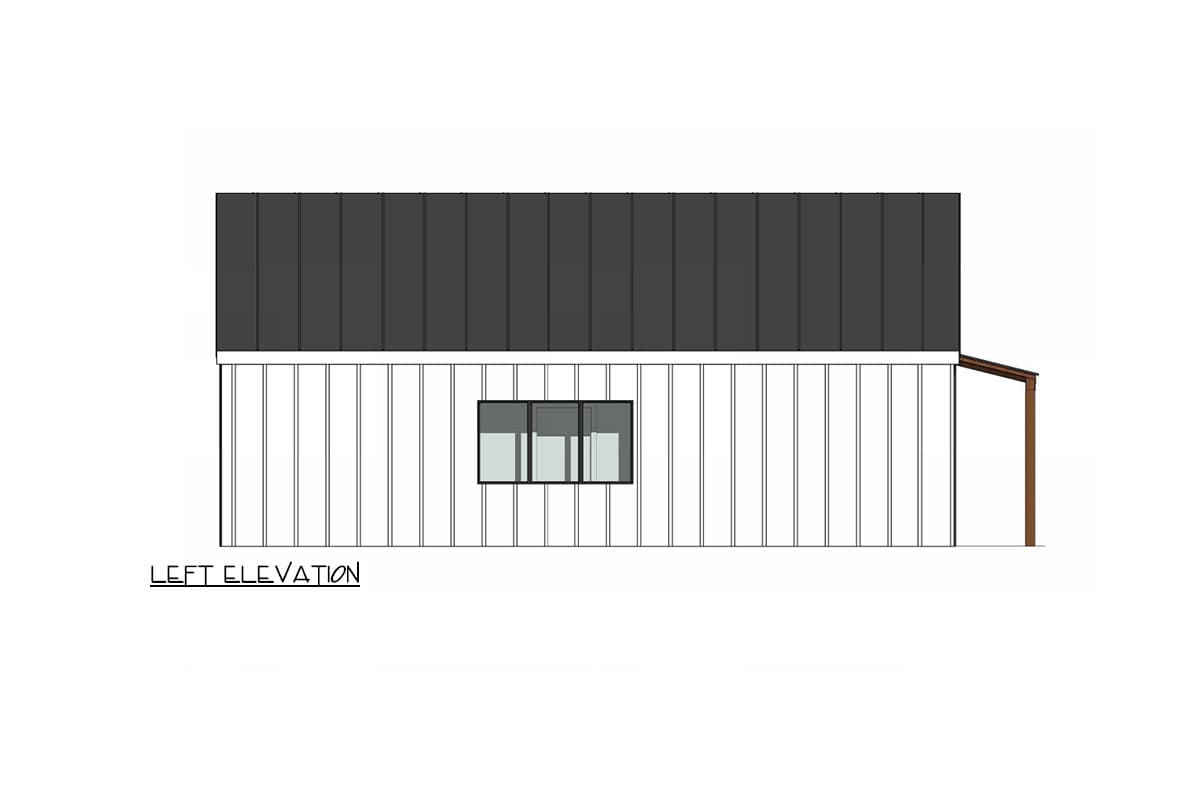

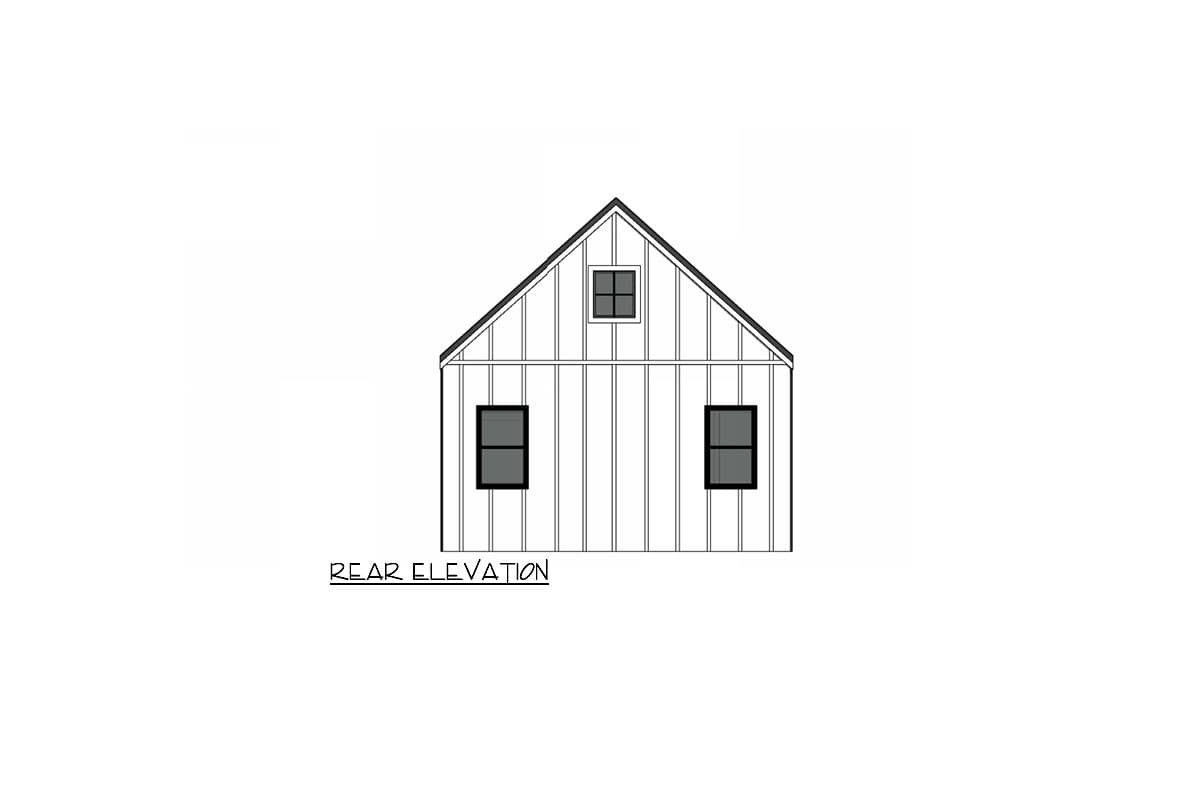

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

578 sq. ft.

1st Floor

578 sq. ft.

Porch, Front

58 sq. ft.

Porch, Combined

58 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

16' 6"

Depth

35' 0"

Max Ridge Height

15' 8"

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Living Room

Vaulted

15' 0''

Bedroom 1

Vaulted

15' 0''

Roof Details

Primary Pitch

9.5 on 12

Framing Type

Stick Or Truss

Architectural Style

Cottage

Country

New American

Southern

Traditional

Special Features

Bedrooms - Clustered

Flex Room

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

ADU

Exclusive

Square Footage Breakdown

Total Heated Area

578 sq. ft.

1st Floor

578 sq. ft.

Porch, Front

58 sq. ft.

Porch, Combined

58 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

16' 6"

Depth

35' 0"

Max Ridge Height

15' 8"

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Living Room

Vaulted

15' 0''

Bedroom 1

Vaulted

15' 0''

Roof Details

Primary Pitch

9.5 on 12

Framing Type

Stick Or Truss

Architectural Style

Cottage

Country

New American

Southern

Traditional

Special Features

Bedrooms - Clustered

Flex Room

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

ADU

Exclusive
