Plan 51787HZ
Affordable 4-Bed Home Plan Offering One-Story Living - 1719 Sq Ft
Heated S.F.
1,719
Beds
3 - 4
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 51787HZ

Main Level
slide image 0
Basement Stair Location
slide image 1
2-Car Side-Garage Option
slide image 2

Plan 51787HZ

1-800-854-7852

1-262-521-4596

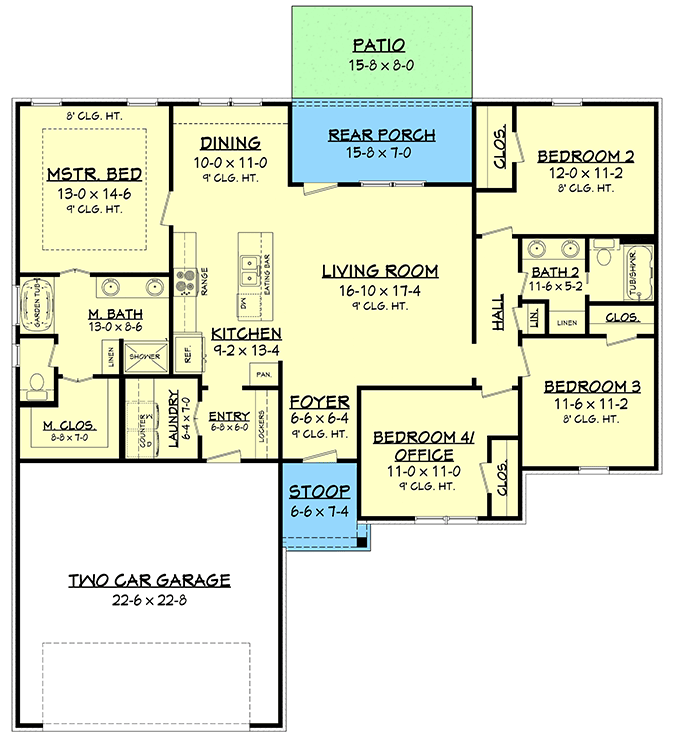

Main Level
floor plan image Main Level

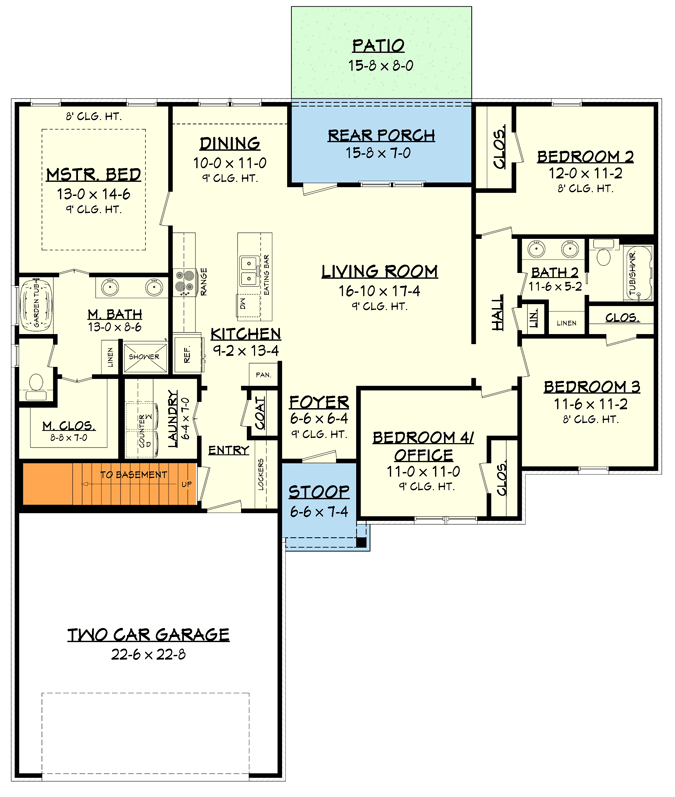

Basement Stair Location
floor plan image Basement Stair Location

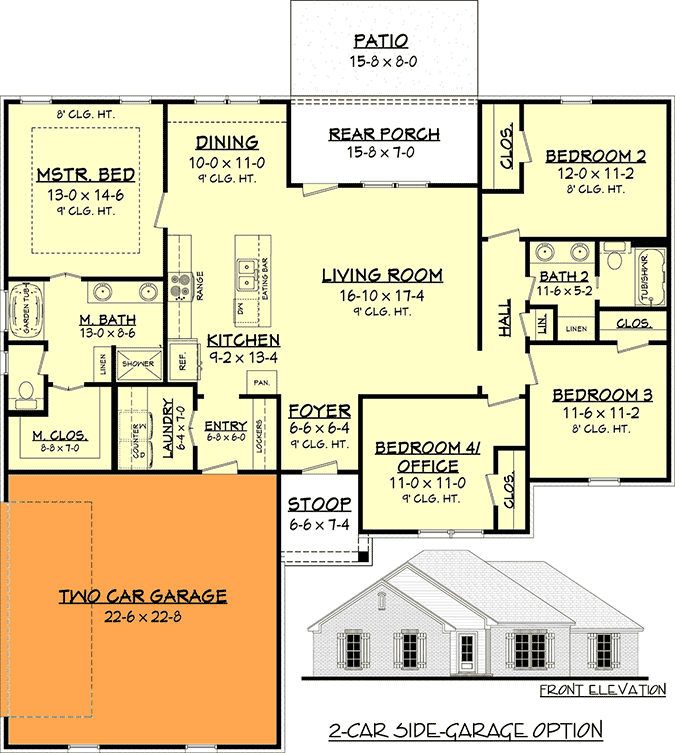

2-Car Side-Garage Option
floor plan image 2-Car Side-Garage Option
Plan Details

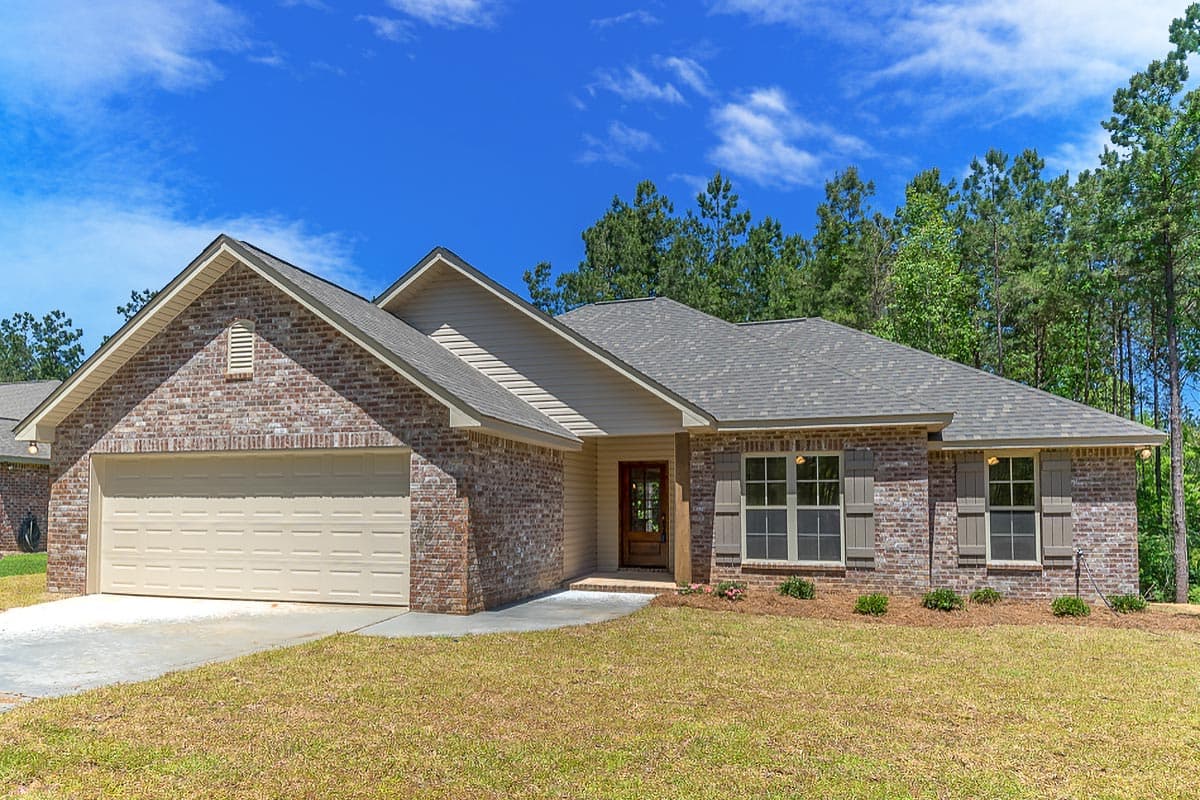

  • This affordable 4 bedroom 2 bath traditional-styled home plan has a brick exterior and offers you one-floor living.

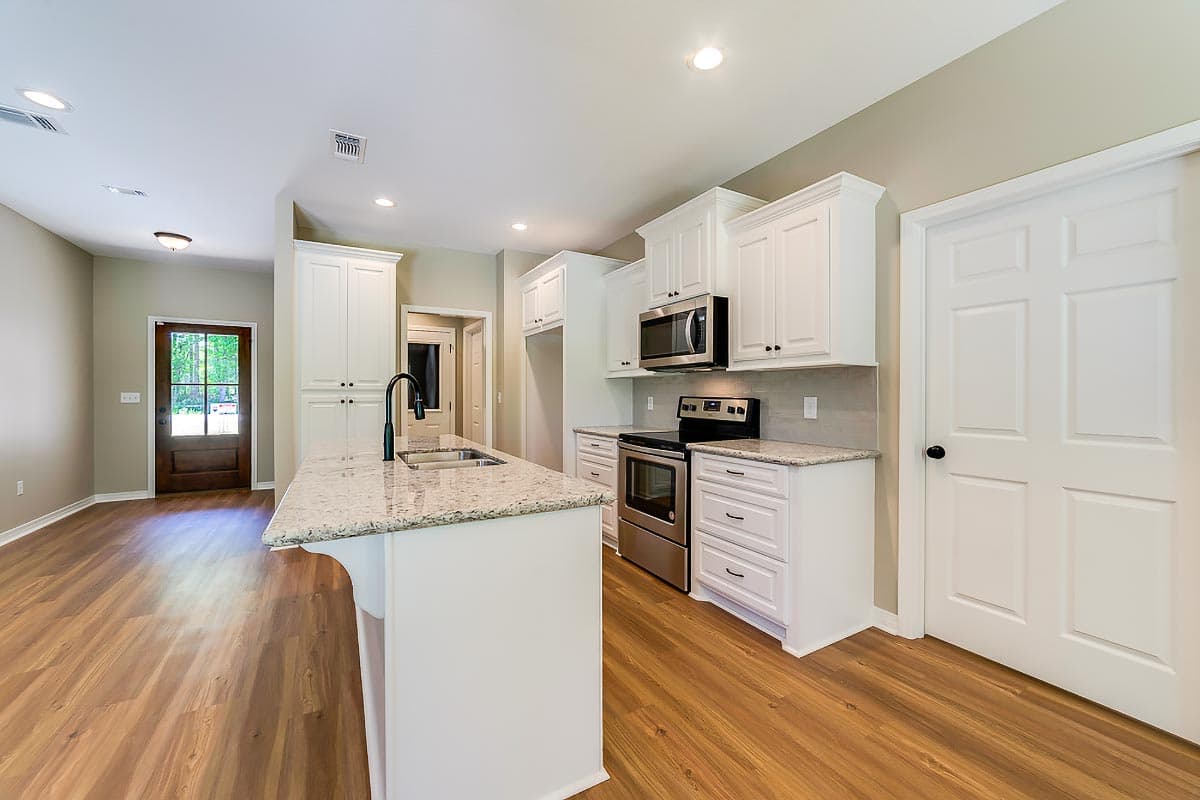

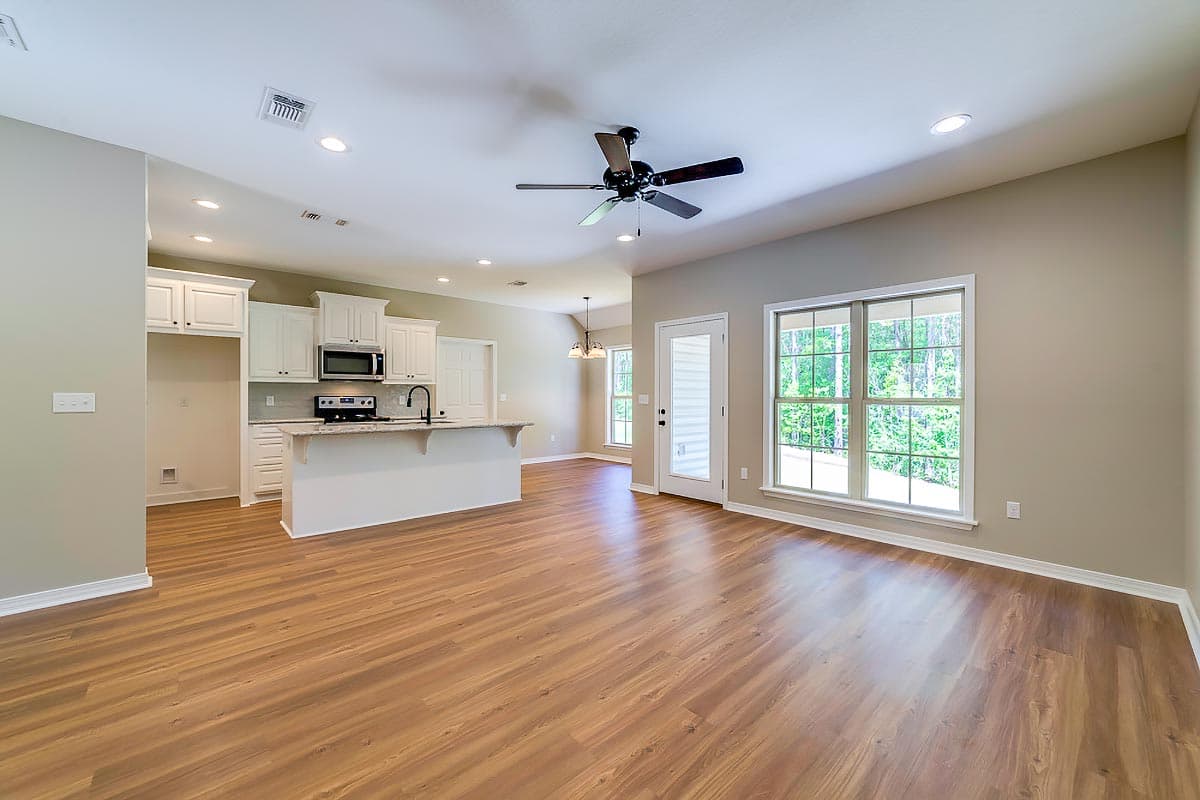

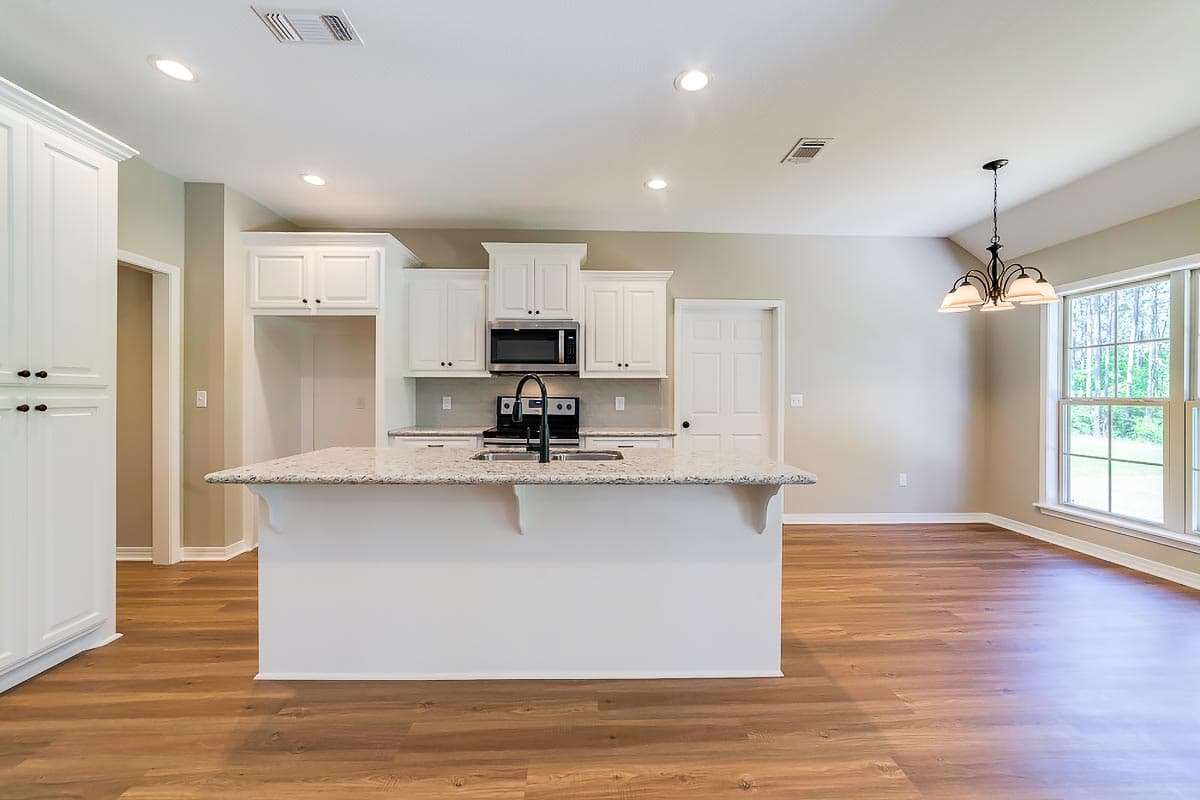

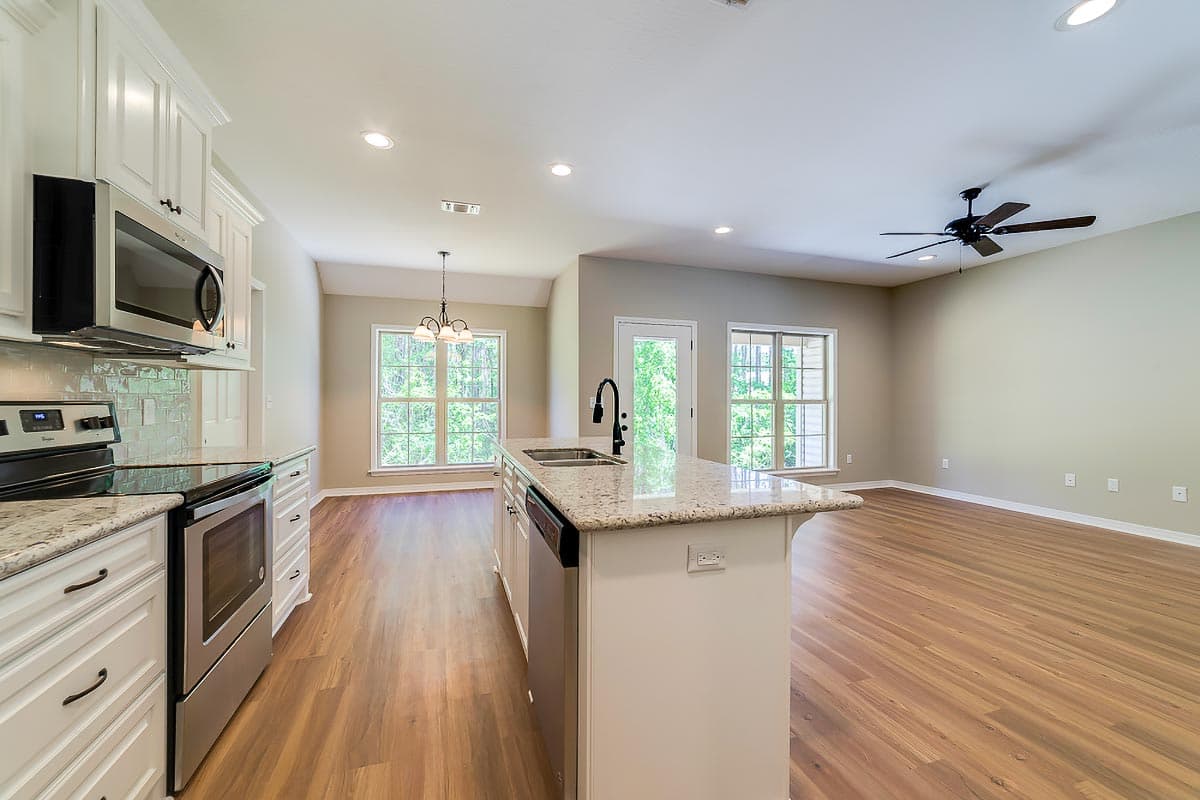

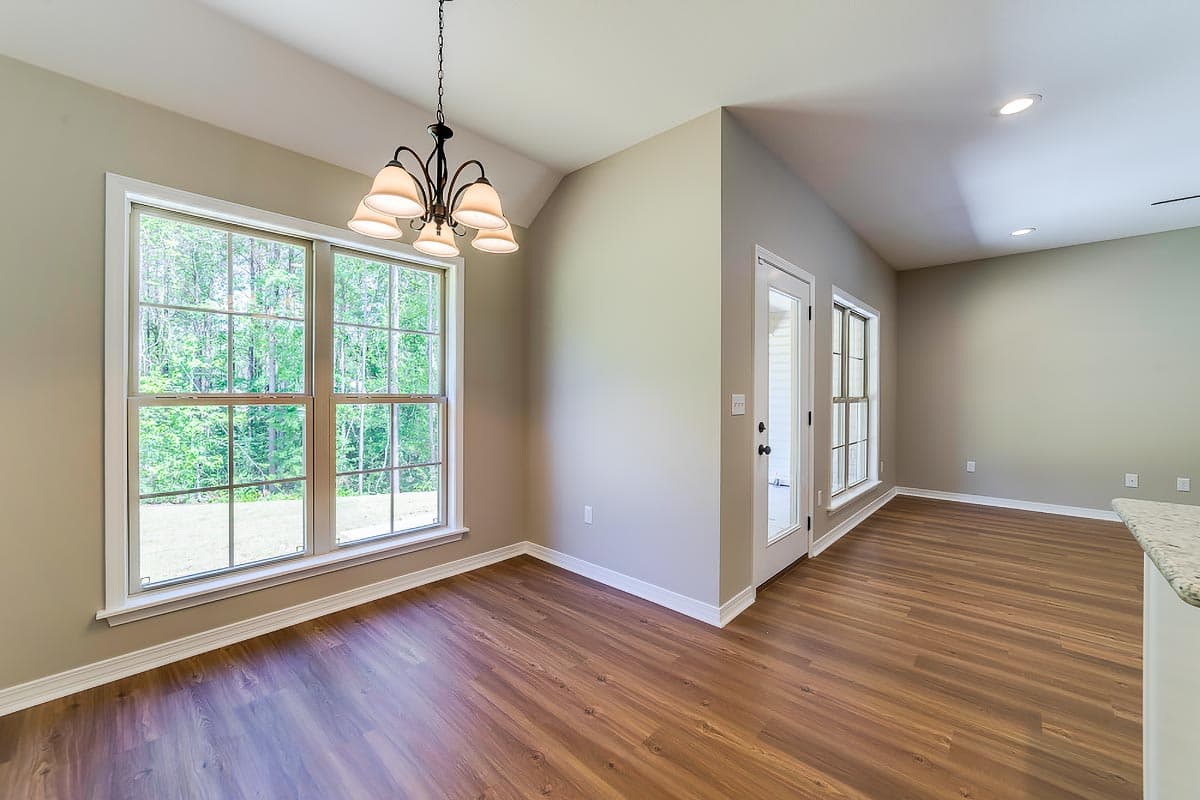

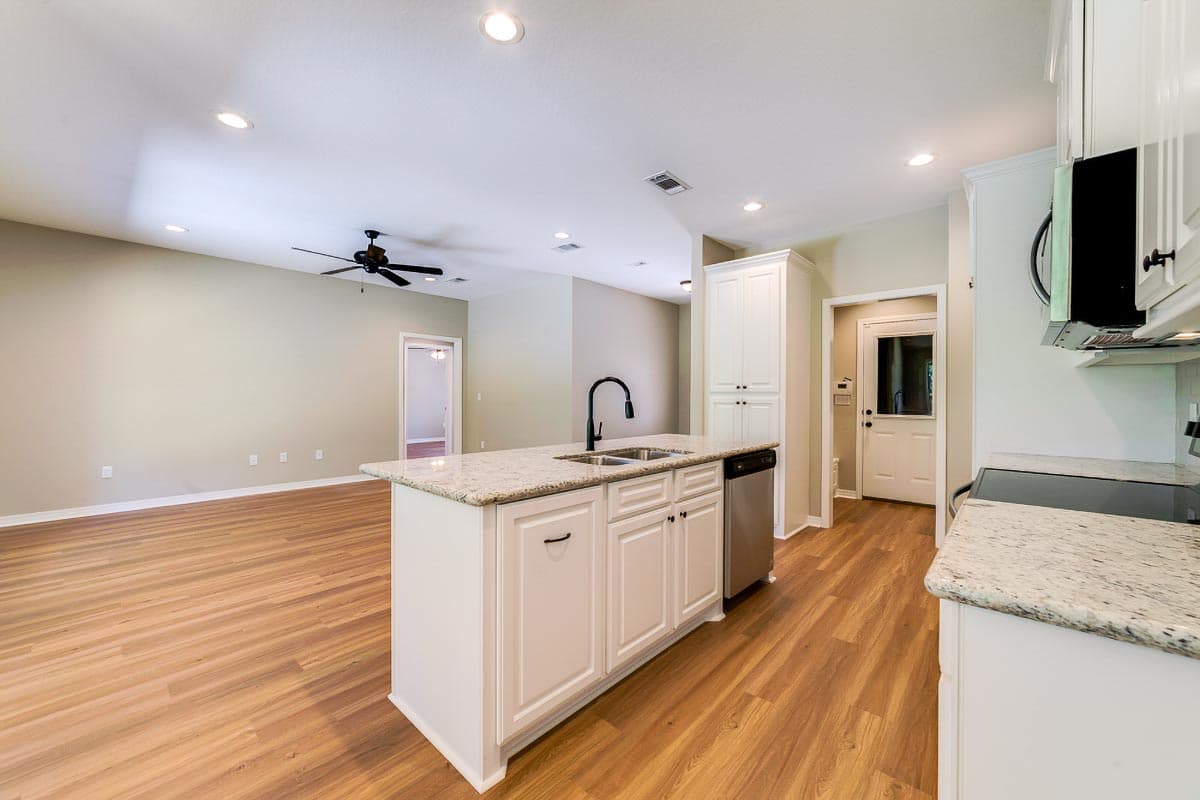

  • Inside, you are greeted with an open living room, kitchen, and dining layout with views to the rear.

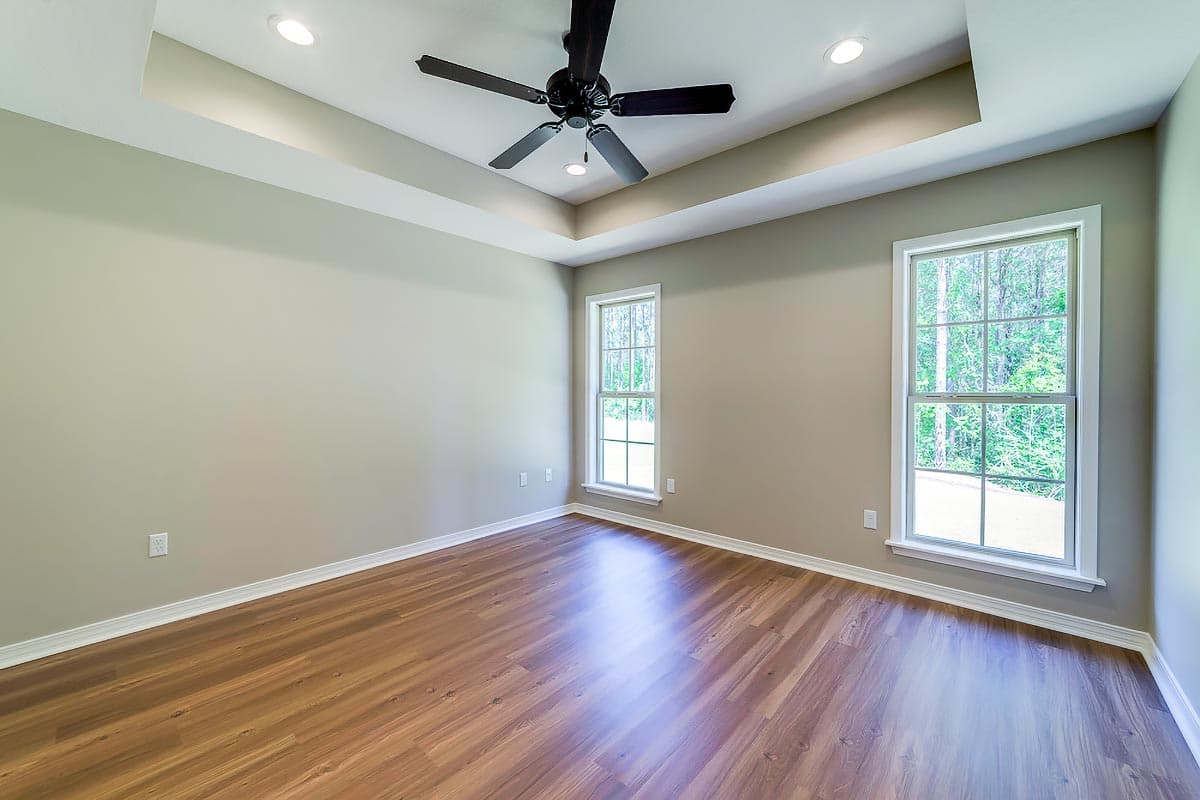

  • The owner's retreat offers a spacious bedroom, a large bath that includes separate vanities, separate tub and shower, linen storage, private toilet, and large walk-in closet with lots of storage.

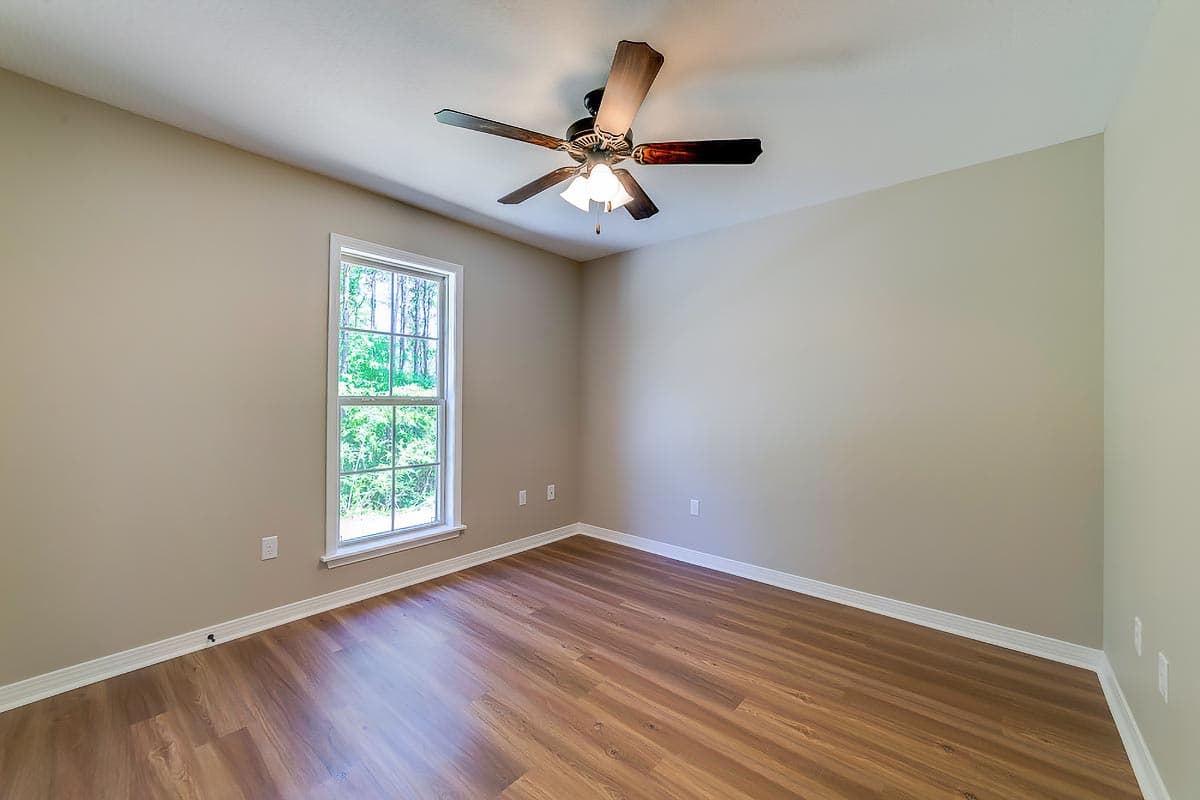

  • Two more beds are located across the home and share a hall bath. The fourth bedroom can be used as an office and has a linear closet.
  • The 2-car garage comes as a front-entry standard with a 2-car side-entry option.
  • Note: Please note that orders including special options may result in a delay. Call us for details.
  • Related Plans: Get alternate versions with house plans 51892HZ (1,795 sq. ft.), 51703HZ (1,736 sq. ft.), 11767HZ (1,725 sq. ft.) and 11768HZ (1,759 sq. ft.).
What's Included
  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,719 sq. ft.

1st Floor

1,719 sq. ft.

Porch, Front

50 sq. ft.

Porch, Rear

110 sq. ft.

Porch, Combined

160 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

55' 10"

Depth

54' 4"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

553 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9' 4"

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

Home Office

Laundry - Main Level

Master Suite - 1st Floor

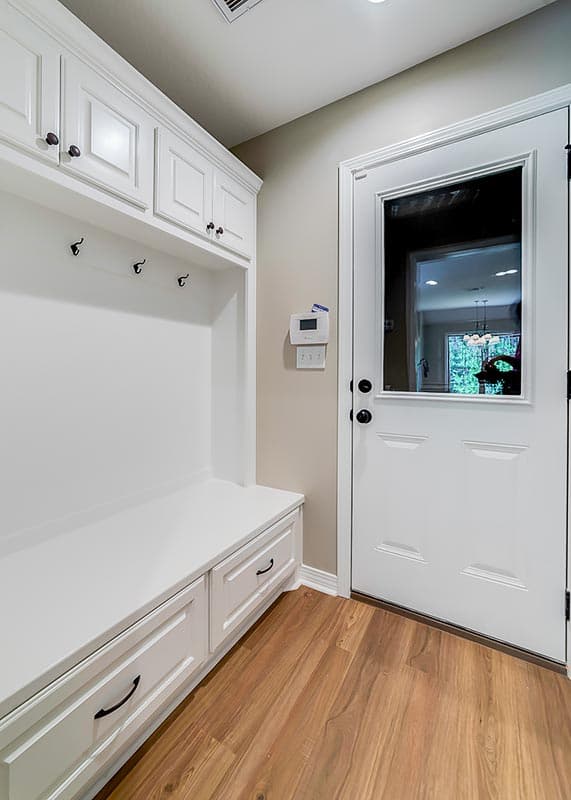

Mudroom

Plan Collections

Home Office

Photo Gallery

USDA Approved
