Plan 80821PM
An Appealing Vacation House Plan
Heated S.F.
1,404
Beds
2
Baths
1.5
Stories
2
Floor Plan

Plan 80821PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 80821PM

1-800-854-7852

1-262-521-4596

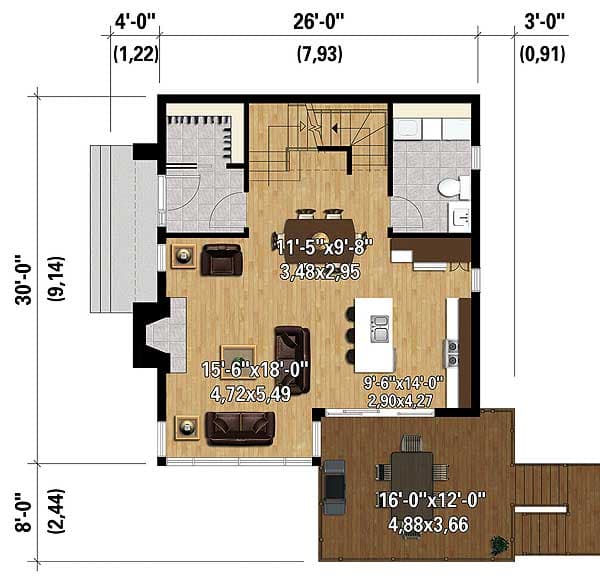

Main Level
floor plan image Main Level

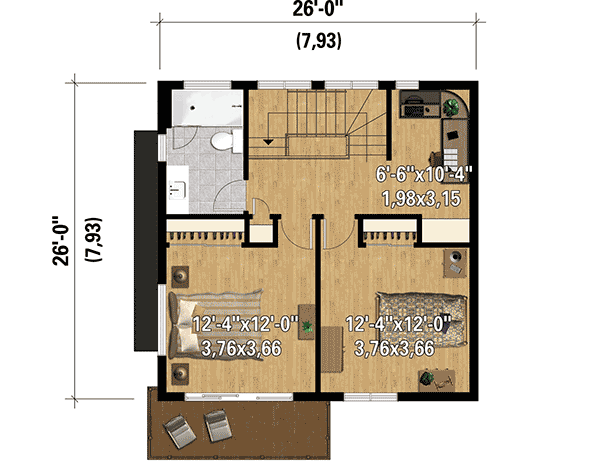

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Marvelous inside and outside spaces make this Vacation house plan extra appealing.
  • The air lock entry foyer keeps hot and cold air out and there's plenty of storage with a big walk-in coat closet.
  • Sightlines start right away with sweeping views out to the big outdoor deck area.
  • You can work at the kitchen sink and still enjoy the living room fireplace.
  • Combining the laundry room with the powder room is a clever space-saving feature.
  • Upstairs, two bedrooms share a hall bathroom and the study area.
  • The master suite gets a private balcony with lots of rooms for chairs to relax and enjoy the views.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,404 sq. ft.

1st Floor

728 sq. ft.

2nd Floor

676 sq. ft.

Deck

192 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 0"

Depth

30' 0"

Max Ridge Height

37' 4"

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Coastal

Contemporary

Mountain

Vacation

Special Features

Library/Study

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric

Sloping Lot

Square Footage Breakdown

Total Heated Area

1,404 sq. ft.

1st Floor

728 sq. ft.

2nd Floor

676 sq. ft.

Deck

192 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 0"

Depth

30' 0"

Max Ridge Height

37' 4"

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Coastal

Contemporary

Mountain

Vacation

Special Features

Library/Study

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric

Sloping Lot
