Plan 770008CED

Exclusive

Angled Craftsman with Screened Porch

Heated S.F.

2,613

Beds

3

Baths

2.5

Stories

1

Cars

3

Floor Plan

Main Level

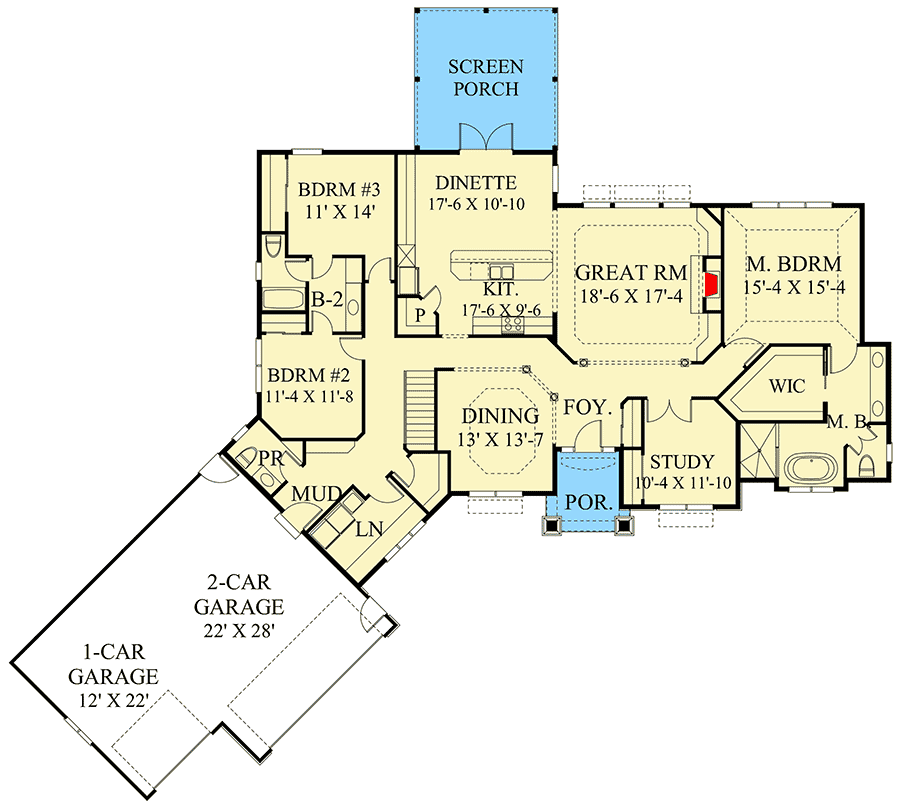

floor plan image Main Level

Plan Details

This stunning Craftsman house plan, angled at the 3-car garage, gives you 3 beds and a large screened porch in the back.
The plan features a columned dining room and study with French doors flanking both sides of the foyer.
Enjoy open living from the great room to the kitchen which has an eat-in area adjacent to the island.
The open core lends privacy to the bedrooms which are on either side of the home. The master suite has a tray ceiling and double vanities and a large walk-in closet. Across the home, two bedrooms share a Jack-and-Jill bath.

What's Included

Cover sheet with general notes

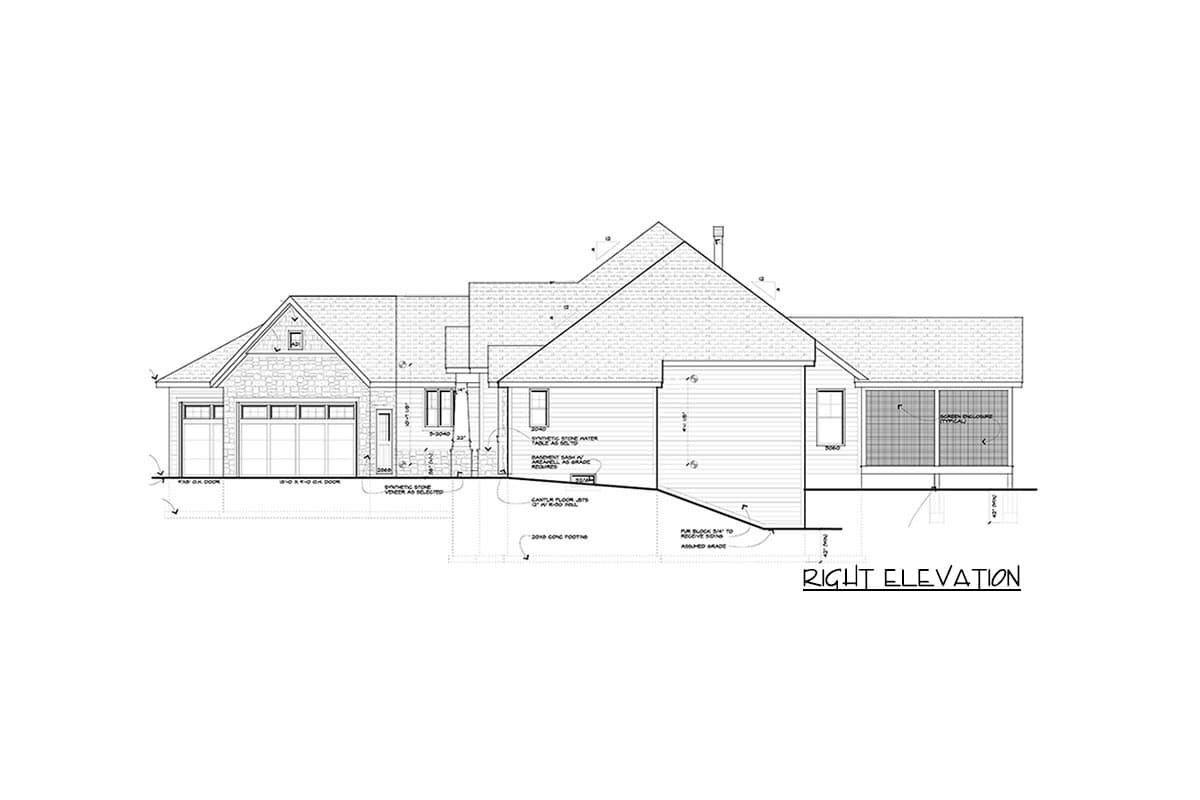

Front and right elevations

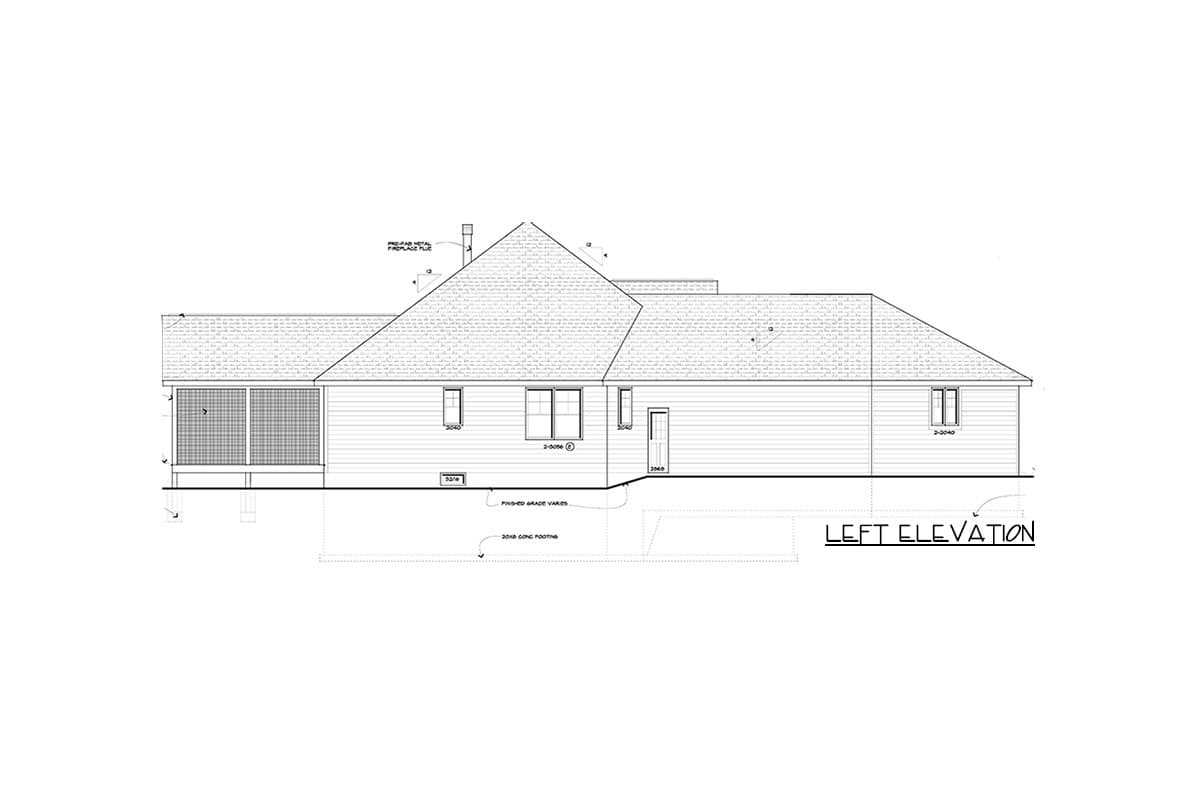

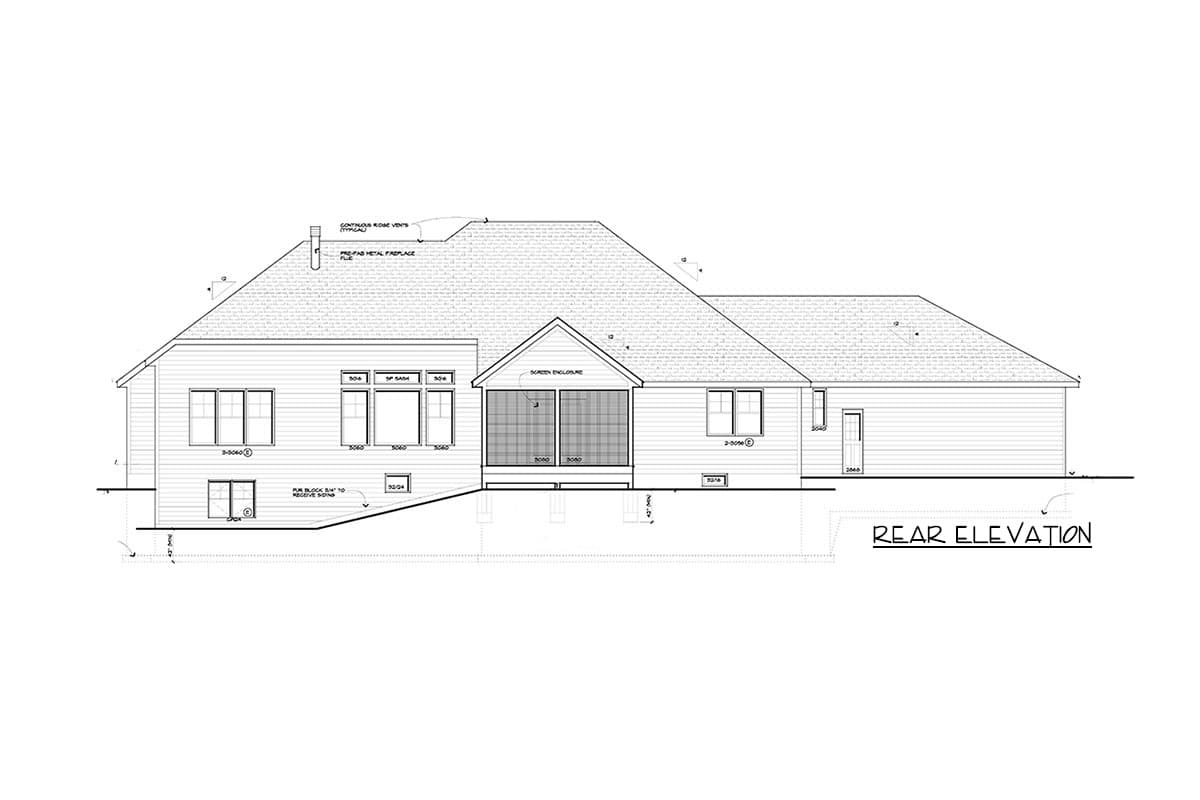

Rear and left elevations
Foundation plan
Main floor plan
Roof framing plan
Sections

What's Not Included

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Energy calculations

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,613 sq. ft.

1st Floor

2,613 sq. ft.

Basement Unfinished

2,606 sq. ft.

Porch, Front

72 sq. ft.

Porch, Rear

255 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

99' 6"

Depth

89' 5"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

873 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Roof Details

Primary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Square Footage Breakdown

Total Heated Area

2,613 sq. ft.

1st Floor

2,613 sq. ft.

Basement Unfinished

2,606 sq. ft.

Porch, Front

72 sq. ft.

Porch, Rear

255 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

99' 6"

Depth

89' 5"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

873 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Roof Details

Primary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections
