Plan 24345TW

Angled Garage

Heated S.F.

3,867

Beds

4

Baths

3.5+

Stories

2

Cars

3

Floor Plan

Main Level

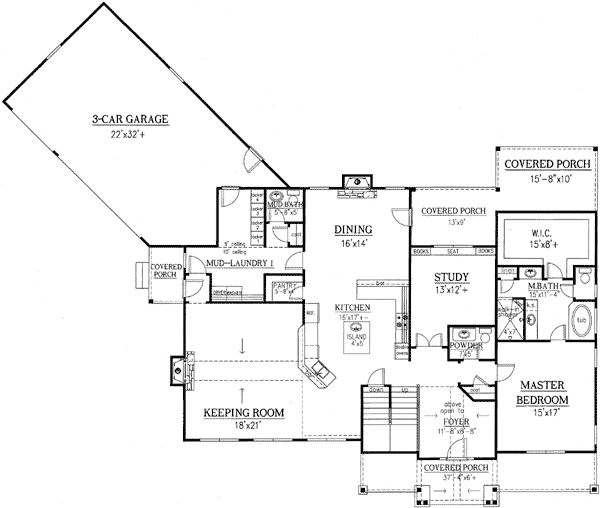

floor plan image Main Level

2nd Floor

floor plan image 2nd Floor

Plan Details

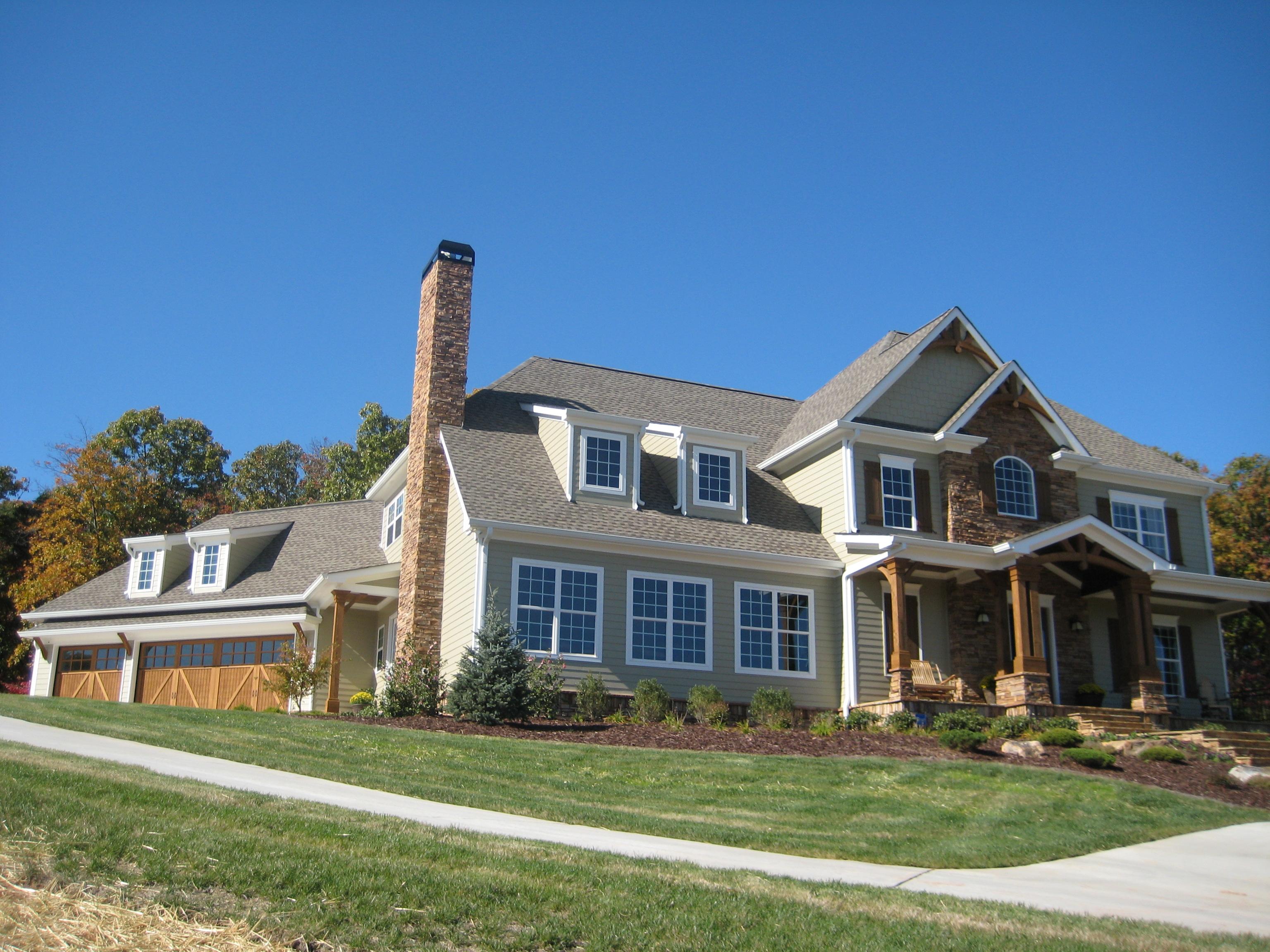

Both the covered front porch and the foyer are vaulted in this delightful Traditional home plan.

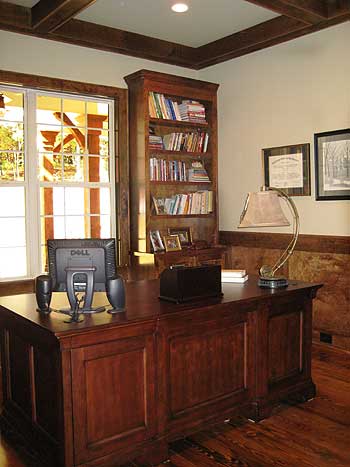

Head back to the study with its charming window seat and views of the rear covered porch.

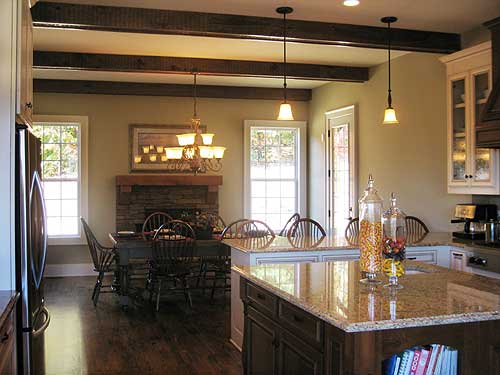

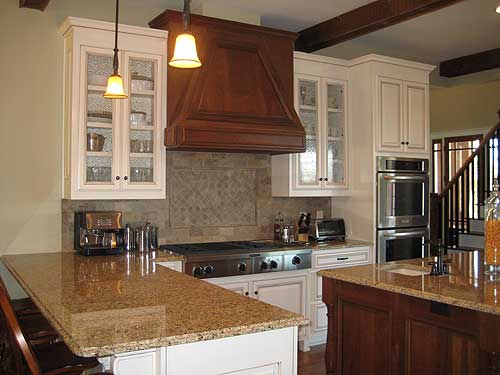

The main living area is an L-shape with a beautiful open layout that allows those in the kitchen views of the vaulted keeping room fireplace.
Another fireplace warms the formal dining room.
The large master suite is located by itself on the main floor.

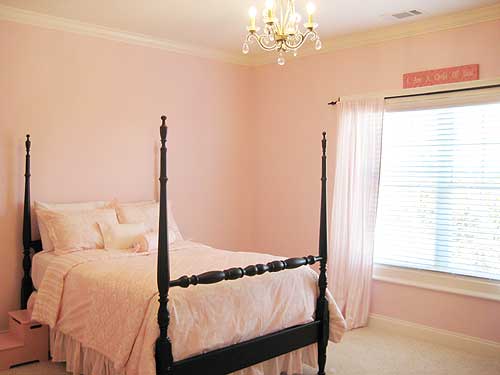

Each bedroom on the second floor is spacious with a walk-in closet in each room.
A sunken playroom lies over the angled three car garage.
NOTE: The crawlspace version comes with the same elevations as the basement version.

What's Included

Four elevations (front, rear, right & left) with finish details
Fully dimensioned floor plans which include window and door sizes
Foundation plan with footing details
Roof plan with cornice details
General framing details
Floor joists layout
Electrical layout

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,867 sq. ft.

1st Floor

2,370 sq. ft.

2nd Floor

1,497 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

91' 8"

Depth

78' 3"

Max Ridge Height

37' 0"

Garage

Type

Attached

Area

704 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Master Suite - 1st Floor

Plan Collections

Premium Collection

Square Footage Breakdown

Total Heated Area

3,867 sq. ft.

1st Floor

2,370 sq. ft.

2nd Floor

1,497 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

91' 8"

Depth

78' 3"

Max Ridge Height

37' 0"

Garage

Type

Attached

Area

704 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Master Suite - 1st Floor

Plan Collections

Premium Collection
