Plan 48034FM

Angled Nook Home Plan with Options

Heated S.F.

2,720

Beds

3

Baths

3.5+

Stories

1

Cars

3

Floor Plan

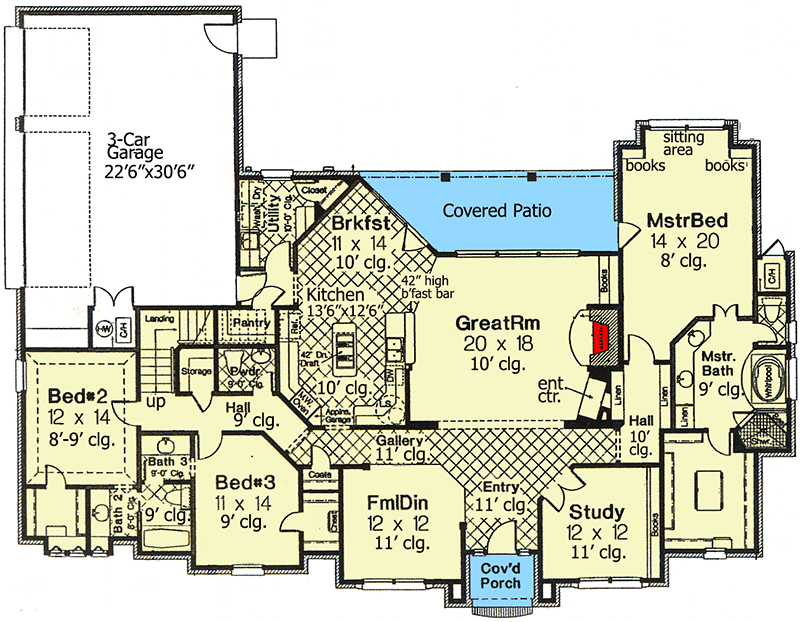

Main Level

floor plan image Main Level

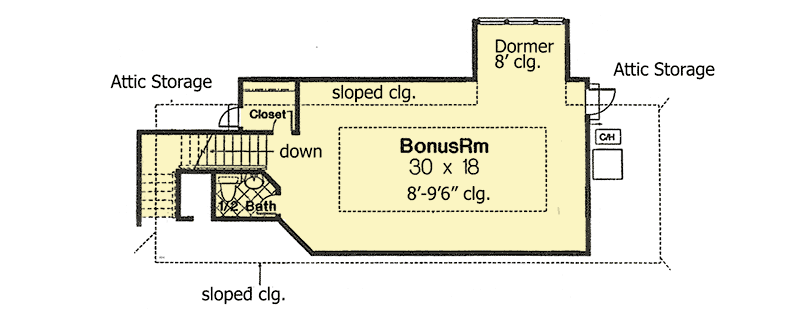

Bonus

floor plan image Bonus

Plan Details

This home plan with an attractively-angled nook comes in multiple versions. All share the same layout and exterior features that make this a timeless classic.
Step inside off the covered porch entry with sidelights and you'll be greeted by front to back views through the dynamic great room with a fireplace with built-ins and access to the kichen, nook and covered patio.
The central island cooktop gives you extra counterspace and the nook and breakfast bar offer flexible informal eating options.
The master bedroom has access to the covered patio. The rest of the master suite is designed with comfort in mind.
Two additional bedrooms with walk-in closets, a shared bath and powder room and a convenient utility room off the garage complete the main floor of this home plan.
Stairs lead up to a large great room giving you options for future expansion.
Related Plans: Get a media room on the bonus level with house plan 48389FM. Eliminate the bonus room with house plan 48020FM (2,553 sq. ft.). Gain an extra guest bedroom with house plan 48098FM (2,927 sq. ft.) and 48305FM (3,510 sq. ft.).

What's Included

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation
Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,720 sq. ft.

1st Floor

2,720 sq. ft.

Bonus

647 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

80' 0"

Depth

61' 10"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

715 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Family Room

11' 0''

Study

11' 0''

Master Bedroom

8' 0''

Bedroom 2

Vaulted

9' 0''

Bedroom 3

9' 0''

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections

Square Footage Breakdown

Total Heated Area

2,720 sq. ft.

1st Floor

2,720 sq. ft.

Bonus

647 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

80' 0"

Depth

61' 10"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

715 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Family Room

11' 0''

Study

11' 0''

Master Bedroom

8' 0''

Bedroom 2

Vaulted

9' 0''

Bedroom 3

9' 0''

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections
