Plan 90181PD
Angular Mini Modern
Heated S.F.
1,315
Beds
2
Baths
1.5
Stories
2
Cars
1
Floor Plan

Plan 90181PD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 90181PD

1-800-854-7852

1-262-521-4596

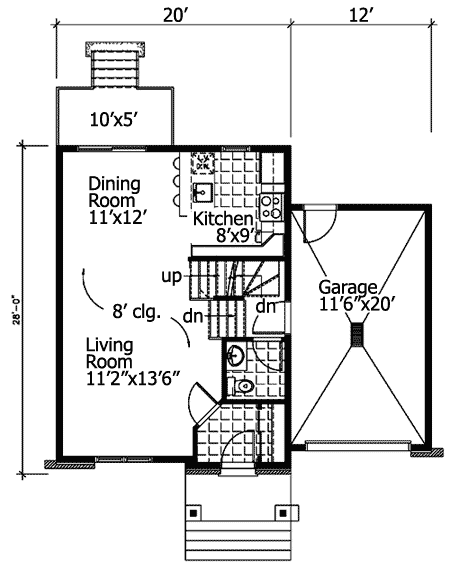

Main Level
floor plan image Main Level

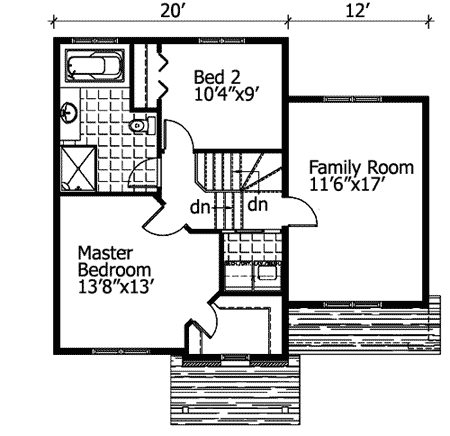

2nd Floor
floor plan image 2nd Floor
Plan Details

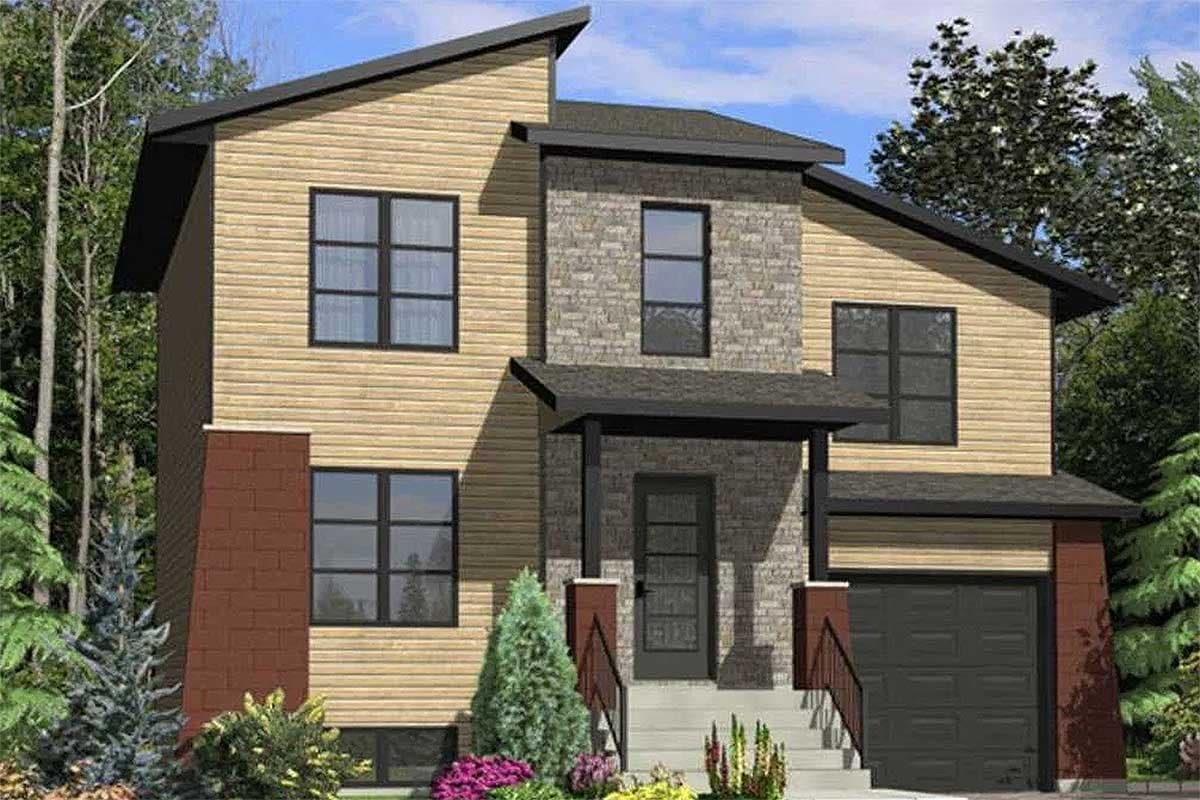

  • This angular mini-modern house plan delivers an angular exterior that will definitely create a lasting impression. With entertaining space on the main floor and living space on the upper it features a very livable floor plan.
  • The living room is kept warm and uncluttered with the air-lock entry and side coat closet. The home is open front to back making it feel larger than is 1,315 sq. ft. of living space suggests.
  • The dining room flows into the kitchen with more informal dining taking place at the lunch counter.
  • A family room above the garage is spacious and could make a great media room.
  • Related Plans: Get three bedrooms upstairs with house plan 90161PD (1,652 sq. ft.).
  • Remove the garage extension with house plans 90173PD (brick) and 90172PD (stone)
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,315 sq. ft.

1st Floor

550 sq. ft.

2nd Floor

765 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

28' 0"

Max Ridge Height

27' 2"

Garage

Type

Attached

Area

253 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Modern

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Media Room

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

1,315 sq. ft.

1st Floor

550 sq. ft.

2nd Floor

765 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

28' 0"

Max Ridge Height

27' 2"

Garage

Type

Attached

Area

253 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Modern

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Media Room

Plan Collections

Canadian House Plans

Metric
