Plan 59617ND
Asymmetrical Duplex House Plan with Traditional Styling
Heated S.F.
2,578
Units
2
Width
Depth
Floor Plan

Plan 59617ND

Main Level
slide image 0

Plan 59617ND

1-800-854-7852

1-262-521-4596

Main Level

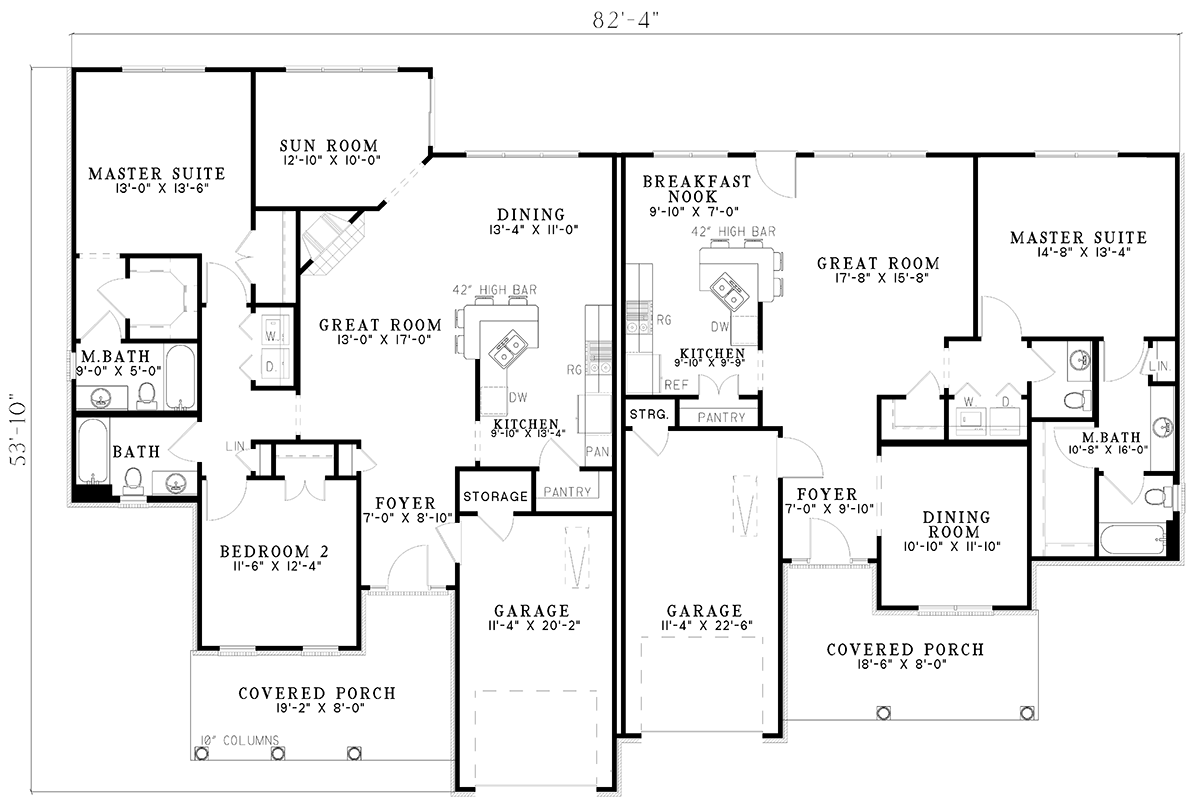

floor plan image Main Level
Plan Details
  • This traditional style duplex house plan has a cozy front porch and offers numerous options. One of the living quarters has a master suite, a second bedroom and sun room while the other home has a large great room and formal dining room in place of the second bedroom.
  • The unit on the left has 2 beds and 2 baths and gives you 1,398 square feet of heated living.
  • The unit on the right gives you a single bedroom and 1,180 square feet of heated living.
  • These open floor plans have blended kitchen and breakfast areas with handy breakfast bars and plenty of kitchen storage.
  • Both master suites are privately placed at the rear of the home and have large walk-in closets and private bathrooms.
  • Each unit has a 280 square foot 1-car garage
  • Related Plan: Get an alternate exterior with house plan 59741ND.
Unit A
1,398Sq. Ft.
1398 Sq. Ft.
1st Floor
2Beds
2Full Baths
1Vehicle
Attached
280 Sq. Ft.
41' 4"width
53' 10"depth
27'height
Unit B
1,180Sq. Ft.
1180 Sq. Ft.
1st Floor
1Beds
1Full Bath
1Half Bath
1Vehicle
Attached
280 Sq. Ft.
41' 2"width
53' 10"depth
27'height
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,578 sq. ft.

1st Floor

2,578 sq. ft.

Porch, Front

344 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

82' 4"

Depth

53' 10"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

560 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Sunroom

Square Footage Breakdown

Total Heated Area

2,578 sq. ft.

1st Floor

2,578 sq. ft.

Porch, Front

344 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

82' 4"

Depth

53' 10"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

560 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Sunroom
