Plan 69579AM
Attractive 3 Bedroom Craftsman Ranch
Heated S.F.
2,368
Beds
3
Baths
2.5
Stories
1
Cars
3
Photos
Floor Plan

Plan 69579AM

Main Floor
slide image 0

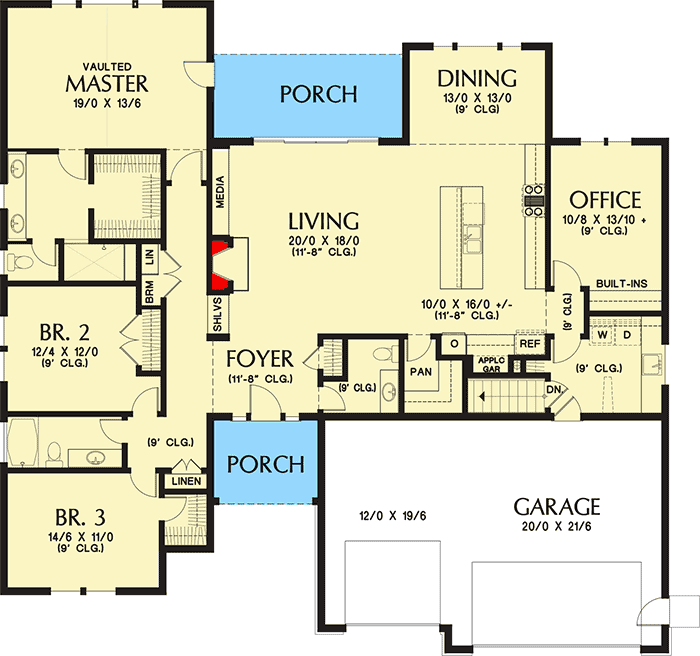

Main Floor - Basement Version
slide image 1

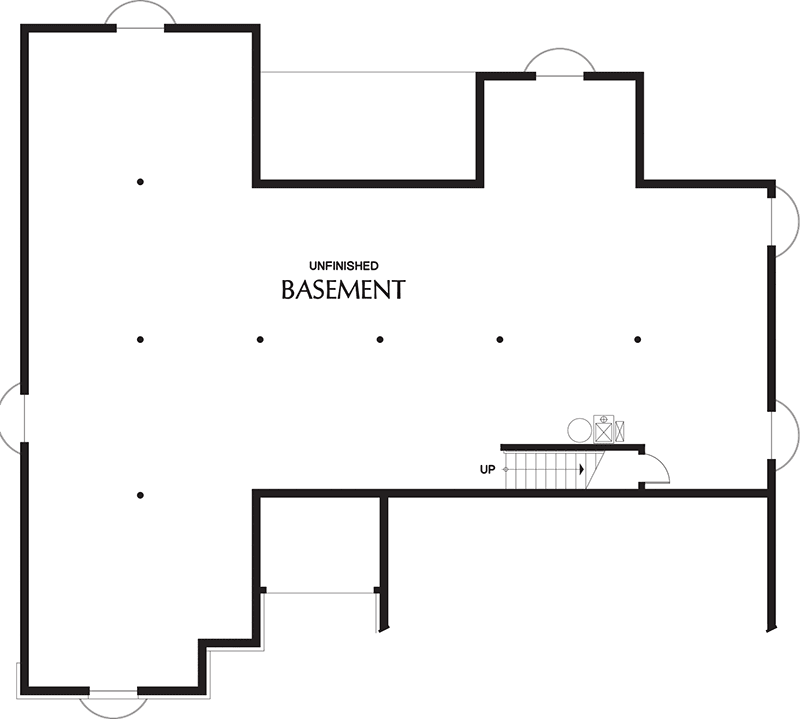

Basement
slide image 2

Plan 69579AM

1-800-854-7852

1-262-521-4596

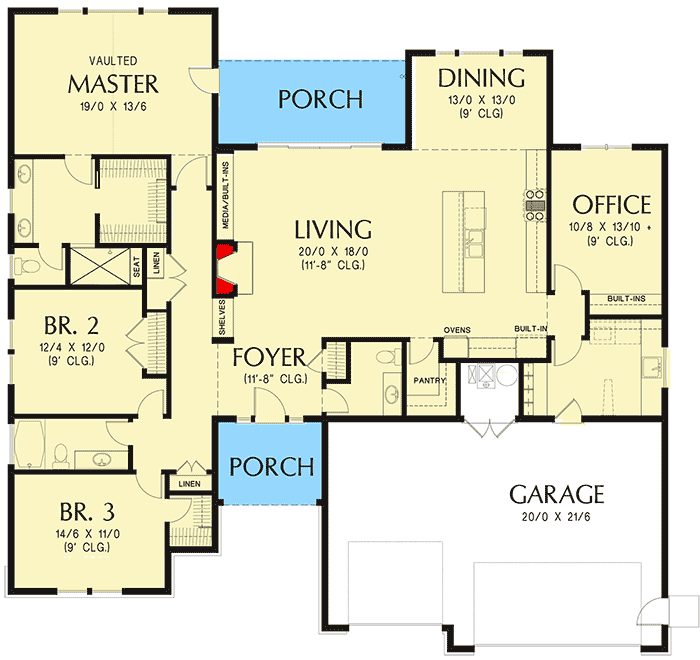

Main Floor
floor plan image Main Floor
Main Floor - Basement Version
floor plan image Main Floor - Basement Version
Basement
floor plan image Basement
Plan Details
  • This 3 bedroom Craftsman home plan gives you efficient living spaces all on one level. A covered entry provides shelter as you fumble for keys and a door in the garage makes access a breeze.

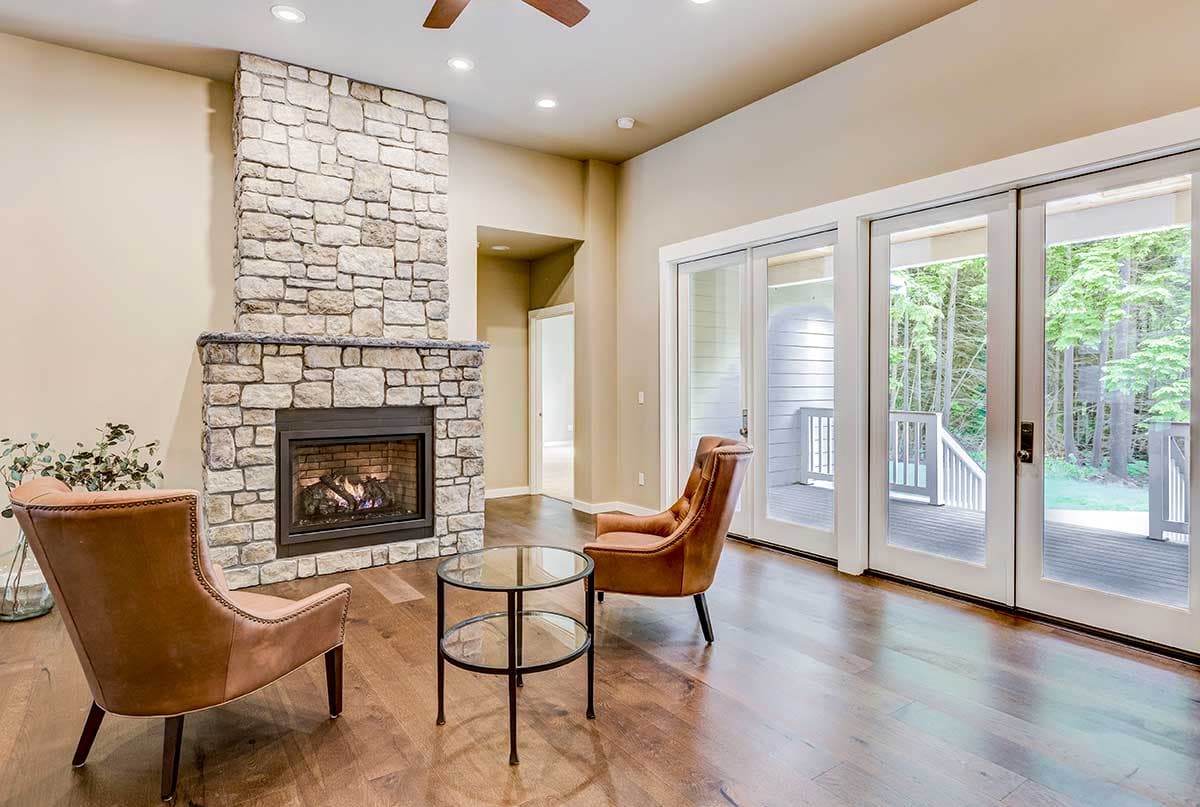

  • From the foyer you'll enjoy views that extend to the back of the home. The living room has sliding doors that open to the porch in back. Leave the doors open and enjoy indoor/outdoor living. It has 11'8" ceilings which are shared by the foyer and the kitchen.
  • The dining room has 3 windows on the back wall and has views of the back.

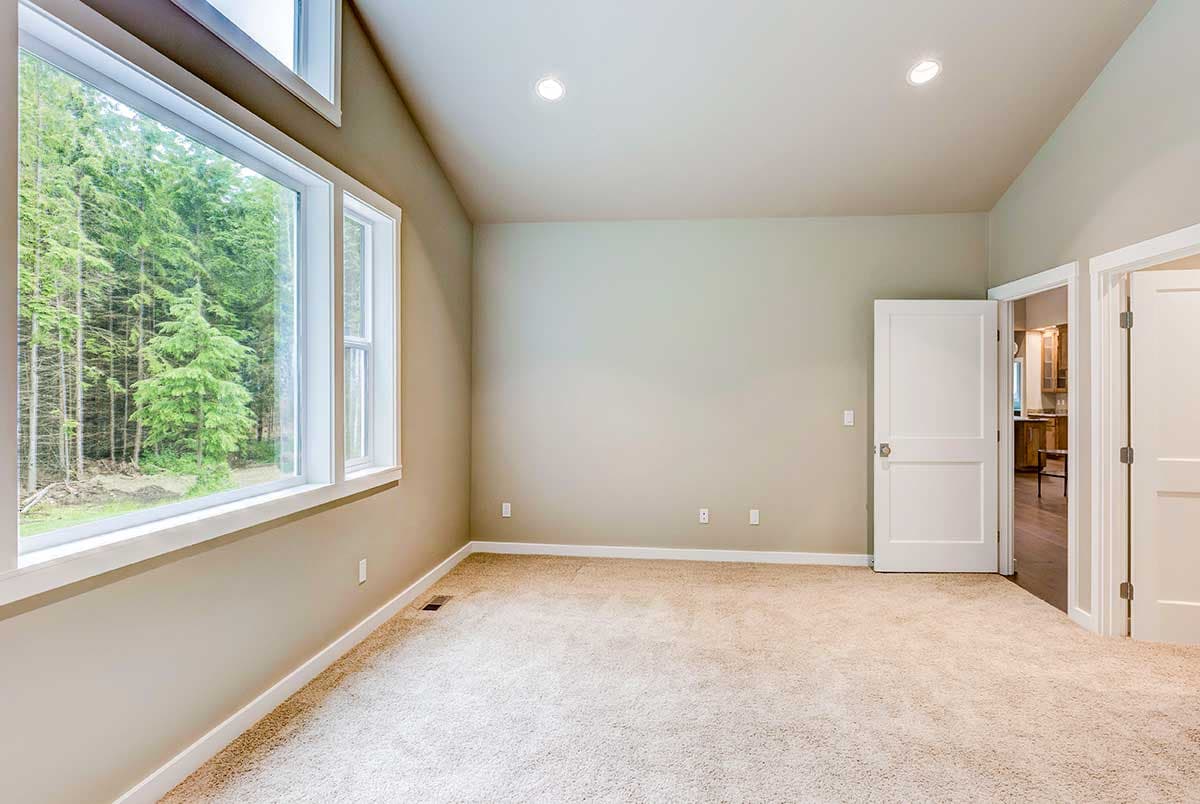

  • The master privately located in back and has a great vaulted ceiling and direct access to the porch.
  • Across the home an office with built-ins is a quiet retreat.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 69579AM Comes To Life In Oregon!

House Plan 69579AM Comes To Life In Oregon!

30

Photos

What's Included

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,368 sq. ft.

1st Floor

2,368 sq. ft.

Porch, Rear

144 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

63' 0"

Depth

61' 6"

Max Ridge Height

16' 7"

Garage

Type

Attached

Area

702 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Ranch

Special Features

Bedrooms - Clustered

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,368 sq. ft.

1st Floor

2,368 sq. ft.

Porch, Rear

144 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

63' 0"

Depth

61' 6"

Max Ridge Height

16' 7"

Garage

Type

Attached

Area

702 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Ranch

Special Features

Bedrooms - Clustered

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery
