Plan 80019PM

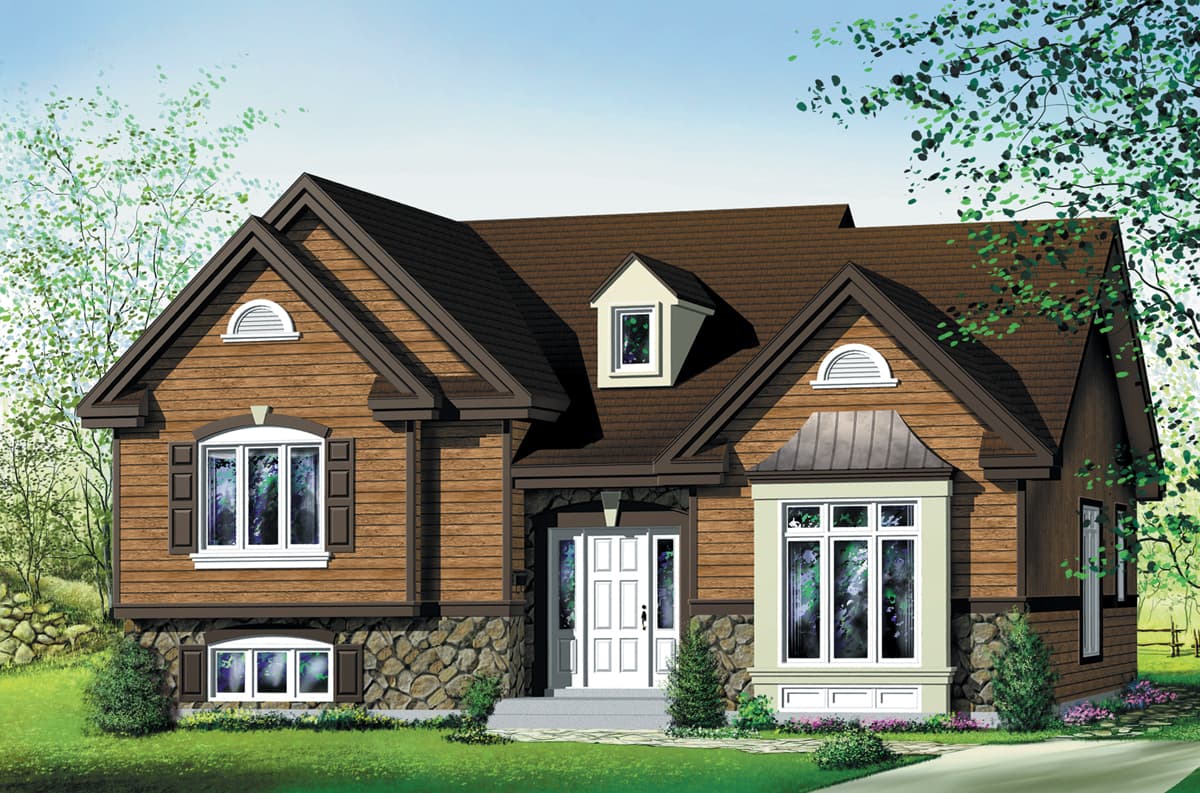

Attractive 3 Bedroom Split Level
Heated S.F.
1,383
Beds
3
Baths
1.5
Stories
1
Floor Plan

Plan 80019PM

Main Level
slide image 0

Plan 80019PM

1-800-854-7852

1-262-521-4596

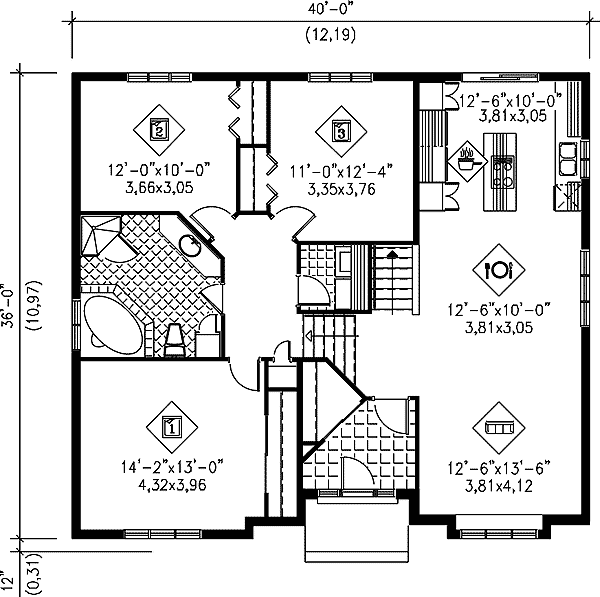

Main Level
floor plan image Main Level
Plan Details
  • This 3 bedroom split level house plan gives you common living areas at ground level and the bedrooms up a small flight of six stairs.
  • The living area is one oen floor plan with front-to-back views.
  • A spacious bath with shower and tub serves all the bedrooms.
  • An unfinished basement gives you room for expansion.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,383 sq. ft.

1st Floor

1,383 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

36' 0"

Max Ridge Height

24' 10"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Split Level

Plan Collections

Canadian House Plans

Metric

Split Level House Plans

Square Footage Breakdown

Total Heated Area

1,383 sq. ft.

1st Floor

1,383 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

36' 0"

Max Ridge Height

24' 10"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Split Level

Plan Collections

Canadian House Plans

Metric

Split Level House Plans
