Plan 18271BE

Attractive Angled Ranch Home Plan - 1086 Sq Ft

Heated S.F.

1,770

Beds

1 - 2

Baths

1.5

Stories

1

Cars

2

Floor Plan

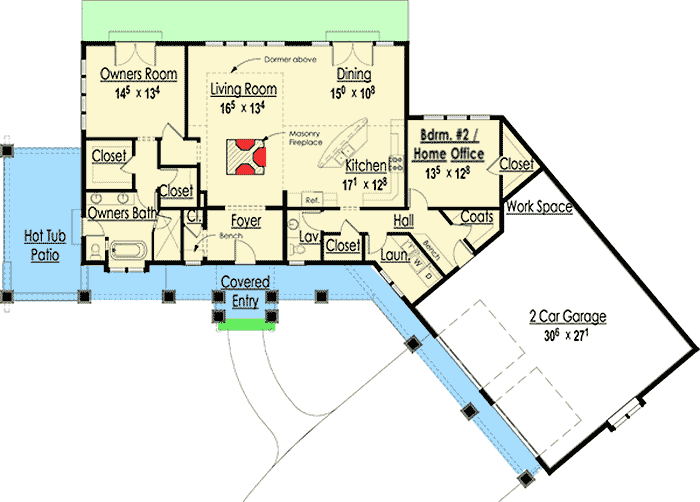

Main Level

floor plan image Main Level

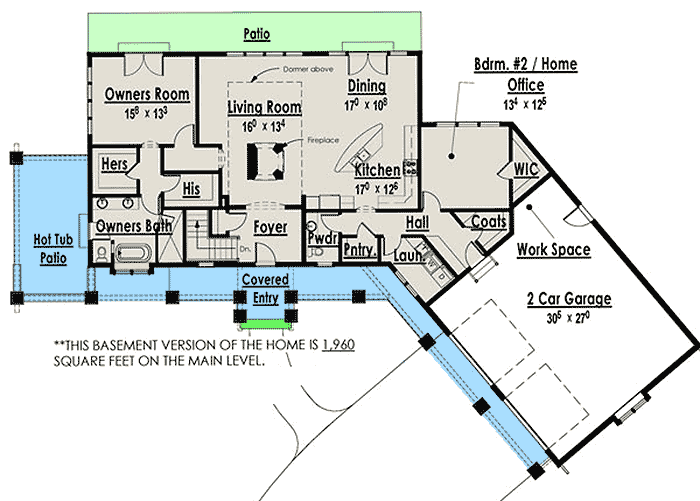

Optional

floor plan image Optional

Basement

floor plan image Basement

Plan Details

This home plan is a spin-off of plan 18222BE and has an attractive barrel arched covered front entry.
Inside, you will appreciate the open living area and the 3-sided fireplace in hte living room.
The master suite has access to the rear patio through attractive french doors. The same arrangement can be found off the dining room which is open to the kitchen and great room.
Tucked behind the garage you'll enjoy the flexibility of the room which can serve as a bedroom or office.
The basement option gives you great unfinished space to use for storage or to build out and expand your living space at a later date.
The roof is a truss design with an 8:12 main pitch and a 6:12 secondary pitch.
BUILD RESTRICTION: These plans cannot be sold or built in NY state.

What's Included

General Notes and Design Criteria
Perspective Views
Foundation Plan
Floor Plans
Elevations
Cross Sections
Door and Window Schedules
Roof Plan and Room Finish Schedule
Electrical Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,770 sq. ft.

1st Floor

1,770 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

103' 6"

Depth

64' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

896 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Square Footage Breakdown

Total Heated Area

1,770 sq. ft.

1st Floor

1,770 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

103' 6"

Depth

64' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

896 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections
