Plan 23346JD
Attractive Columned Entry
Heated S.F.
4,510
Beds
4 - 5
Baths
4.5
Stories
2
Cars
3
Floor Plan

Plan 23346JD

Basement
slide image 0
Main Level
slide image 1
2nd Floor
slide image 2

Plan 23346JD

1-800-854-7852

1-262-521-4596

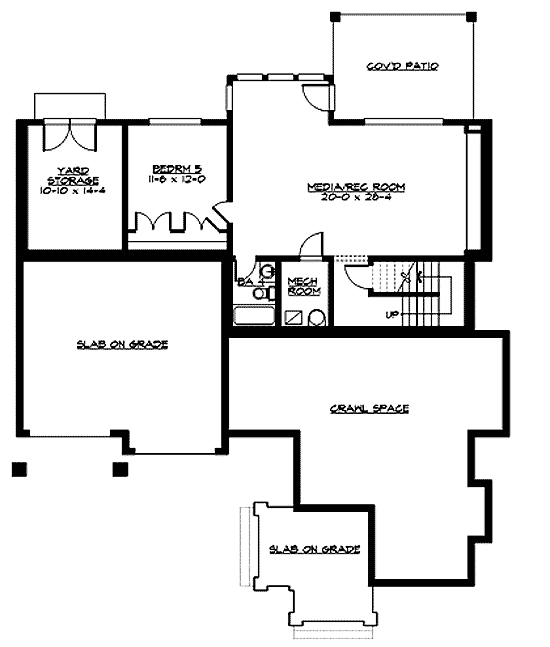

Basement
floor plan image Basement

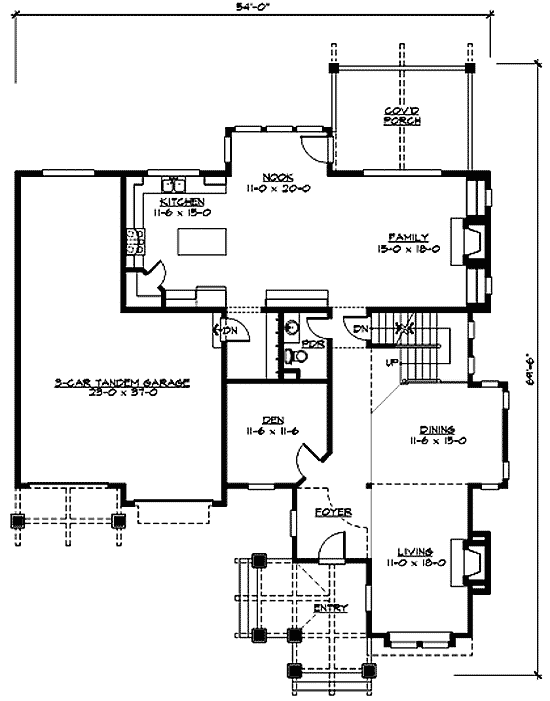

Main Level
floor plan image Main Level

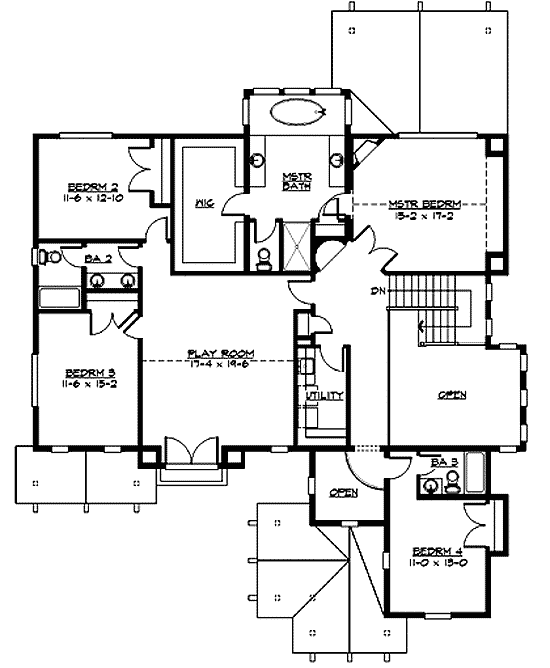

2nd Floor
floor plan image 2nd Floor
Plan Details

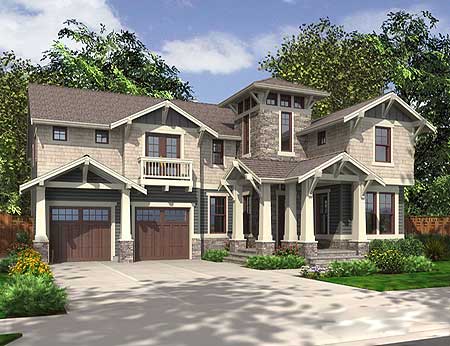

  • Step in off the attractive columned entry and enjoy this unique house plan. A fireplace greets you in the living room which is open to the 2-story dining room.
  • A den can serve as a home office or quiet study.
  • The family room is open to the kitchen and bright breakfast nook. It features a fireplace flanked by built-ins. A vaulted covered porch is steps away.
  • Upstairs, the master suite is vaulted as is the play room. Three more bedrooms complete this house plan.
  • The lower level offers room to expand. There you'll enjoy the media/rec room, a full bath plus a bedroom, covered patio and a storage room.
    Related Plans: Need a crawlspace? See house plan 23345JD.
  • For an alternate exterior in reverse orientation see house plans 23242JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

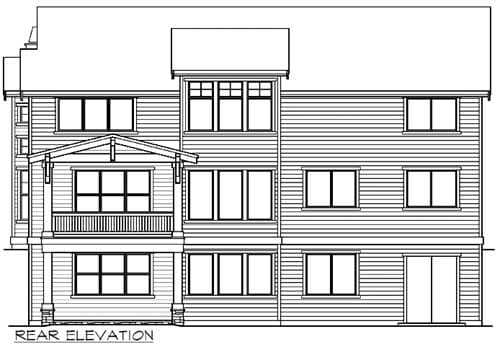

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,510 sq. ft.

Lower Level

905 sq. ft.

1st Floor

1,605 sq. ft.

2nd Floor

2,000 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

70' 0"

Max Ridge Height

27' 6"

Garage

Type

Attached

Area

695 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Breakfast Nook

Butler Walk-in Pantry

Den

Game/Rec Room

Home Office

Library/Study

Master Suite - 2nd Floor

Playroom

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

4,510 sq. ft.

Lower Level

905 sq. ft.

1st Floor

1,605 sq. ft.

2nd Floor

2,000 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

70' 0"

Max Ridge Height

27' 6"

Garage

Type

Attached

Area

695 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Breakfast Nook

Butler Walk-in Pantry

Den

Game/Rec Room

Home Office

Library/Study

Master Suite - 2nd Floor

Playroom

Plan Collections

Home Office
