Plan 765002TWN

Attractive Cottage with Downstairs Den

Heated S.F.

2,637

Beds

3 - 4

Baths

3.5+

Stories

2

Floor Plan

Main Level

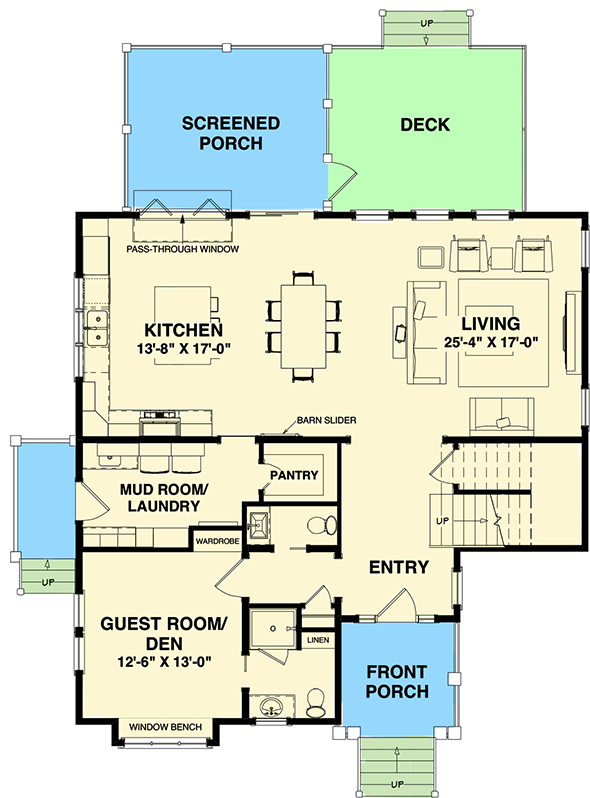

floor plan image Main Level

2nd Floor

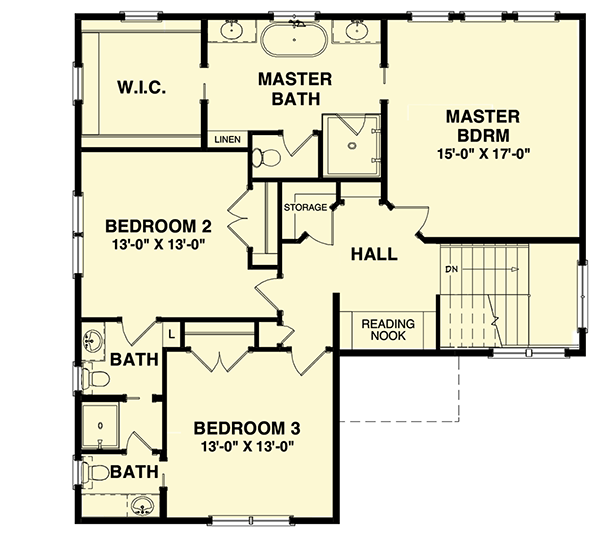

floor plan image 2nd Floor

Plan Details

A shingled and clapboard exterior and a covered entry greet you to this 3-bed house plan with a main floor den that could be used as a fourth bedroom.
The back of the home has an open concept design and gives you a living room, dining space and a kitchen with outdoor access. A sliding barn door reveals the pantry and mudroom which is also accessible to the outdoors by a side door.
The front room has a window seat and can be used as a den or a guest room with direct access to its full bath.
The second floor gives you three bedrooms and a reading nook. The master has a large walk-in closet and a five-fixture bath.
DELIVERY NOTE: Please allow 10 to 15 days for plan delivery.

What's Included

Cover sheet with general notes
Foundation page
Detailed floor plans
Roof plan
Electrical plans
Elevations
Typical wall section and cross section
General details
Cabinet elevations

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,637 sq. ft.

1st Floor

1,391 sq. ft.

2nd Floor

1,246 sq. ft.

Porch, Combined

354 sq. ft.

Deck

220 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

45' 0"

Depth

54' 0"

Max Ridge Height

33' 4"

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

2,637 sq. ft.

1st Floor

1,391 sq. ft.

2nd Floor

1,246 sq. ft.

Porch, Combined

354 sq. ft.

Deck

220 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

45' 0"

Depth

54' 0"

Max Ridge Height

33' 4"

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 2nd Floor
