Plan 51134MM
Attractive Country In Multiple Sizes
Heated S.F.
2,067
Beds
3
Baths
2.5
Stories
1-2
Cars
2
Floor Plan

Plan 51134MM

Main Level
slide image 0
Bonus
slide image 1

Plan 51134MM

1-800-854-7852

1-262-521-4596

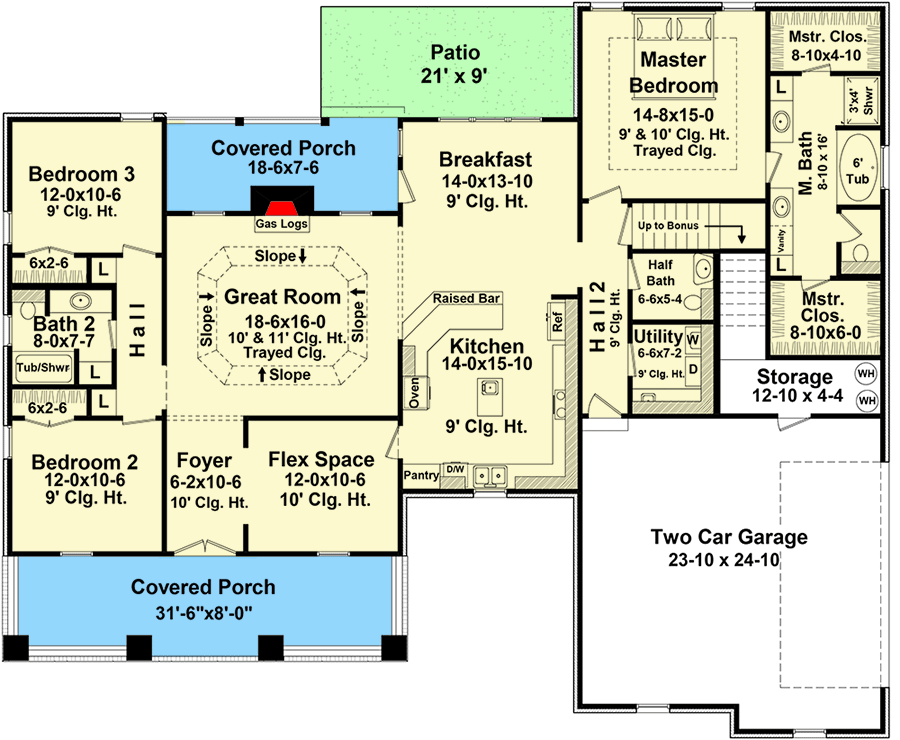

Main Level
floor plan image Main Level

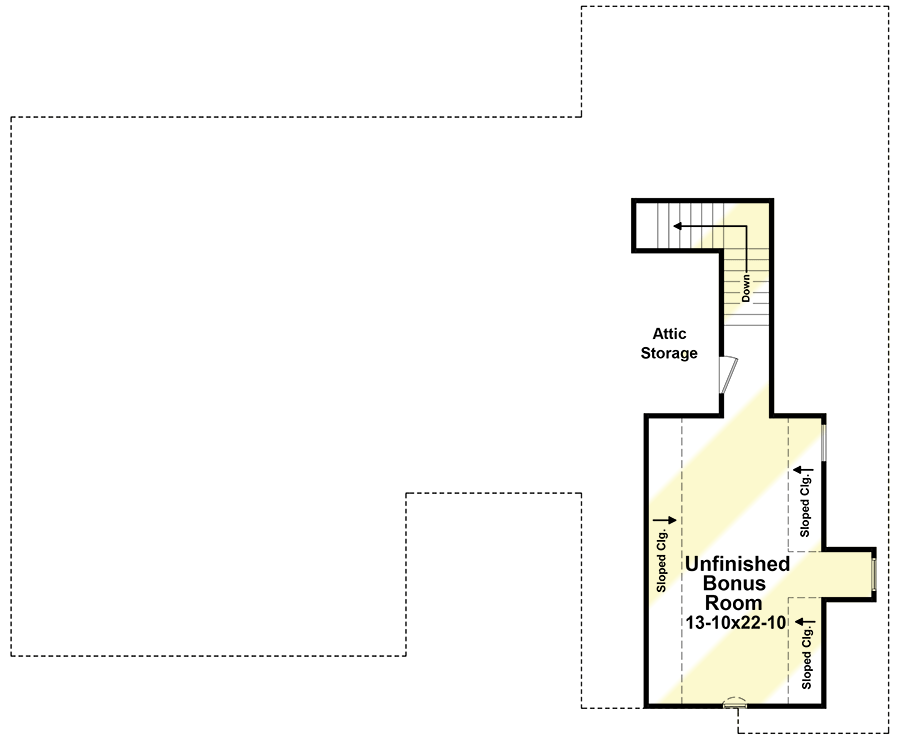

Bonus
floor plan image Bonus
Plan Details

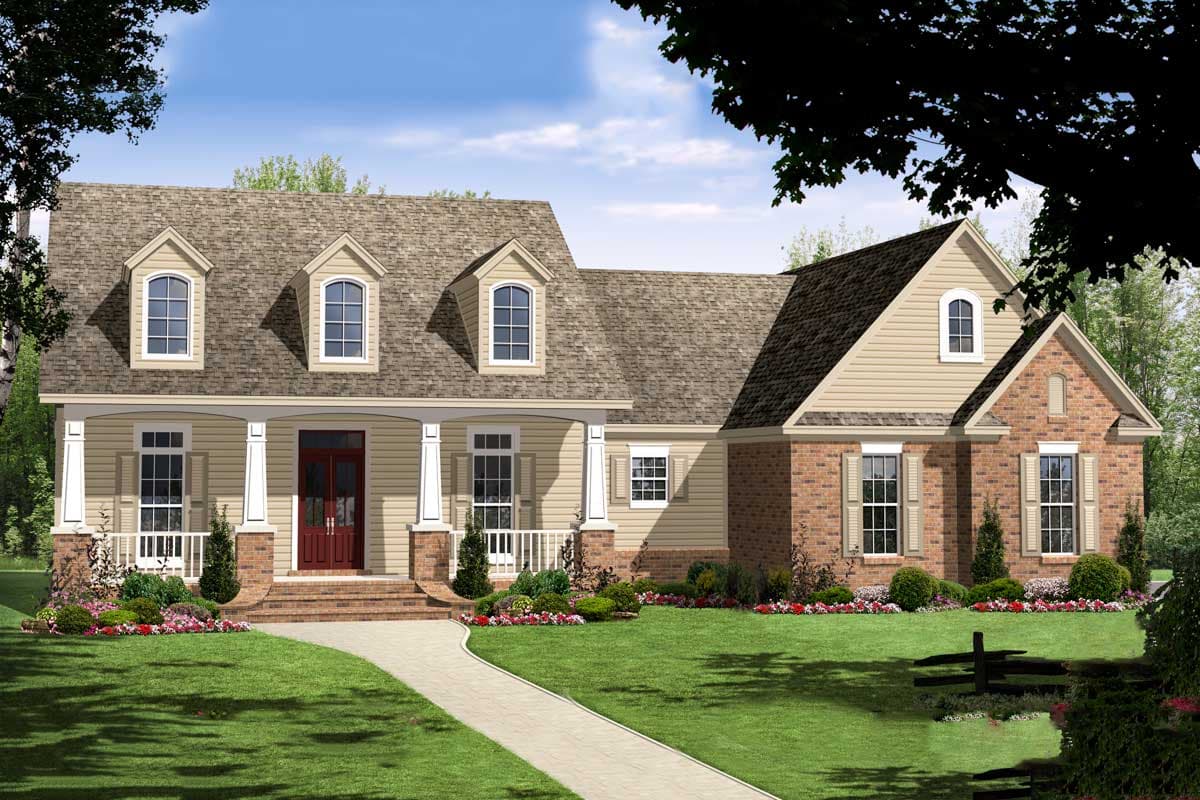

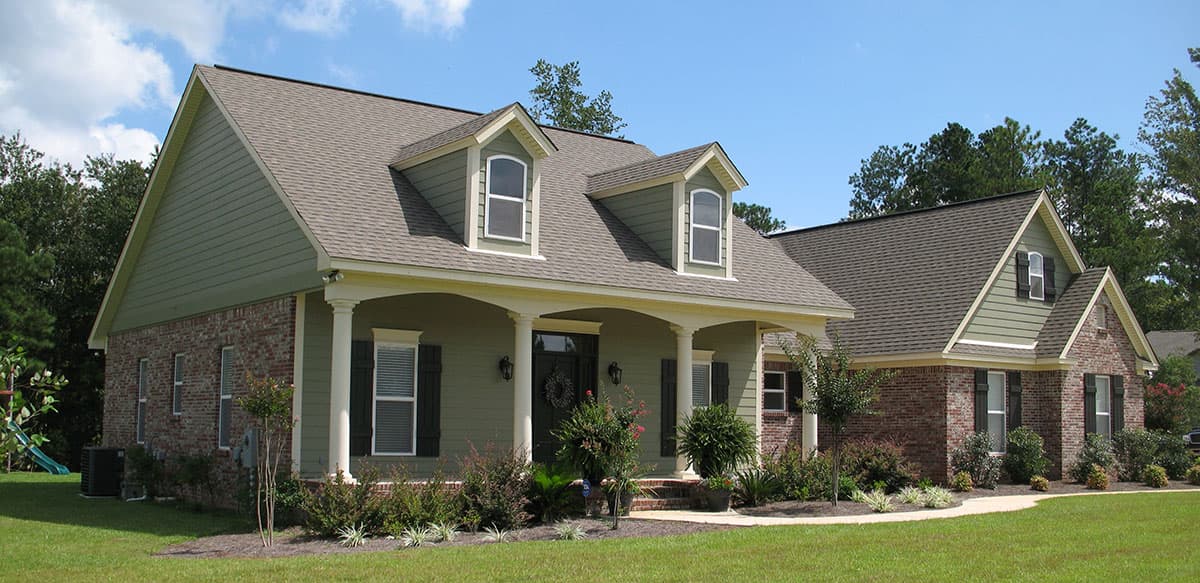

  • This inviting home plan has country styling with front and rear covered porches that add usable outdoor living space.
  • The great room features a sloped, trayed ceiling and a gas fireplace.
  • The spacious kitchen has an island with an eating bar.
  • The hall bath is equipped with a large linen closet for convenience.
  • The master bedroom has a raised ceiling and opens into the well-equipped bath with dual lavatories, jet tub and walk in closet.
  • There is a storage are located in the garage.
    This is a very flexible home with lots of options to choose from. Future space upstairs could be used as a playroom, an extra bedroom, or just extra storage.
  • Related Plans: Downsize with house plan 5188MM (1,800 sq. ft.) and 51009MM (1,816 sq. ft.) on a basement.
  • Get more room with house plans 5191MM (2,250 s.f.) and 5192MM (2,500 s.f.).
  • Get a Craftsman exterior with house plan 51043MM.
What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

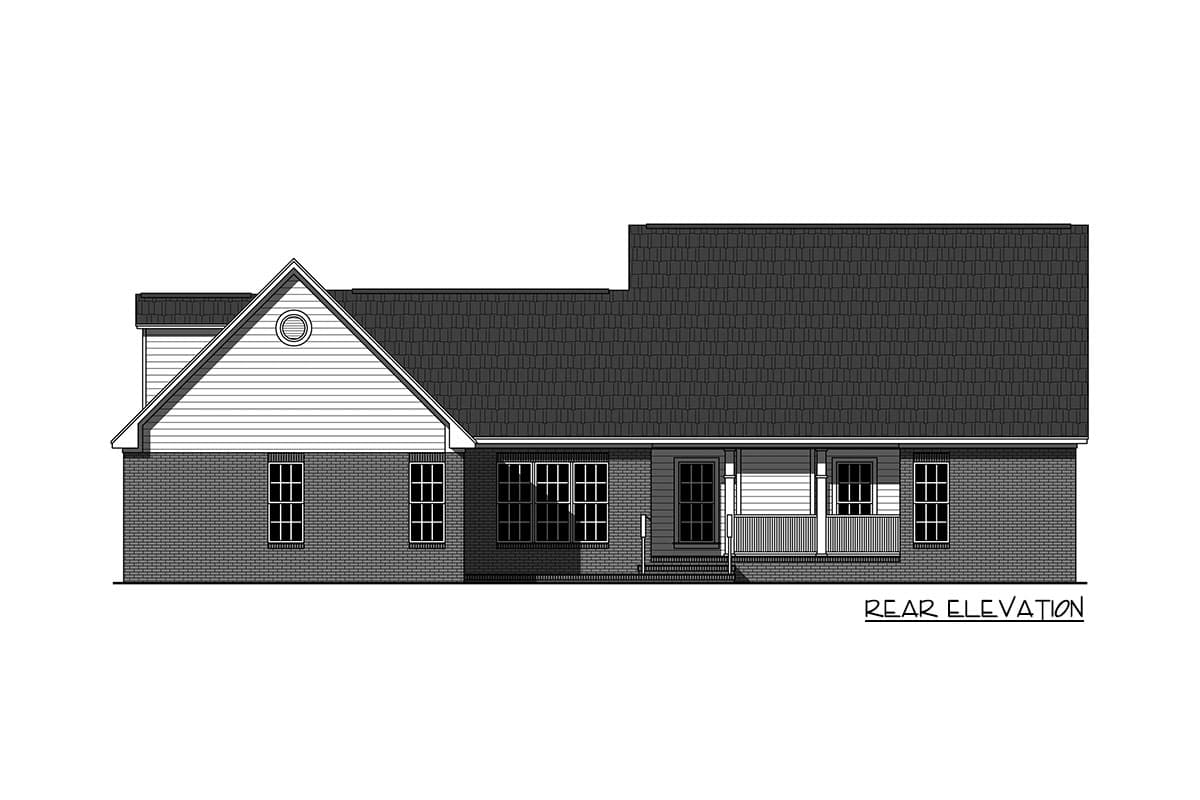

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,067 sq. ft.

1st Floor

2,067 sq. ft.

Porch, Front

252 sq. ft.

Porch, Rear

129 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

70' 0"

Depth

58' 0"

Max Ridge Height

24' 3"

Garage

Type

Attached

Area

723 sq. ft.

Count

2 Cars

Entry Location

Side, Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

14 on 12

Framing Type

Stick

Architectural Style

Country

Traditional

Special Features

Bedrooms - Split

Bonus Room

Laundry - Main Level

Master Suite - 1st Floor

Playroom

Plan Collections

Photo Gallery

USDA Approved
