Plan 59175ND
Attractive Four Bedroom House Plan
Heated S.F.
2,287
Beds
3 - 4
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 59175ND

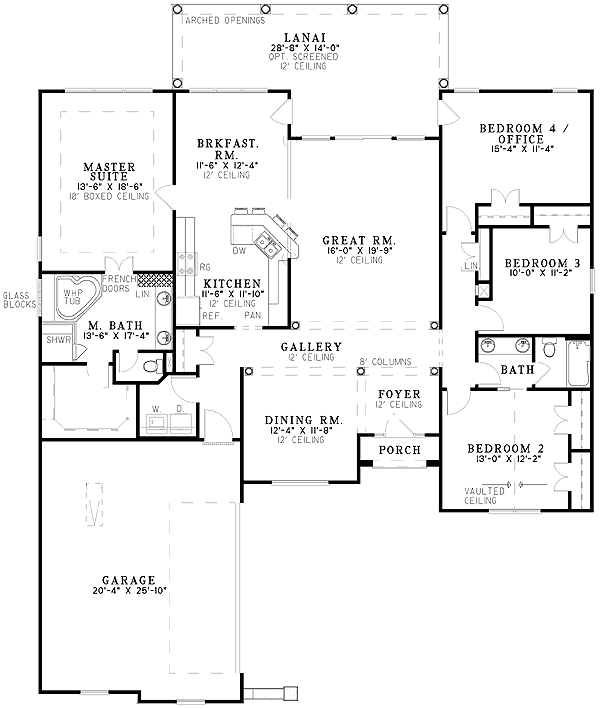

Main Level
slide image 0

Plan 59175ND

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

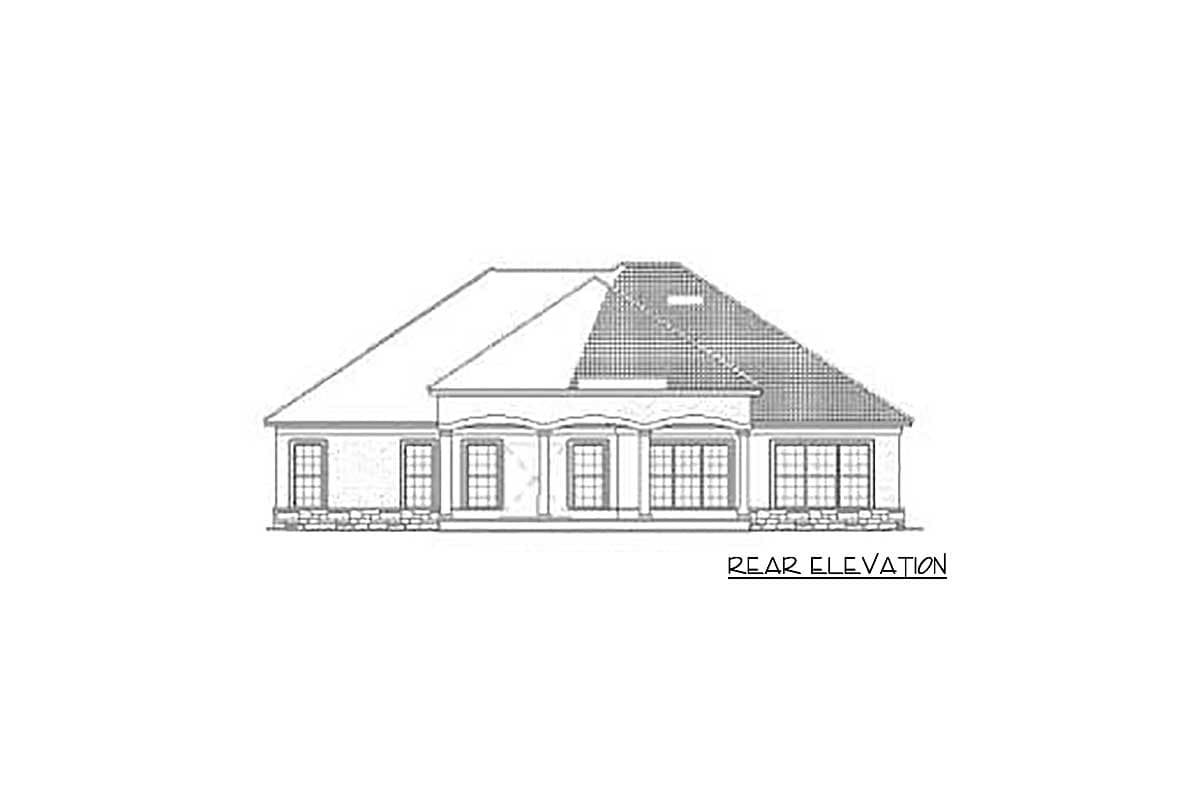

  • Striking front and rear arches adorn this attractive four-bedroom house plan.
  • The foyer has 12' ceiling and 8" columns and the gallery has 12' ceilings.
  • Inside a spacious foyer opens to an elaborate formal dining room column-lined gallery and expansive great room all sharing 12 foot ceilings.
  • The fourth bedroom can do double-duty as an office and includes a private entrance to the screened lanai.
  • French doors enhance the transition from the master bedroom to the bath that showcases a dual-sink vanity and oversized whirlpool tub backed by glass blocks.
  • Related Plan: Get an alternate exterior in reverse layout with house plan 70680MK
  • Note: Exterior framing is 8" concrete
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,287 sq. ft.

1st Floor

2,287 sq. ft.

Porch, Combined

363 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

58' 8"

Depth

73' 10"

Max Ridge Height

24' 10"

Garage

Type

Attached

Area

586 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9' 4"

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Florida

Mediterranean

Special Features

Bedrooms - Split

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor
