This plan set has 5 pages and includes the following details:

• Cover Sheet: Shows the front elevation and typical notes and requirements.

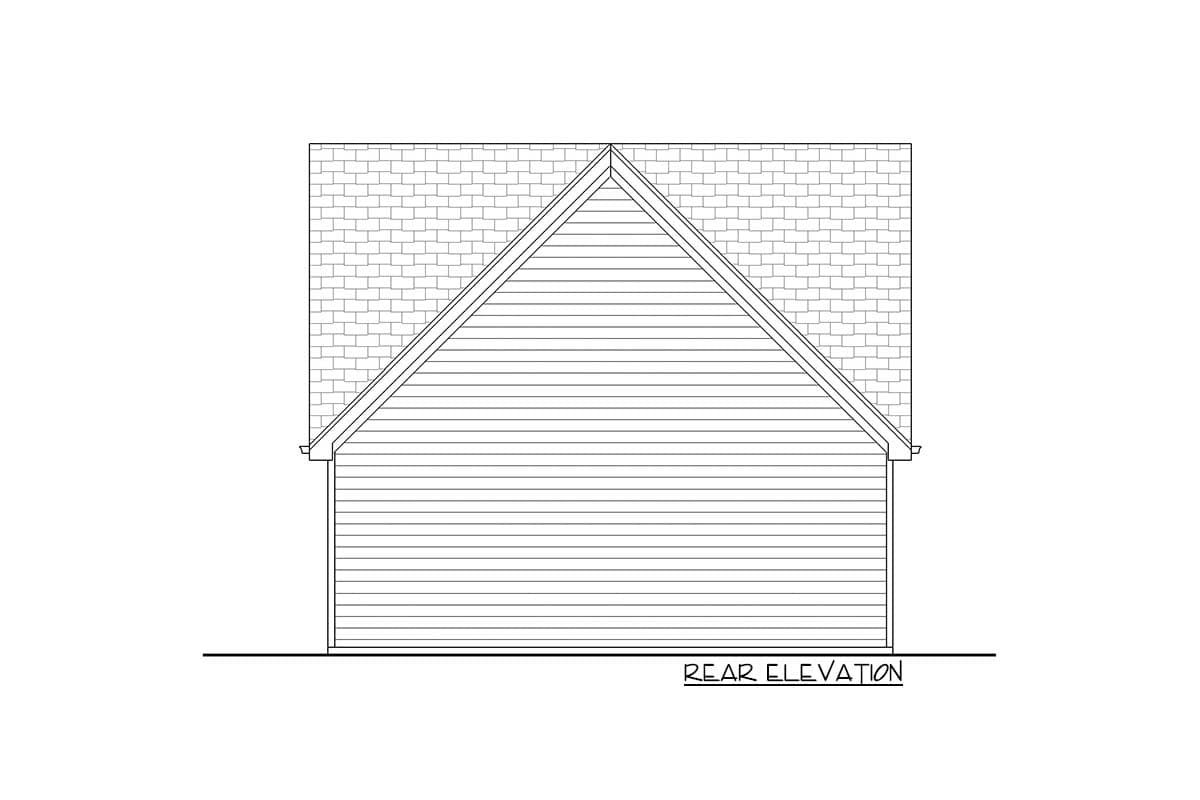

• Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
• Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.

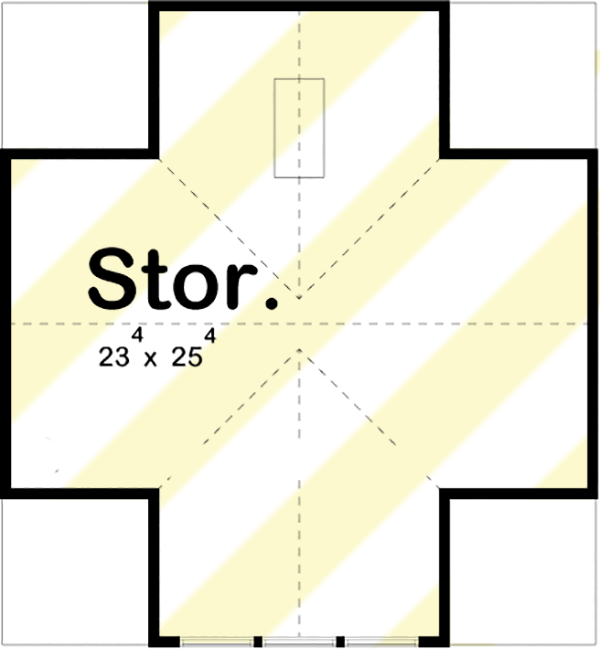

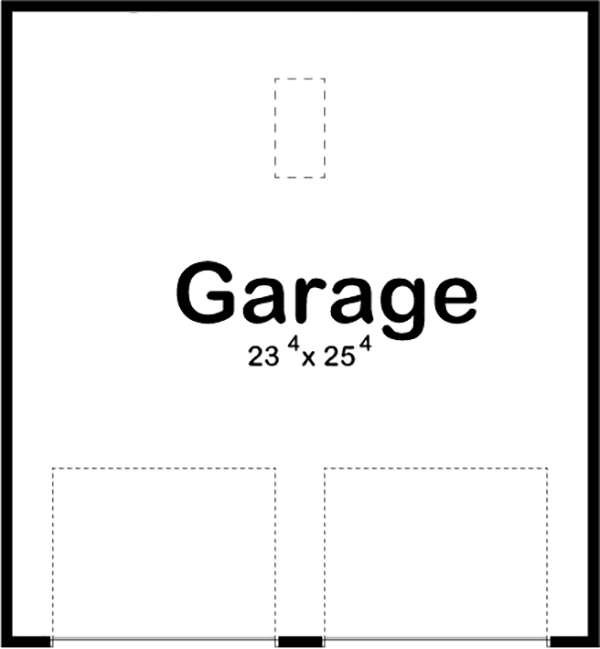

• Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
• Roof Plan
• Cross Section
• Main Level Framing Plan
• Framing Diagram
• Wall Panels

• Architectural or Engineering Stamp - handled locally if required
• Site Plan - handled locally when required
• Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
• Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
• Energy calculations - handled locally when required
