Plan 68421VR
Attractive Garage Apartment
Heated S.F.
907
Beds
1
Baths
1
Stories
2
Cars
3
Floor Plan

Plan 68421VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 68421VR

1-800-854-7852

1-262-521-4596

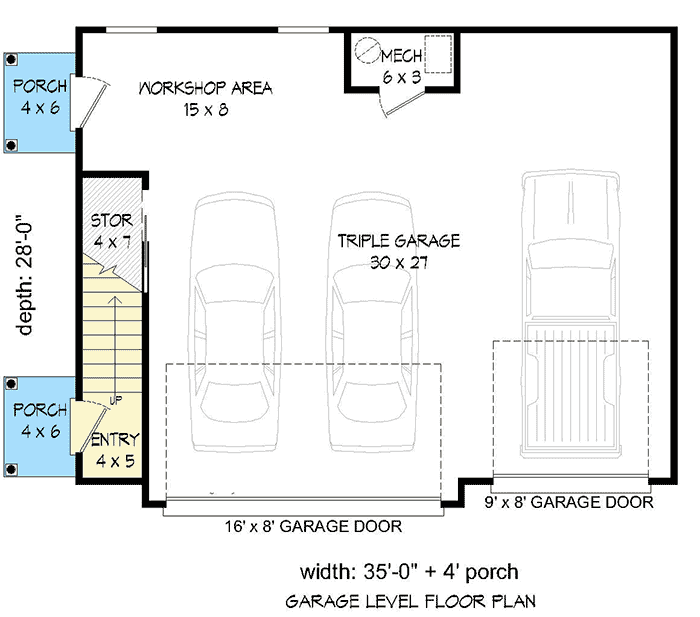

Main Level
floor plan image Main Level

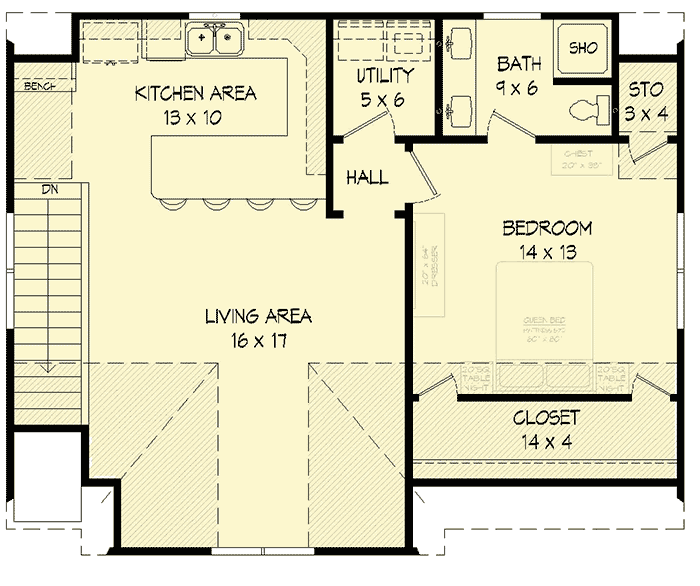

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A large three car garage with workshop area forms the base of this attractive garage apartment.
  • Entry to the upstairs is through a covered side porch that shelters you from the rain as you enter.
  • Once upstairs, there is a bench where you can take off your shoes.
  • The huge living space is open to the kitchen that has a peninsula eating bar with room for 4 stools.
  • The large bedroom area has big double windows facing the side of the home, a bathroom with two sinks and a large walk-in closet.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

907 sq. ft.

1st Floor

32 sq. ft.

2nd Floor

875 sq. ft.

Porch, Combined

48 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 0"

Depth

28' 0"

Max Ridge Height

24' 11"

Garage

Area

926 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

10'

Room

Ceiling Type

Height

Living Room

Vaulted

0' 0''

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Carriage

Country

Traditional

Special Features

Master Suite - 2nd Floor

Workshop

Square Footage Breakdown

Total Heated Area

907 sq. ft.

1st Floor

32 sq. ft.

2nd Floor

875 sq. ft.

Porch, Combined

48 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 0"

Depth

28' 0"

Max Ridge Height

24' 11"

Garage

Area

926 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

10'

Room

Ceiling Type

Height

Living Room

Vaulted

0' 0''

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Carriage

Country

Traditional

Special Features

Master Suite - 2nd Floor

Workshop
