Plan 333001JHB
Barn-like House Plan with 2-Story Living Space and Master Suite with Private Courtyard
Heated S.F.
4,261
Beds
3
Baths
3.5
Stories
2
Floor Plan

Plan 333001JHB

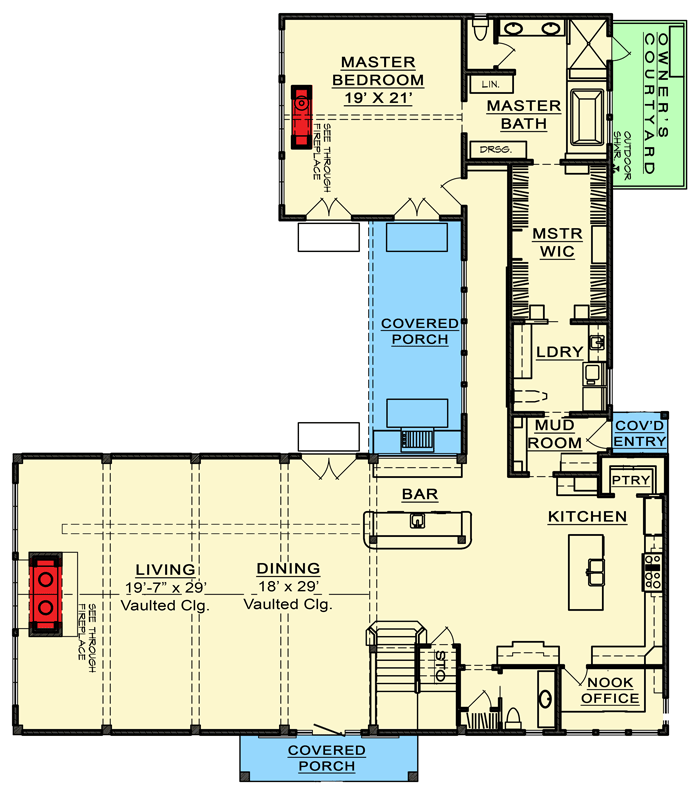

Main Level
slide image 0

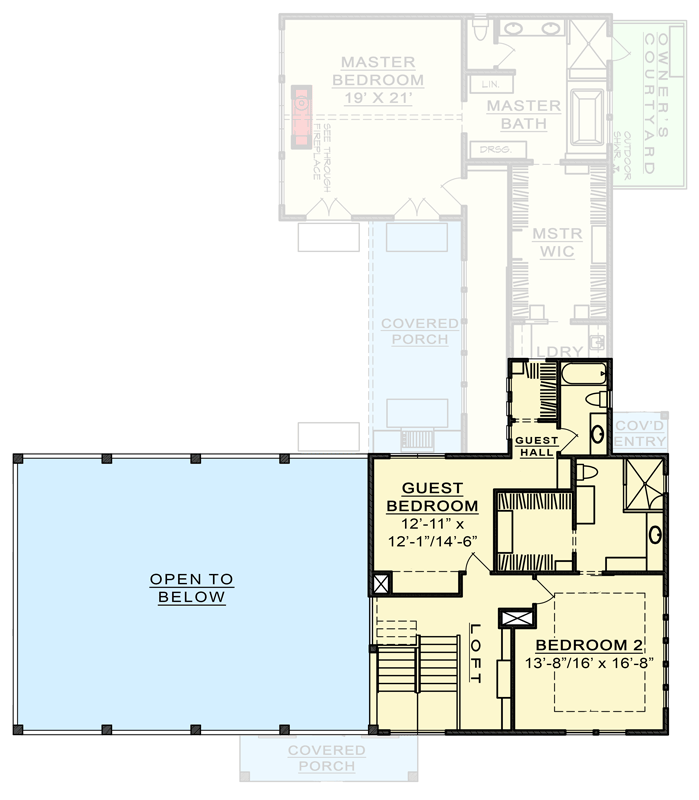

2nd Floor
slide image 1

Plan 333001JHB

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

  • This rustic home plan has the feel of a converted barn. It has vertical siding and a standing seam metal roof and a covered entry porch.
  • Multi-paned window walls at either end of the home bring in great natural light and offer amazing views. The great room fireplace is see-through making it visible from across the kitchen as well as from outside.
  • The dining and living room are open to above as well as to the kitchen. There's an island with two sinks as well as a bar area and even a pocket office to help manage the home.
  • The master bedroom is at the end of a hallway and the master closet opens to the master bath on one end and the laundry on the other. Note the door in the master shower. It takes you to an outdoor bathing area.
  • At the top of the stairs, a loft area looks out across the living room. Two bedrooms each have their own bathrooms.

What's Included

  • Cover page with legends & notes
  • Foundation details
  • Floor plan(s) [depending on whether it’s 1 or 2 stories]
  • Dimension plan(s)
  • Front view
  • Right view
  • Left view
  • Rear view
  • Building section(s)
  • Wall section
  • Interior views
  • Electrical plan(s)
  • Roof layout plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,261 sq. ft.

1st Floor

3,281 sq. ft.

2nd Floor

980 sq. ft.

Porch, Front

95 sq. ft.

Porch, Rear

249 sq. ft.

Rear Entry

27 sq. ft.
