Plan 680309VR
Barn-Like House Plan with 4 Horse Stalls and 2 Bedrooms - 1469 Sq Ft
Heated S.F.
1,469
Beds
2
Baths
3
Stories
2
Floor Plan

Plan 680309VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 680309VR

1-800-854-7852

1-262-521-4596

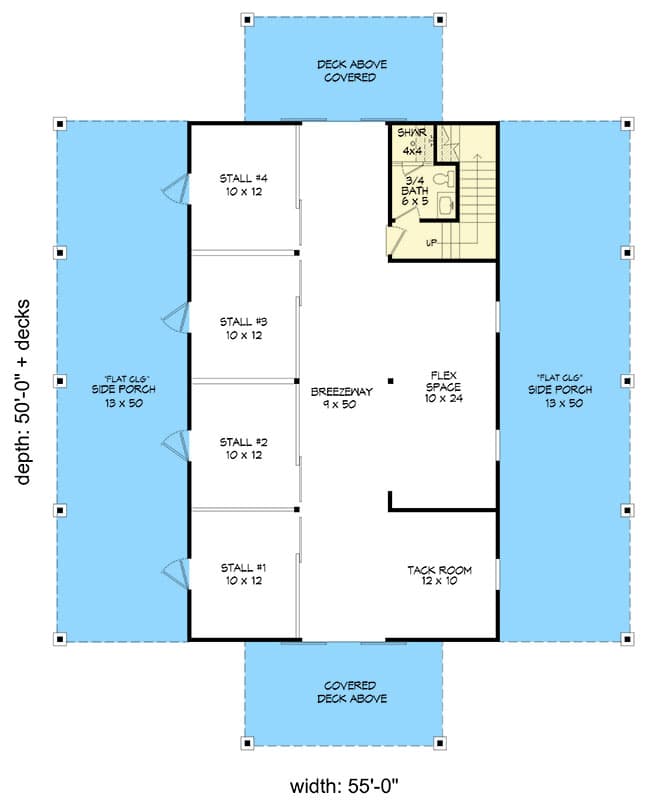

Main Level
floor plan image Main Level

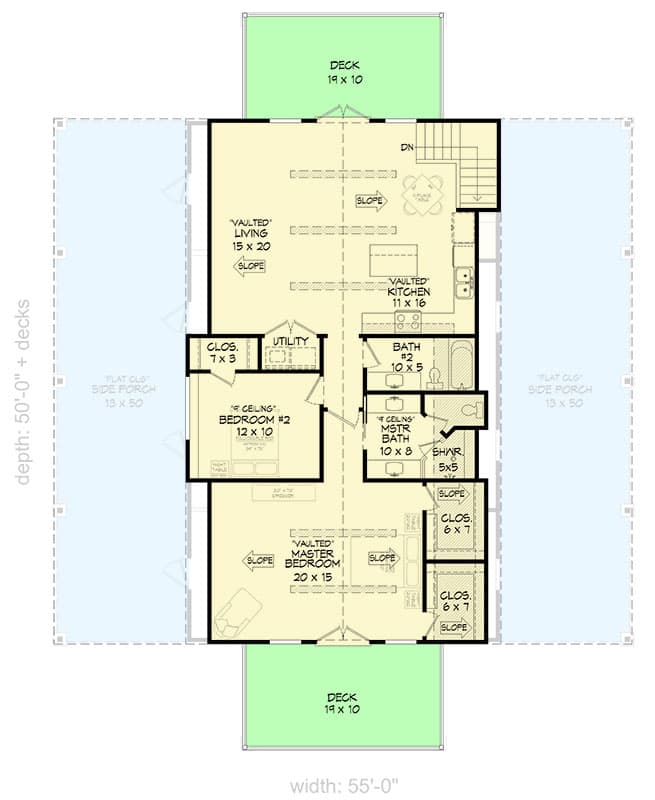

2nd Floor
floor plan image 2nd Floor
Plan Details

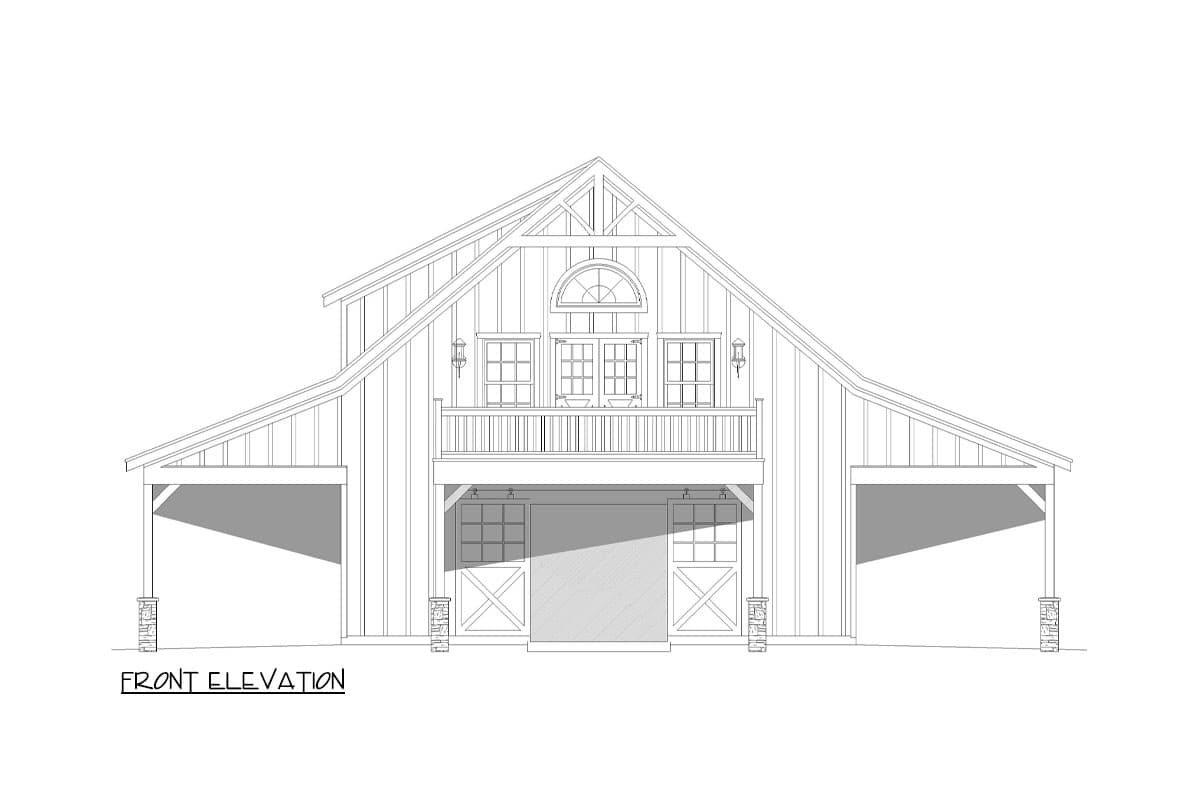

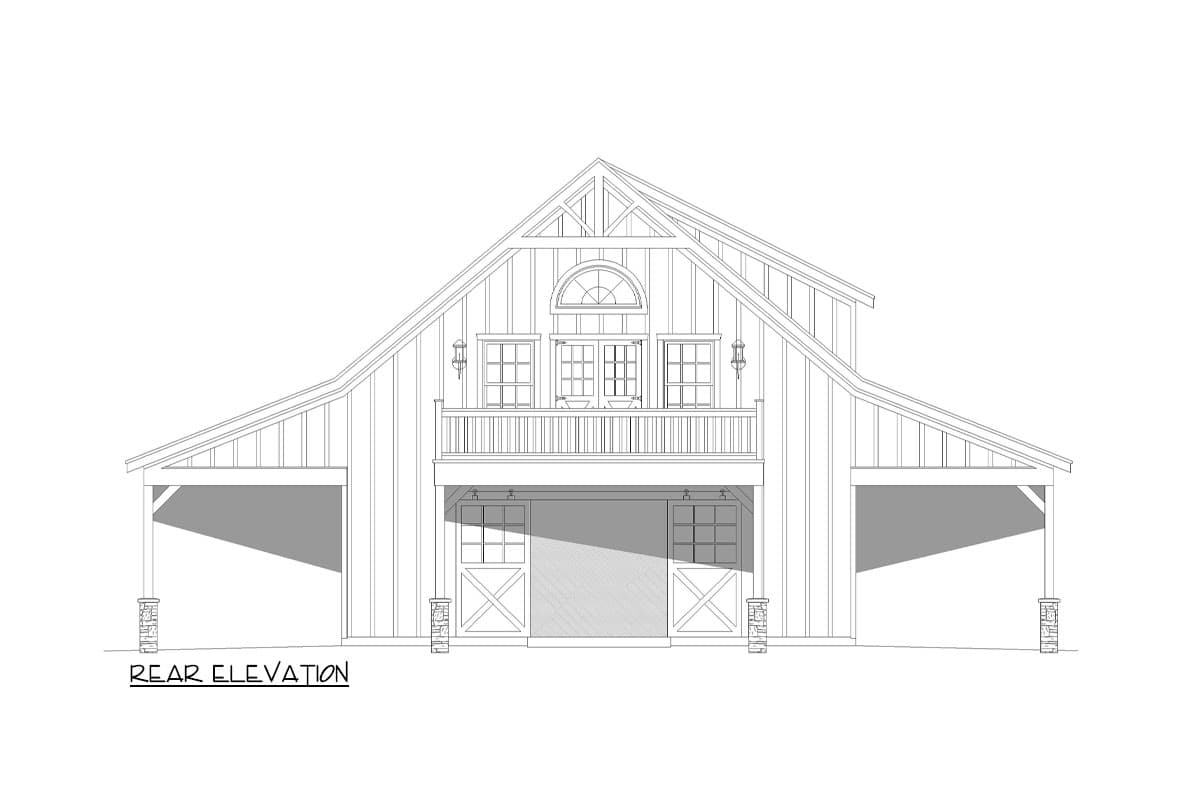

  • This barn-like house plan gives you 2 beds, 2 baths and 1,469 square feet of heated living set above an open main floor. Covered porches - 13'-deep each - extend from the sides and there are covered decks in front and back.
  • This plan is designed with conventional wood framing - with 2x4 exterior walls or upgrade to 2x6 framing.
  • The main floor gives you 4 stalls on the left with a breezeway running front to back separating them from the tack room and flex space. Stairs wrap around the bathroom with shower in back.
  • Upstairs, the living room has a vaulted ceiling and opens to the kitchen and dining area. French doors provide easy access to a sun deck that is perfect for BBQs. The kitchen hosts an island with seating for two at the eating bar.
  • The master suite is in back and has a vaulted ceiling, two walk-in closets and its own private sun deck. Bed 2 has access to the hall bath.
  • Related Plans: Get alternate versions with 3 bedrooms with house plans 68995VR (1,578 sq. ft.), 680036VR (1,816 sq. ft.) and 680075VR (1,615 sq. ft. and an open main floor).
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,469 sq. ft.

1st Floor

146 sq. ft.

2nd Floor

1,323 sq. ft.

Porch, Combined

1,250 sq. ft.

Deck

386 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

55' 0"

Depth

50' 0"

Max Ridge Height

27' 11"

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Architectural Style

Barndominium

Country

Mountain

Rustic

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Two Story Great Room

Square Footage Breakdown

Total Heated Area

1,469 sq. ft.

1st Floor

146 sq. ft.

2nd Floor

1,323 sq. ft.

Porch, Combined

1,250 sq. ft.

Deck

386 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

55' 0"

Depth

50' 0"

Max Ridge Height

27' 11"

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Architectural Style

Barndominium

Country

Mountain

Rustic

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Two Story Great Room
