Plan 68899VR
Barn-like Outbuilding with Loft Above
Heated S.F.
488
Beds
Baths
0
Stories
2
Cars
2
Floor Plan

Plan 68899VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 68899VR

1-800-854-7852

1-262-521-4596

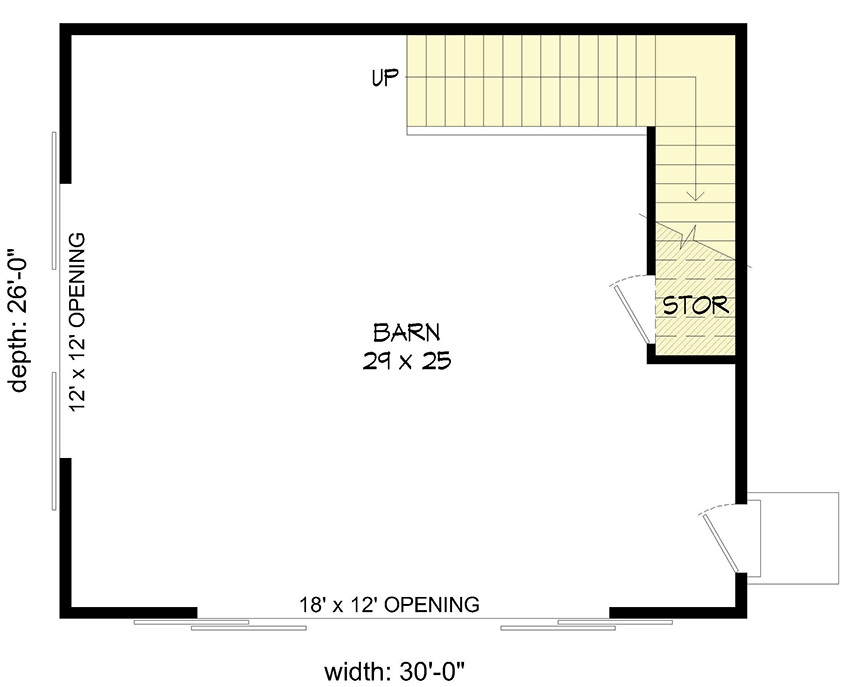

Main Level
floor plan image Main Level

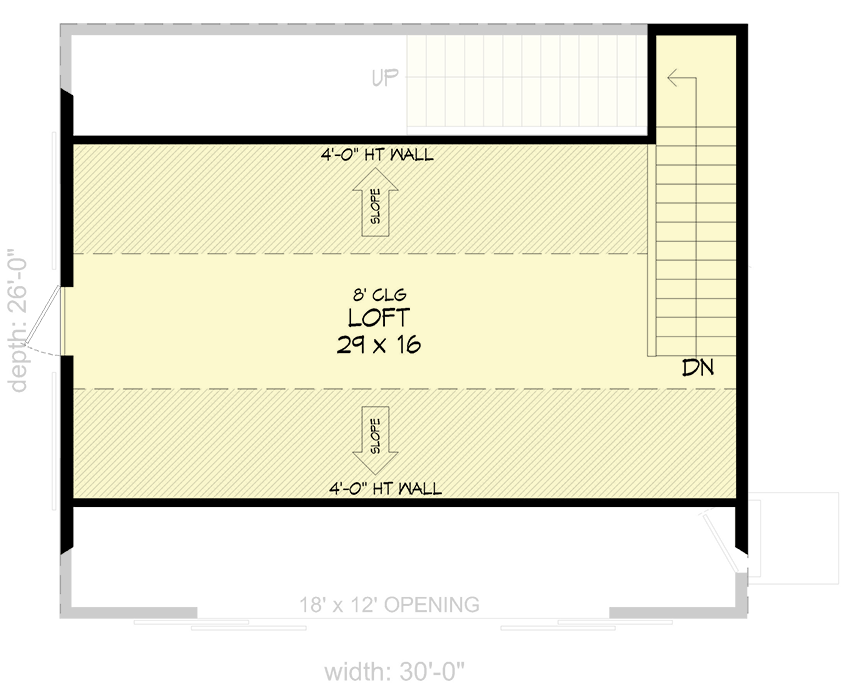

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This barn-style outbuilding plan has large barn doors with window panes that provide natural light within on the front and the side.
  • The wide opening on the front elevation allows this structure to serve many functions.
  • Upstairs, discover a spacious loft for added flexibility.
  • Related Plans: Get alternate versions with garage plans 68462VR (36' by 24'), 68690VR (36' by 36'), 68687VR, 68581VR (36' by 30'), 68766VR (36' by 48'), 68601VR and 680079VR 30' by 44').
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction

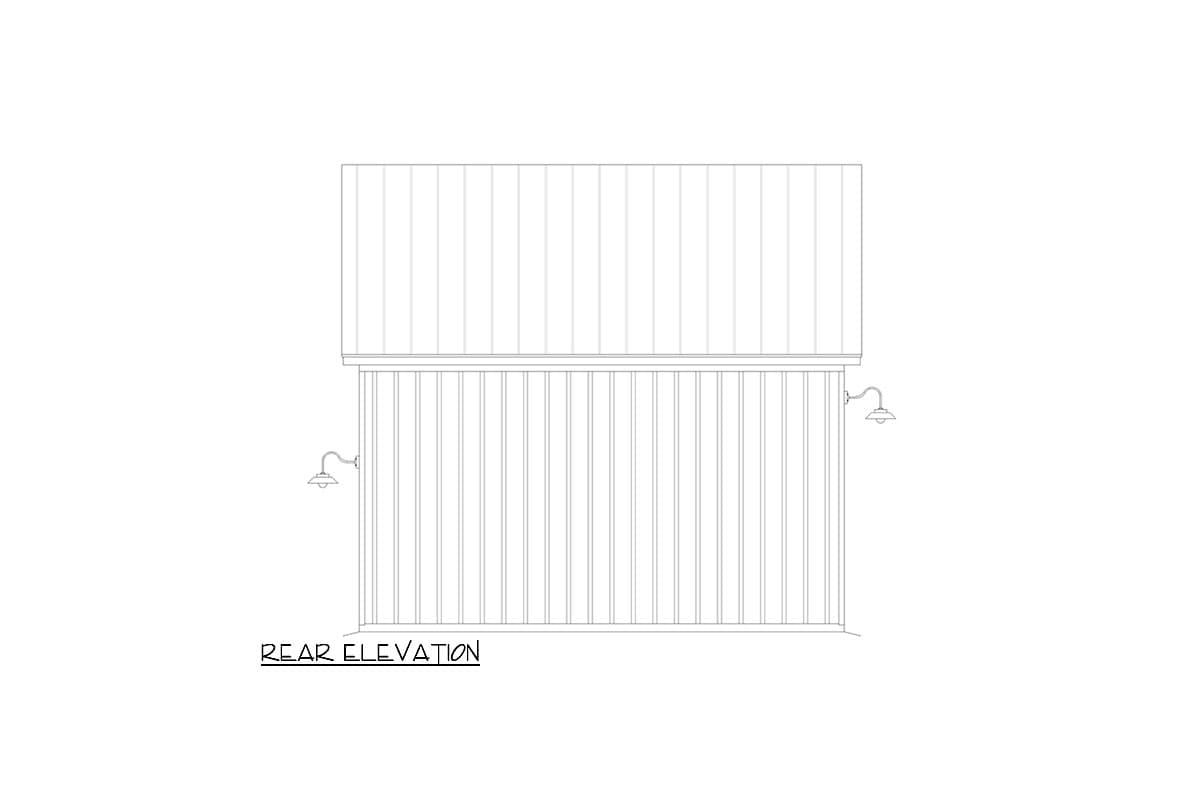

  • Roof Plan: Drawings indicating roof slopes and unique conditions

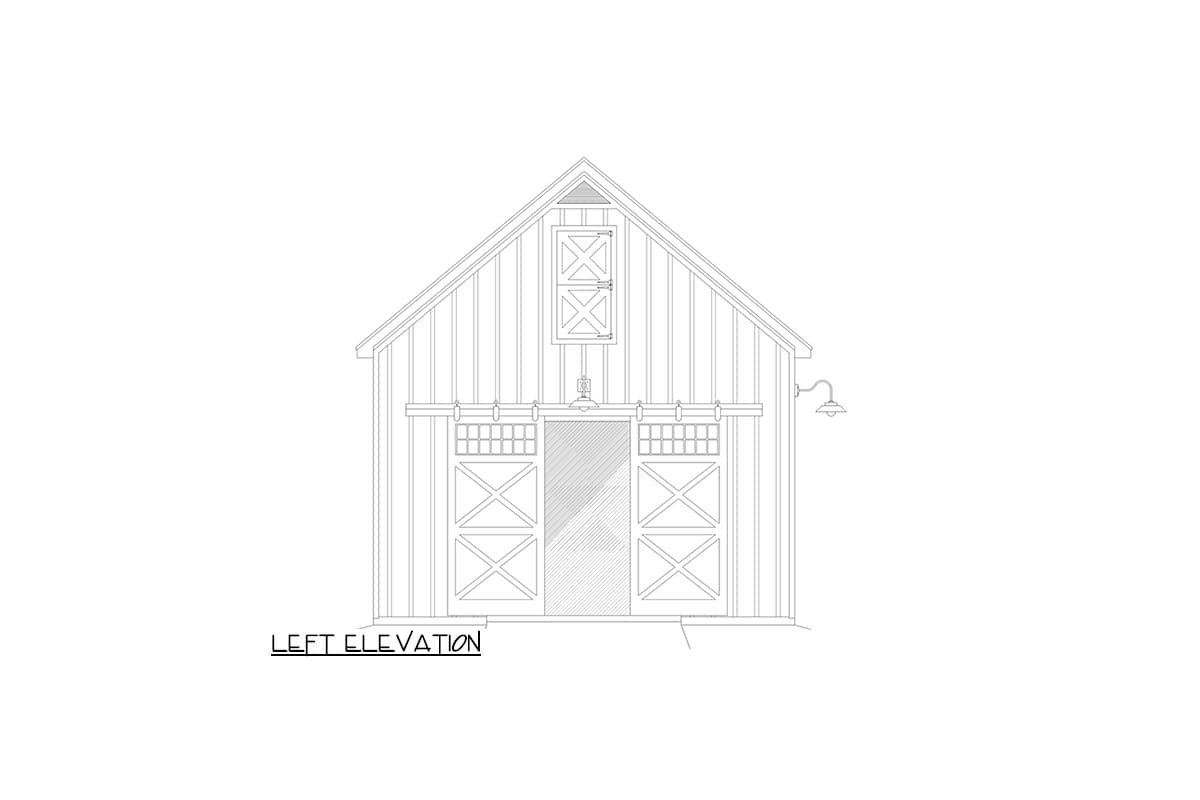

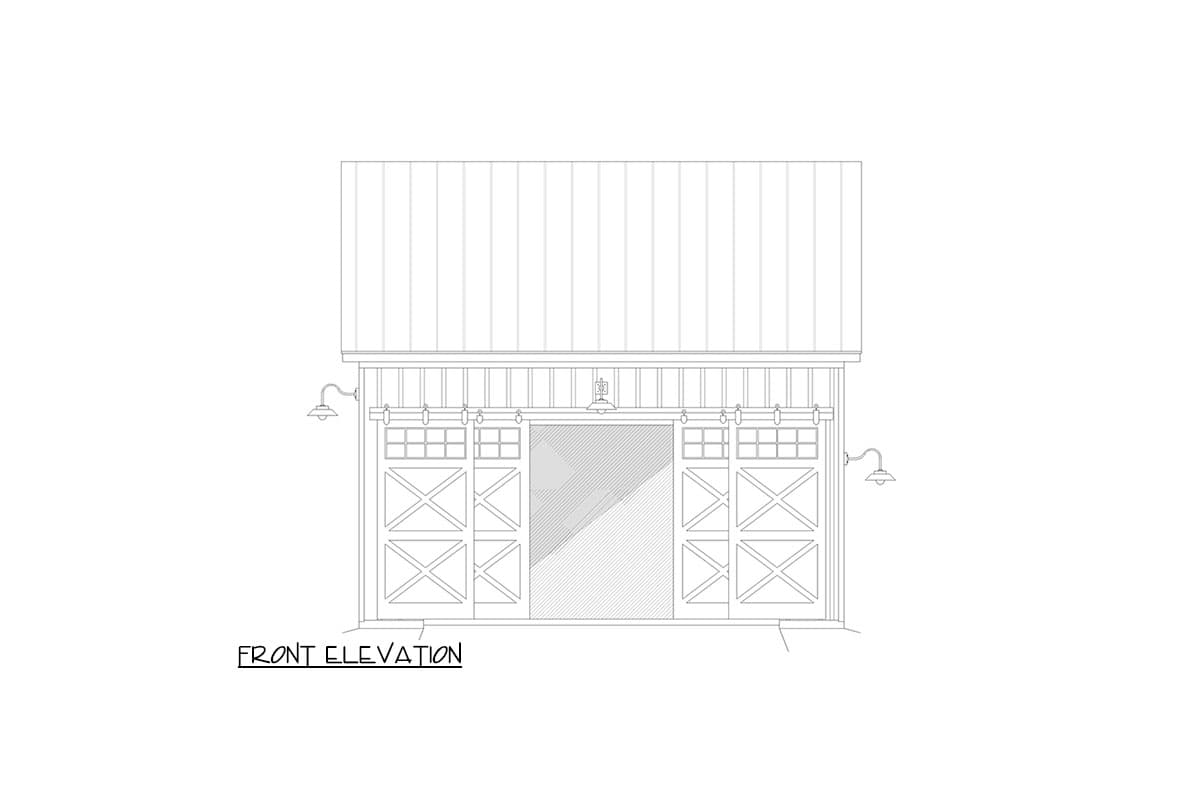

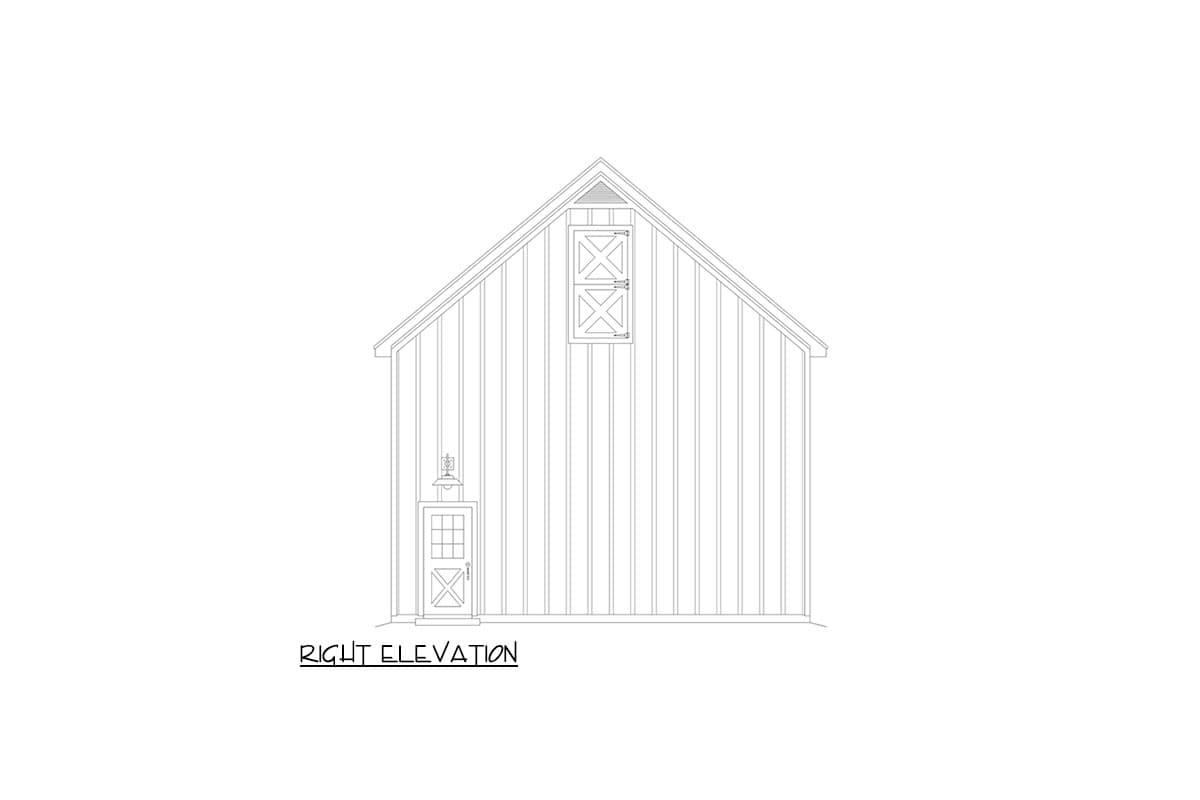

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

488 sq. ft.

2nd Floor

488 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

26' 0"

Max Ridge Height

28' 5"

Garage

Type

Detached

Area

780 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

16'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Farmhouse

Rustic

Traditional

Special Features

Loft

Workshop

Square Footage Breakdown

Total Heated Area

488 sq. ft.

2nd Floor

488 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

26' 0"

Max Ridge Height

28' 5"

Garage

Type

Detached

Area

780 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

16'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Farmhouse

Rustic

Traditional

Special Features

Loft

Workshop
