Plan 25439TF
Barn-Like RV-Friendly Garage with Workshop, Carport and Apartment
Heated S.F.
839
Beds
1
Baths
1
Stories
1
Cars
2
Tour
Floor Plan

Plan 25439TF

Main Level
slide image 0

Plan 25439TF

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

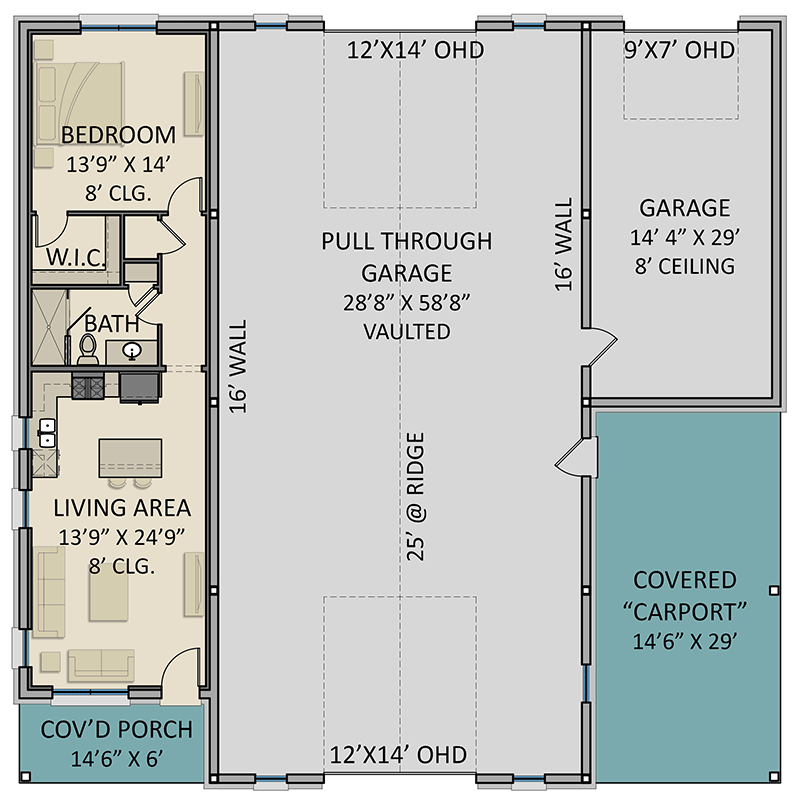

  • This large barn-like garage gives 1,844 square feet of covered parking, a 425 square foot carport and a 839 square foot apartment.
  • The single garage - rear load with a 9' by 7' overhead door - can be used as a workshop.
  • The main garage is RV-friendly and has matching 12' by 14' overhead doors in front and back giving you pull-through access. The ceiling is vaulted with a 25' peak.
  • On the left, a 1-bed apartment has a bedroom in back and living space in front.
  • A covered side porch has access to the center garage.
What's Included
  • Cover Sheet w/General Notes
  • Foundation Plan (Dimension Control)
  • Floor Plan(s) w/Door and Window Schedule
  • Roof Plan
  • Building Section (through the whole space) + Wall Section (showing materials, etc)
  • Exterior Elevations
  • Carriage House Floor Plan, Electrical Plan and Roof Plan (when applicable)
  • Carriage House Elevations (when applicable)
  • Electrical Floor Plan(s) w/legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

839 sq. ft.

1st Floor

839 sq. ft.

Carport

425 sq. ft.

Secondary Garage

483 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6 or Metal

Dimensions

Width

60' 0"

Depth

60' 0"

Max Ridge Height

26' 9"

Garage

Type

RV Garage, Carport

Area

1844 sq. ft.

Count

2 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

RV Garage

Vaulted

16' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Barndominium

Country

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Workshop

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

839 sq. ft.

1st Floor

839 sq. ft.

Carport

425 sq. ft.

Secondary Garage

483 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6 or Metal

Dimensions

Width

60' 0"

Depth

60' 0"

Max Ridge Height

26' 9"

Garage

Type

RV Garage, Carport

Area

1844 sq. ft.

Count

2 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

RV Garage

Vaulted

16' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Barndominium

Country

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Workshop

Plan Collections

ADU
