Plan 51196MM
Barndominium-Style House Plan with Hay Loft and Drive-Through Tractor Storage
Heated S.F.
741
Beds
1
Baths
1
Stories
2
Cars
2
Floor Plan

Plan 51196MM

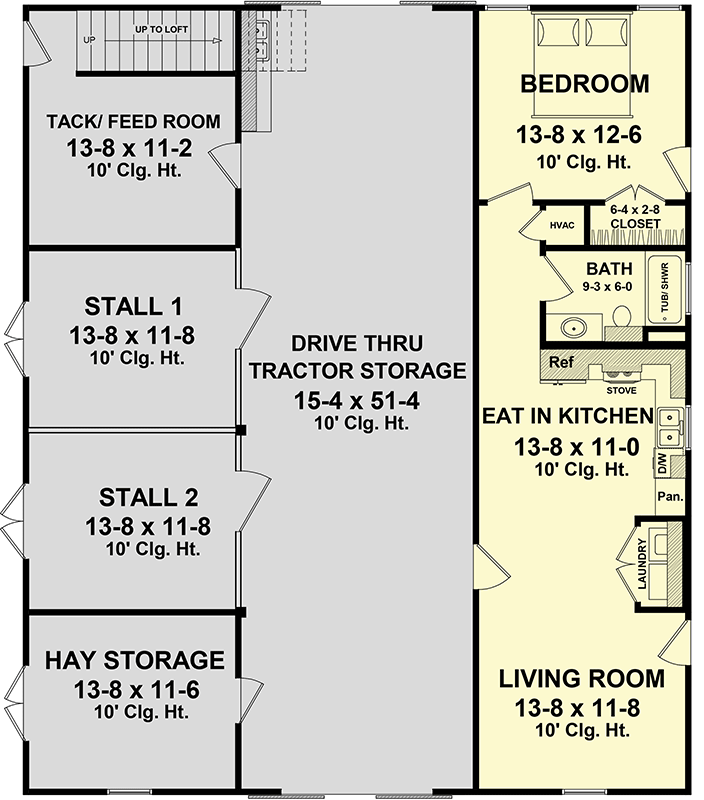

Main Level
slide image 0

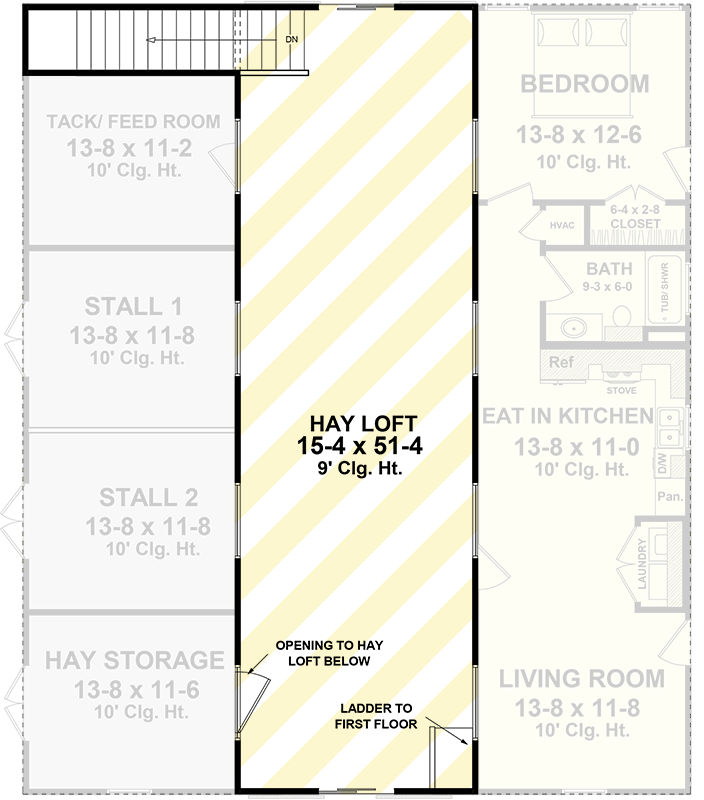

2nd Floor
slide image 1

Plan 51196MM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This design is a working barndominium plan with two bedrooms on either side of a full kitchen and a bathroom.
  • Drive your tractor through the front door and out the back.
  • The left side has two stalls plus two storage rooms.
  • Upstairs, light pours in from either side of the hay loft.
What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

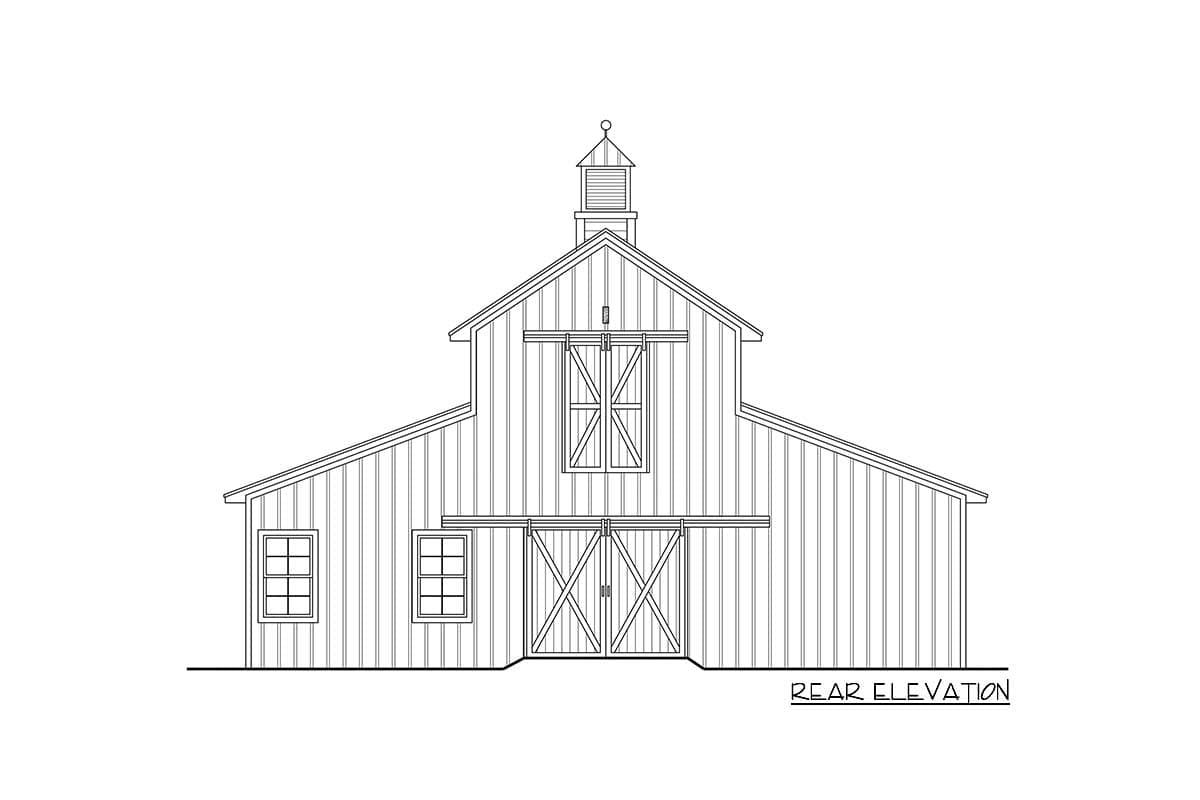

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

741 sq. ft.

1st Floor

741 sq. ft.

Loft

810 sq. ft.

Stalls/Tractor

1,543 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 0"

Depth

52' 0"

Garage

Count

2 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4.5 on 12

Framing Type

Stick

Architectural Style

Barndominium

Country

Rustic

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor
