Barndominium with Flex Room and RV Bay - 2340 Sq Ft
Heated S.F.
2,340
Beds
5
Baths
2.5
Stories
2
Floor Plan

Plan 677044NWL

Main Level
slide image 0
2nd Floor
slide image 1
Lower Level
slide image 2

Plan 677044NWL

1-800-854-7852

1-262-521-4596

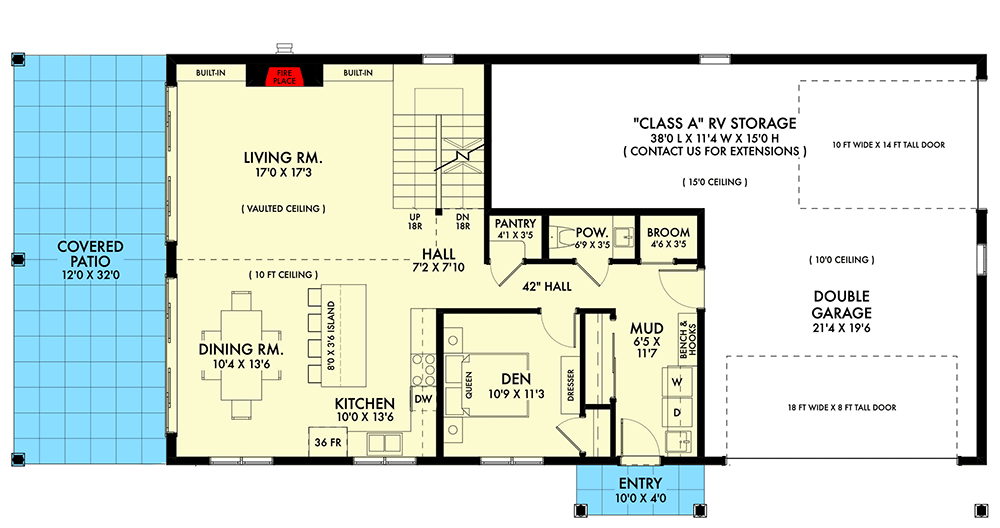

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor

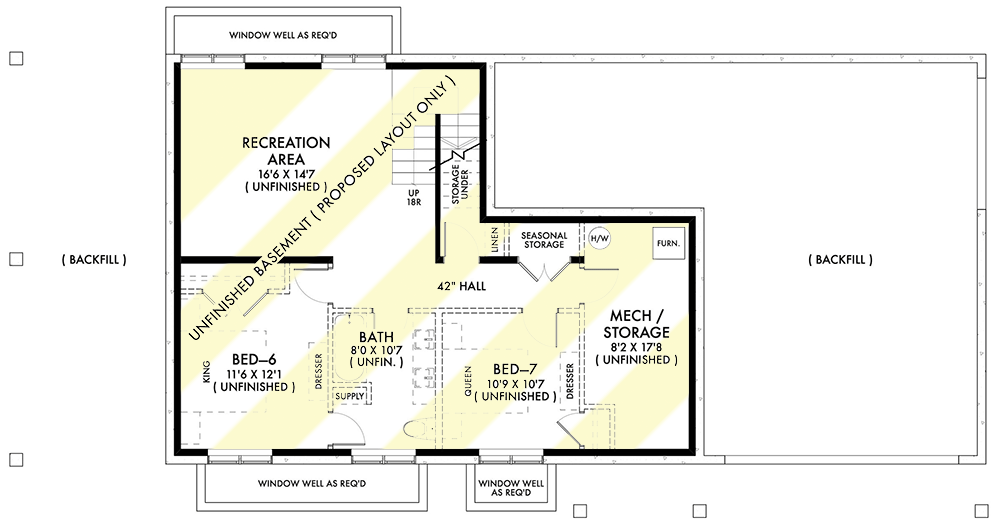

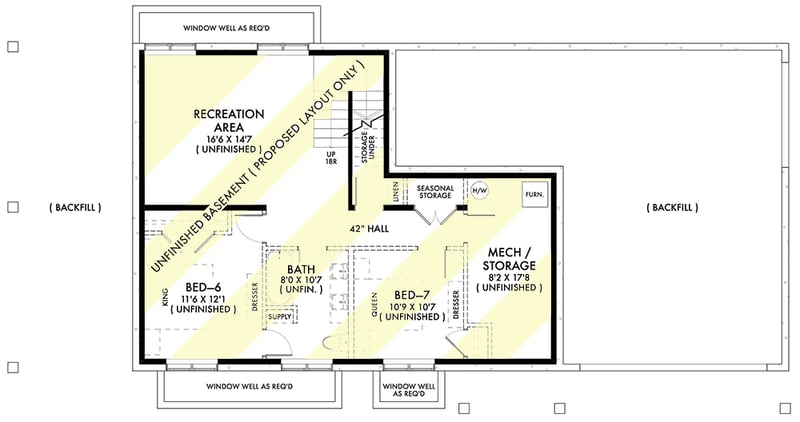

Lower Level
floor plan image Lower Level
Plan Details
  • This 5 bed, 2.5 bath barndominium-style house plan gives you 2340 square feet of heated living space and parking for 2 cars in the front bay with an 18' by 8' overhead door and an RV in the side-load bay with a 10' by 14' overhead door.
  • Sliding doors in the 2-story living and the dining room open to a 12'-deep covered patio that runs along the entire left side of the home, giving you the best of indoor-outdoor living. The L-shaped kitchen has an 8' by 3'6" island with room for four at the counter.
  • The den/flex room can be used as a guest bedroom or a home office.
  • Upstairs, the master suite has its own bathroom while Beds 3, 4 and 5 share a hall bath.
What's Included
  • General Notes, Perspectives
  • Fully Dimensioned Floor Plans
  • Foundation & Roof Plan
  • Elevations
  • Building & Wall Sections
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,340 sq. ft.

1st Floor

1,144 sq. ft.

2nd Floor

1,196 sq. ft.

Optional Lower Level

1,051 sq. ft.

Porch, Front

40 sq. ft.

Deck

384 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

76' 0"

Depth

36' 0"

Max Ridge Height

30' 9"

Garage

Type

Attached, RV Garage

Area

904 sq. ft.

Entry Location

Front, Side

Ceiling Heights

Lower Level

8' 9"

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Barndominium

Country

New American

Traditional

Special Features

Den

Master Suite - 2nd Floor

Mudroom

Two Story Great Room
