Plan 135172GRA
Barndominium with Optionally-Finished Lower Level and Drive-Through RV Garage - 2962 Sq Ft
Heated S.F.
2,962
Beds
3 - 4
Baths
2.5+ - 3.5+
Stories
2
Cars
5
Floor Plan

Plan 135172GRA

Main Level
slide image 0
2nd Floor
slide image 1
Optionally Finished Basement
slide image 2

Plan 135172GRA

1-800-854-7852

1-262-521-4596

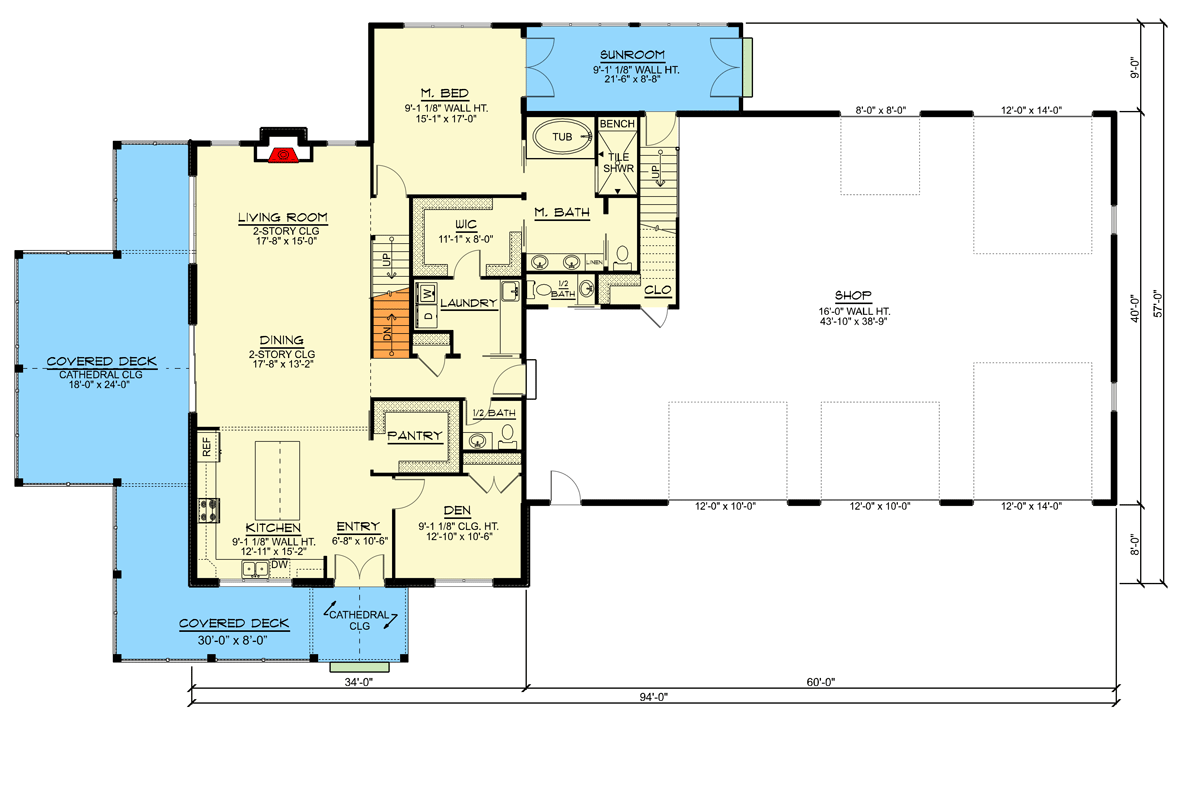

Main Level
floor plan image Main Level

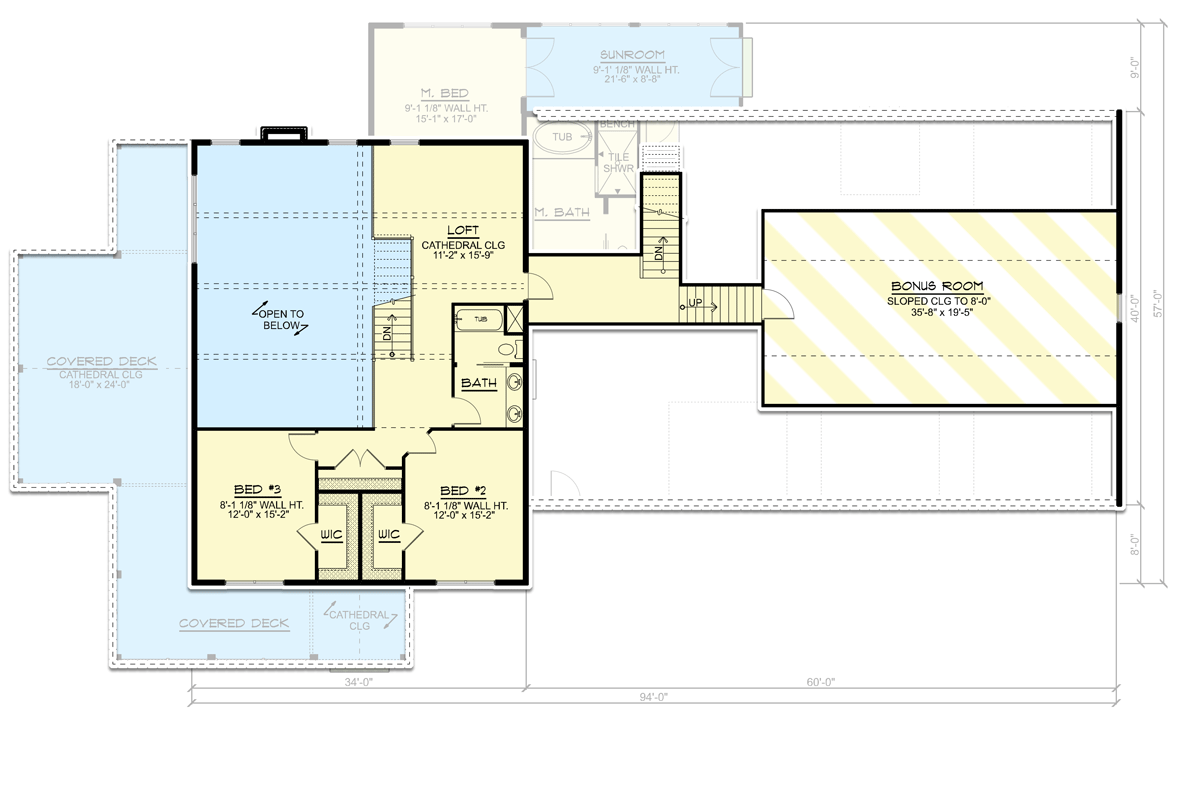

2nd Floor
floor plan image 2nd Floor

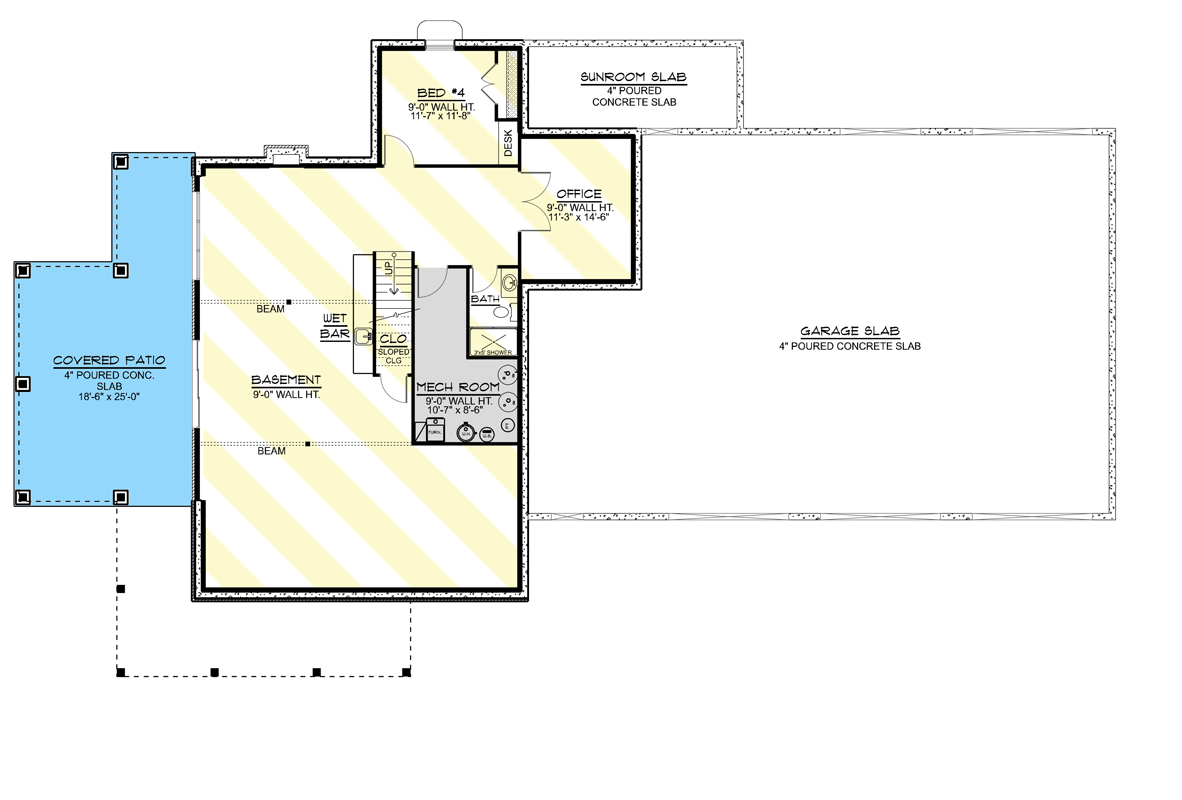

Optionally Finished Basement
floor plan image Optionally Finished Basement
Plan Details

  • This Barndominium house plan offers 3 bedrooms, 2.5 bathrooms, and 2,887 square feet of heated living space. Gain a fourth bedroom with a full bath if you build out the lower level.
  • This plan is designed with conventional wood framing - with 2x6 exterior walls.
  • The main level of this home presents a functional flow with a retractable glass door leading to the covered deck, a main-level master bedroom with laundry room access from the closet, and a quiet den off the entry.
  • The 2,280 square foot garage features front and rear overhead doors for drive-thru capabilities and a staircase that leads up to a bonus room (included in the total square footage).
  • Two bedrooms share the second level with a loft and compartmentalized bath, while the lower level includes a generous rec room with a wet bar and covered patio, home office, and fourth bedroom.
  • Other notable features include a sunroom, chef's kitchen, and walk-in pantry.
  • Related Plan: Get an alternate version with barndominium-style plan 135078GRA.
