Plan 1782DW
Beachside Beauty
Heated S.F.
1,867
Beds
2 - 3
Baths
2
Stories
1
Floor Plan

Plan 1782DW

Main Level
slide image 0

Plan 1782DW

1-800-854-7852

1-262-521-4596

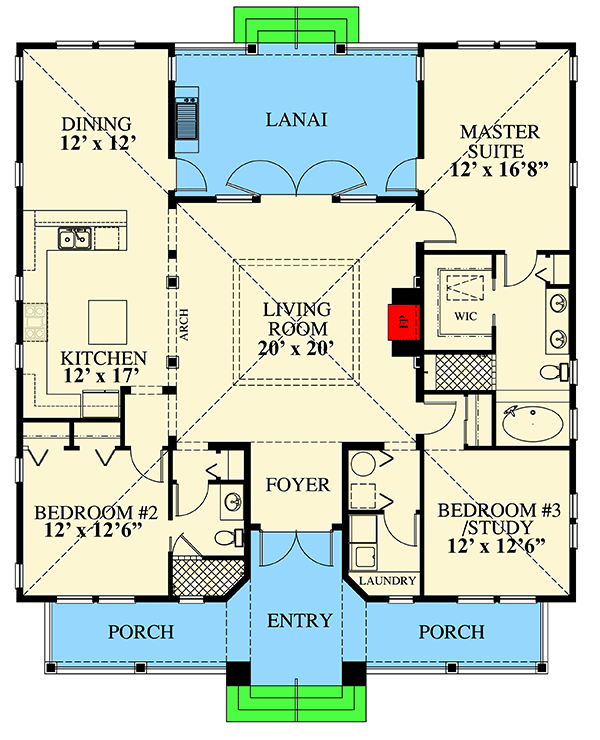

Main Level
floor plan image Main Level
Plan Details
  • The welcoming front porch is perfect for catching those seaside breezes. For that matter, so is the rear porch which has multiple points of access.
  • Walk through the front doors and sea the beach through the covered lanai in the rear of this beach home plan.
  • The entire house, excluding the foyer and bathrooms has vaulted ceilings. The cupola's windows bring light into the central living room.
  • The bedrooms in front of the house are separated from the master suite in the rear for added privacy. The master suite opens to the lanai, as does the dining room.
  • Related Plans: Get an alternate layout with house plan 1790DW. Get a smaller version with house plan 1798DW (1,622 sq. ft.). Get a home with a garage with house plans 1794DW (2-car attached), 1795DW (3-car attached) and 1801DW (2-car drive-under).
What's Included
This house plan has 9 pages as follows:
  1. Cover page
  2. Piling plan (schematic)
  3. Noted floor plan
  4. Dimensioned floor plan
  5. Electrical layout plan
  6. Roof plan (schematic)

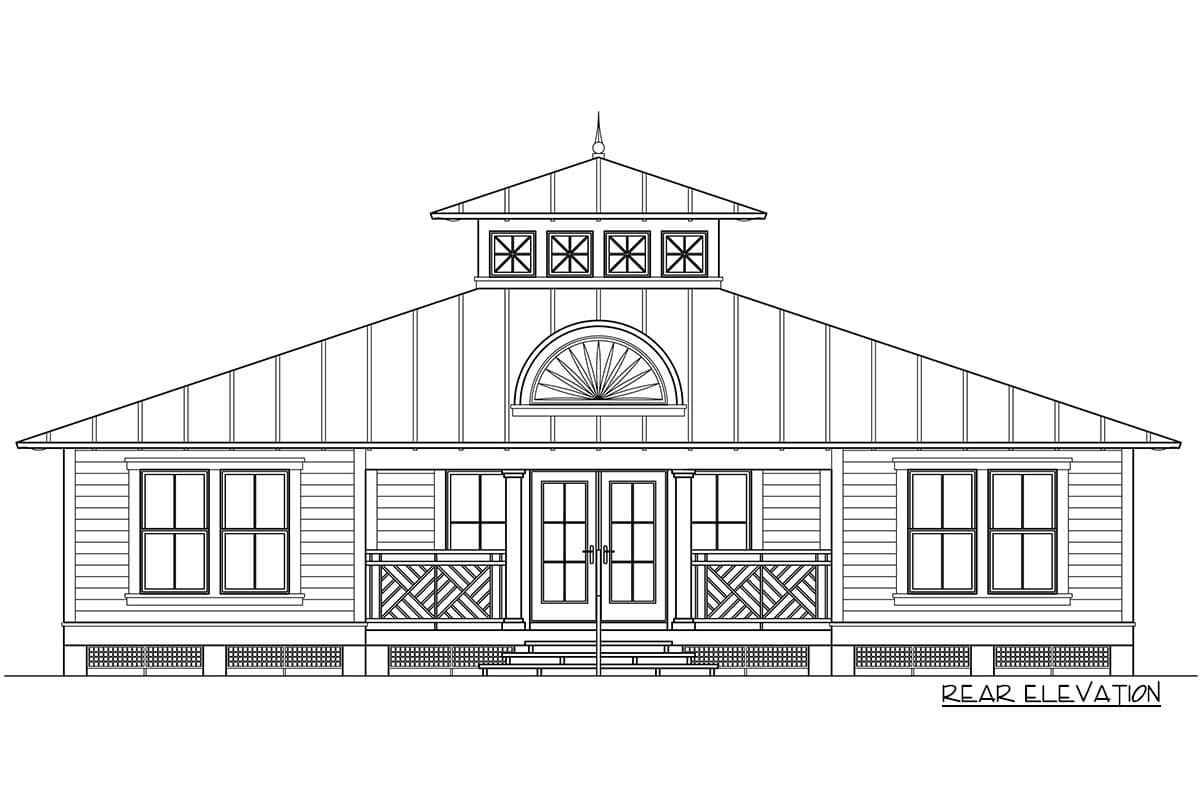

  7. Front and rear elevations
  8. Left and right elevations
  9. Sections
NOTE: The designer of this plan does not supply foundation plans. A local structural engineer will be required to adjust them to suit the conditions of where you are building.
What's Not Included
Document
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
  • Materials list - MAY be available as a purchasable option under the "Options" tab
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,867 sq. ft.

1st Floor

1,867 sq. ft.

Porch, Combined

349 sq. ft.

Lanai

261 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Piling, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 8"

Depth

53' 8"

Max Ridge Height

22' 8"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

4 on 12

Architectural Style

Beach

Coastal

Cottage

Florida

Southern

Vacation

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor
