Plan 59341ND

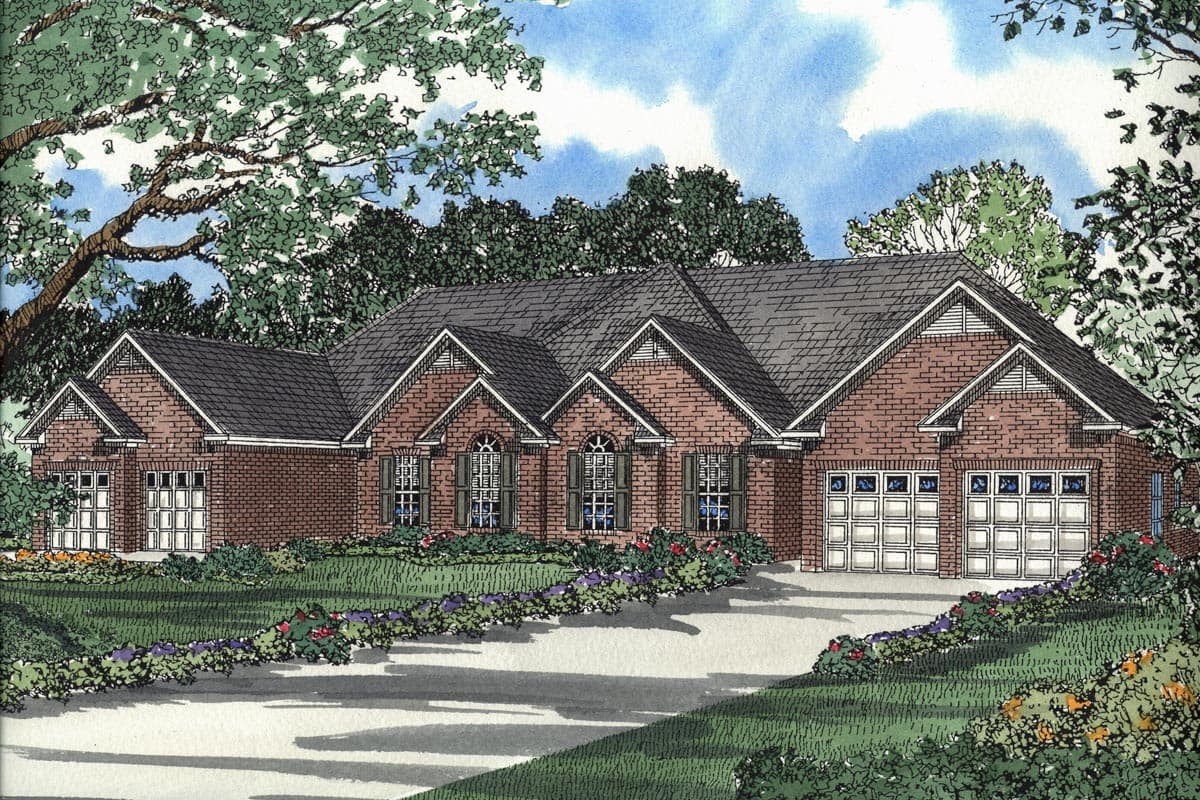

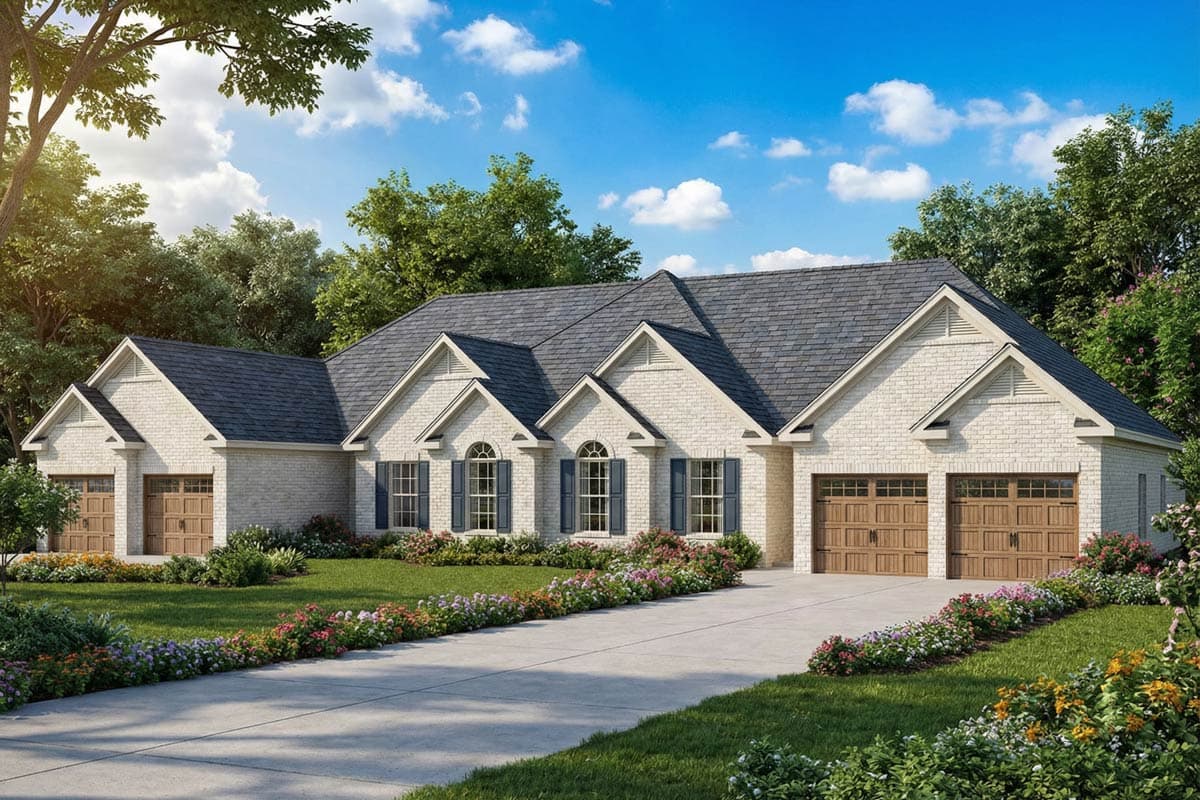

Beautiful 1481 Square Foot 3 Bed Duplex House Plan
Heated S.F.
2,953
Units
2
Width
Depth
Floor Plan

Plan 59341ND

Main Level
slide image 0

Plan 59341ND

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This beautiful duplex gives you matching 1,481 square foot 3 bed, 2 bath units with a 510 square foot 2-car garages.
  • An open concept layout connects the great room with fireplace to the kitchen with large island.
  • The dining room has views to the back and is open to the kitchen.
  • The master suite boasts access to the rear covered porch, an expansive walk-in closet, shower and corner whirlpool tub.
  • Across the home, two bedrooms share a hall bath.
Unit A
1,481Sq. Ft.
1481 Sq. Ft.
1st Floor
3Beds
2Full Baths
2Vehicle
Attached
510 Sq. Ft.
45'width
60' 4"depth
25'height
Unit B
1,472Sq. Ft.
1472 Sq. Ft.
1st Floor
3Beds
2Full Baths
2Vehicle
Attached
520 Sq. Ft.
45'width
60' 4"depth
25'height
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,953 sq. ft.

1st Floor

2,953 sq. ft.

Porch, Front

168 sq. ft.

Porch, Rear

294 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

90' 0"

Depth

60' 4"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

1020 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
