Plan 59301ND
Beautiful Arched Entry
Heated S.F.
3,692
Beds
5 - 6
Baths
5
Stories
2
Cars
3
Floor Plan

Plan 59301ND

Main Level
slide image 0
2nd Floor
slide image 1

Plan 59301ND

1-800-854-7852

1-262-521-4596

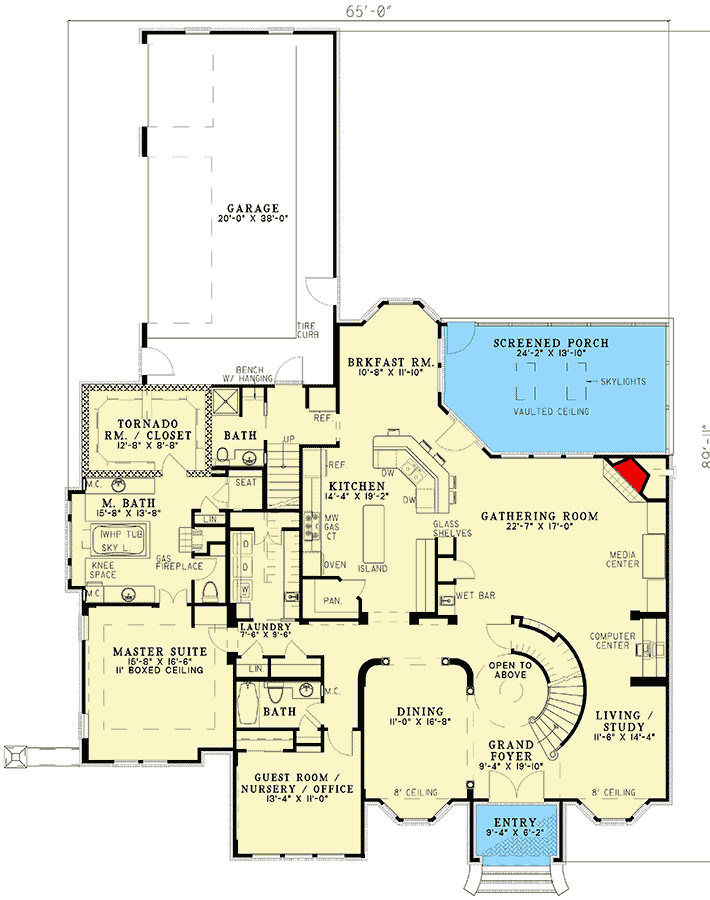

Main Level
floor plan image Main Level

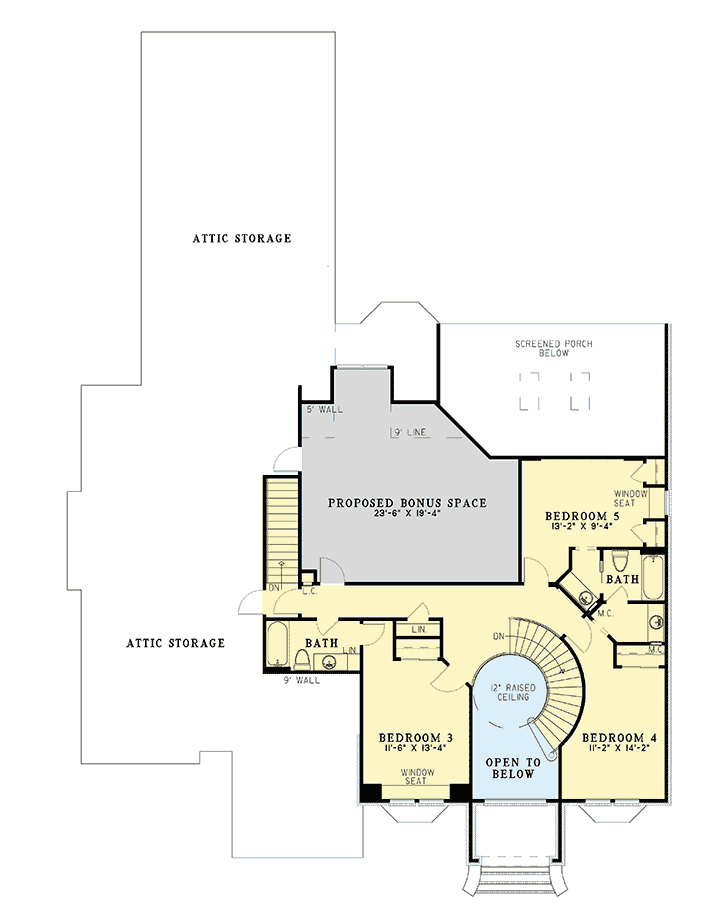

2nd Floor
floor plan image 2nd Floor
Plan Details

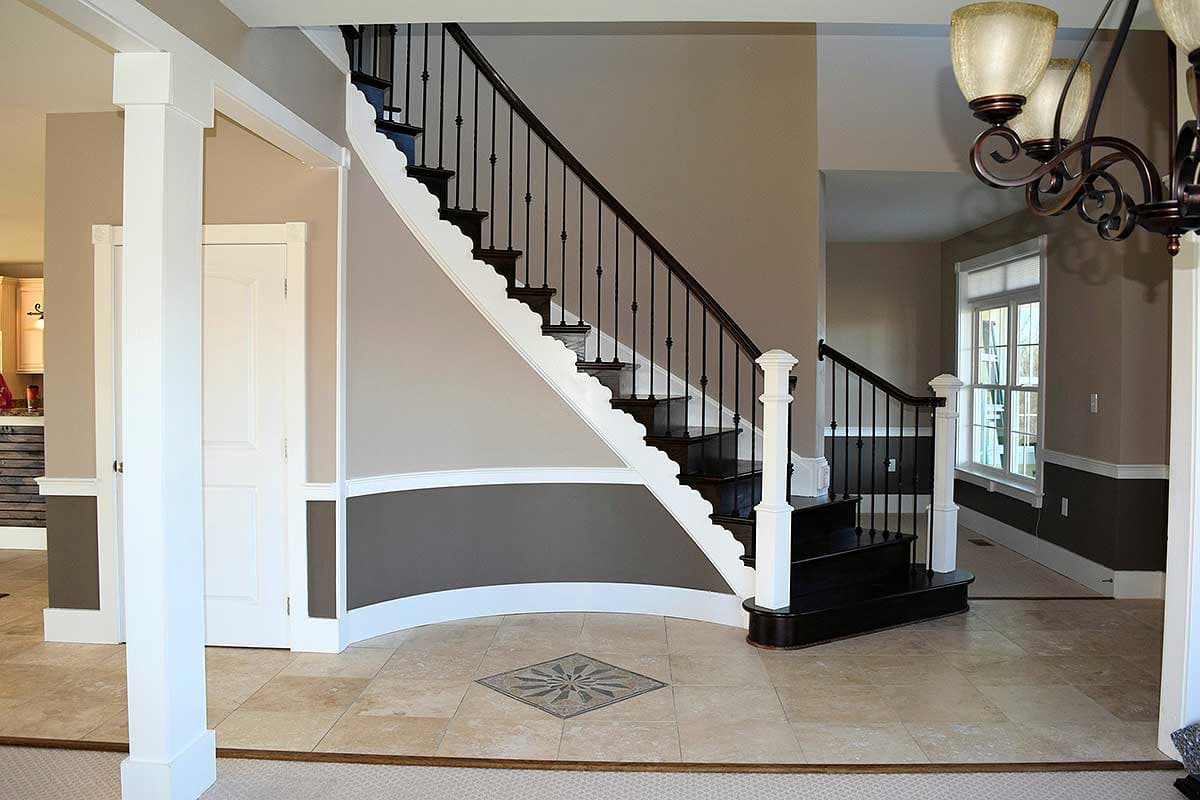

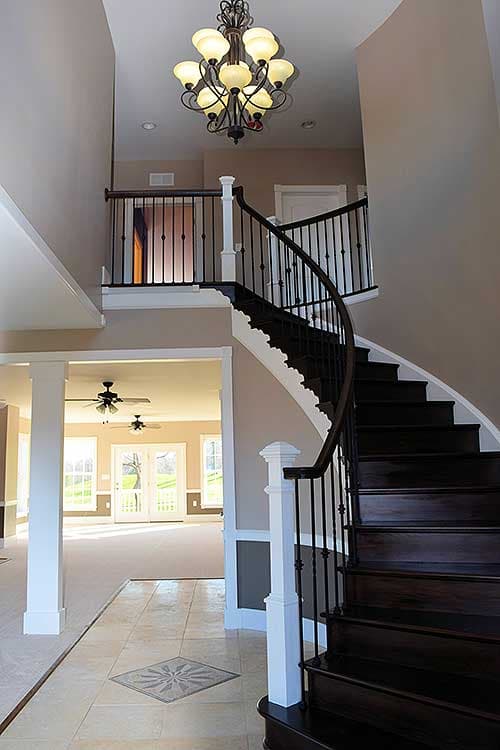

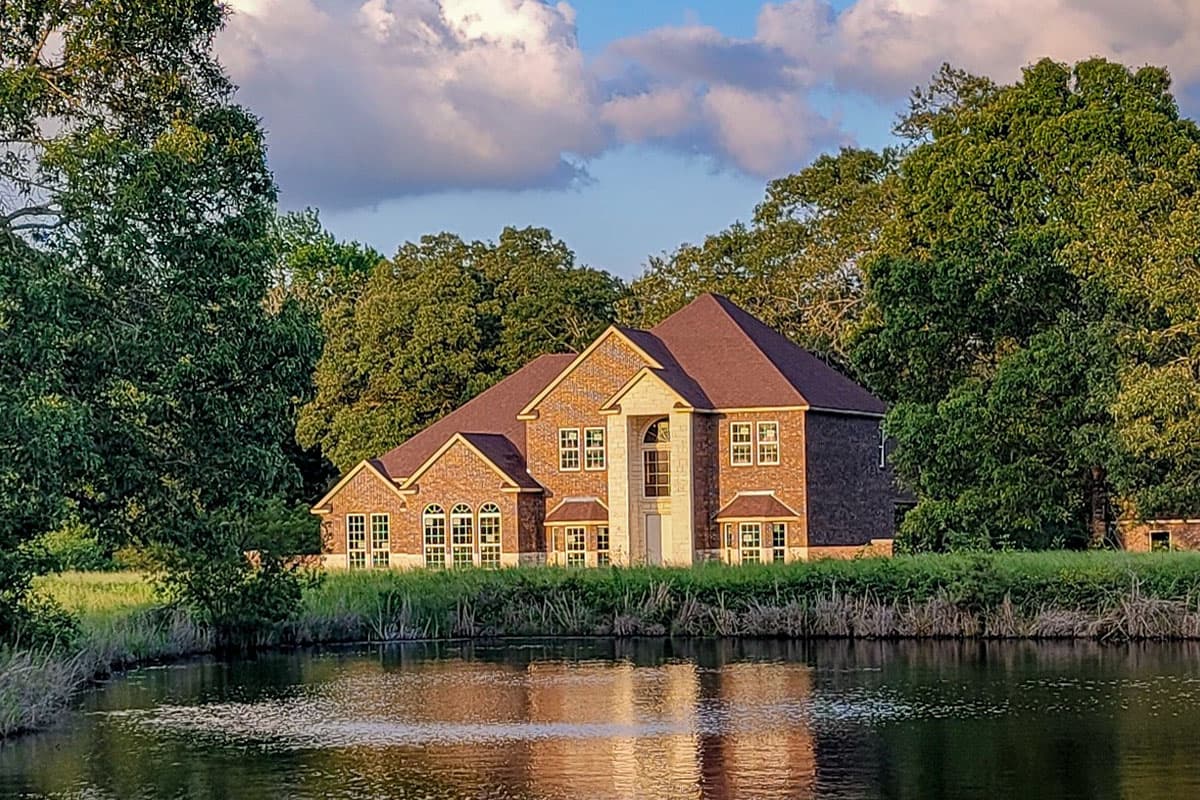

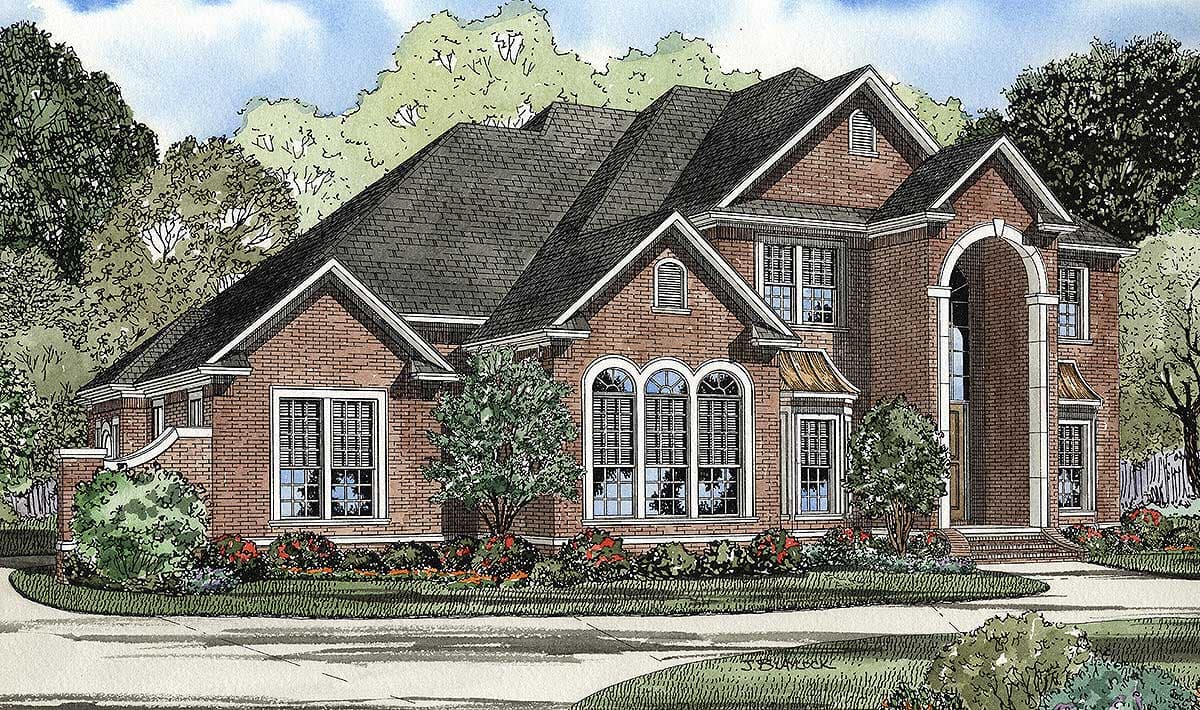

  • The beautiful arched entry and windows are outlined with an architectural pre-cast stone element. A grand foyer with curved staircase sets the tone for this magnificent home plan.

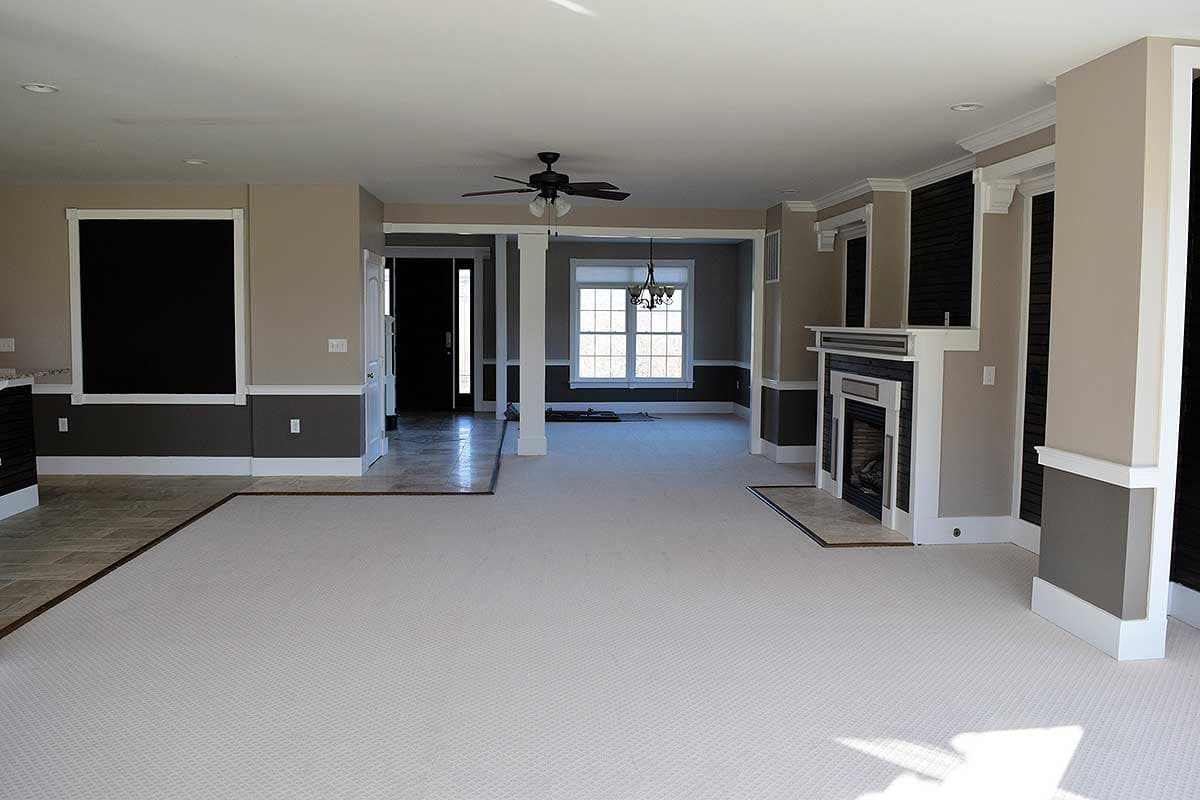

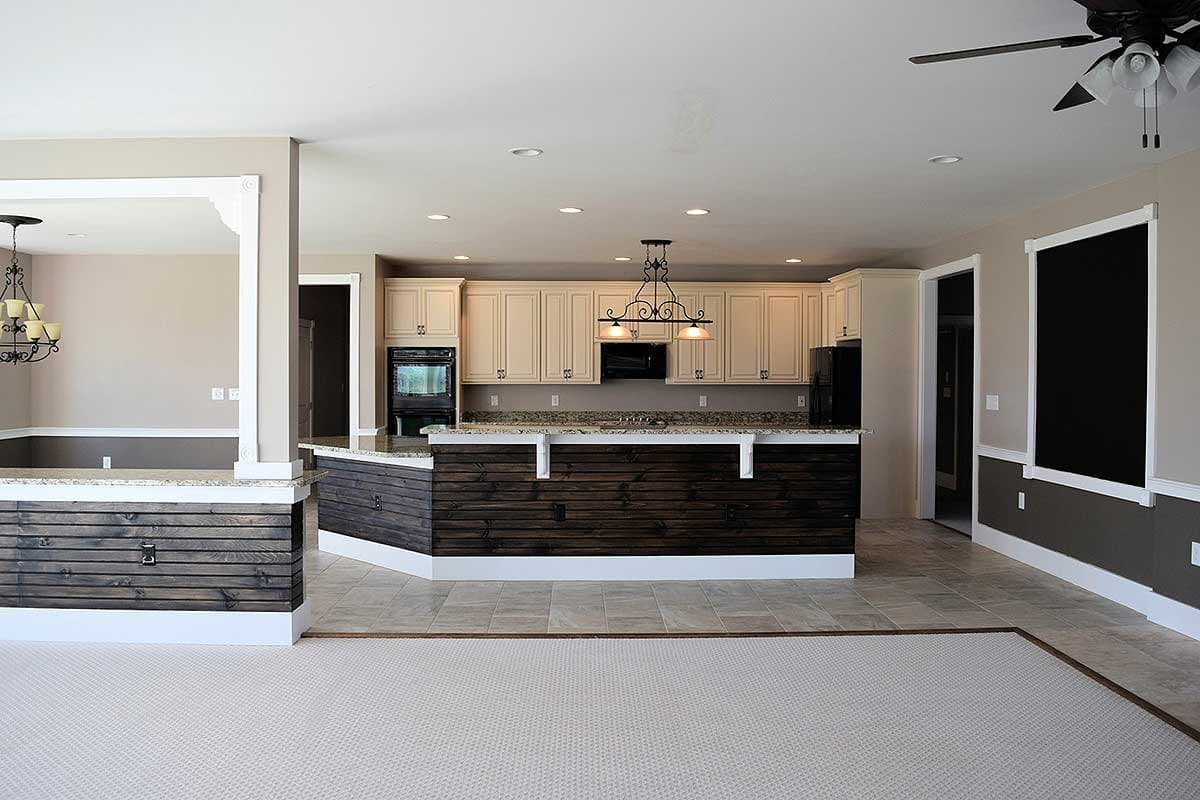

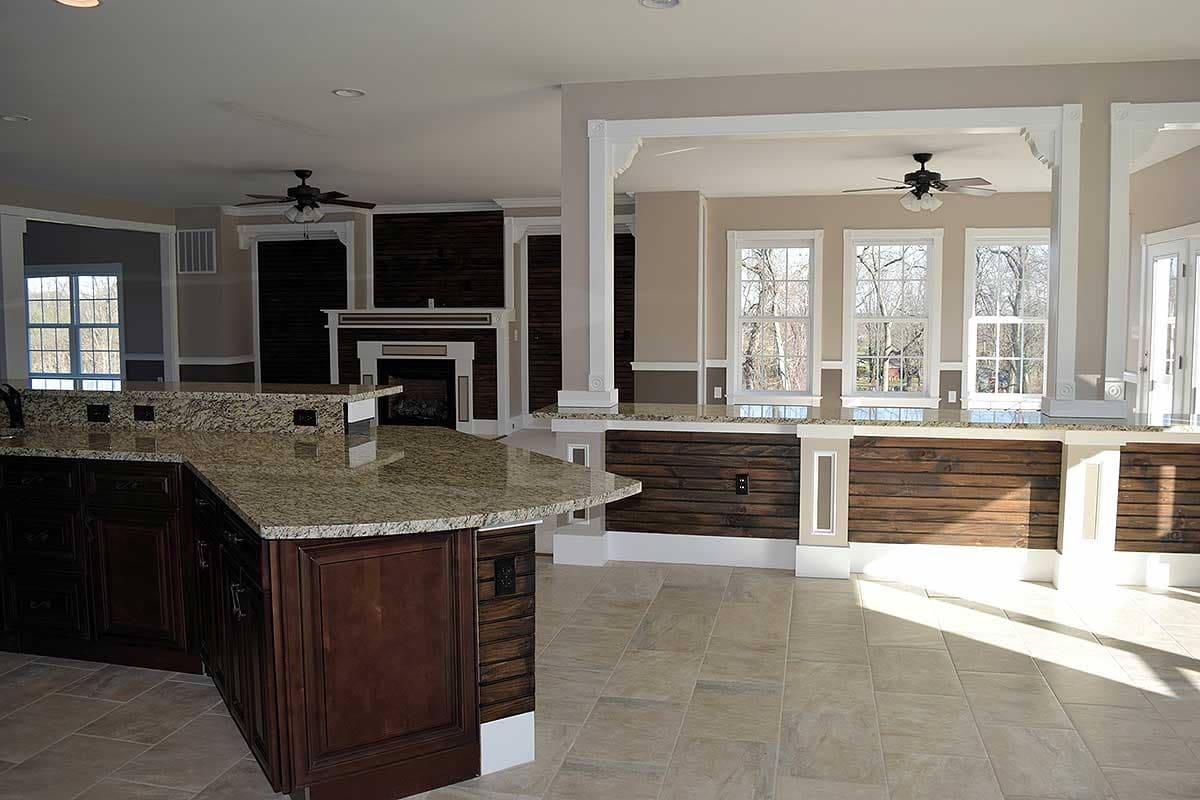

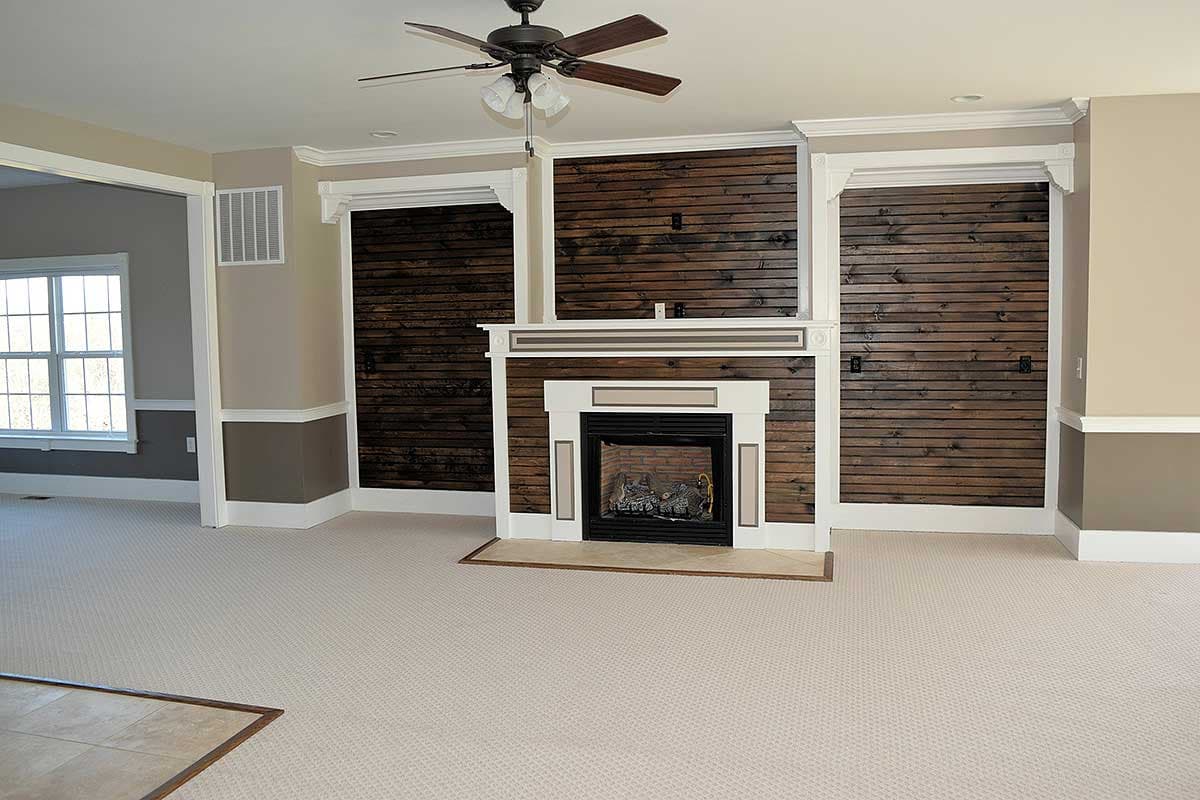

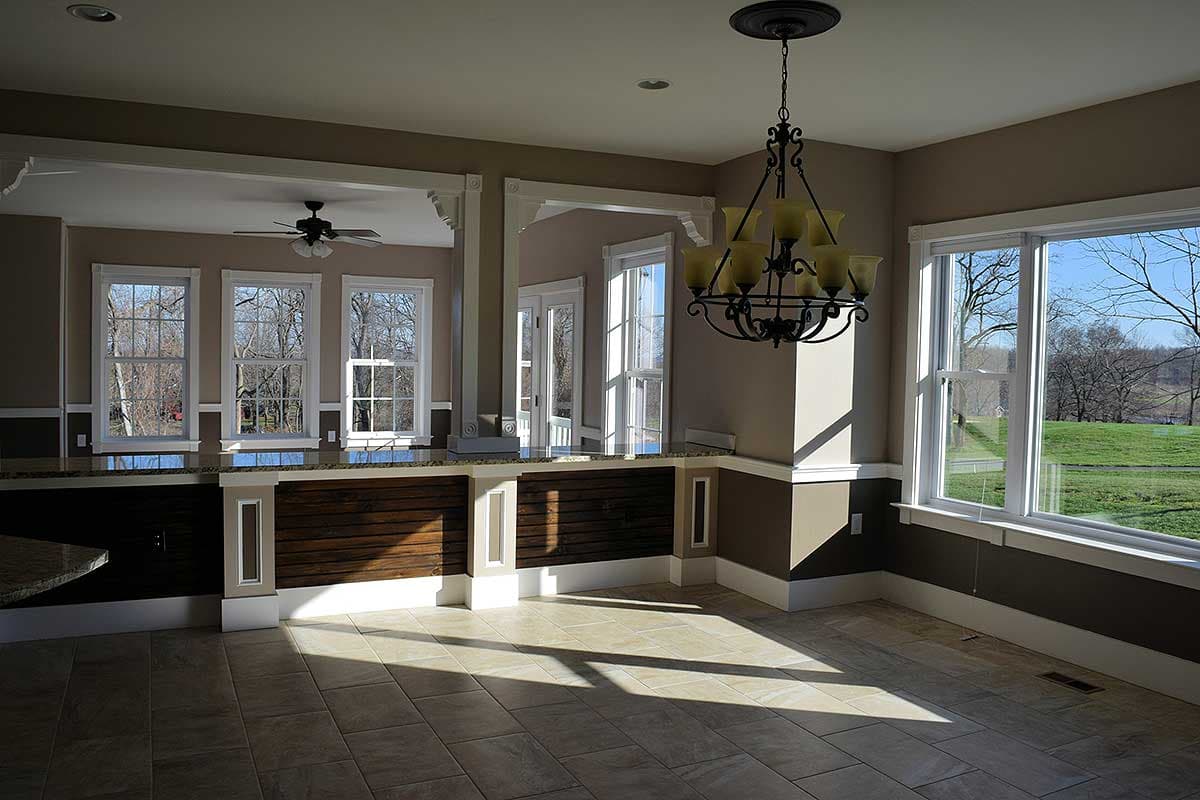

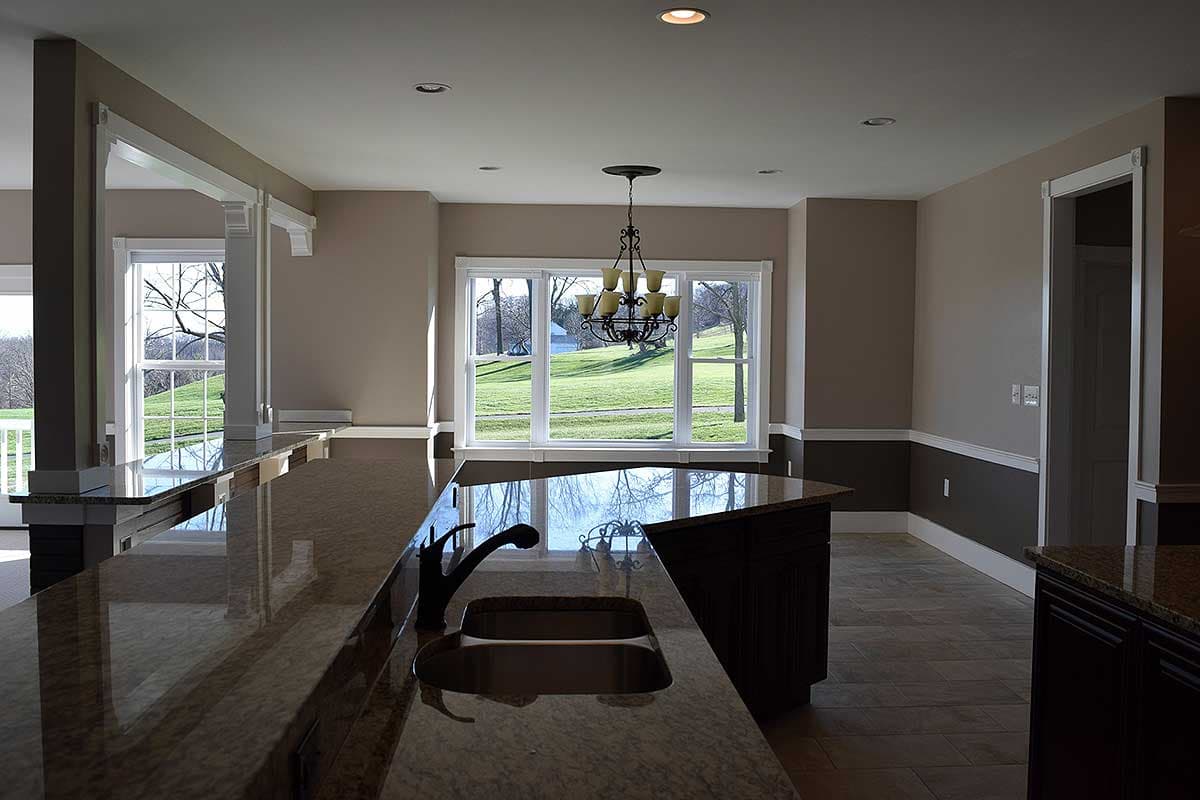

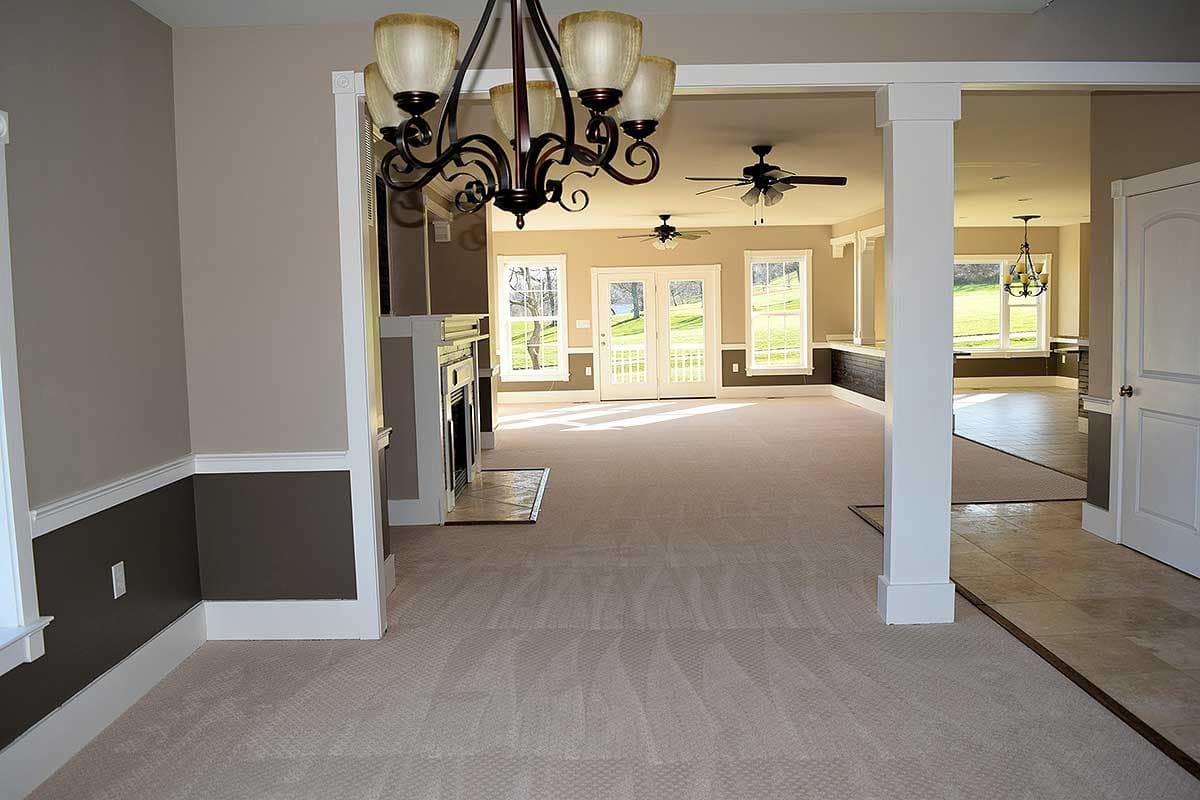

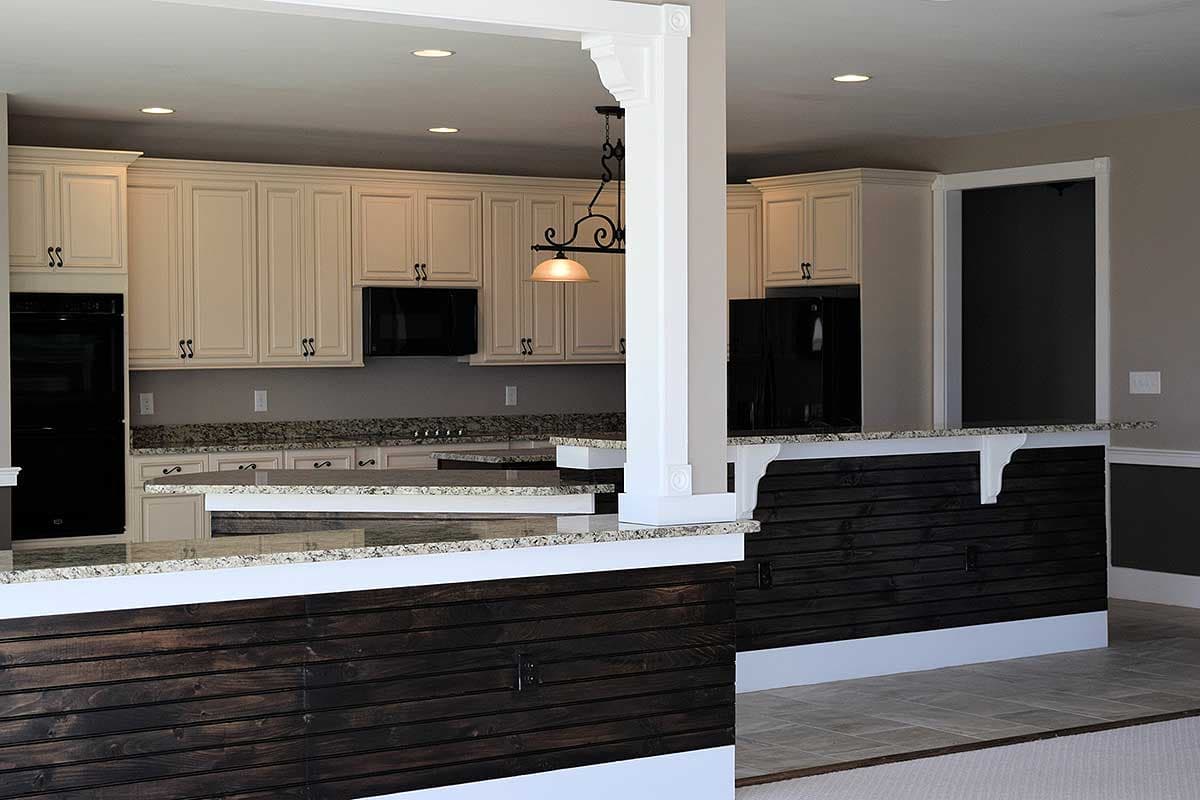

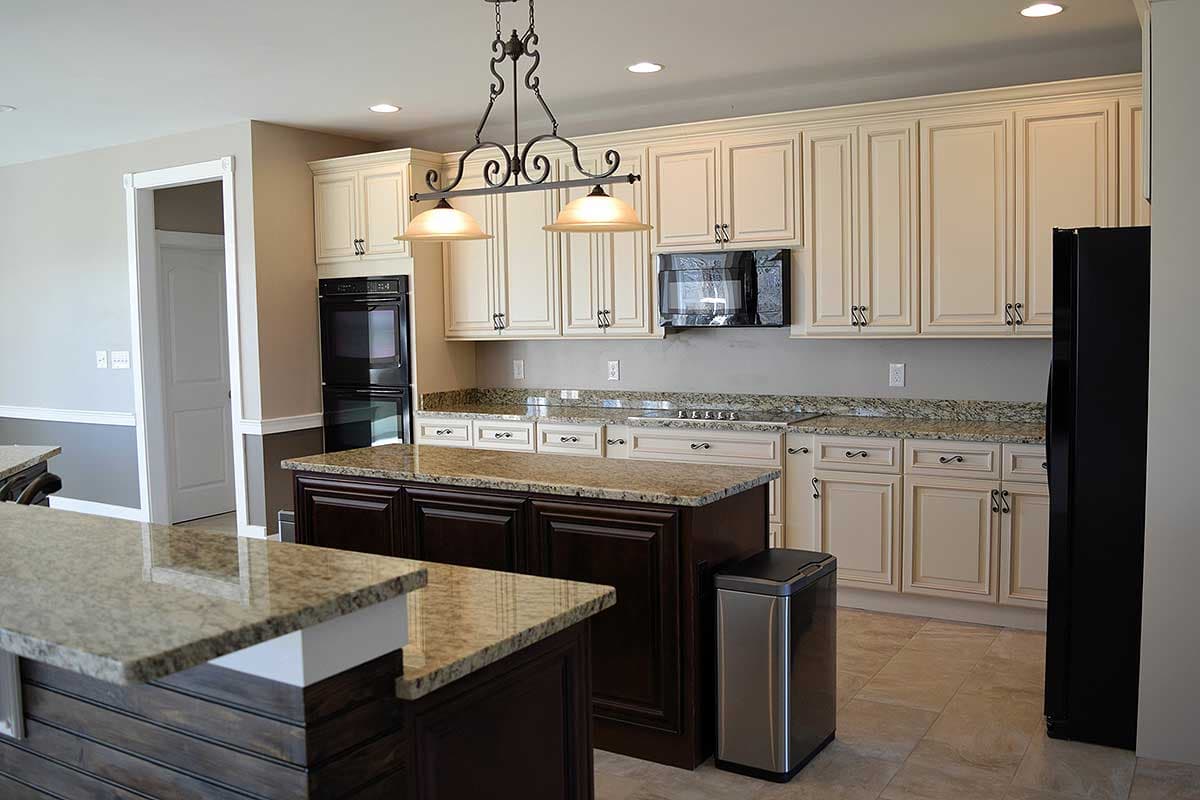

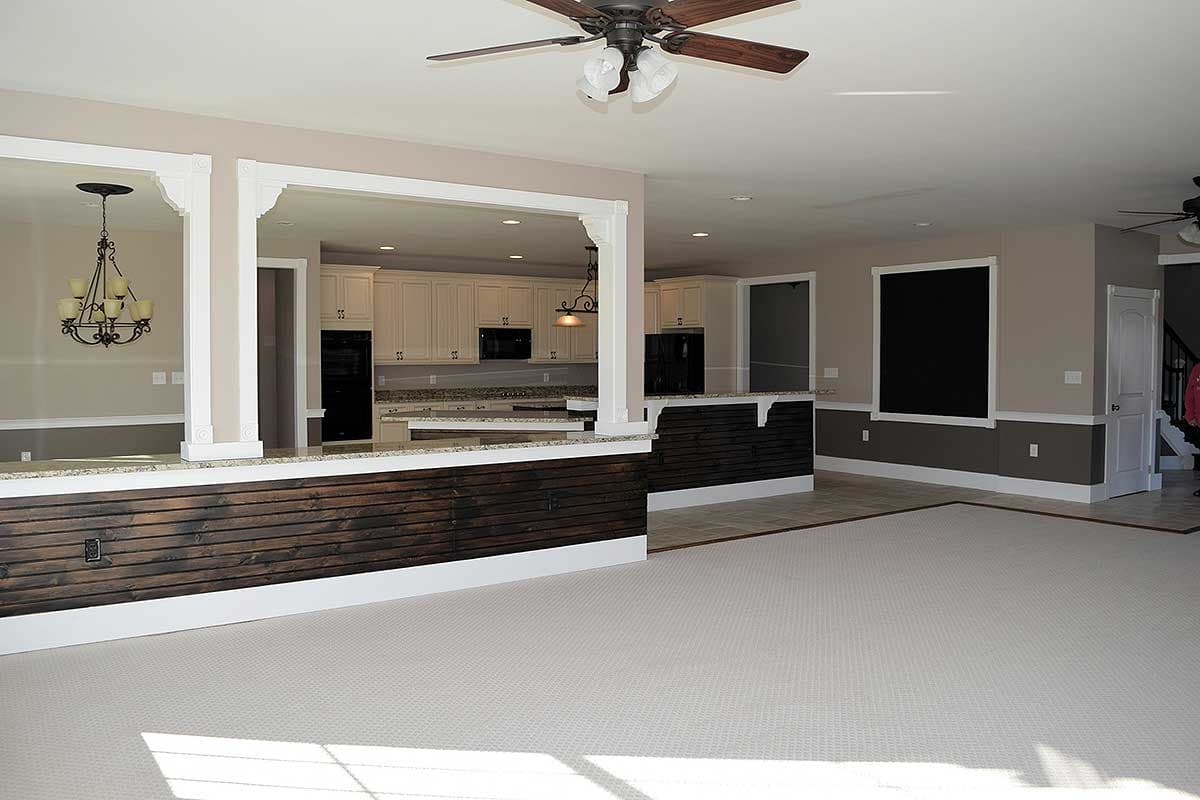

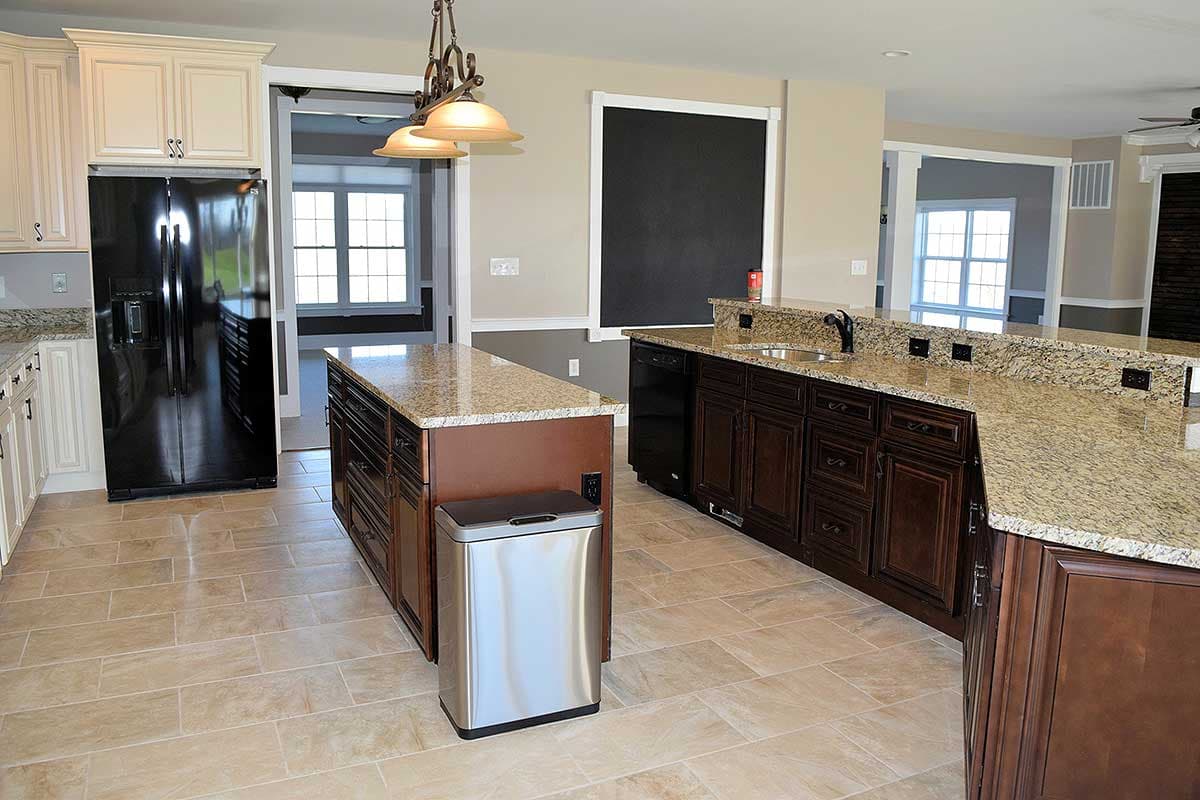

  • The heart of this home is the expansive kitchen with adjoining gathering room, breakfast room and screened porch.
  • The dining room and study bay windows are both accented with a stylish copper roof that will superbly season overtime.

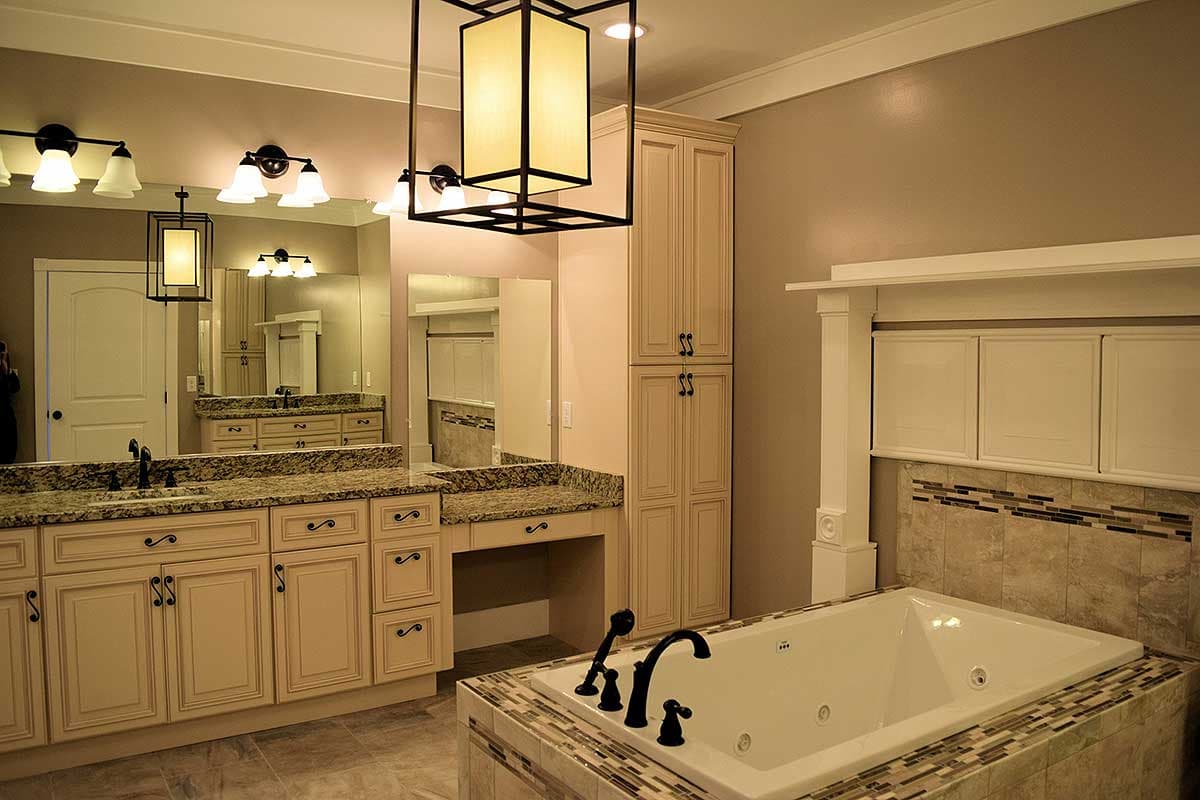

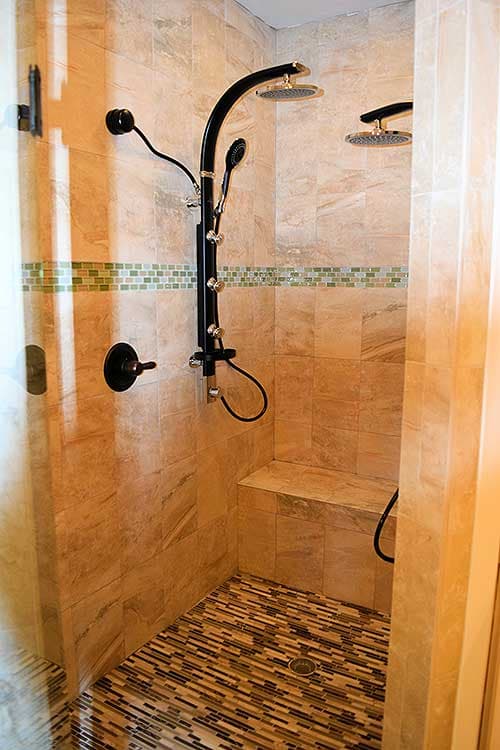

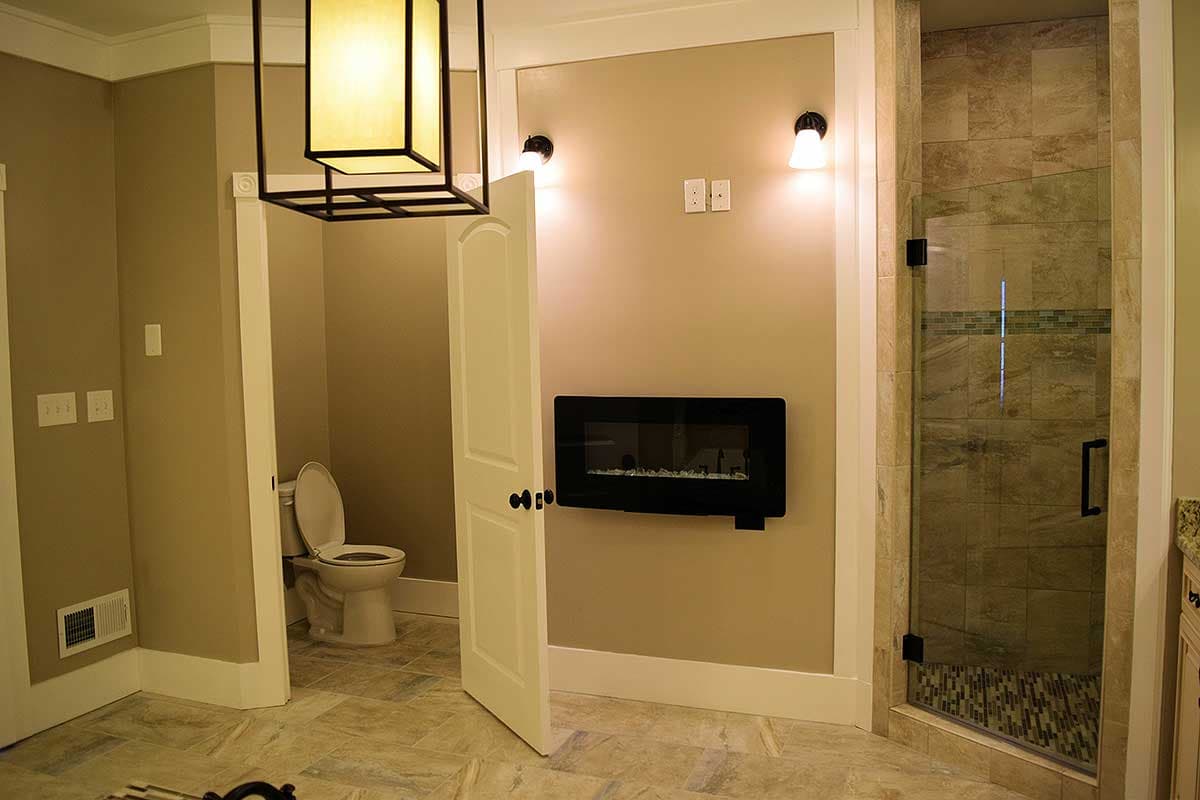

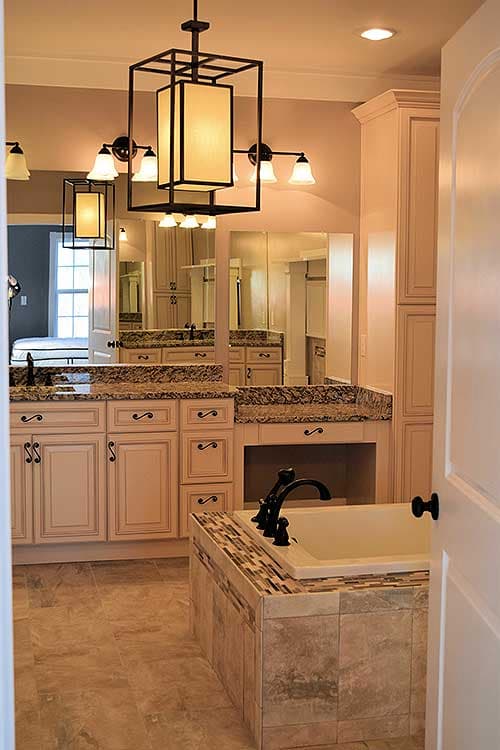

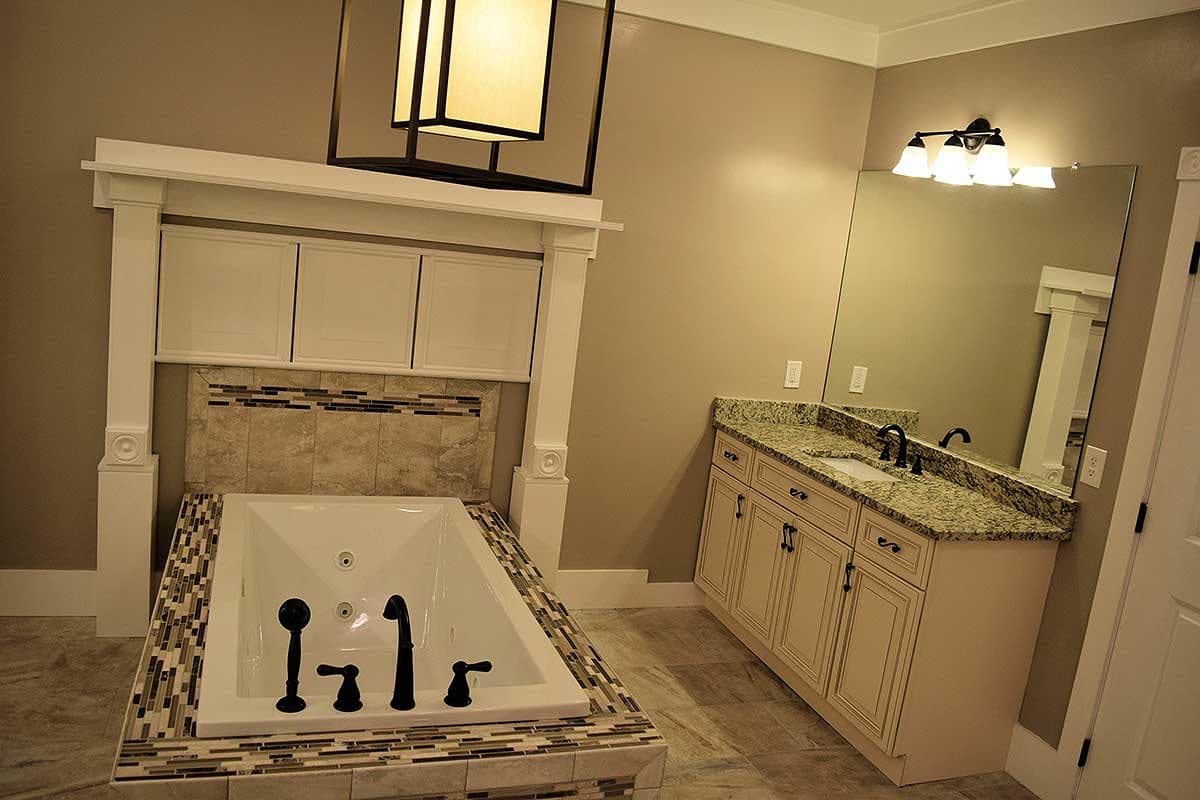

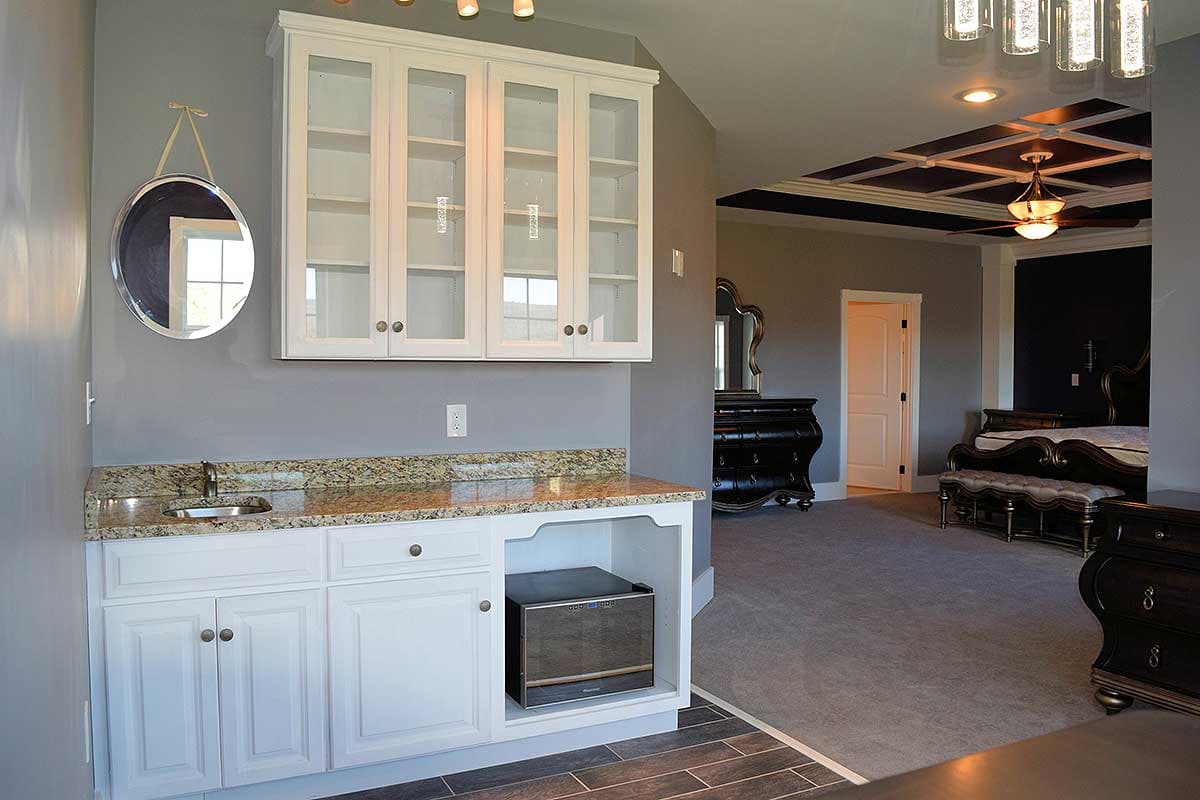

  • Located privately on the main level is the master suite with an extraordinary private bathroom with fireplace and tornado room/master closet. Whether you desire a nearby nursery for the precious addition to your family, or a home office you'll have a world of options with this design.

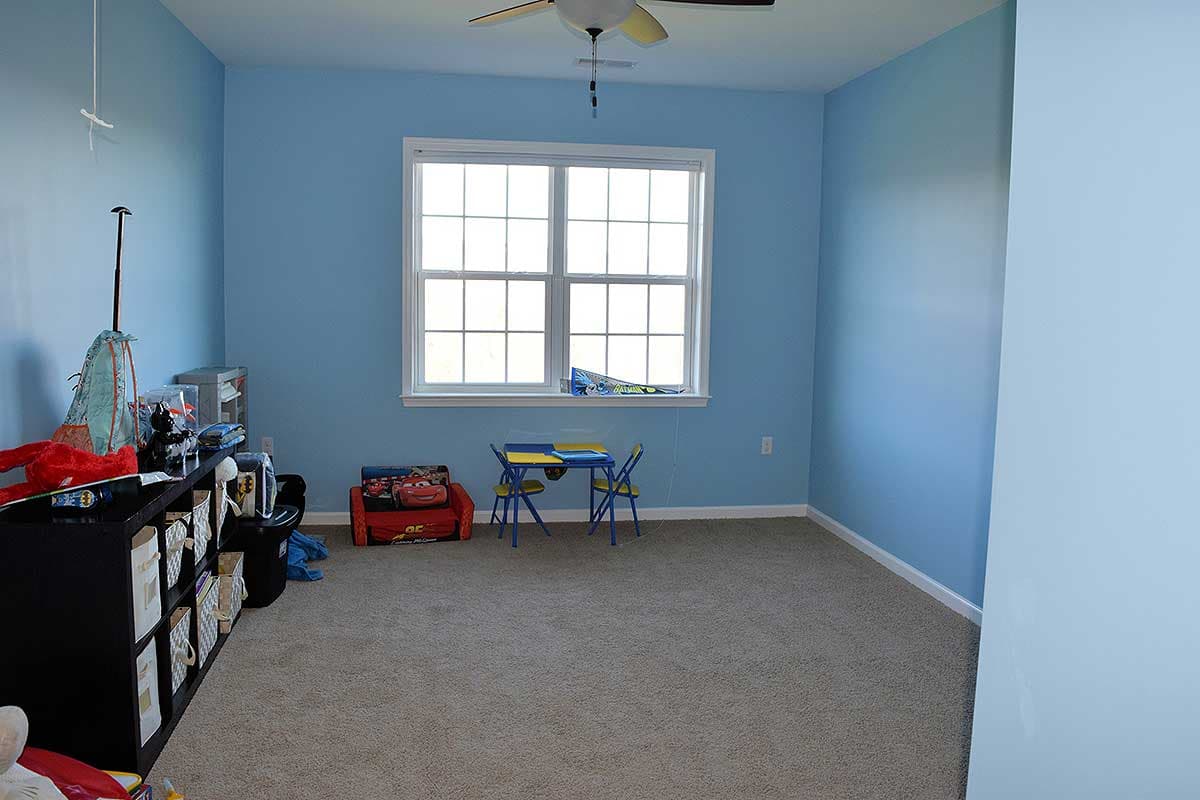

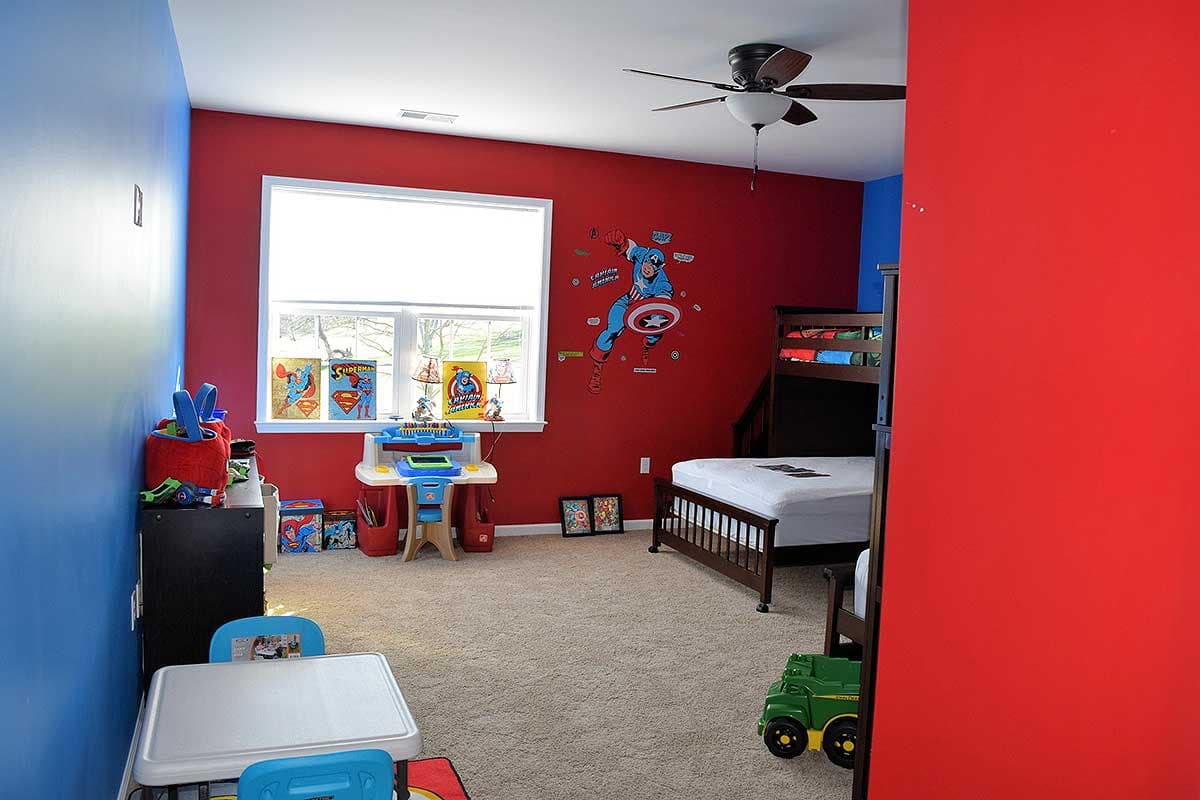

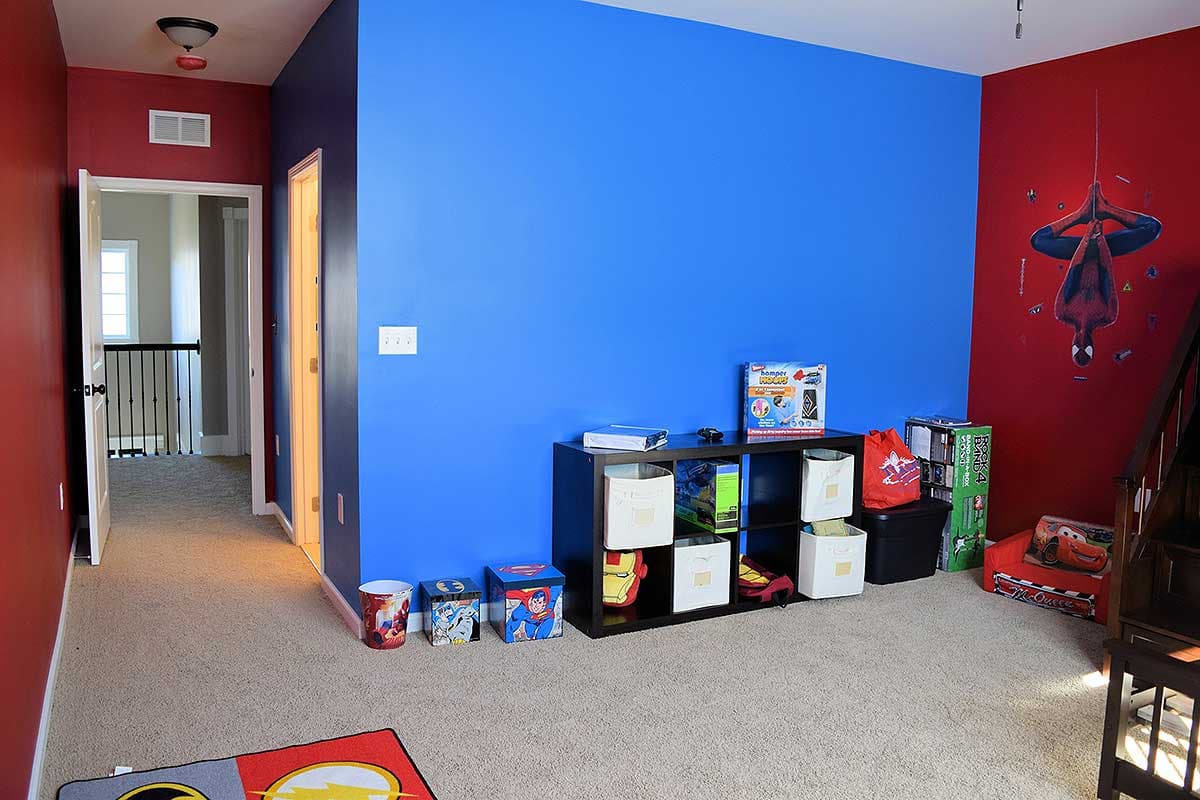

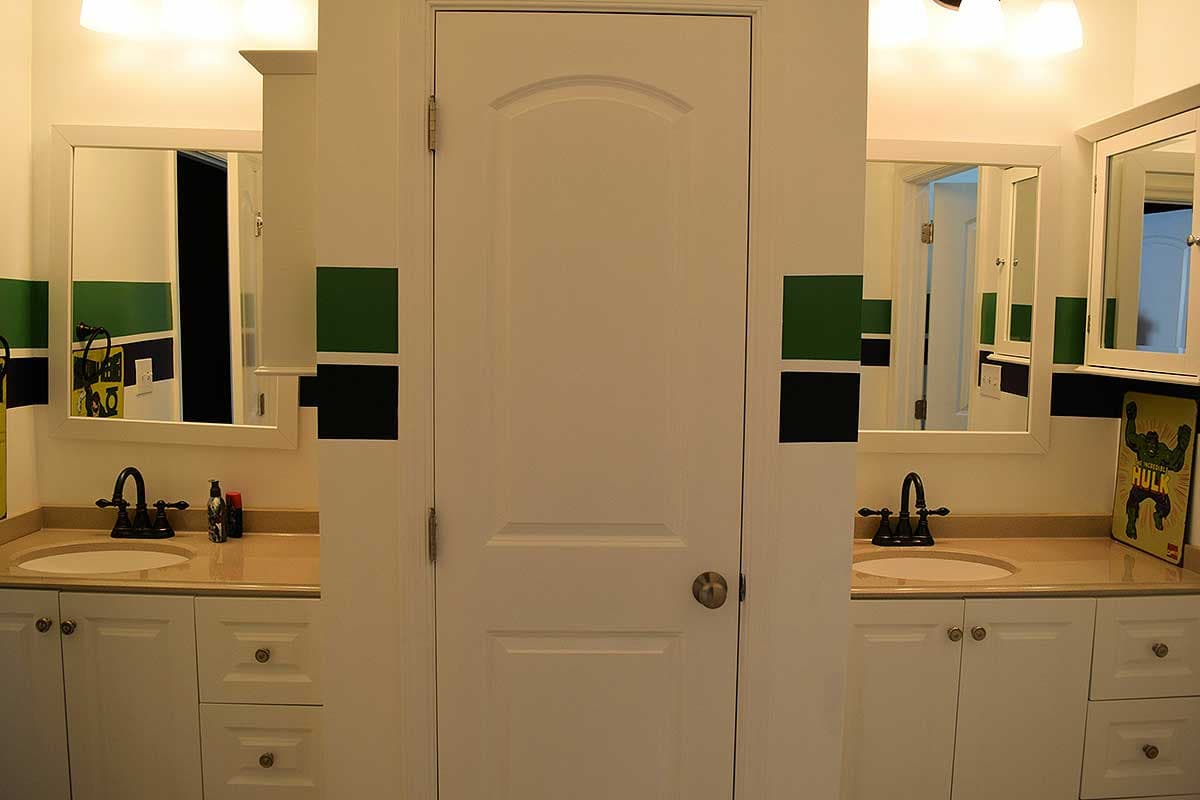

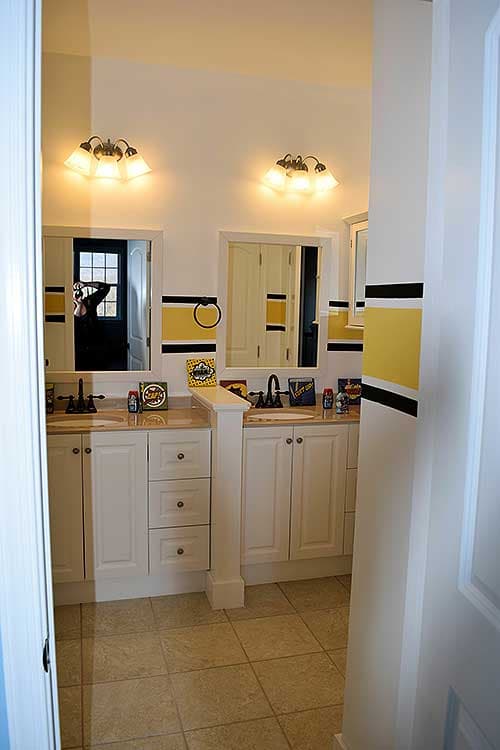

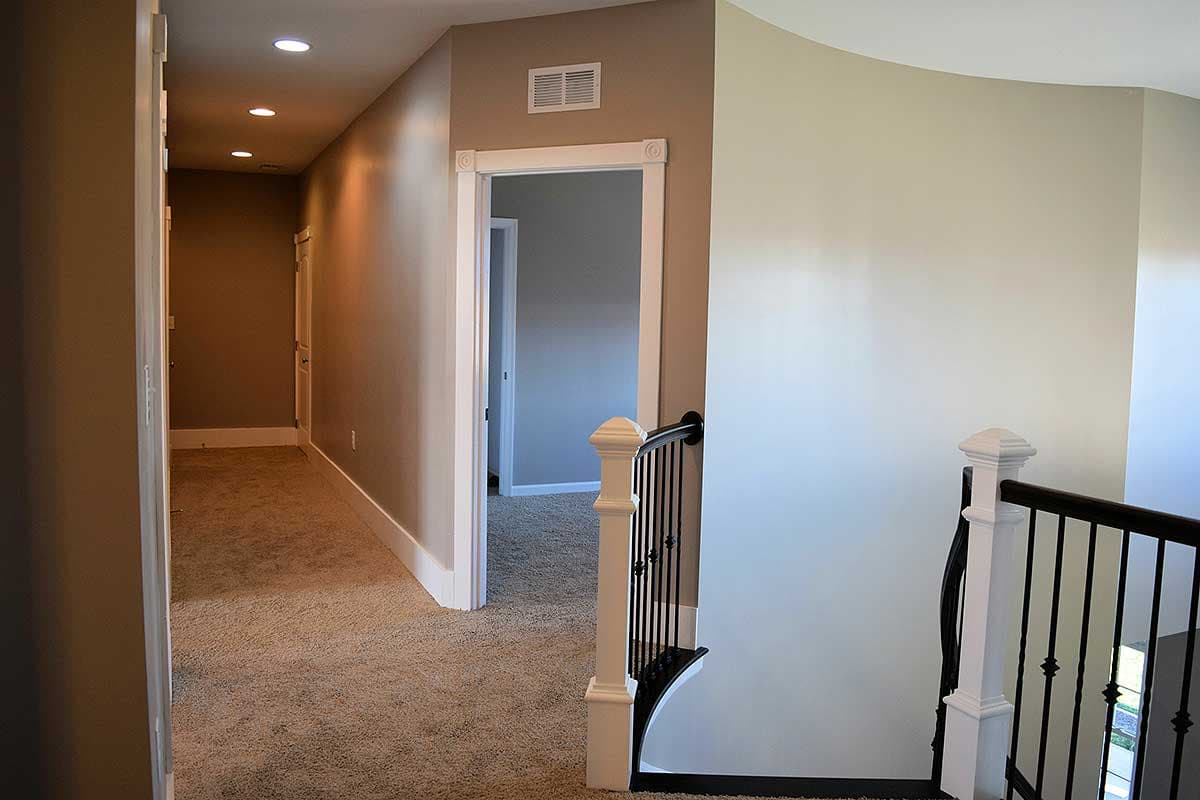

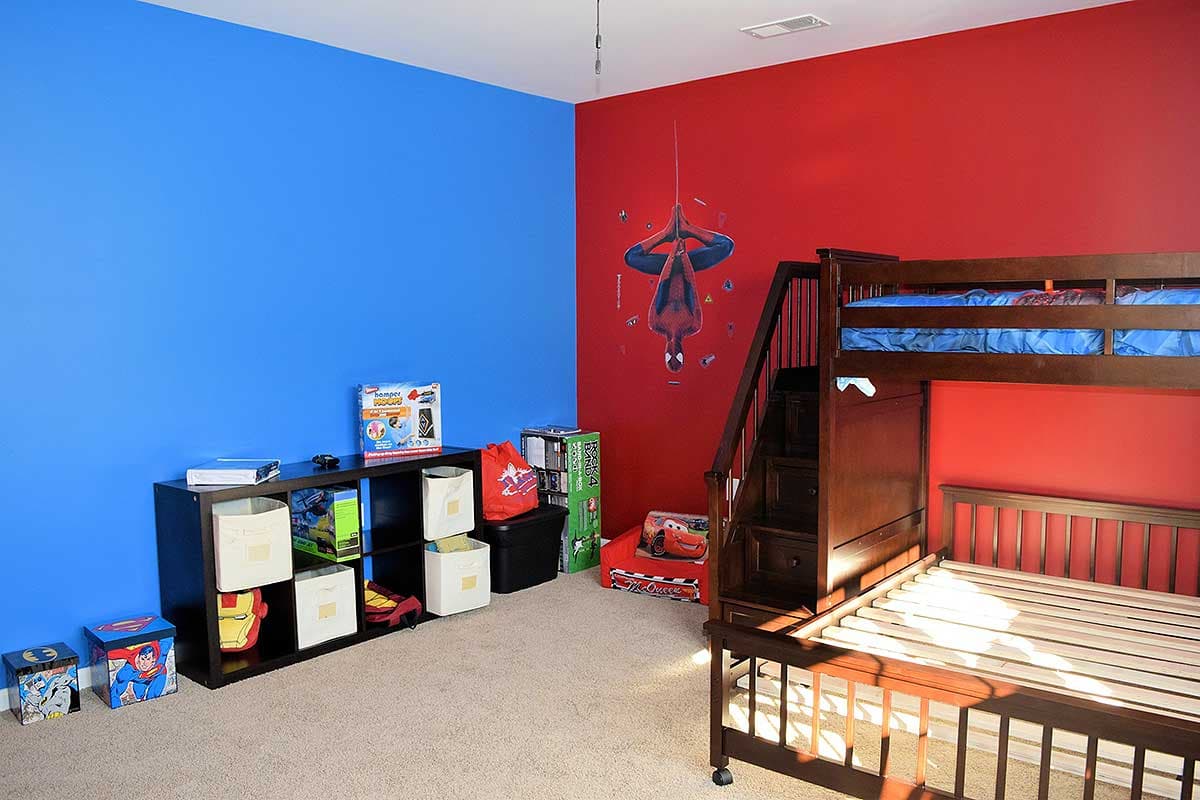

  • The upper level includes three bedrooms, an optional bonus room and plenty of bathroom access.
  • Related Plans: See these related house plan - 59487ND, 59515ND and 59570ND.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

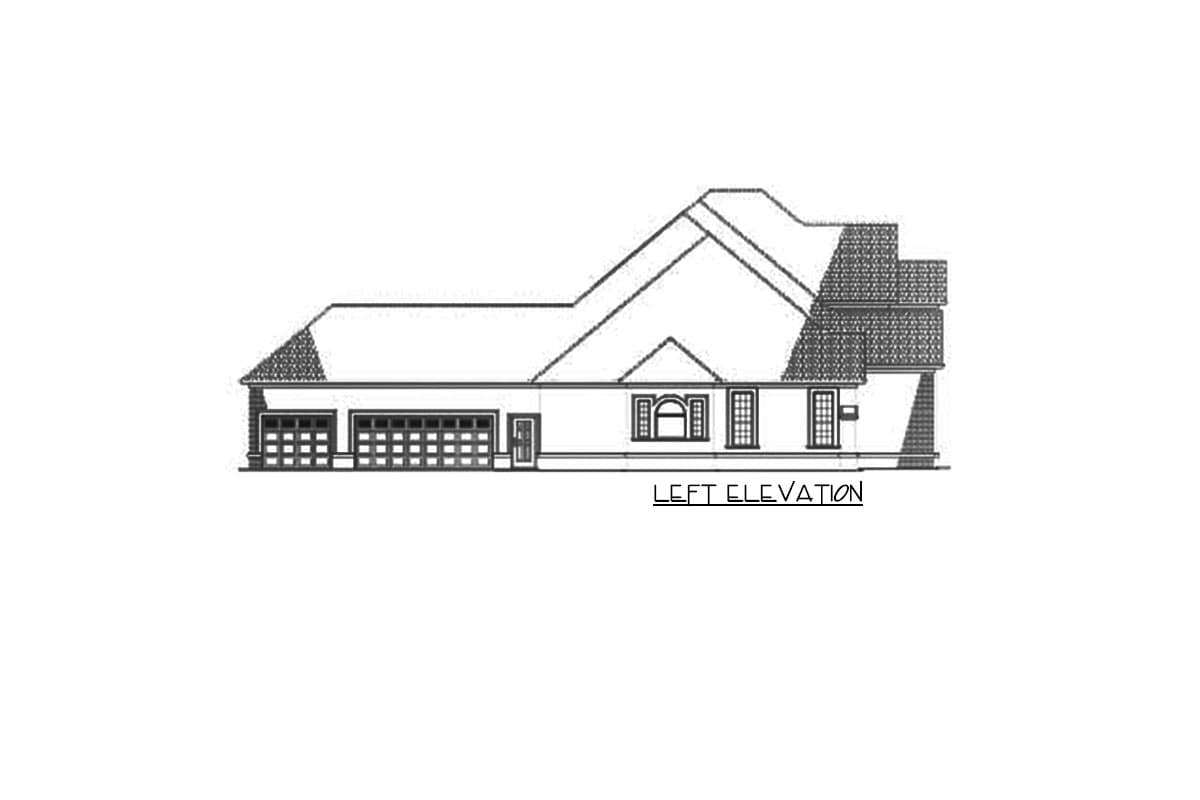

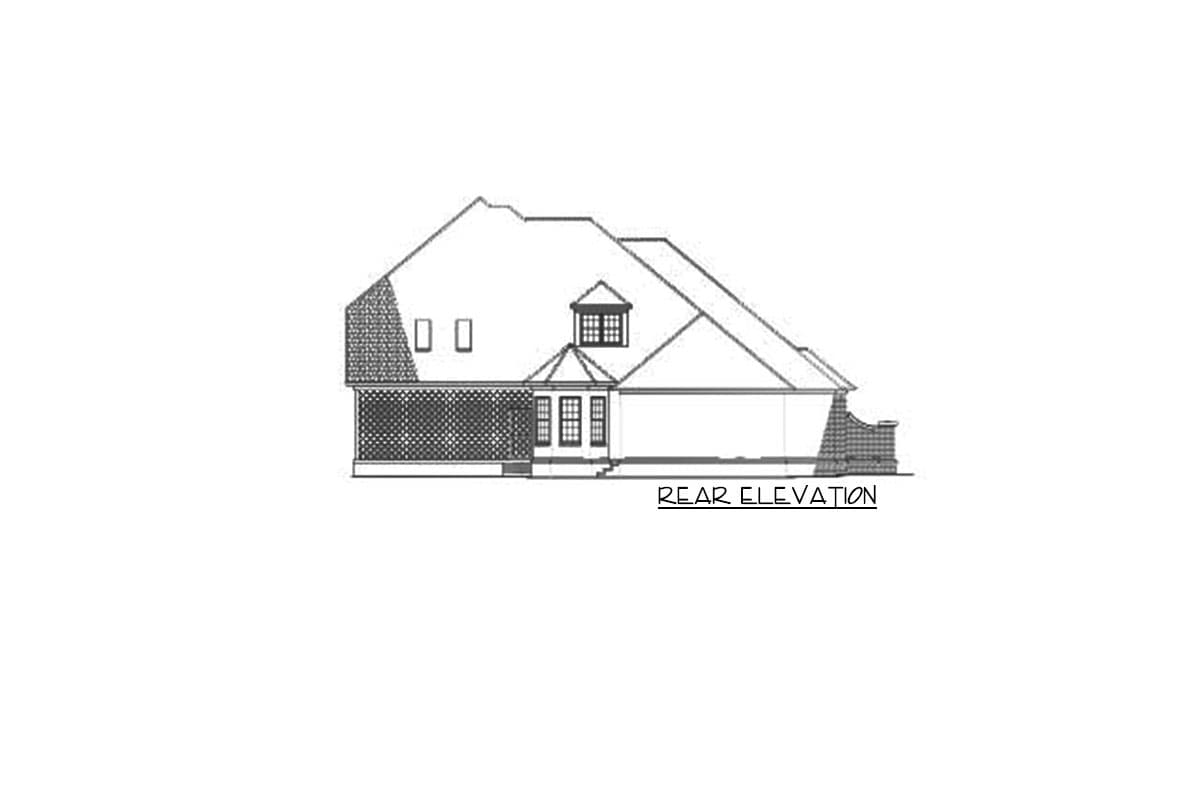

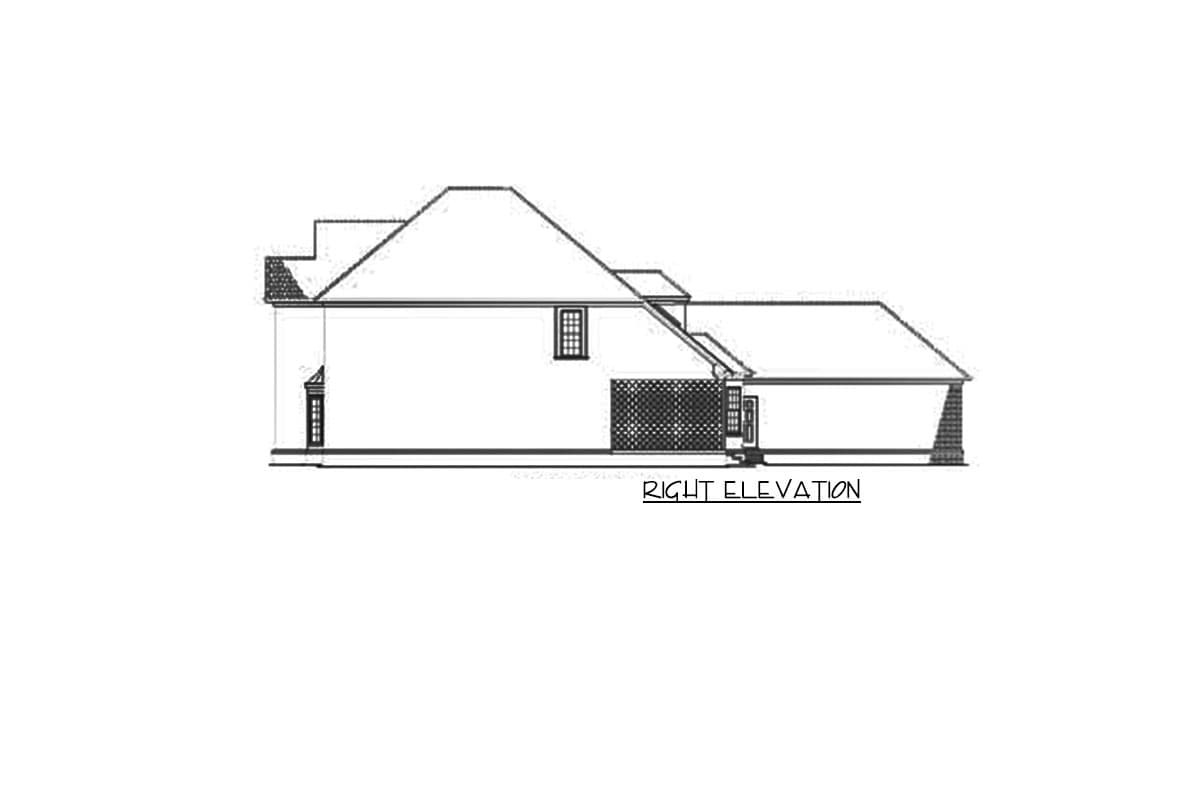

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,692 sq. ft.

1st Floor

2,802 sq. ft.

2nd Floor

890 sq. ft.

Bonus

439 sq. ft.

Porch, Combined

390 sq. ft.

Beds/Baths

Bedrooms

5 or 6

Full bathrooms

5

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

65' 0"

Depth

89' 11"

Max Ridge Height

34' 5"

Garage

Type

Attached

Area

799 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bonus Room

Butler Walk-in Pantry

Home Office

Jack & Jill Bath

Library/Study

Master Suite - 1st Floor

Multiple Stairs
