Plan 39103ST
Beautiful Great Room with Numerous Amenities
Heated S.F.
1,828
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 39103ST

Basement
slide image 0
Main Level
slide image 1
2nd Floor
slide image 2

Plan 39103ST

1-800-854-7852

1-262-521-4596

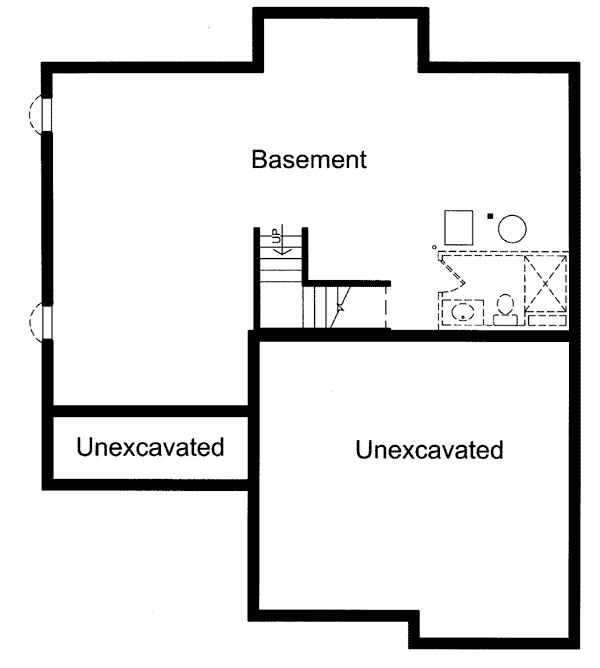

Basement
floor plan image Basement

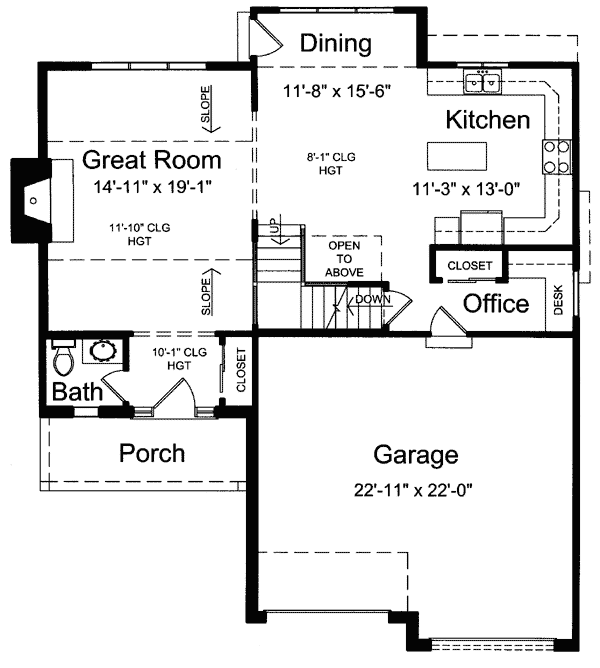

Main Level
floor plan image Main Level

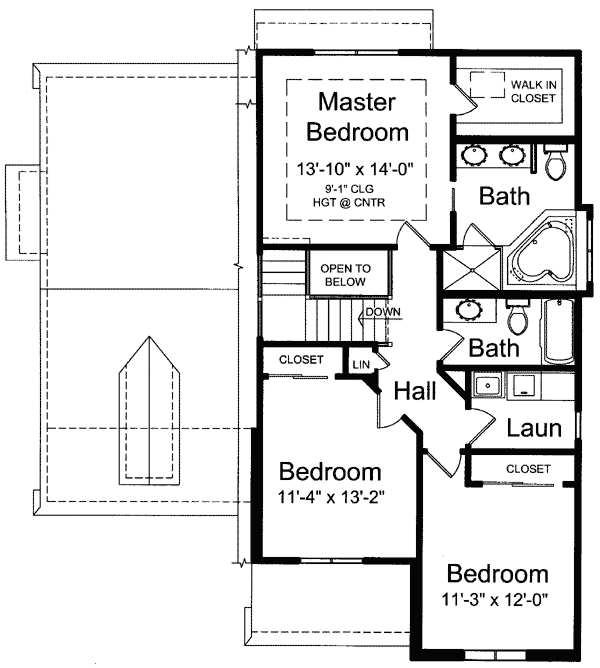

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A beautiful great room with a high ceiling, a view to the rear yard and a warm gas fireplace are visible from the foyer as you enter this delightful home plan.
  • The kitchen with an island and the dining area with rear yard access form a large open space dedicated to sharing family times.
  • 'L'-shaped stairs offer a view to the great room and lead to a four-bedroom second floor.
  • The master suite has a 9' center ceiling height, private bath and large walk-in closet.
What's Included
  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,828 sq. ft.

1st Floor

918 sq. ft.

2nd Floor

910 sq. ft.

Basement Unfinished

918 sq. ft.

Entry

80 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

41' 0"

Depth

46' 8"

Max Ridge Height

29' 3"

Garage

Type

Attached

Area

479 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

1,828 sq. ft.

1st Floor

918 sq. ft.

2nd Floor

910 sq. ft.

Basement Unfinished

918 sq. ft.

Entry

80 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

41' 0"

Depth

46' 8"

Max Ridge Height

29' 3"

Garage

Type

Attached

Area

479 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor
