Plan 31803DN

Best in Class in Two Versions

Heated S.F.

6,045

Beds

5

Baths

4.5+

Stories

2

Cars

3

Floor Plan

Main Level

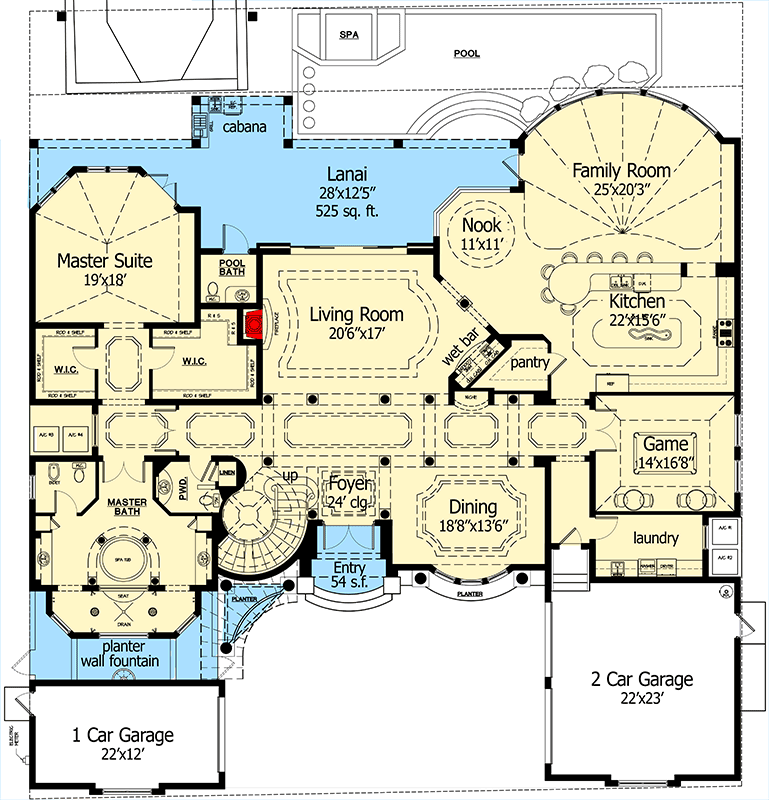

floor plan image Main Level

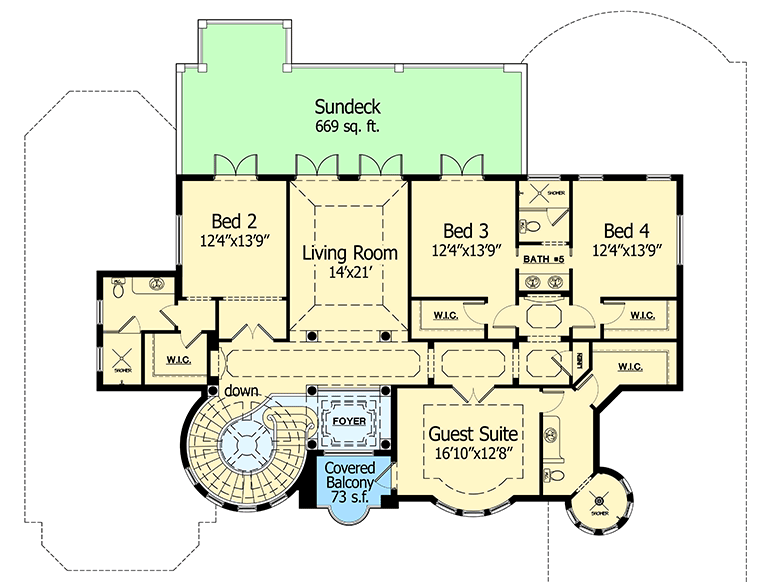

2nd Floor

floor plan image 2nd Floor

Plan Details

This 5 bedroom luxury home plan represents the best in its class: formal elegance, family-friendly spaces, and great design touches throughout.

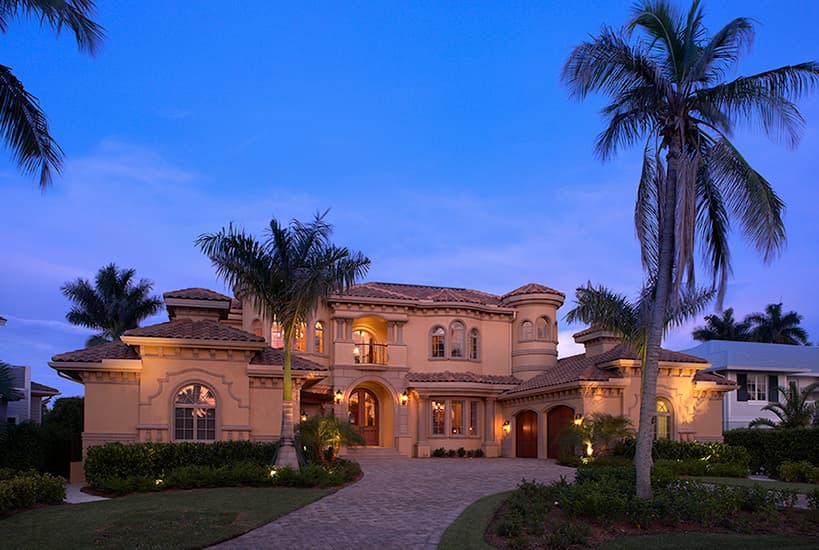

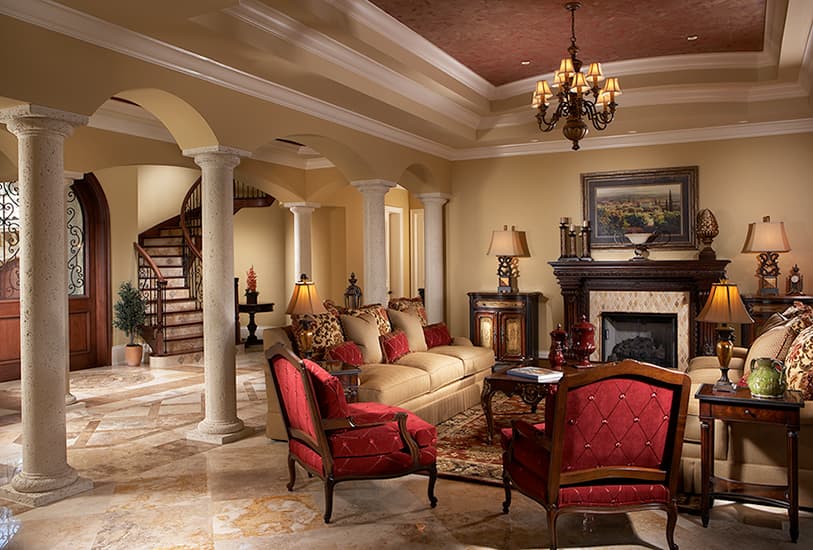

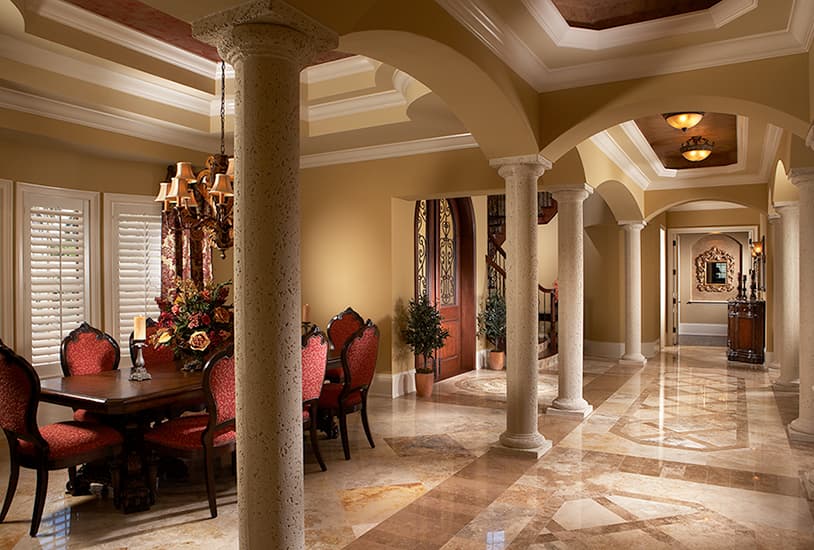

The covered entry leads you to the foyer with 24' ceilings. Views extend across the gallery into the lovely living room with fireplace, lanai access and wet bar.
The master is on the main and is magnificent. The ceiling is vaulted and the bedroom opens to the lanai. His and her walk-ins are roomy and the bath is a one-of-a-kind spa-like retreat of its own.

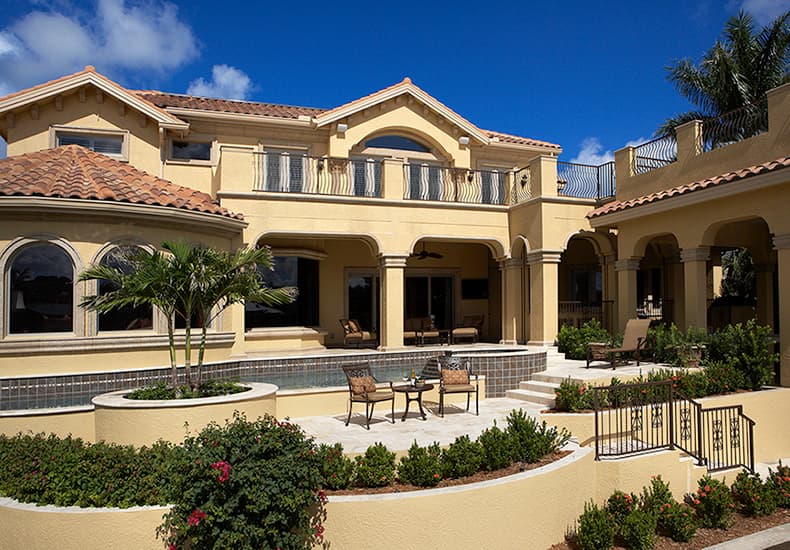

Across the home you'll find the family spaces including the game room and vaulted family room with lanai access.

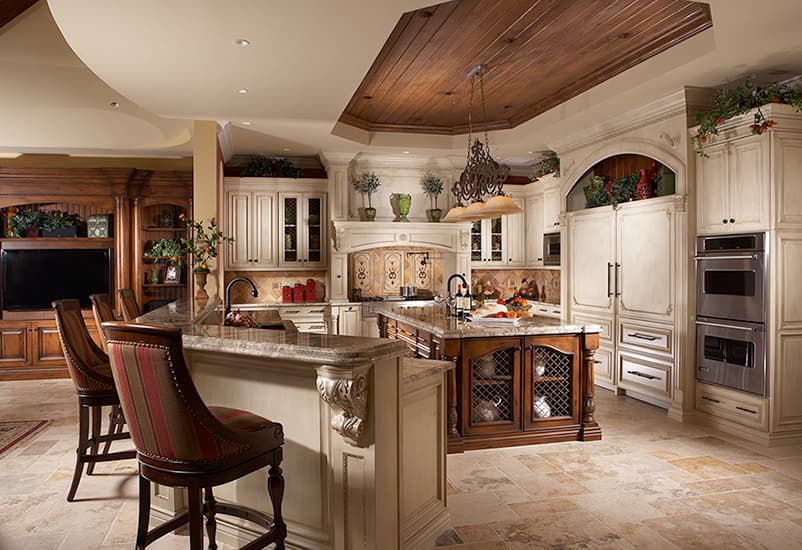

The kitchen serves formal guests in the dining room and casual meals in the nook with equal ease.

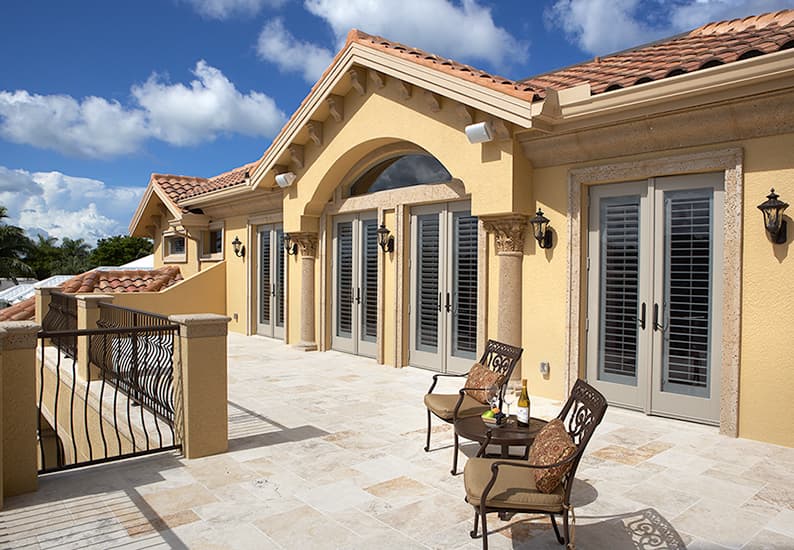

The second floor delivers a large guest suite with circular walk-in shower plus 3 more bedrooms, 2 baths and two more great features: a covered balcony in front and a large sundeck off the living room in back.
Related Plan: Get a larger version with house plan 31810DN (6,812 sq. ft.).

What's Included

Slab Plan
Floor Plans with Notes and Dimensions
Door and Window Schedules
Electrical Plans
Ceiling Plans

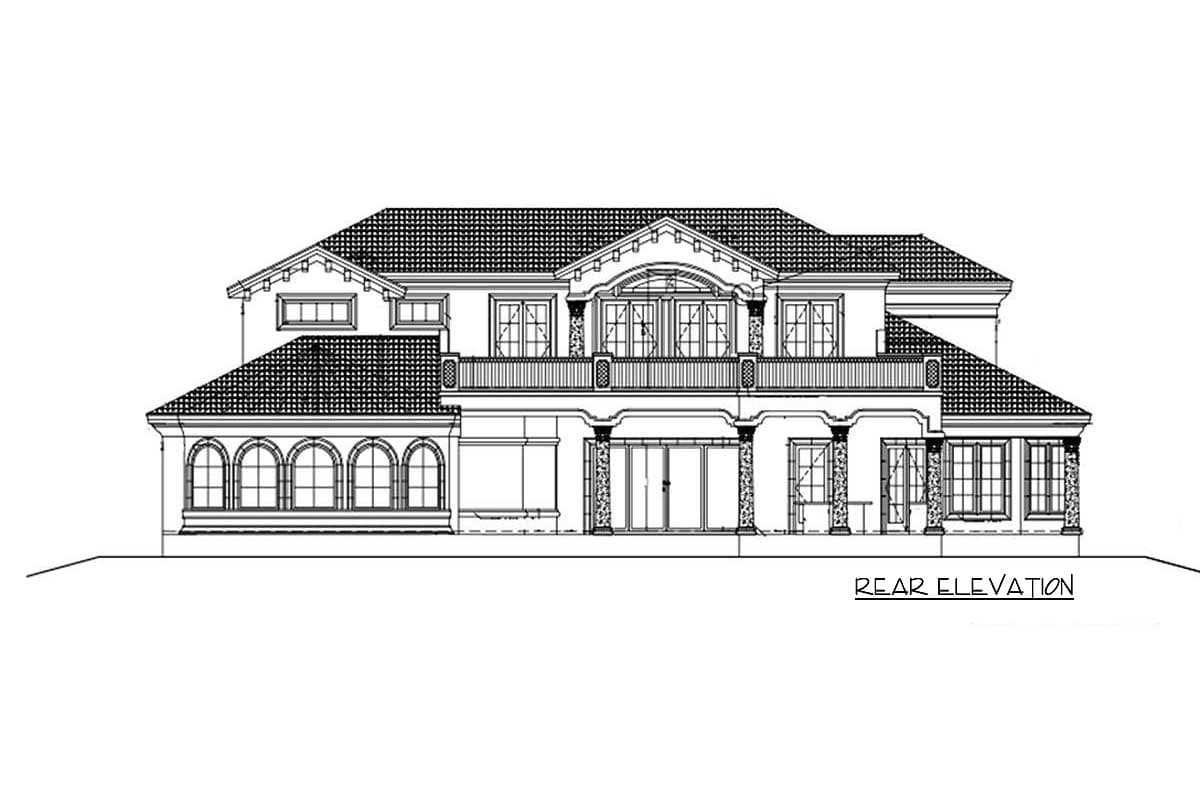

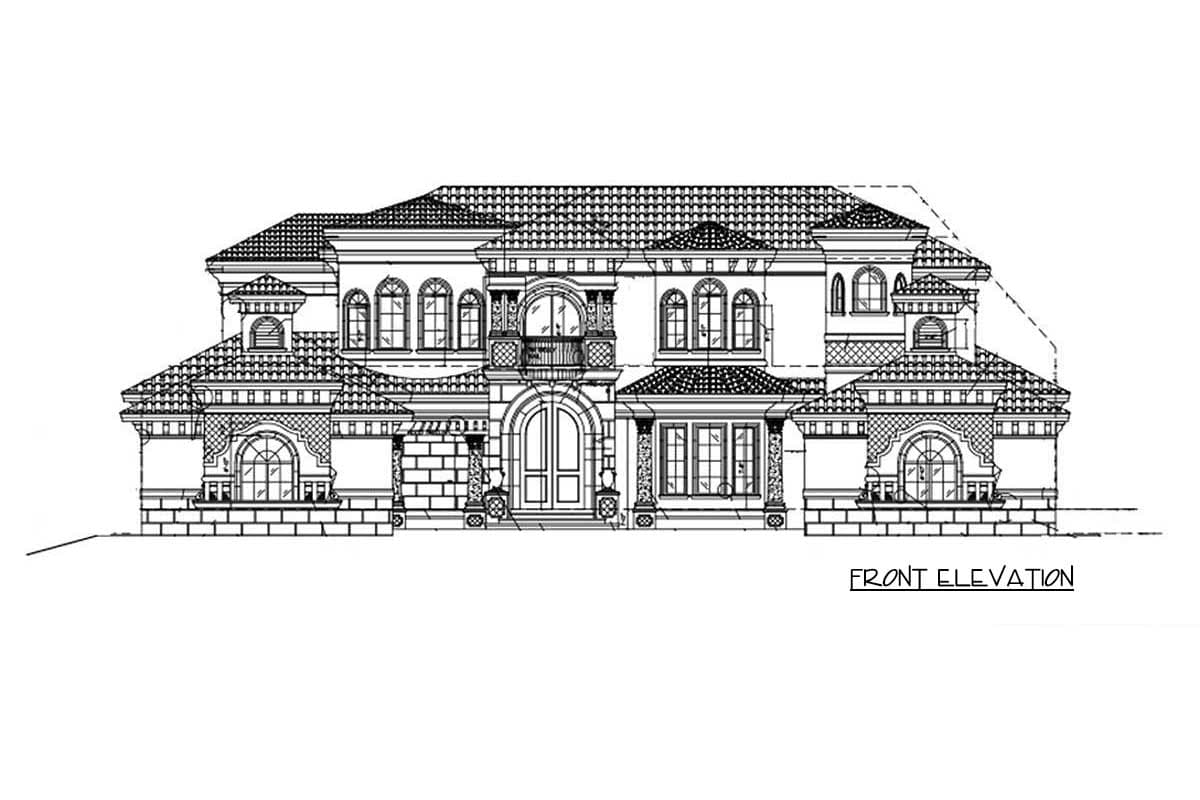

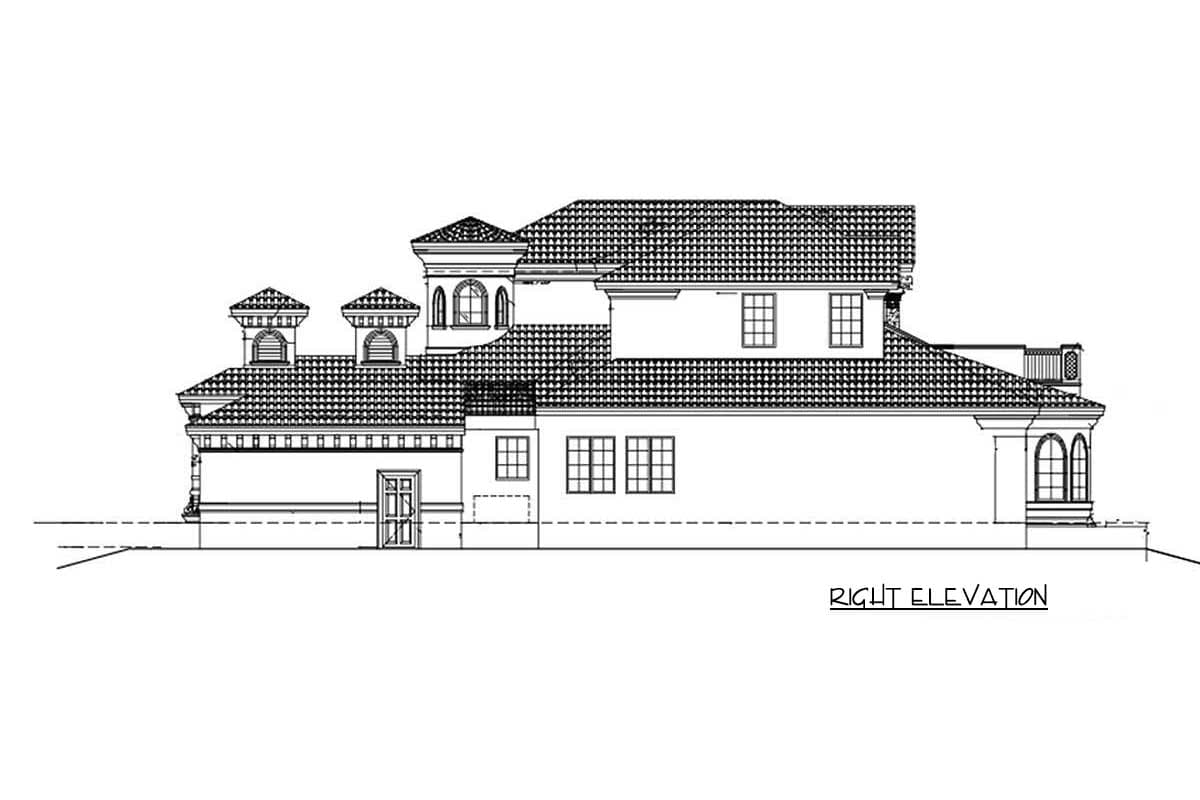

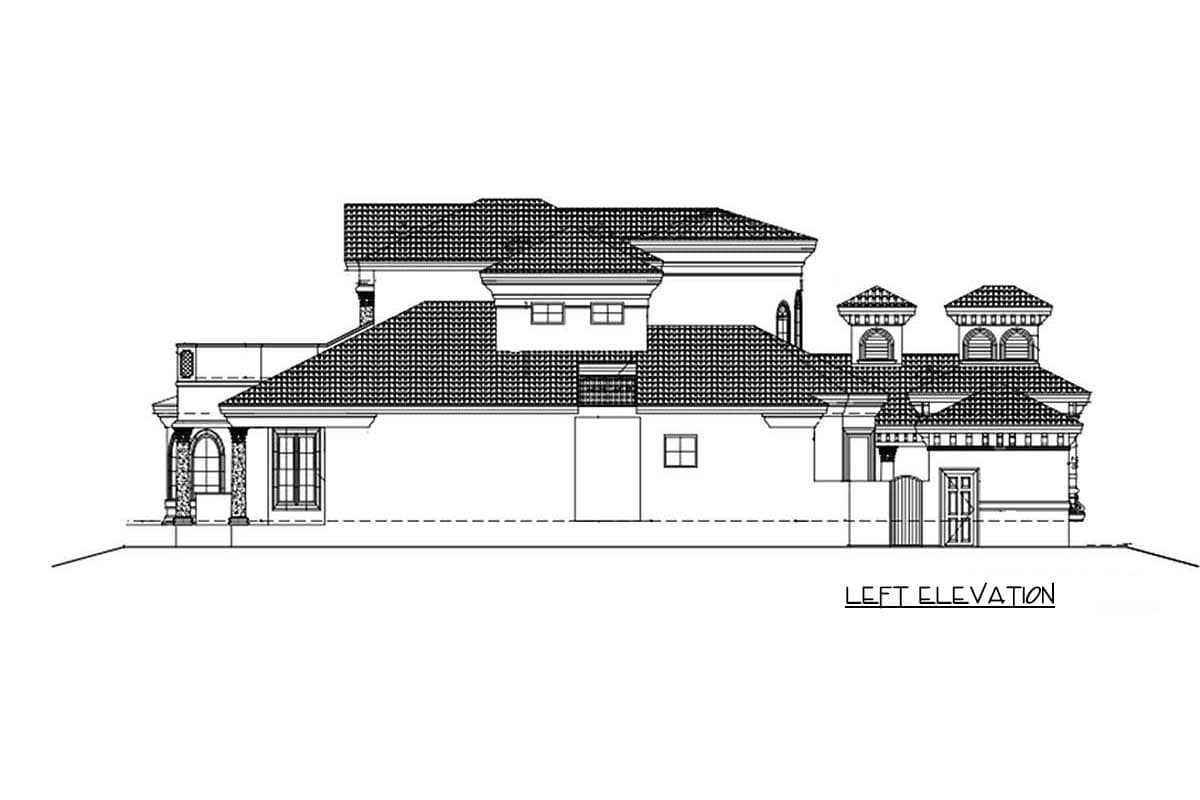

Elevations of All Sides
Roof Plans
Building Sections
Wall Sections
Fastener Requirements

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

6,045 sq. ft.

1st Floor

3,995 sq. ft.

2nd Floor

2,050 sq. ft.

Deck

669 sq. ft.

Entry

54 sq. ft.

Balcony / Veranda

73 sq. ft.

Lanai

525 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

85' 0"

Depth

83' 6"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

907 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Room

Ceiling Type

Height

Foyer

Flat

24' 0''

Living Room

Tray

12' 0''

Dining Room

Tray

12' 0''

Family Room

Vaulted

0' 0''

Kitchen

Tray

12' 0''

Master Bedroom

Vaulted

0' 0''

Guest Room

Tray

0' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - 2nd Floor

Outdoor Kitchen

Two Master Suites

Plan Collections

Premium Collection

Square Footage Breakdown

Total Heated Area

6,045 sq. ft.

1st Floor

3,995 sq. ft.

2nd Floor

2,050 sq. ft.

Deck

669 sq. ft.

Entry

54 sq. ft.

Balcony / Veranda

73 sq. ft.

Lanai

525 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

85' 0"

Depth

83' 6"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

907 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Room

Ceiling Type

Height

Foyer

Flat

24' 0''

Living Room

Tray

12' 0''

Dining Room

Tray

12' 0''

Family Room

Vaulted

0' 0''

Kitchen

Tray

12' 0''

Master Bedroom

Vaulted

0' 0''

Guest Room

Tray

0' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - 2nd Floor

Outdoor Kitchen

Two Master Suites

Plan Collections

Premium Collection
