Plan 23792JD

Breathtaking 5-Bed Northwest House Plan with Second-Level Bonus Room - 3962 Sq Ft

Heated S.F.

3,962

Beds

Baths

4.5

Stories

Cars

Photos

Floor Plan

Main Level

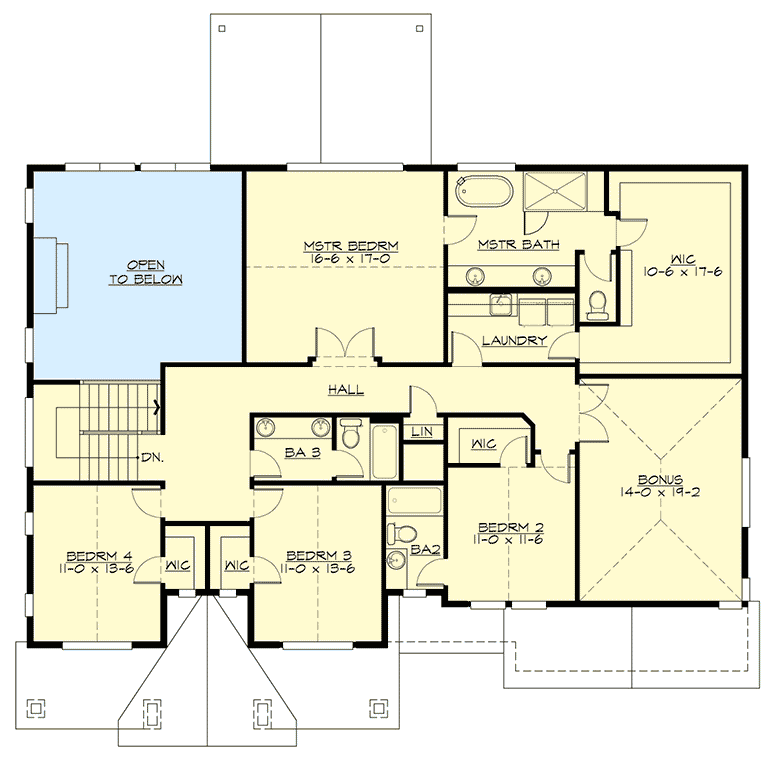

2nd Floor

Plan Details

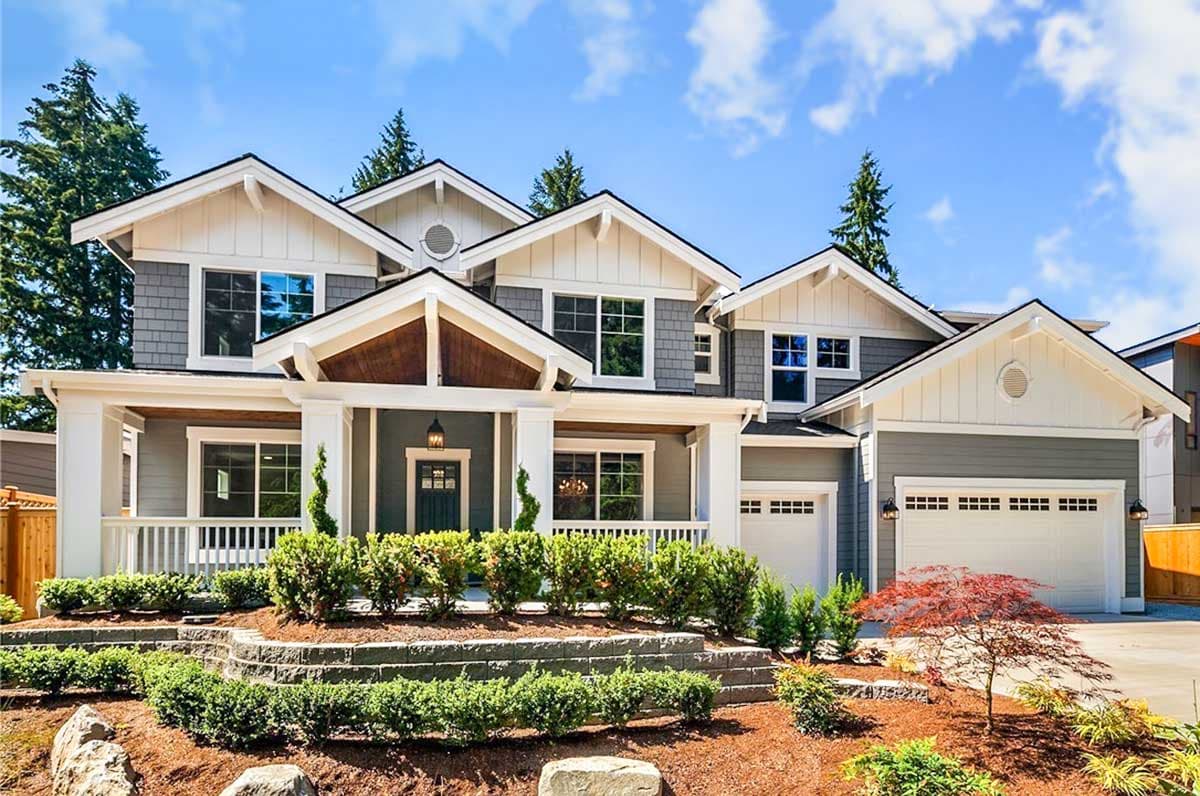

This breathtaking 5-bedroom, Craftsman house plan intrigues the passerby with an open gable roof atop a welcoming front porch. Shake siding, combined with board and batten siding, adds character to the exterior.

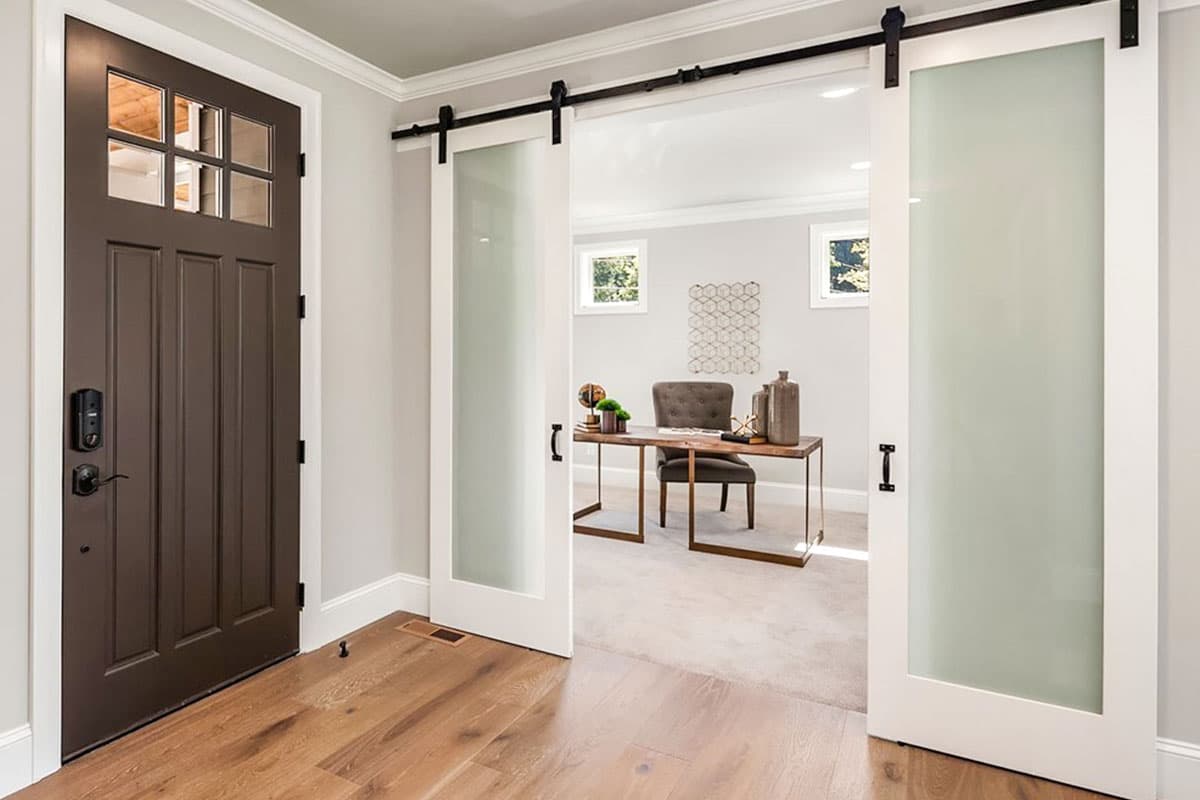

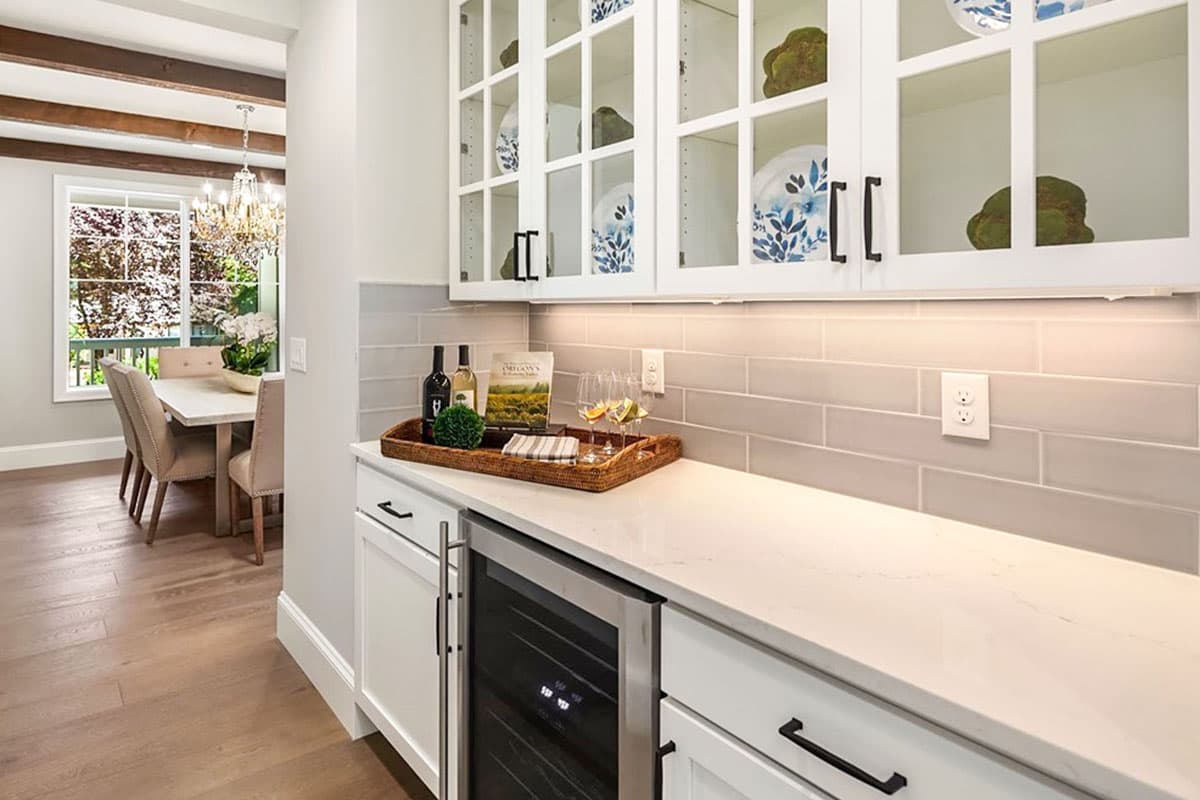

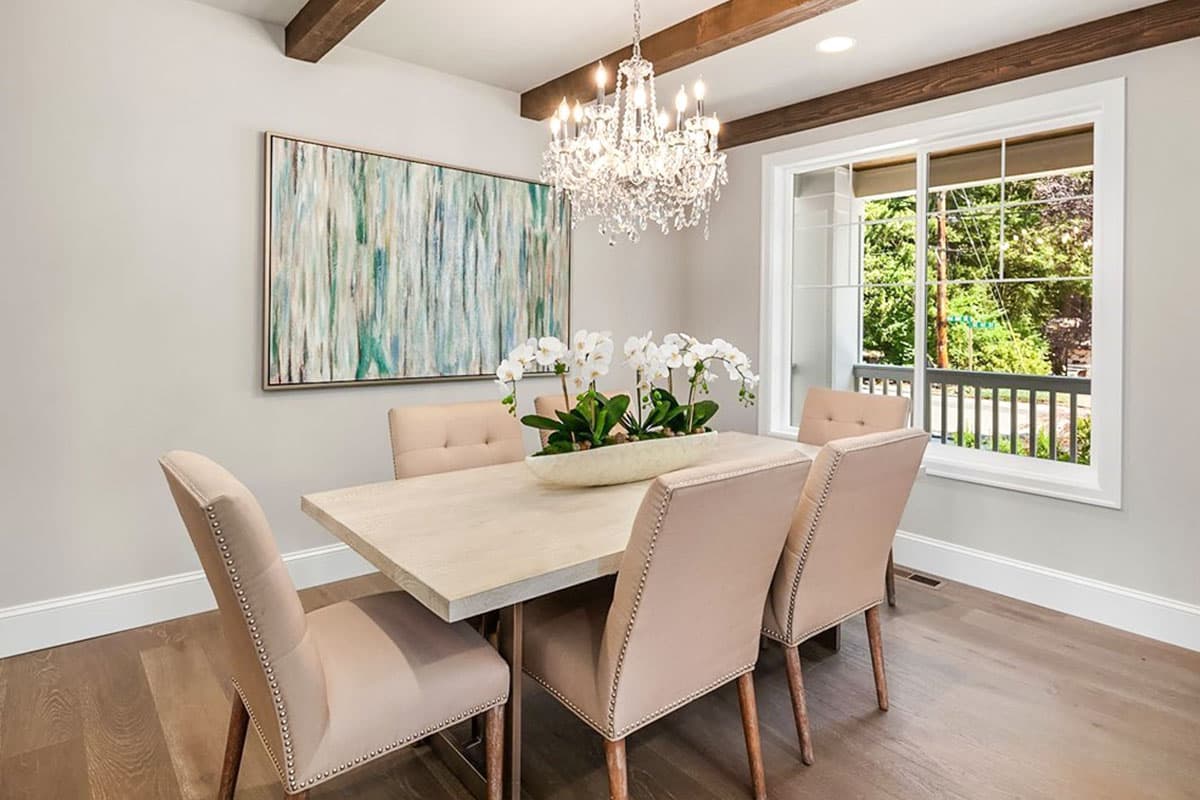

Sophistication defines the interior featuring tray ceilings, exposed beams, barn doors, and a grand two-story great room. Retreat to a quiet den, just to the left of the foyer, while a butler's pantry connects the dining room and kitchen to the right.

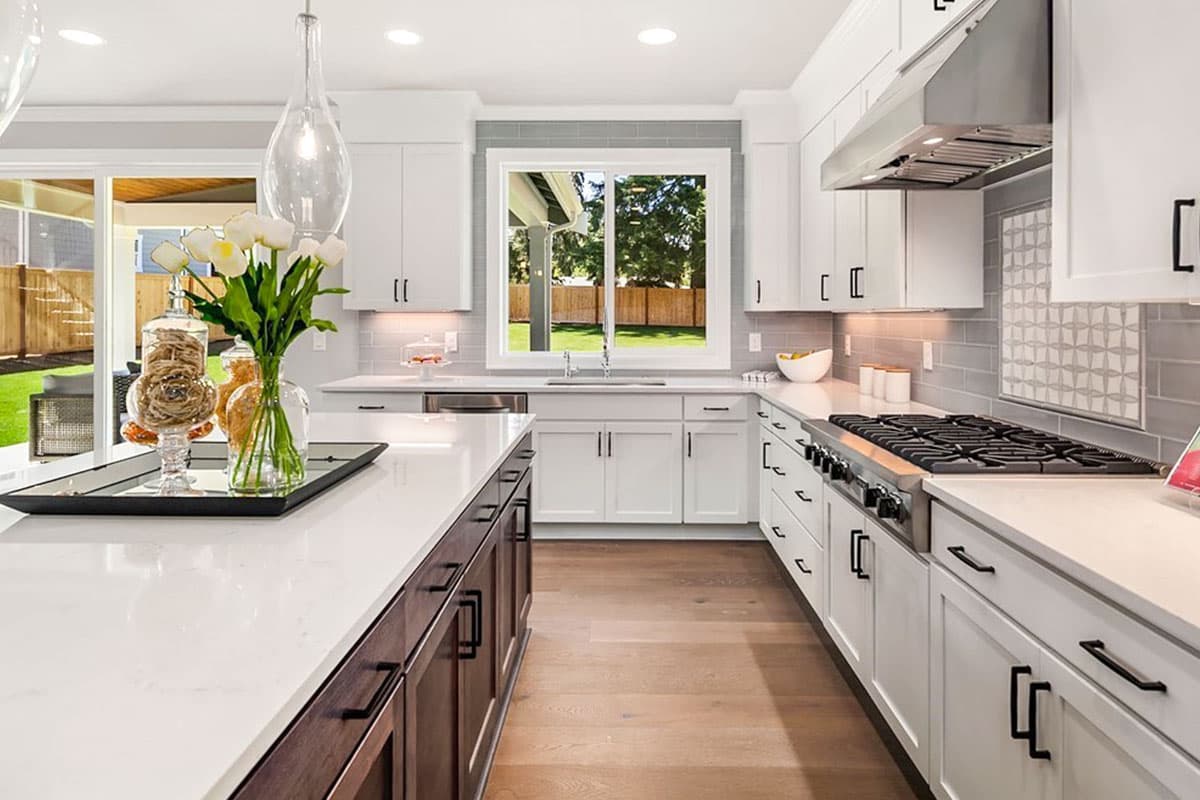

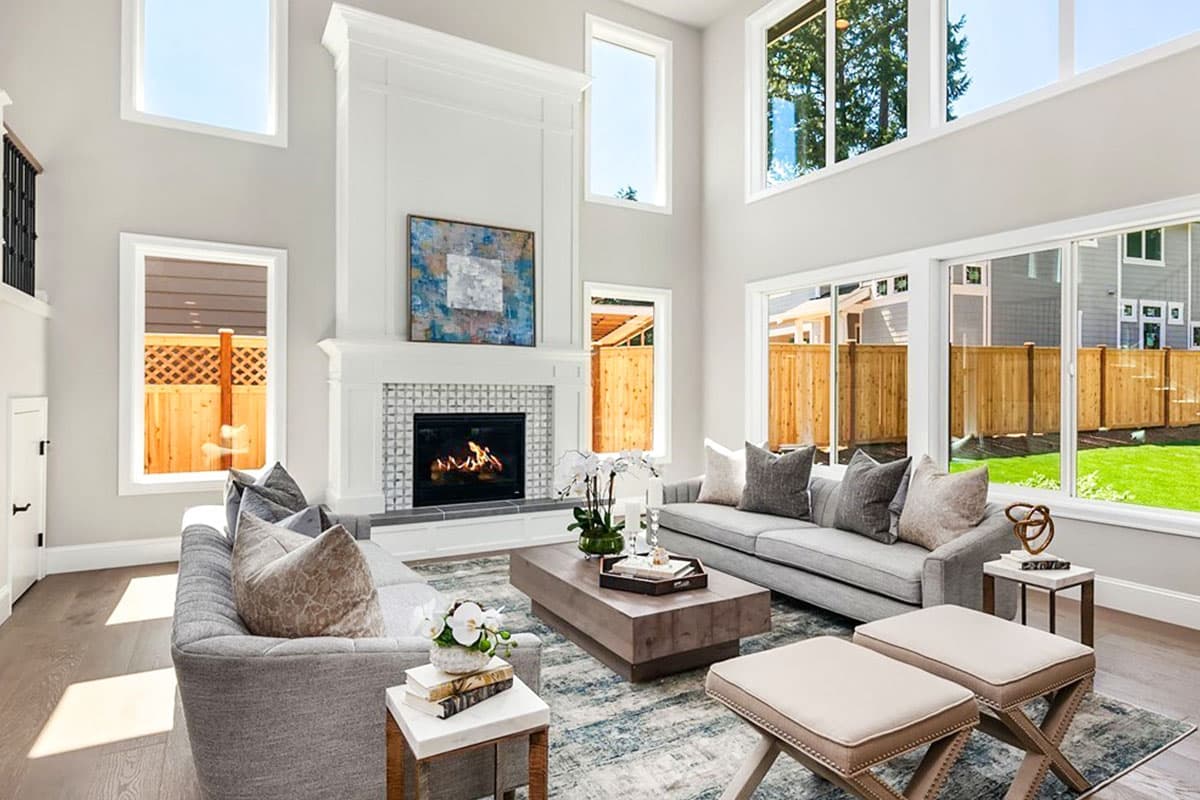

With an open layout, the fireplace can be enjoyed throughout the great room, nook, and kitchen, making conversation flow during gatherings and every day living. A bedroom on the main level is perfect for guests, and includes a bathroom with dual vanities.

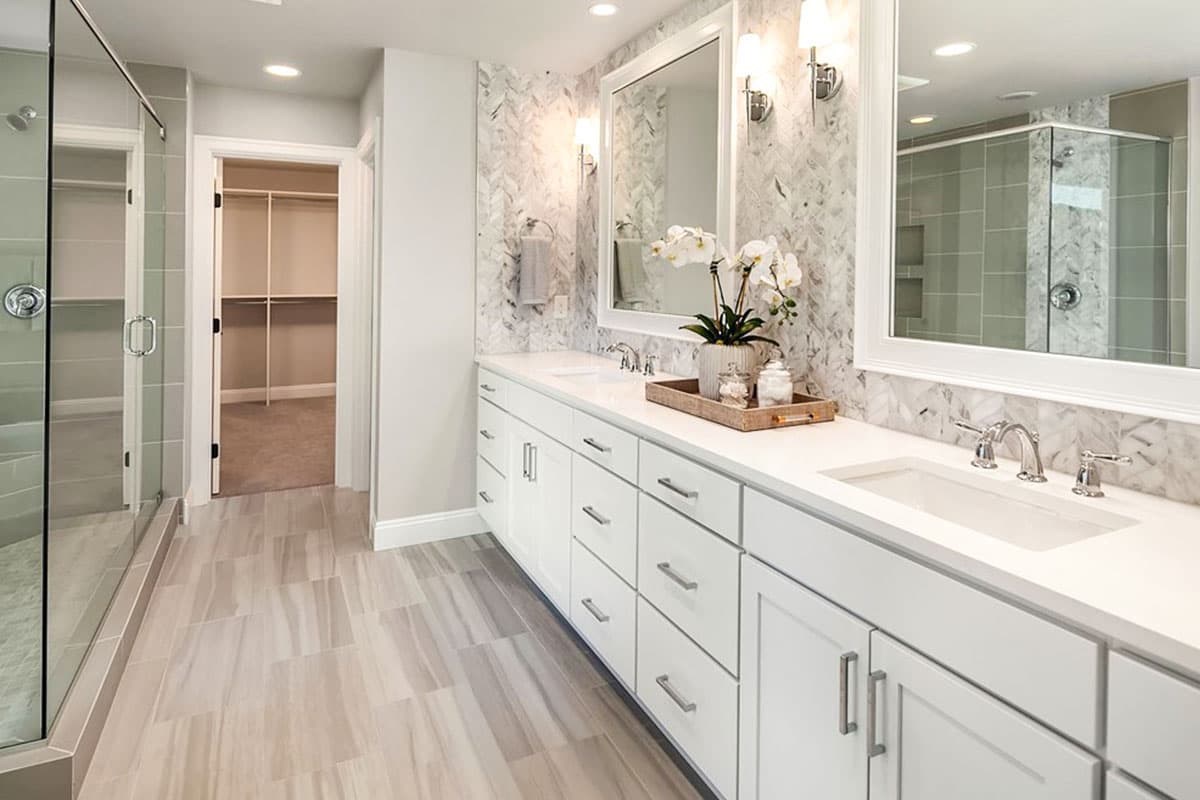

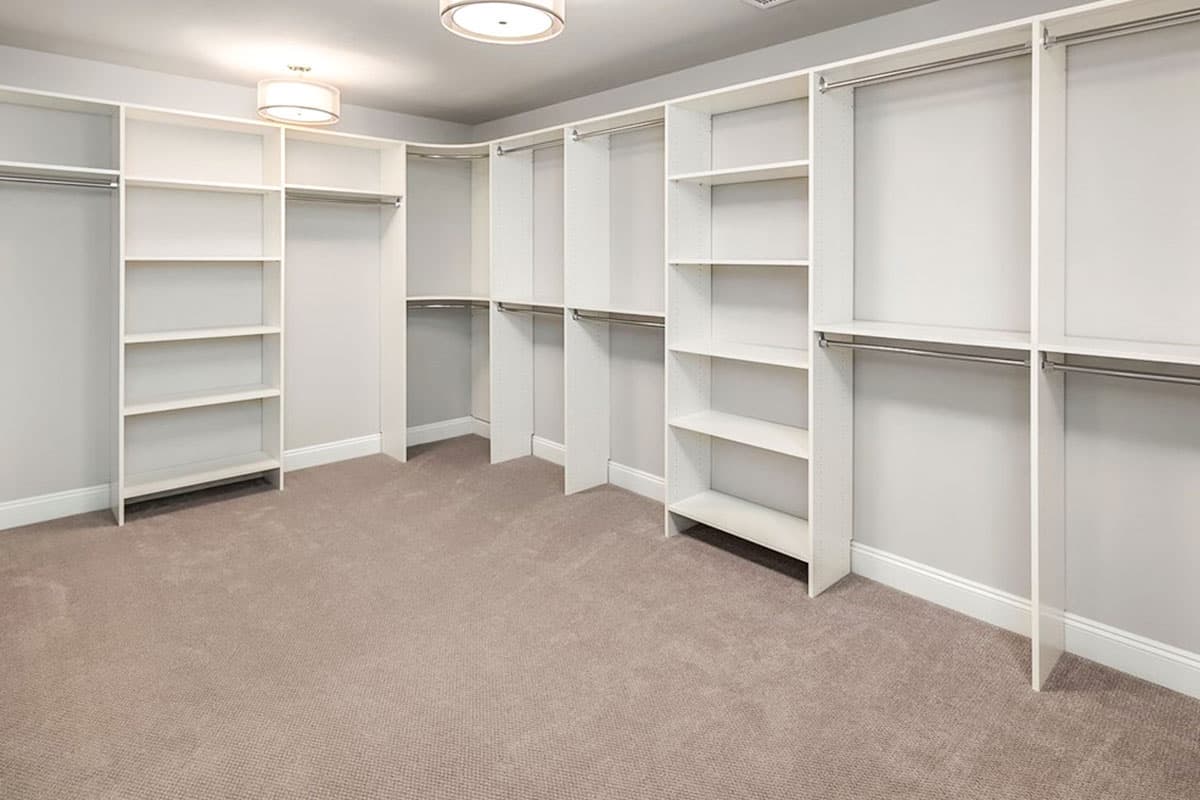

Upstairs, your master bedroom is located through french doors and includes a 5-fixture bathroom and an expansive walk-in closet with access to the second-level laundry room.
Three additional bedrooms reside upstairs along with a roomy bonus room - included in the total living area figures - for added flexibility. Just inside from the 3-car garage resides a mudroom others will envy with built-in lockers and a coat closet.
NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Build Gallery

See and hear from existing customers with real photos, videos, and reviews.

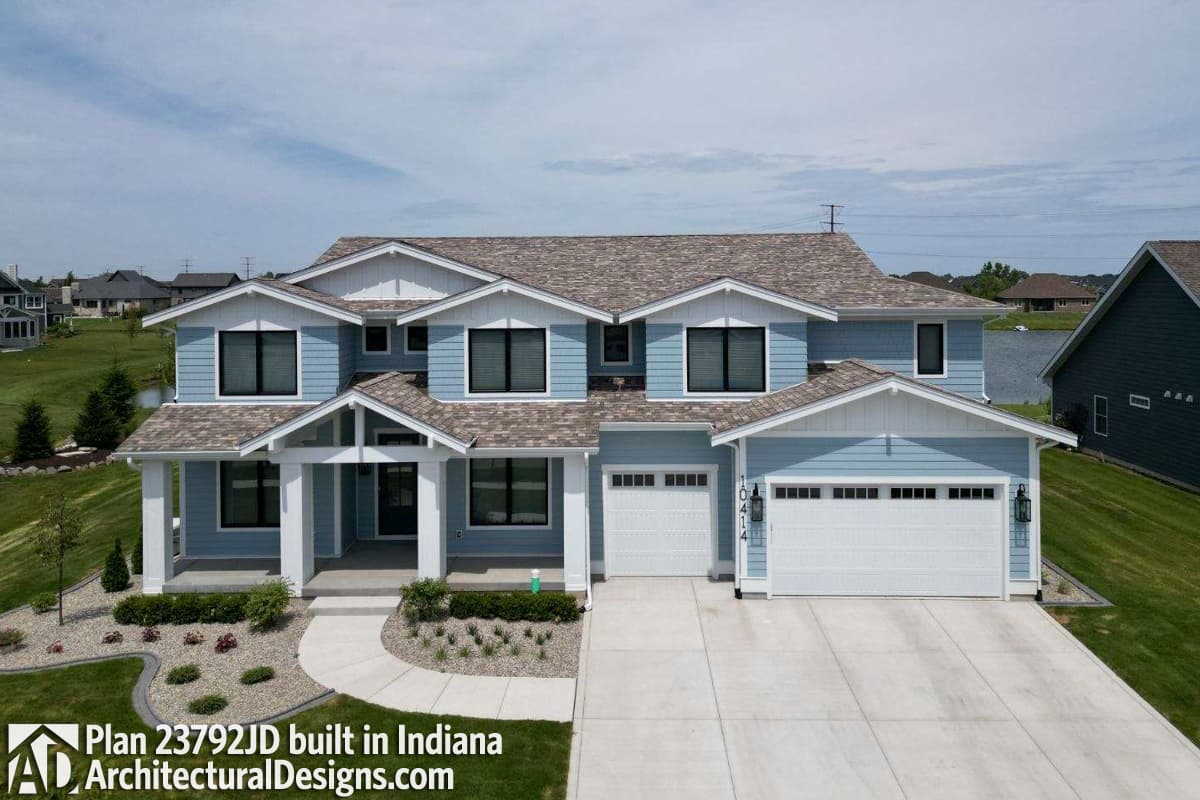

House Plan 23792JD comes to life in Indiana

Photos

What's Included

Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.

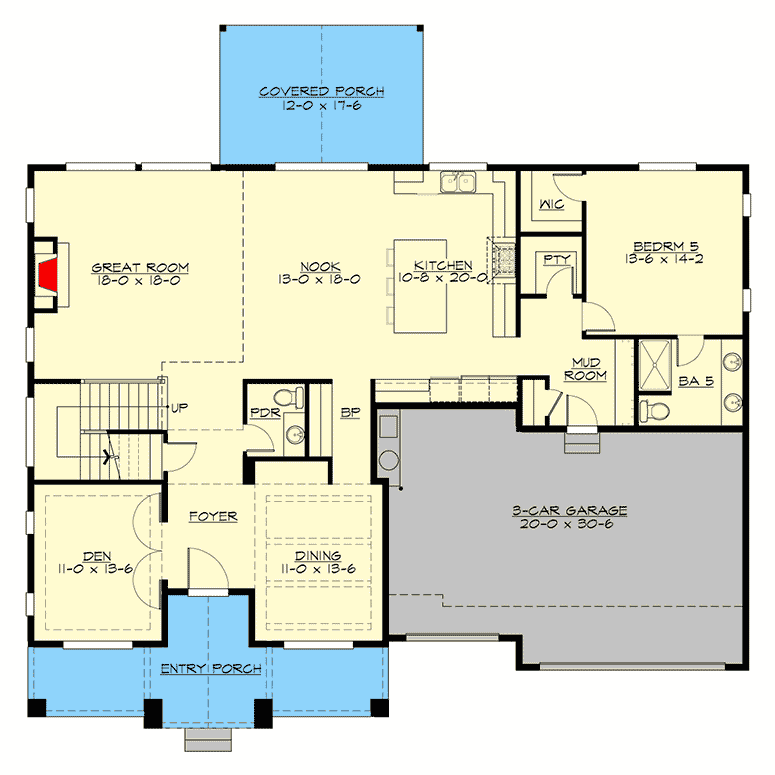

Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

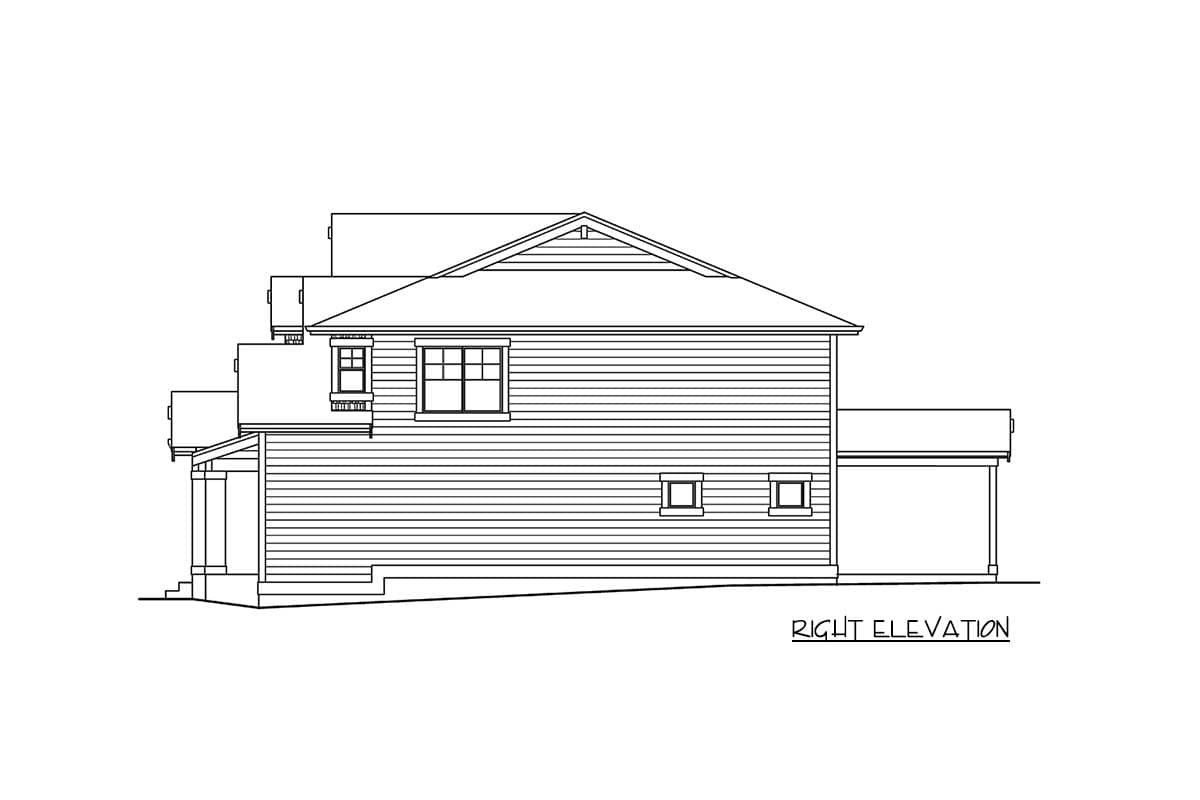

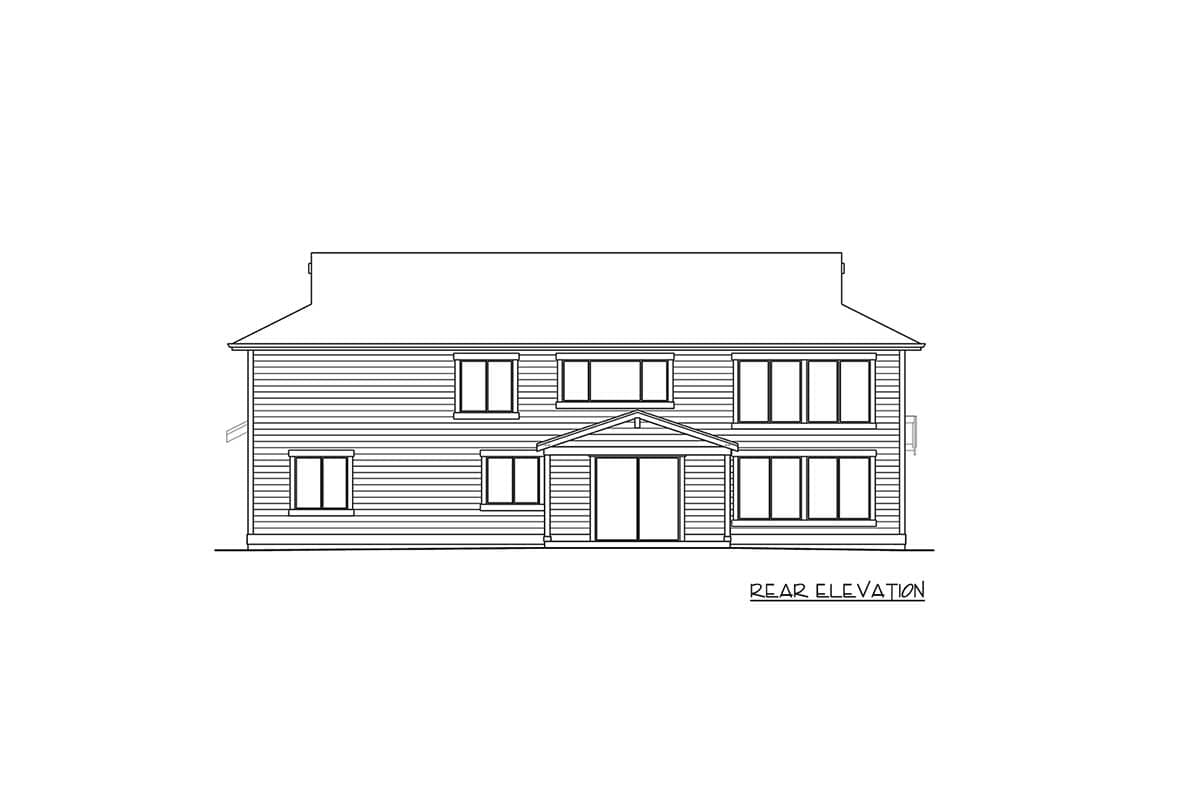

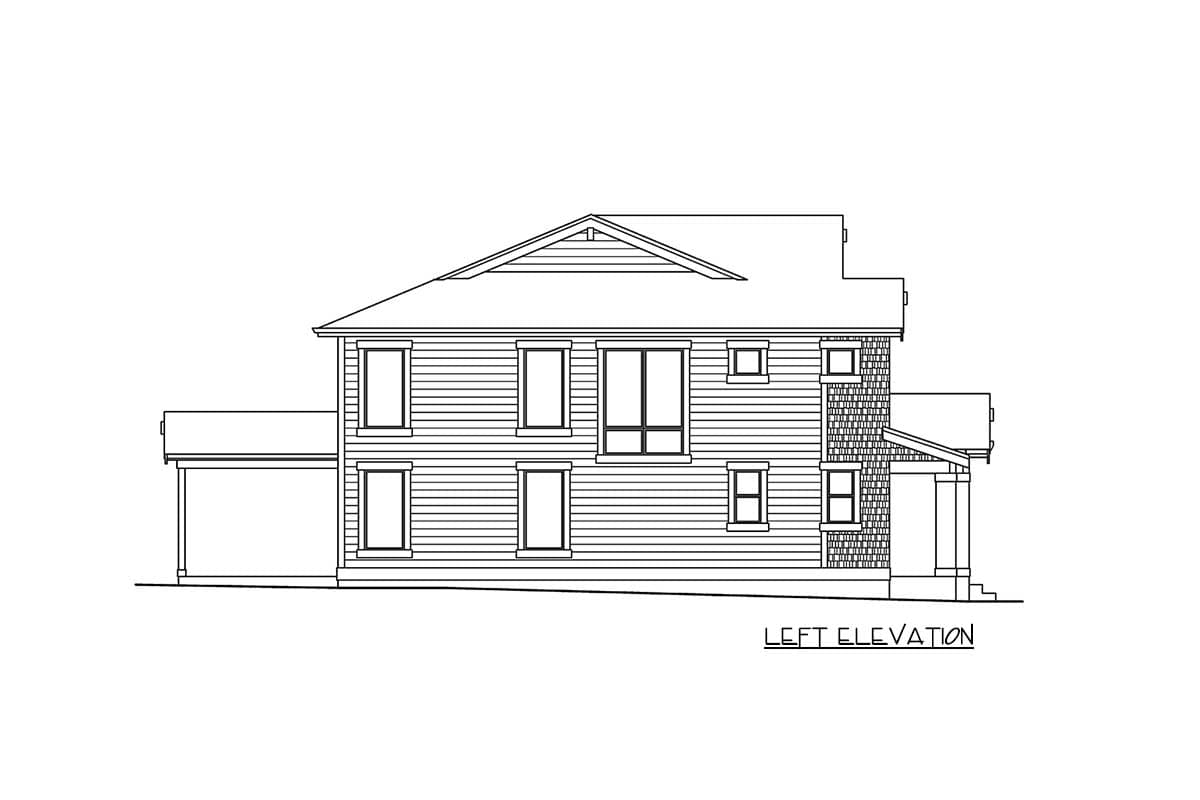

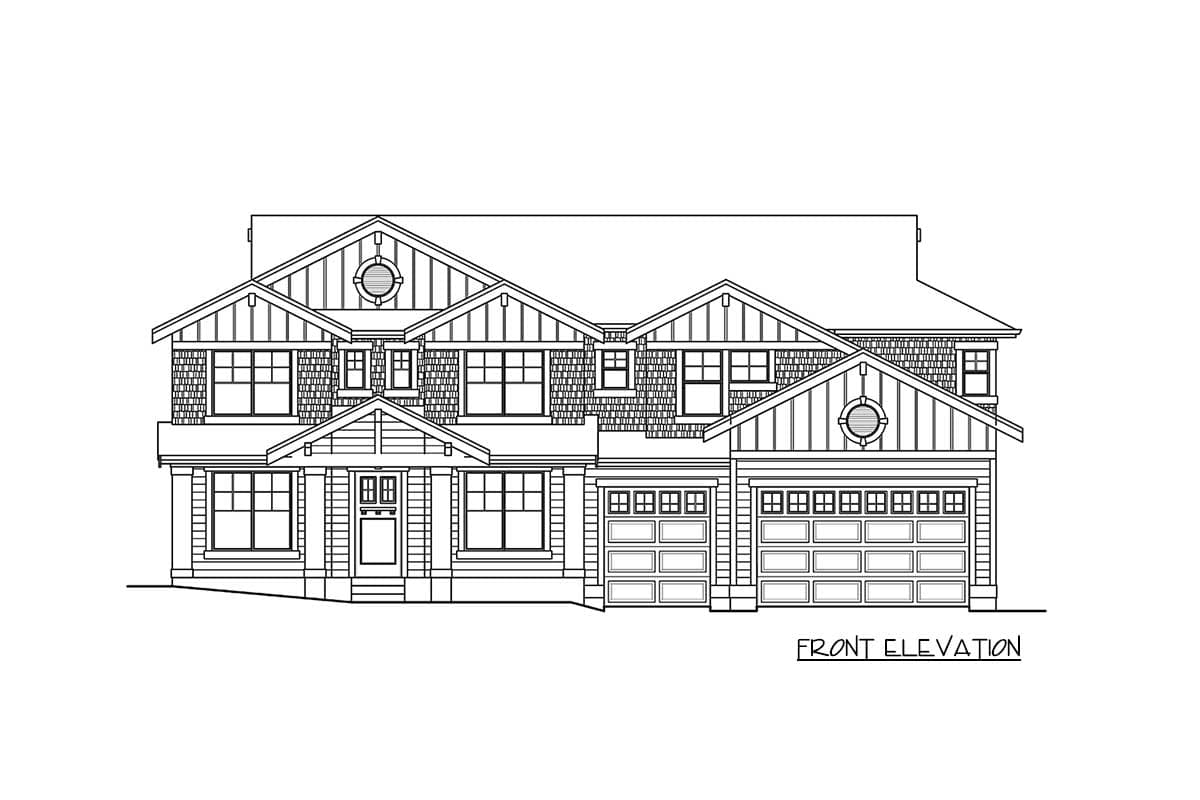

Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

What's Not Included

Electrical Plan - handled by your subcontractor to match your individual needs
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
