Plan 710206BTZ
Brick and Stone 3-Bed Home Plan
Heated S.F.
1,634
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 710206BTZ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 710206BTZ

1-800-854-7852

1-262-521-4596

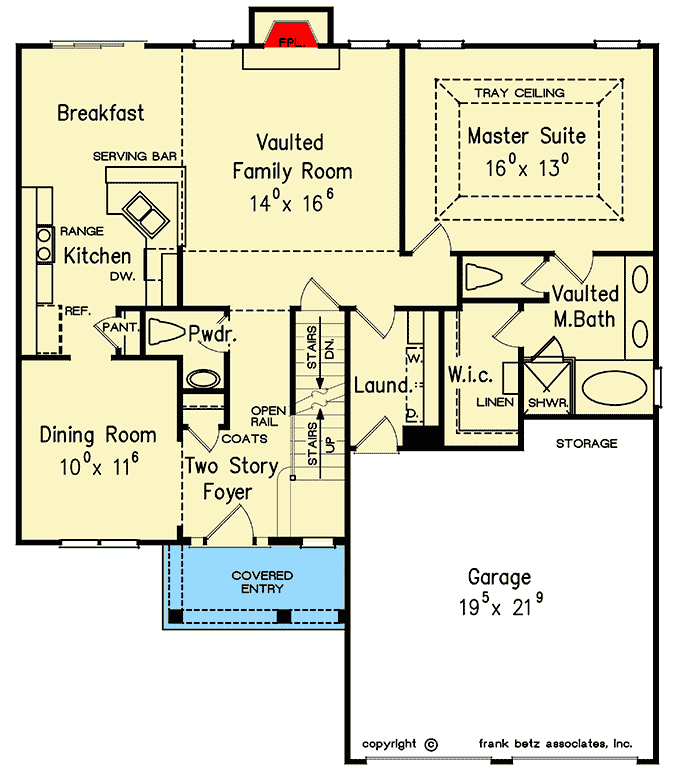

Main Level
floor plan image Main Level

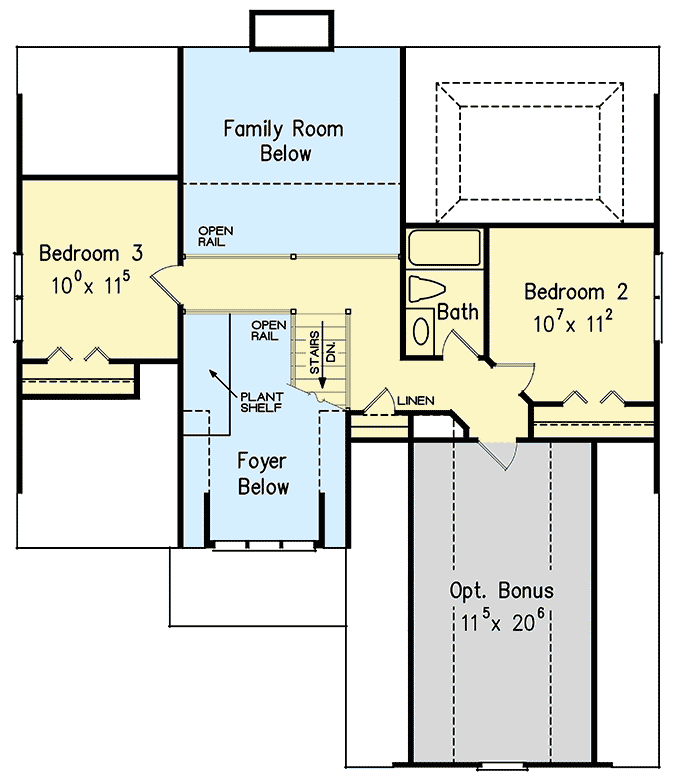

2nd Floor
floor plan image 2nd Floor
Plan Details

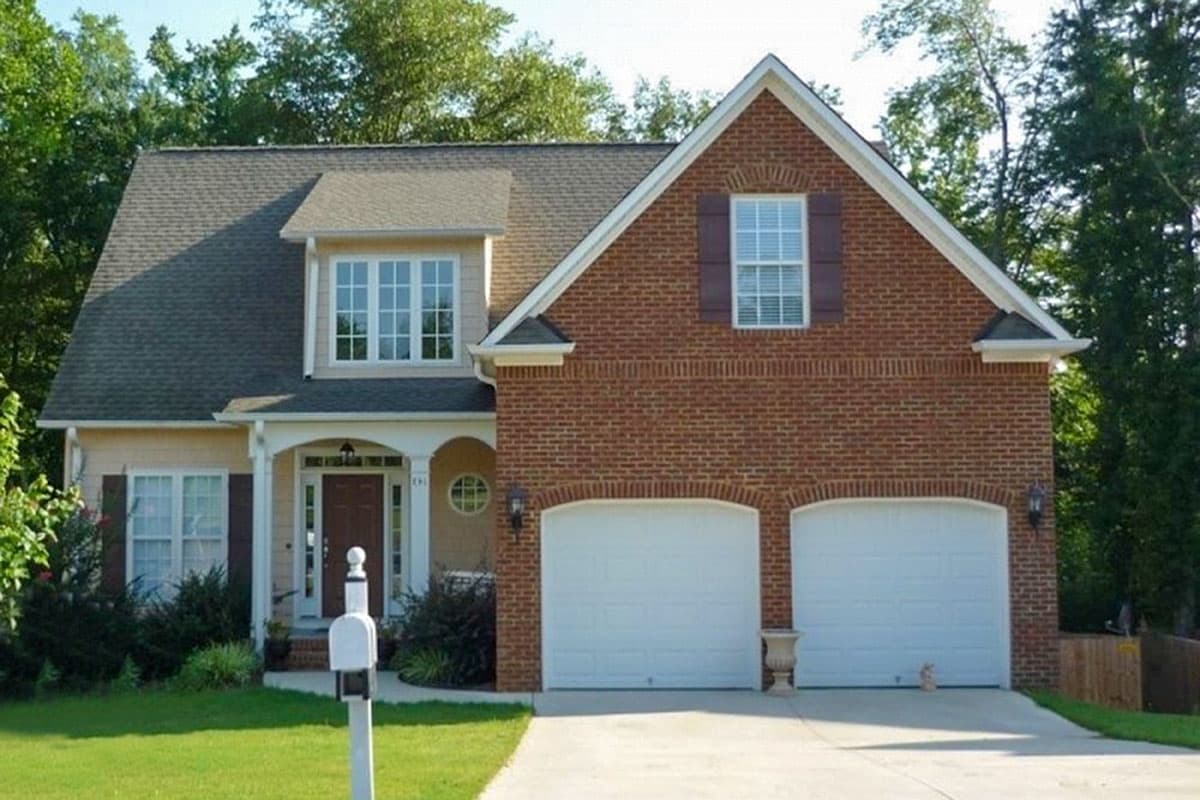

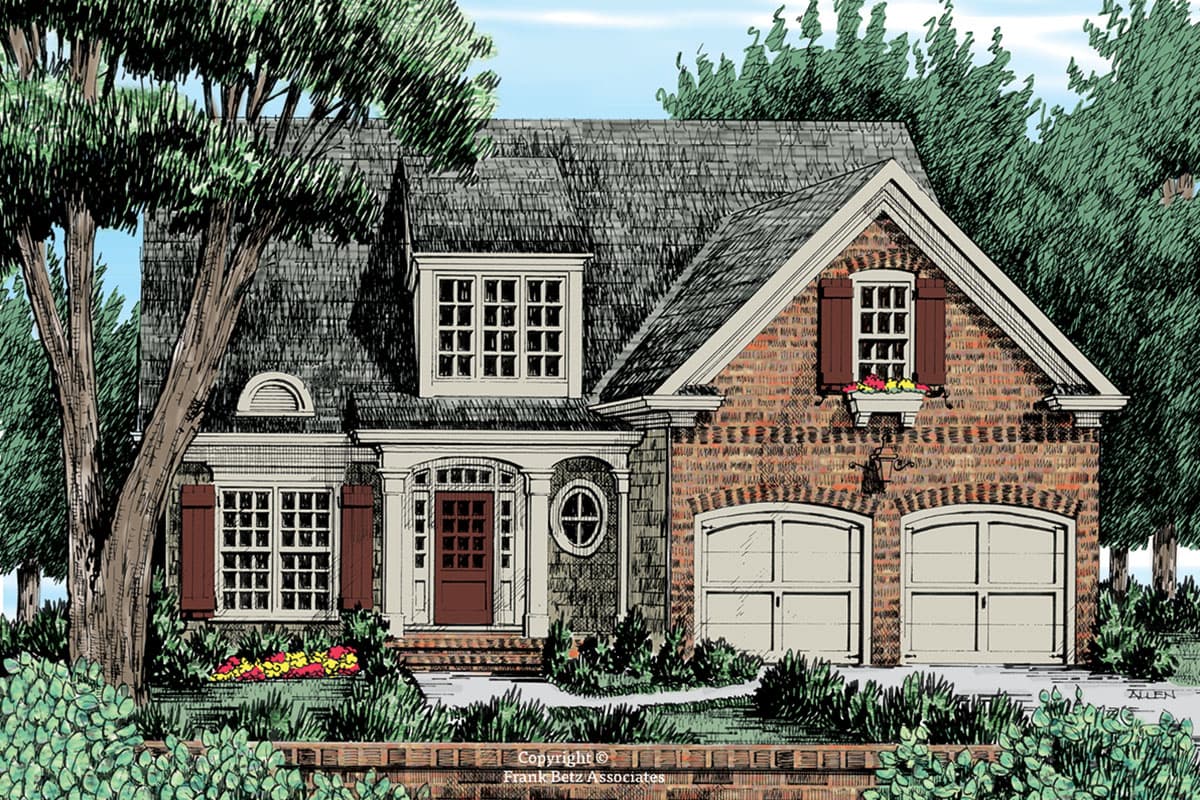

  • Brick and stone set off by multi-pane windows highlight the street presence of this classic 3-bed home plan. A sheltered entry leads to a two-story foyer and wide interior vistas that extend to the back property.
  • Rooms in the public zone are open, allowing the spaces to flex for planned events as well as family gatherings. At the heart of the home, the vaulted family room frames a fireplace with tall windows that bring in natural light.
  • The main-level master suite boasts a tray ceiling, while two upper-level bedrooms are connected by a balcony bridge that overlooks the foyer and family room.
What's Included

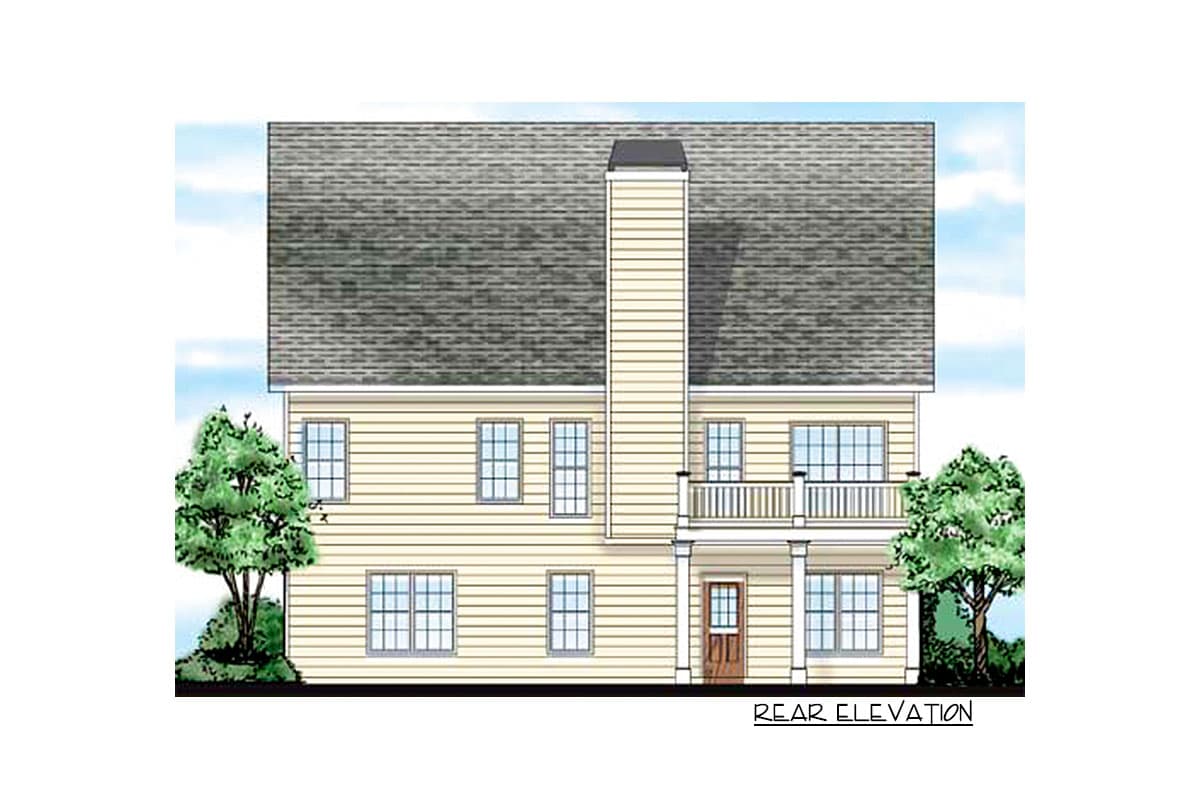

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,634 sq. ft.

1st Floor

1,177 sq. ft.

2nd Floor

457 sq. ft.

Basement Unfinished

1,177 sq. ft.

Bonus

249 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

41' 0"

Depth

48' 4"

Max Ridge Height

26' 4"

Garage

Type

Attached

Area

416 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Southern

Traditional

Special Features

Bonus Room

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections
