Plan 59970ND

Brick Arched Entry

Heated S.F.

4,886

Beds

4

Baths

4.5+

Stories

1

Cars

3

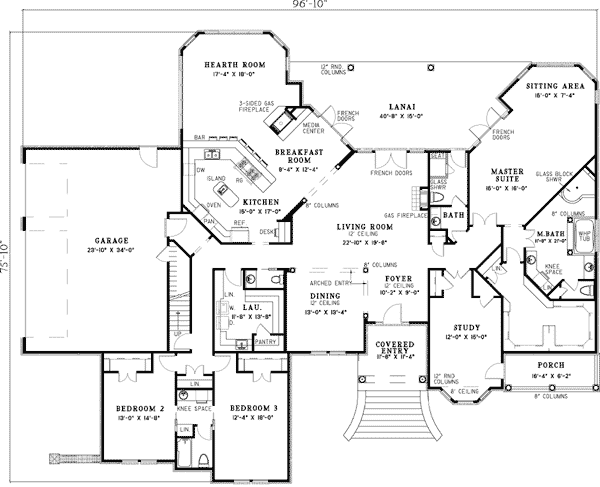

Floor Plan

Main Level

floor plan image Main Level

2nd Floor

floor plan image 2nd Floor

Plan Details

Enter through the brick arched entry of this home plan to find an elegant design where entertaining family and friends is fun and easy.
Enjoy the coziness of the hearth room when family visits for the holiday. After the party ends, you'll find comfort in the privacy on your secluded master suite with a sitting area or relax in your soothing whirlpool bath.
Beautiful French doors welcome you to the lanai where mornings and afternoons are best enjoyed.
Upstairs, you can start each day by exercising or end the day by entertaining in the game room.

What's Included

Foundation Plan (1/4″ or 1/2″ = 1′)
Floor Plans (1/4″= 1′)
Set of Elevations (1/4″= 1′)
Miscellaneous Details (3/4″ = 1′)
An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,886 sq. ft.

1st Floor

4,086 sq. ft.

2nd Floor

800 sq. ft.

Porch, Rear

431 sq. ft.

Entry
