Plan 72873DA
Bungalow-Inspired Ranch House Plan with 3 Beds
Heated S.F.
1,819
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 72873DA

Main Level
slide image 0

Plan 72873DA

1-800-854-7852

1-262-521-4596

Main Level

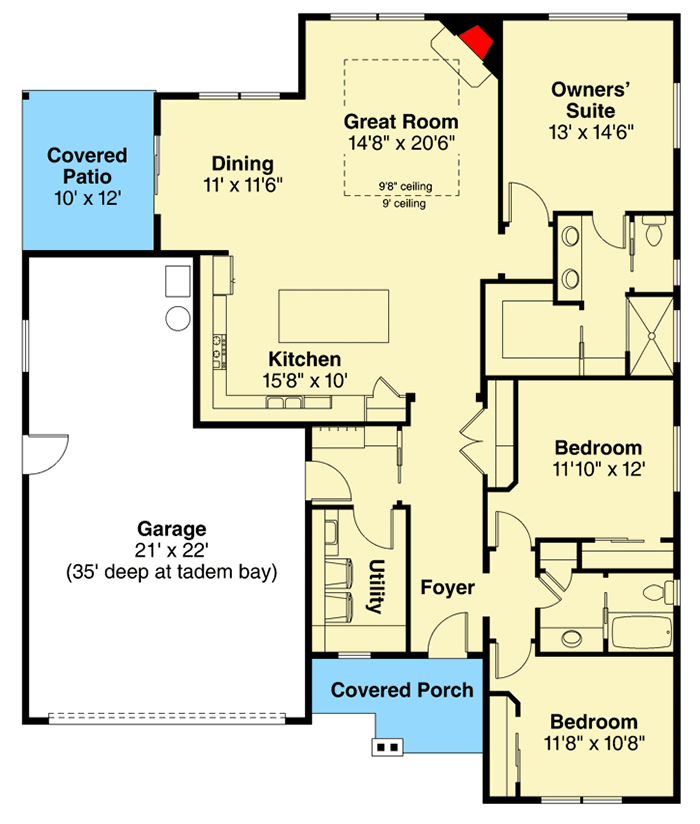

floor plan image Main Level
Plan Details
  • Walking through the front door you are drawn through a long foyer.
  • To the right is and opening that leads to two additional bedrooms and bathroom.
  • To the left a pocket door hides a mudroom that transitions between the garage and the utility room.
  • In the back of the house is the great room with a gas fireplace tucked into the corner that can also be enjoyed from the dining room and kitchen.
  • Accessed off the great room is the Master Suite which features a generous sized walk-in closet and well appointed bathroom.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,819 sq. ft.

1st Floor

1,819 sq. ft.

Covered Patio

120 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

60' 0"

Max Ridge Height

20' 2"

Garage

Type

Attached

Area

660 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

Northwest

Ranch

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,819 sq. ft.

1st Floor

1,819 sq. ft.

Covered Patio

120 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

60' 0"

Max Ridge Height

20' 2"

Garage

Type

Attached

Area

660 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

Northwest

Ranch

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Mudroom
