Plan 23449JD
Bungalow with Drive Under Garage
Heated S.F.
1,050
Beds
2
Baths
1
Stories
1
Cars
2
Floor Plan

Plan 23449JD

Basement
slide image 0
Main Level
slide image 1

Plan 23449JD

1-800-854-7852

1-262-521-4596

Basement
floor plan image Basement

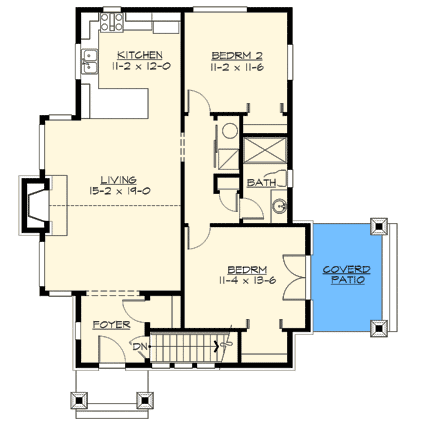

Main Level
floor plan image Main Level
Plan Details

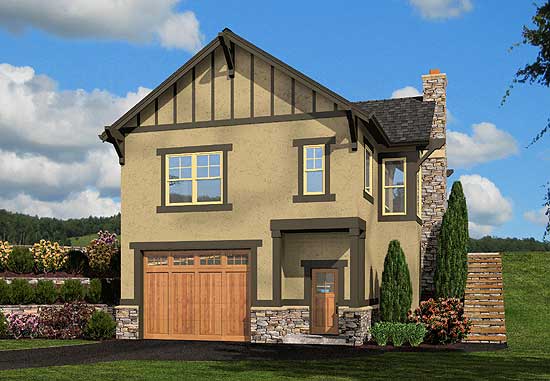

  • Drive right in to your tandem 2 car garage on the basement level of this European Bungalow.
  • Vaulted ceilings crown the large living room with its big fireplace.
  • The efficient U-shaped kitchen has a peninsula bar and windows over the sink.
  • Double doors from the master suite go right out to a private covered porch.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

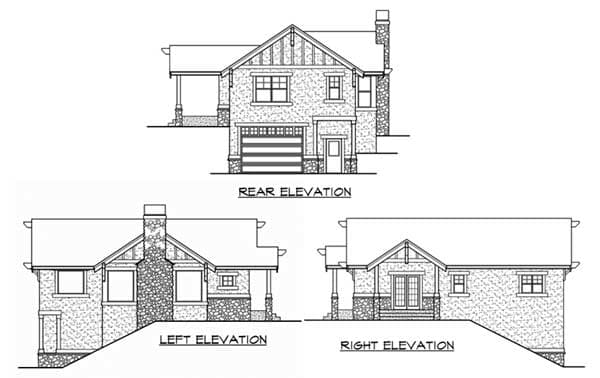

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,050 sq. ft.

1st Floor

1,050 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

44' 0"

Max Ridge Height

17' 6"

Garage

Type

Drive Under

Area

1025 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

Lower Level

10'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

European

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

1,050 sq. ft.

1st Floor

1,050 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

44' 0"

Max Ridge Height

17' 6"

Garage

Type

Drive Under

Area

1025 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

Lower Level

10'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

European

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Sloping Lot
