Plan 51128MM
Bungalow with Many Options
Heated S.F.
2,284
Beds
4
Baths
2.5 - 3.5
Stories
1
Cars
2
Floor Plan

Plan 51128MM

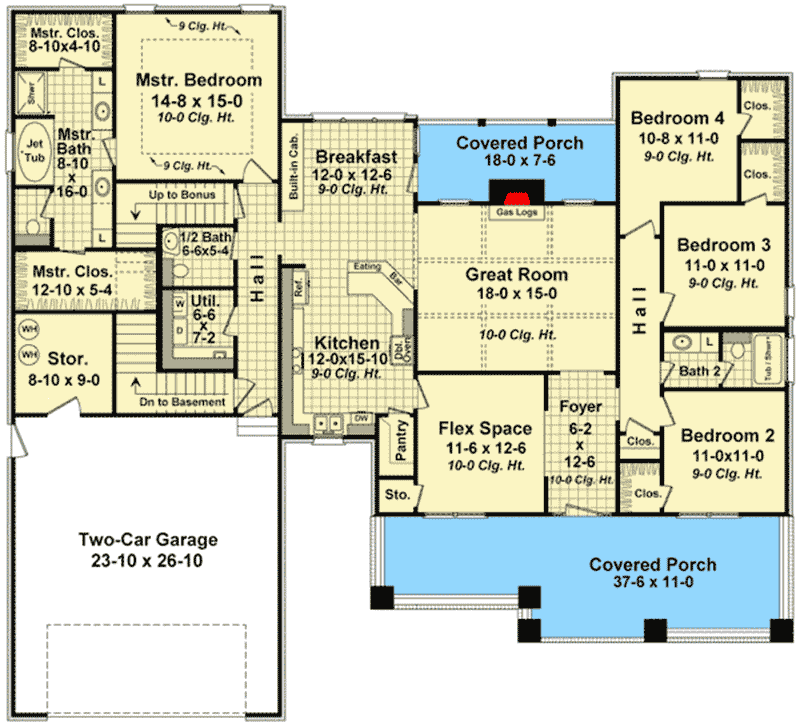

Main Level
slide image 0

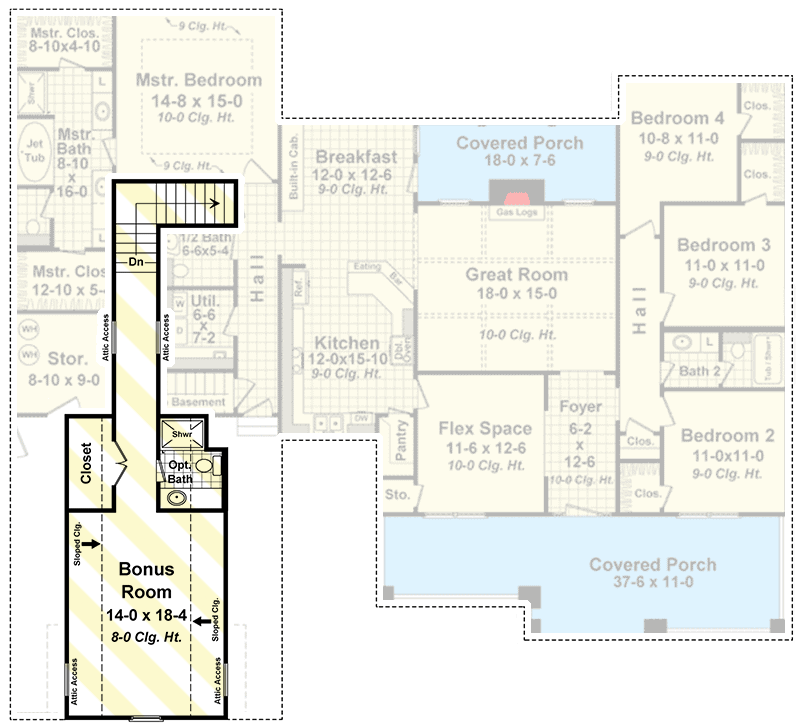

Bonus
slide image 1

Plan 51128MM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Bonus
floor plan image Bonus
Plan Details
  • This beautiful Craftsman home plan features four over-sized bedrooms each with large walk-in closets.

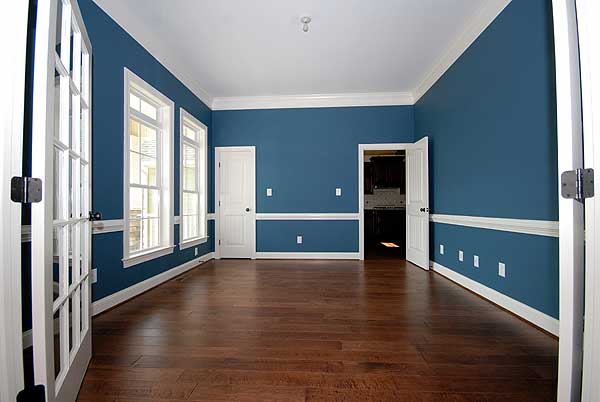

  • The flex space provides a perfect spot for that home office, playroom, or dining room.

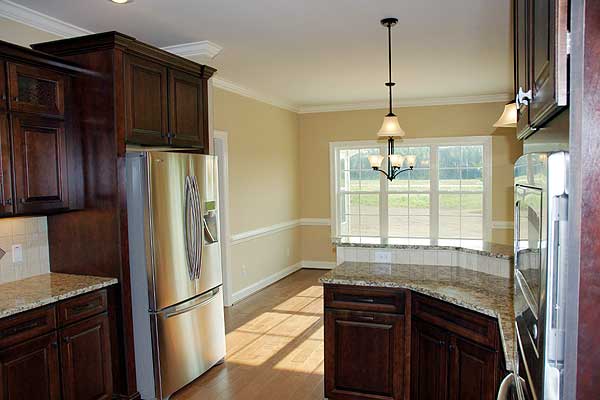

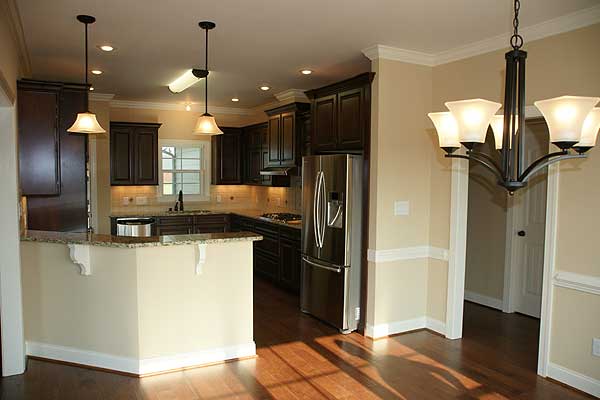

  • A breakfast area, and raised bar all provide twi places for casual meals with close access to the fully equipped kitchen.

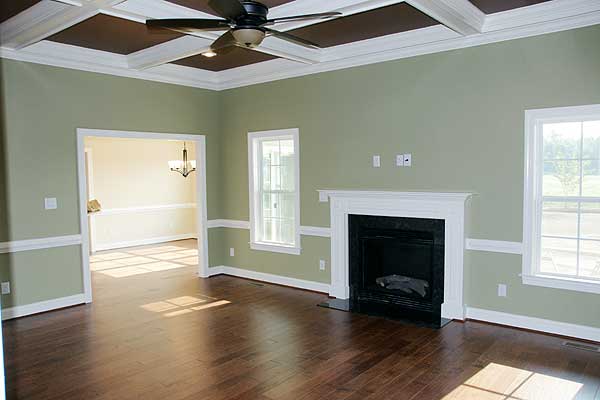

  • The great room includes gas logs, a coffered ceiling, and beautiful views to the covered rear porch.

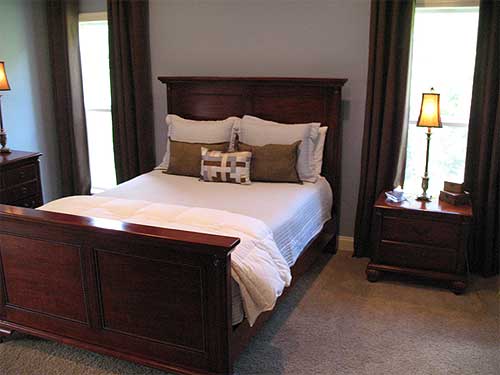

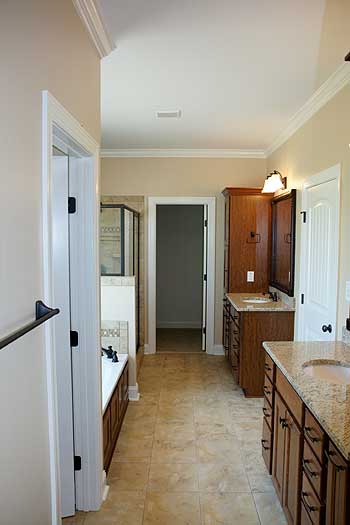

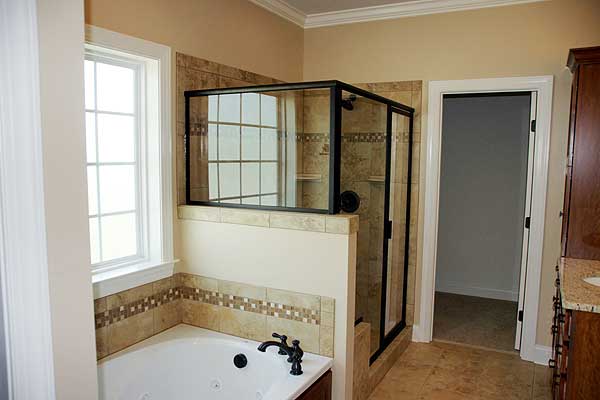

  • The master bedroom features trayed ceilings and the master bathroom leaves nothing to be desired.
  • The expansive garage provides plenty of room for oversized trucks and SUV's and also includes a large storage area.
  • The bonus room provides space for future expansion or for additional storage.
  • Related Plans: Get more room with house plan 51085MM (2,400 sq. ft. in reverse layout). Get a smaller version with house plan 51065MM (2,108 sq. ft.). Get an alternate exterior with house plan 51116MM.
What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

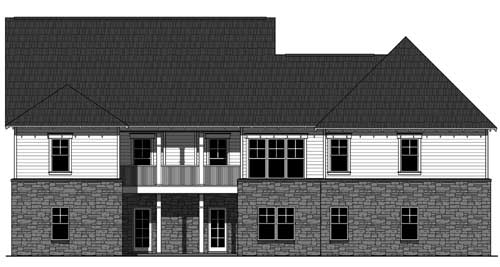

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,284 sq. ft.

1st Floor

2,284 sq. ft.

Bonus

256 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

70' 6"

Depth

64' 0"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

640 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Craftsman

Northwest

Special Features

Bedrooms - Split

Bonus Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Playroom

Plan Collections

Home Office

Photo Gallery

USDA Approved
