Plan 333017JHB
C-Shaped Rustic Craftsman House Plan with Courtyard
Heated S.F.
2,342
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 333017JHB

Main Level
slide image 0

Plan 333017JHB

1-800-854-7852

1-262-521-4596

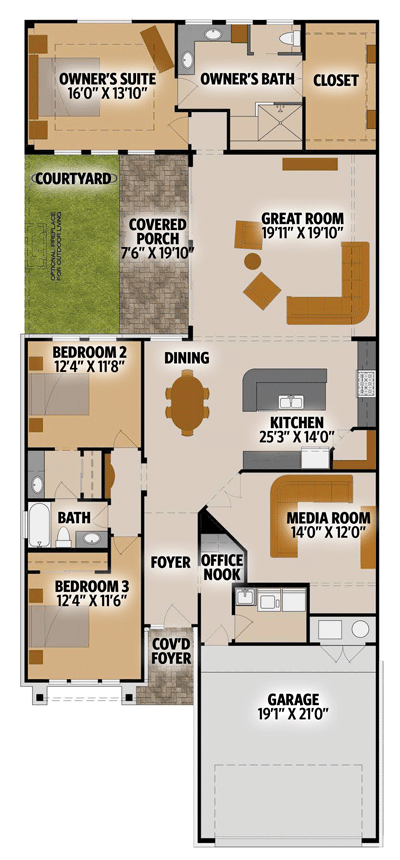

Main Level
floor plan image Main Level
Plan Details
  • This C-shaped Craftsman bungalow - just 39'6" wide - is perfect for a narrow lot. The rustic façade opens to wide open spaces, tall ceilings and clerestory windows and the home is adaptable to a zero lot line design with only minor modifications.
  • A side courtyard gives great privacy to the master suite, great room, dining room and Bed 2 all of which look out upon it. An optional fireplace and courtyard wall would give even more privacy.
  • Use the room closest to the entry - labeled "Media/Away Room" as your home office and work from home in style behind a pair of French doors.
  • The great room is open to the dining room and kitchen and has direct access to the covered side porch extending your entertaining possibilities outdoors.

What's Included

  • Cover page with legends & notes
  • Foundation details
  • Floor plan(s) [depending on whether it’s 1 or 2 stories]
  • Dimension plan(s)
  • Front view
  • Right view
  • Left view
  • Rear view
  • Building section(s)
  • Wall section
  • Interior views
  • Electrical plan(s)
  • Roof layout plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,342 sq. ft.

1st Floor

2,342 sq. ft.

Porch, Front

45 sq. ft.

Porch, Rear

147 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4 or 2x6

Optional Type(s)

2x6

Dimensions

Width

39' 6"

Depth

90' 0"

Max Ridge Height

18' 8"

Garage

Type

Attached

Area

450 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Bungalow

Country

Craftsman

Hill Country

Ranch

Rustic

Special Features

Bedrooms - Split

Courtyard

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
