Plan 70596MK
Cabin House Plan with Matching 8'-Deep Porches Front and Back - 1764 Sq Ft
Heated S.F.
1,764
Beds
3
Baths
2
Stories
2
Floor Plan

Plan 70596MK

Main Level
slide image 0
2nd Floor
slide image 1

Plan 70596MK

1-800-854-7852

1-262-521-4596

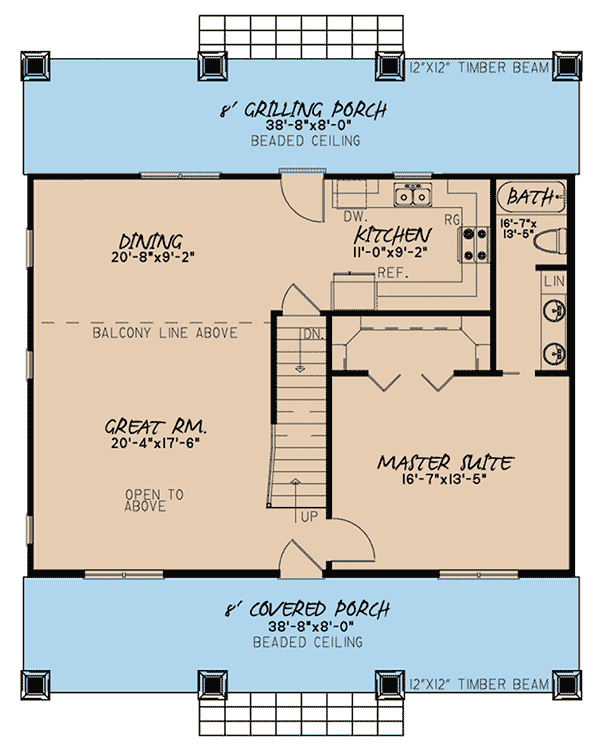

Main Level
floor plan image Main Level

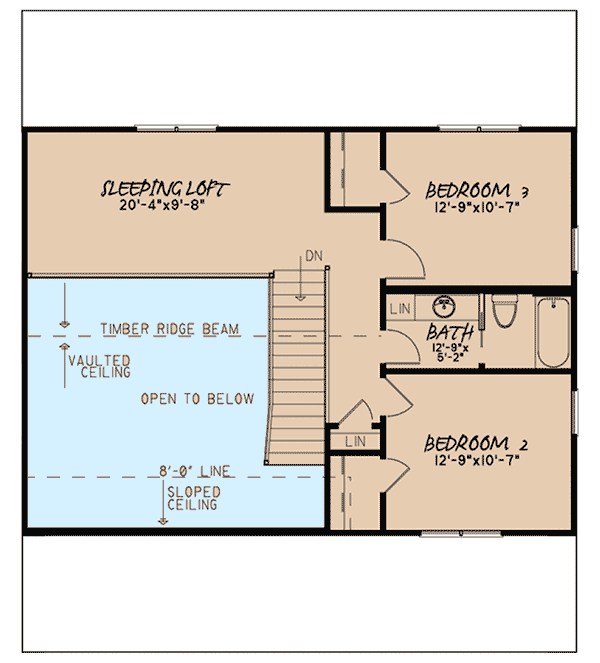

2nd Floor
floor plan image 2nd Floor
Plan Details

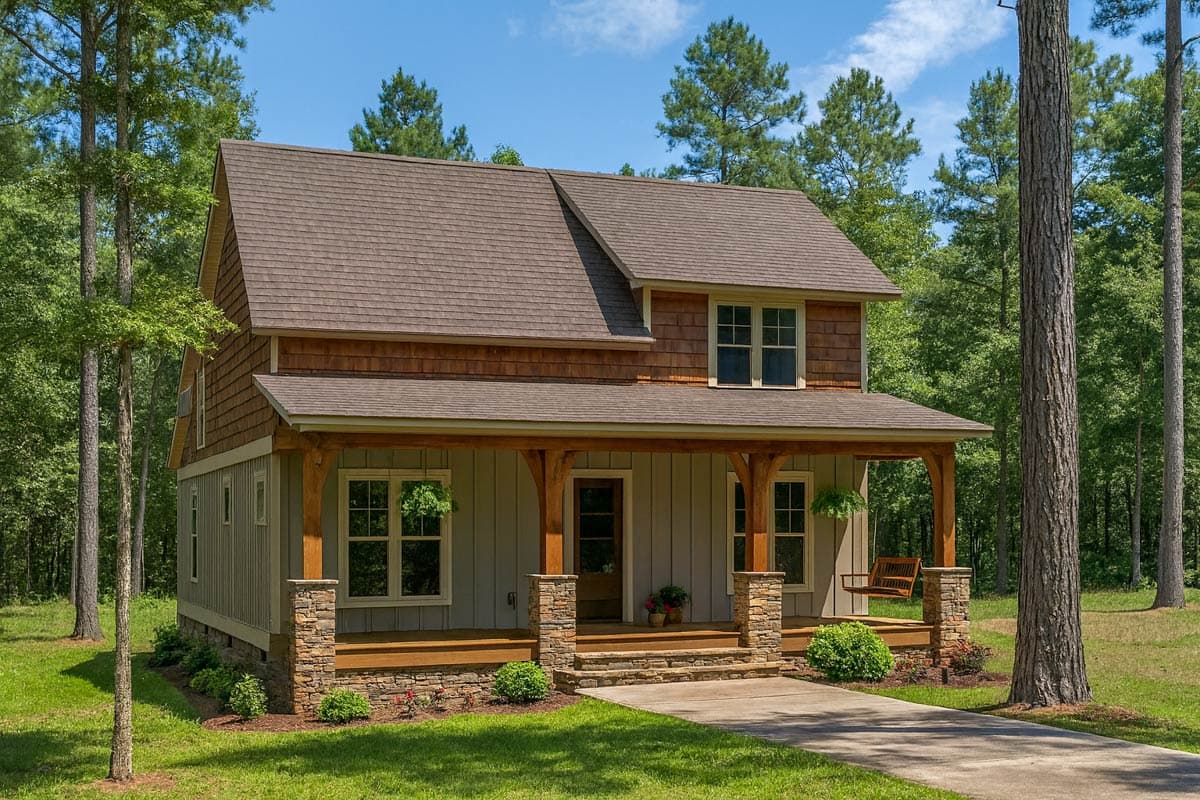

  • This charming rustic house plan has a front porch spanning the full width of the home and an attractive exterior with a mix of board and batten siding and shingles with a touch of stone.

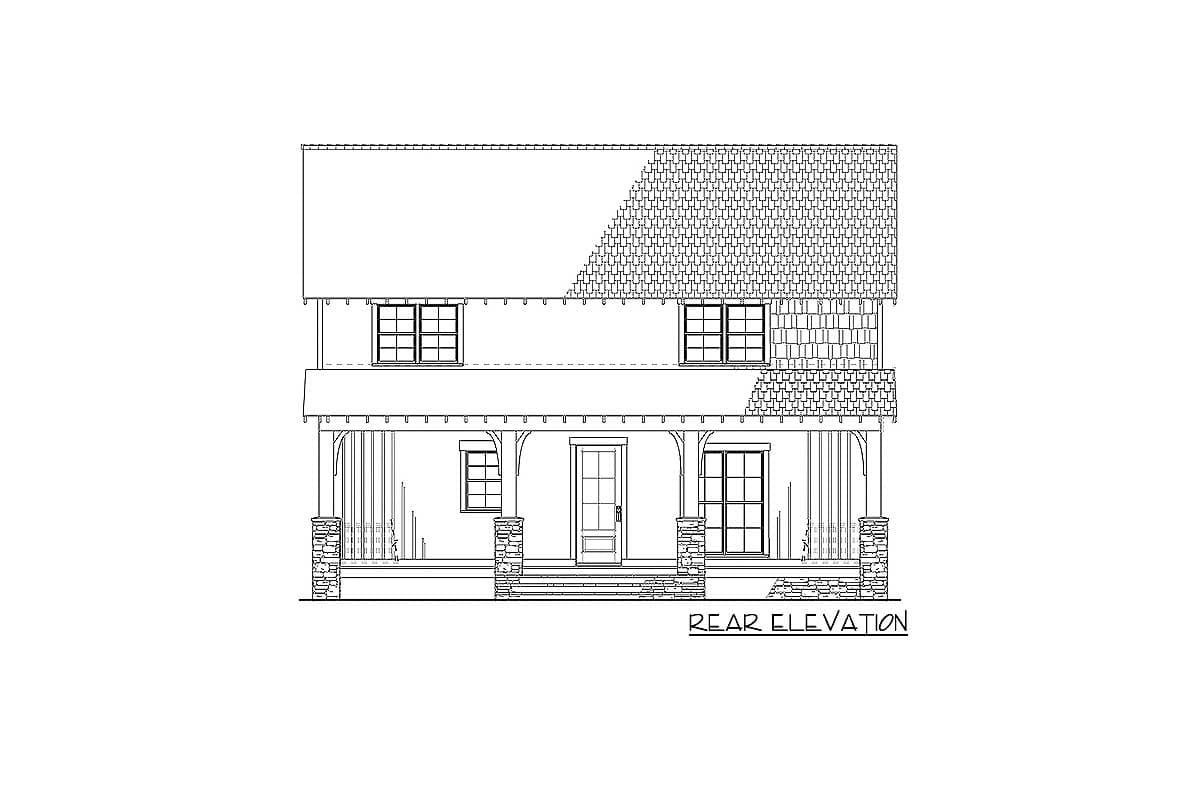

  • Identical 8'-deep covered porches in the front and rear of the home give plenty of out door living space to enjoy.
  • A semi-open floor plan allows the great room and dining room flow together while the kitchen has a space of its own connected to the dining room.
  • The master suite is complete with a spacious bedroom, large closet and bathroom with a double vanity.
  • Upstairs, the sleeping loft over looks the great room below and 2 bedrooms and a bath are located on the right.
  • Related Plan: Get an alternate version with house plan 70808MK.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,764 sq. ft.

1st Floor

1,064 sq. ft.

2nd Floor

700 sq. ft.

Porch, Combined

608 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

38' 0"

Depth

44' 0"

Max Ridge Height

28' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

Country

Farmhouse

Mountain

Rustic

Vacation

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor

Two Story Great Room

Square Footage Breakdown

Total Heated Area

1,764 sq. ft.

1st Floor

1,064 sq. ft.

2nd Floor

700 sq. ft.

Porch, Combined

608 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

38' 0"

Depth

44' 0"

Max Ridge Height

28' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

Country

Farmhouse

Mountain

Rustic

Vacation

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor

Two Story Great Room
